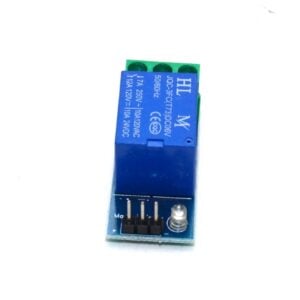

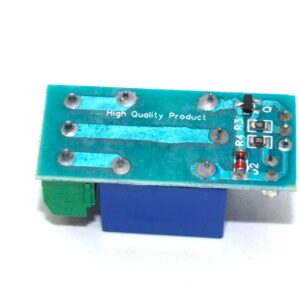

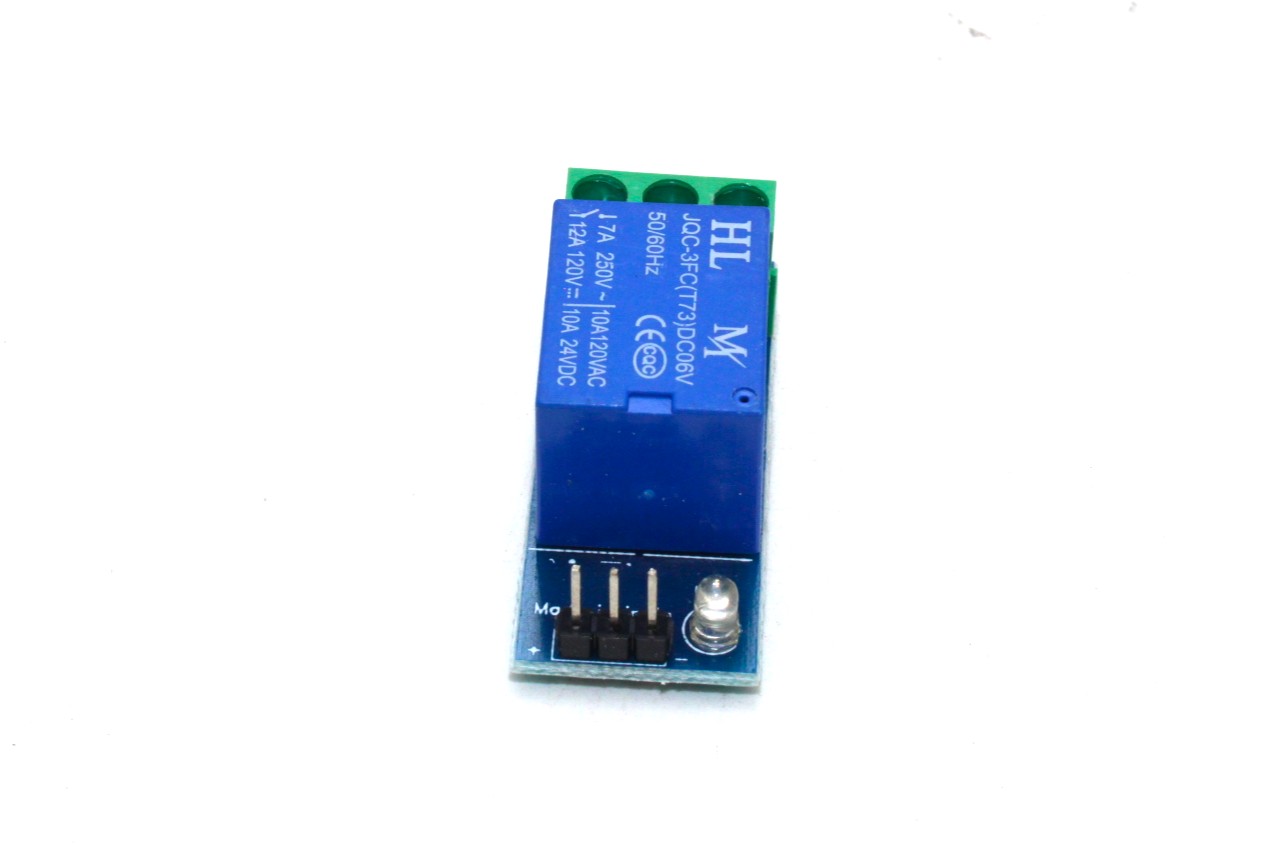

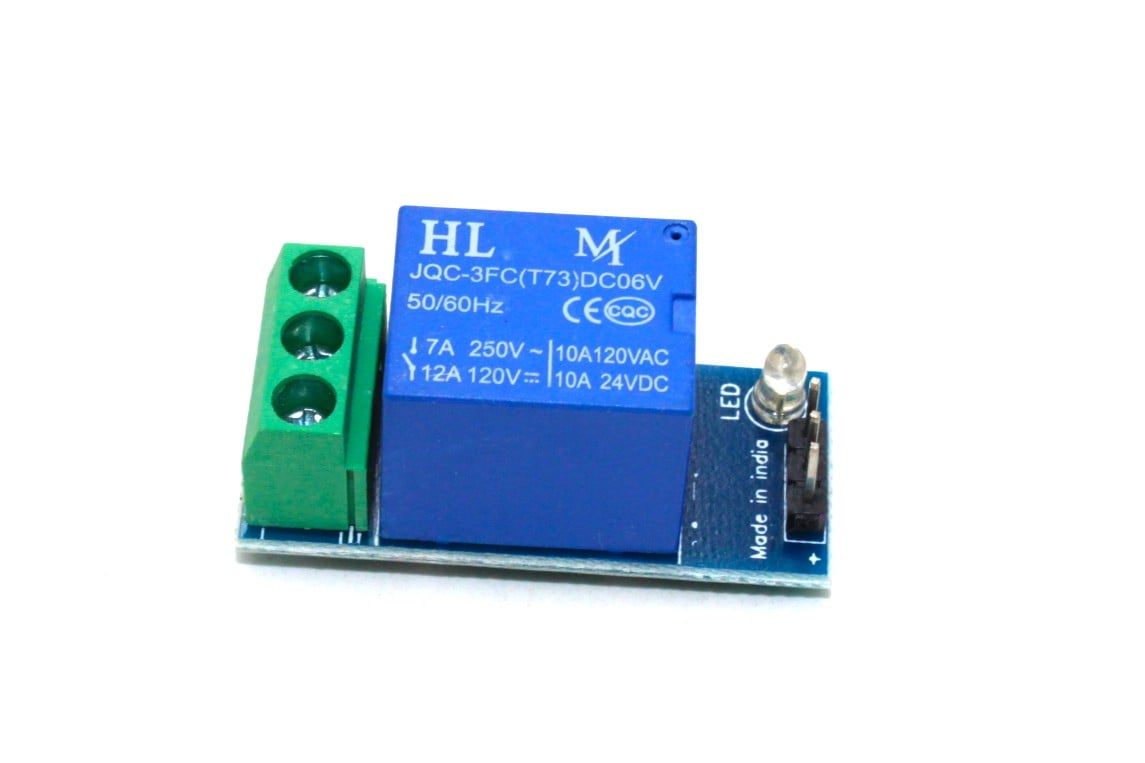

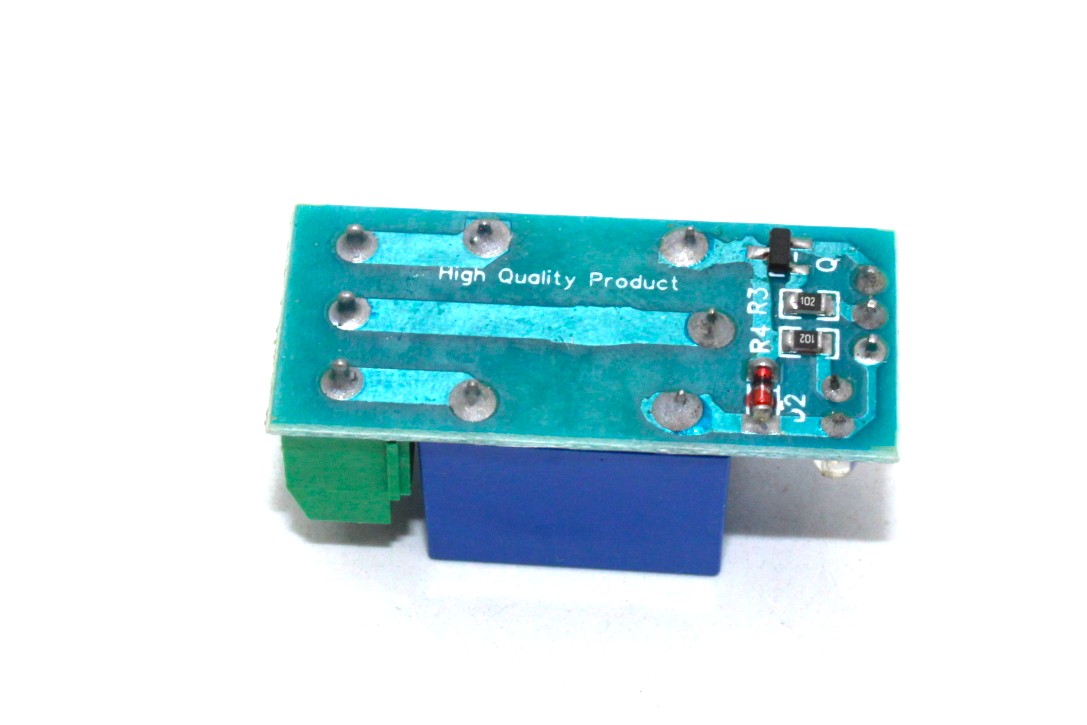

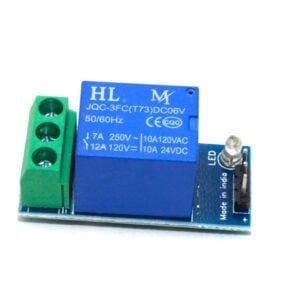

5V Single Channel Relay Module (Made In India)

This 5V 1A Relay Module is a versatile electromagnetic switch capable of controlling both AC and DC loads. When the coil inside is energized with a small current, it triggers the relay to switch a high current circuit ON or OFF. The module comes with PCB screw terminals, making it easy to connect directly to your circuits.

Ideal for a range of applications, this relay module is commonly used in home automation systems to control appliances, in electronic circuits for switching tasks, and in safety circuits to disconnect or connect heavy loads during emergencies. It is also widely applied in automotive systems, such as activating windscreen wipers, power windows, fuel pumps, and cooling fans.

Input and output connection:

1. 3 input male header pin
2. Pin configuration is +,in,-
3. Output or switching pins are NO, CM, NC.
4. Input voltage is 5V
5. Operating current 50mA
6. Output capacity is 250v,7A ,120v 12A or 24VDC,10A
7. Provided Input signal should be negative.

Package Includes

• 1 × Single Channel 5V Relay Module – Made in India
