PRODUCT DESCRIPTION

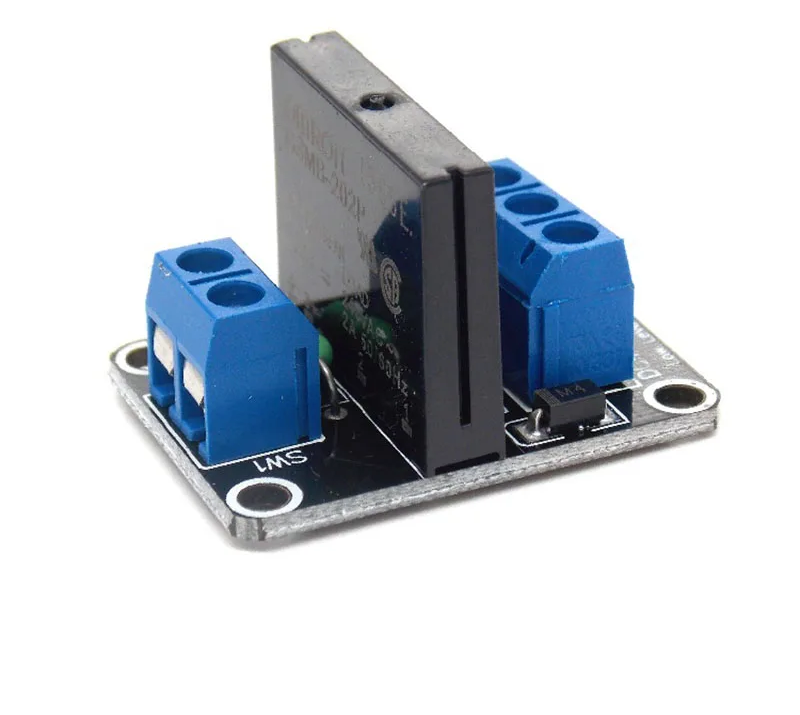

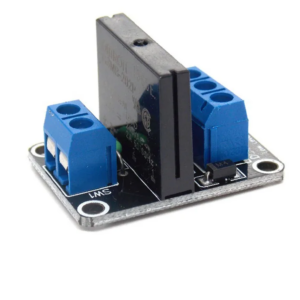

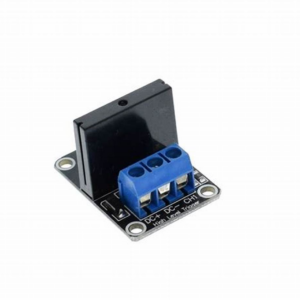

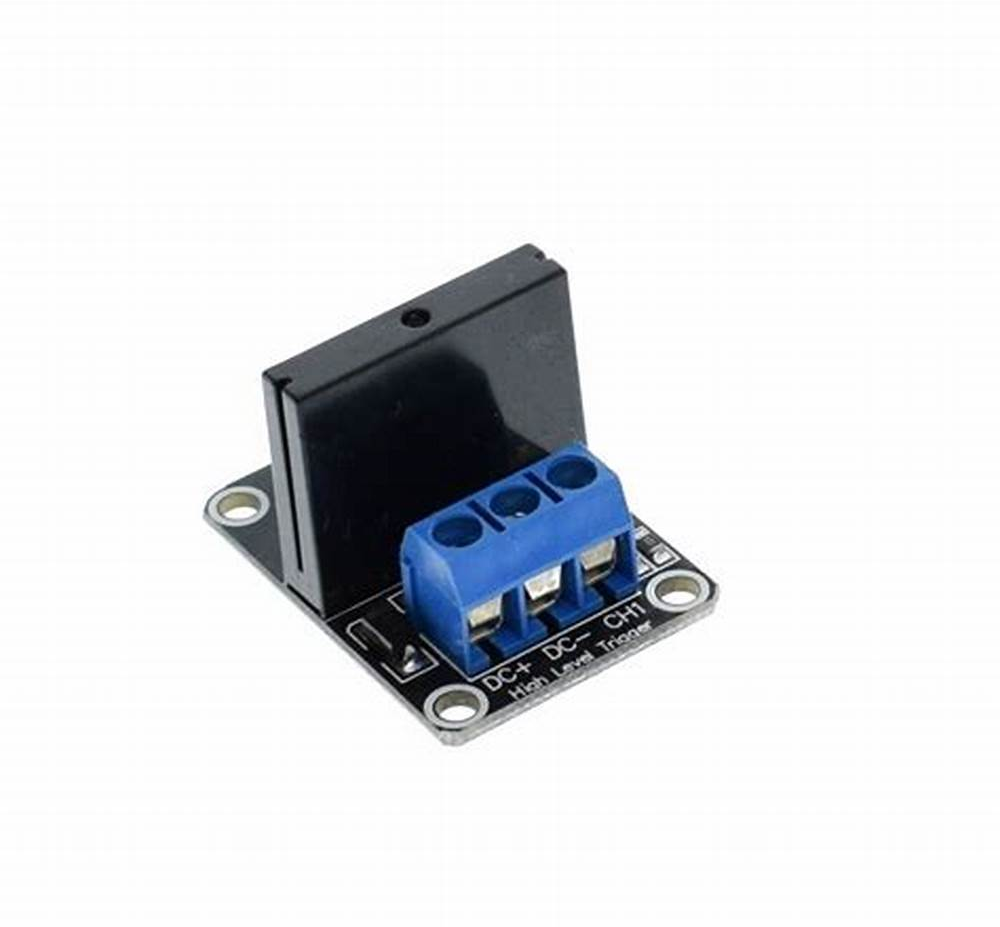

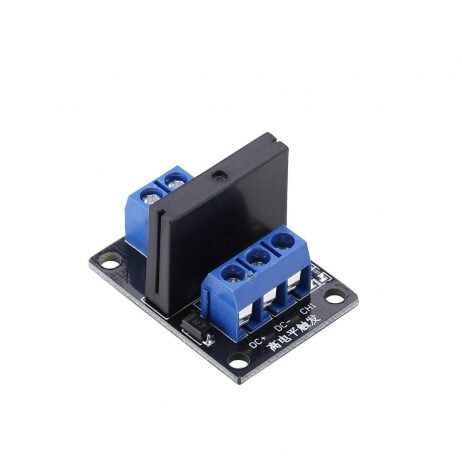

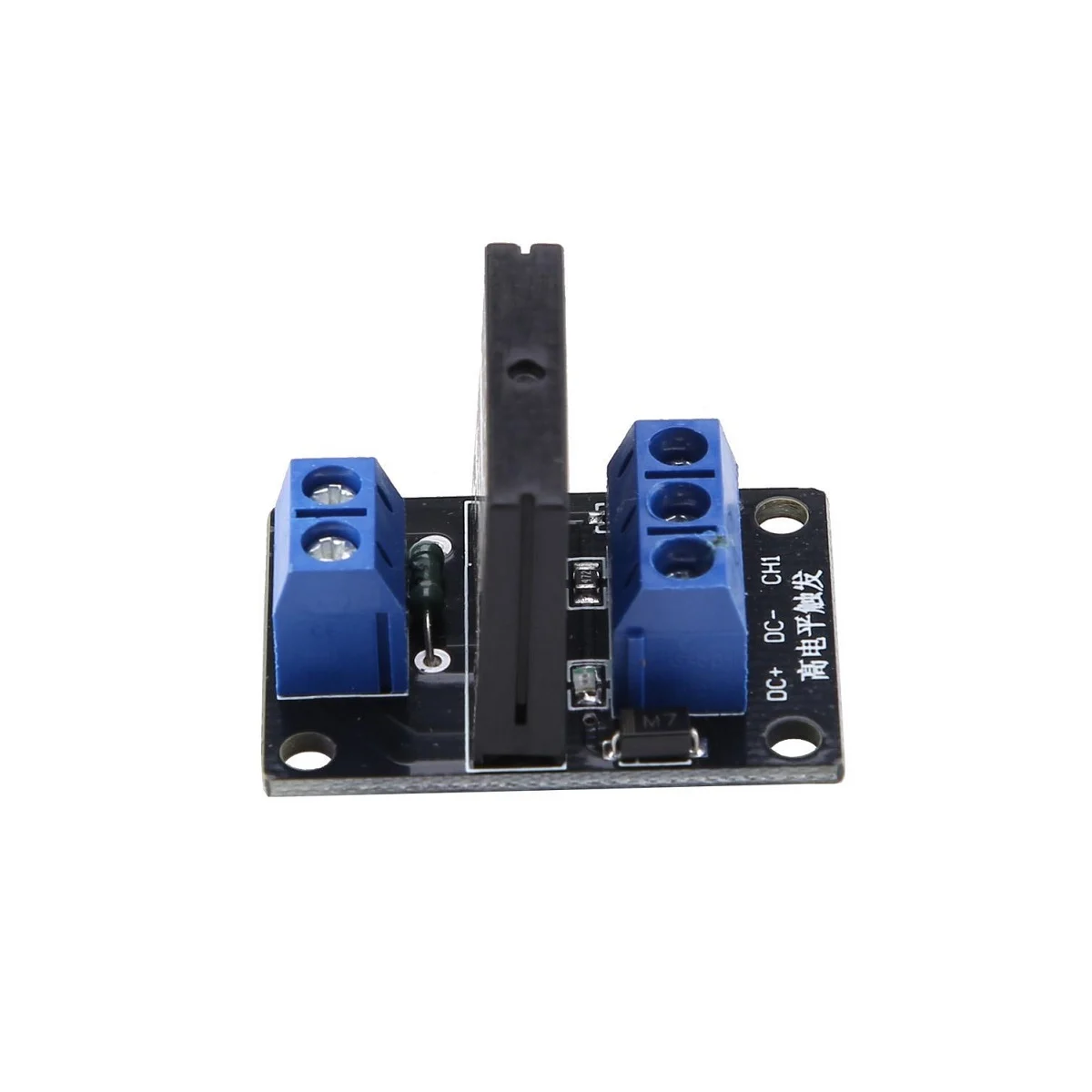

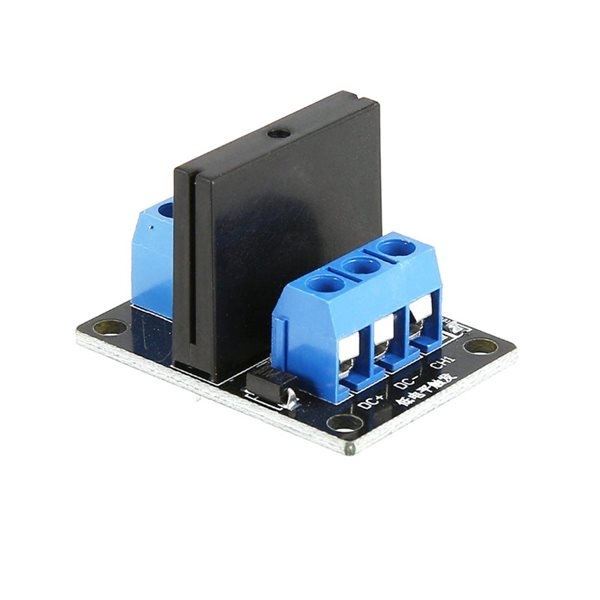

The Ingenex 3-24VDC 50V is a solid state relay with a 2A capacity, featuring a resistance-type fuse rated at 50V 2A for the output. This relay module operates based on an input signal voltage ranging from 0 to 24V. It remains OFF when the signal voltage is between 0 and 2.5V (low-level state) and turns ON when the signal voltage is between 3 and 24V (high-level state).

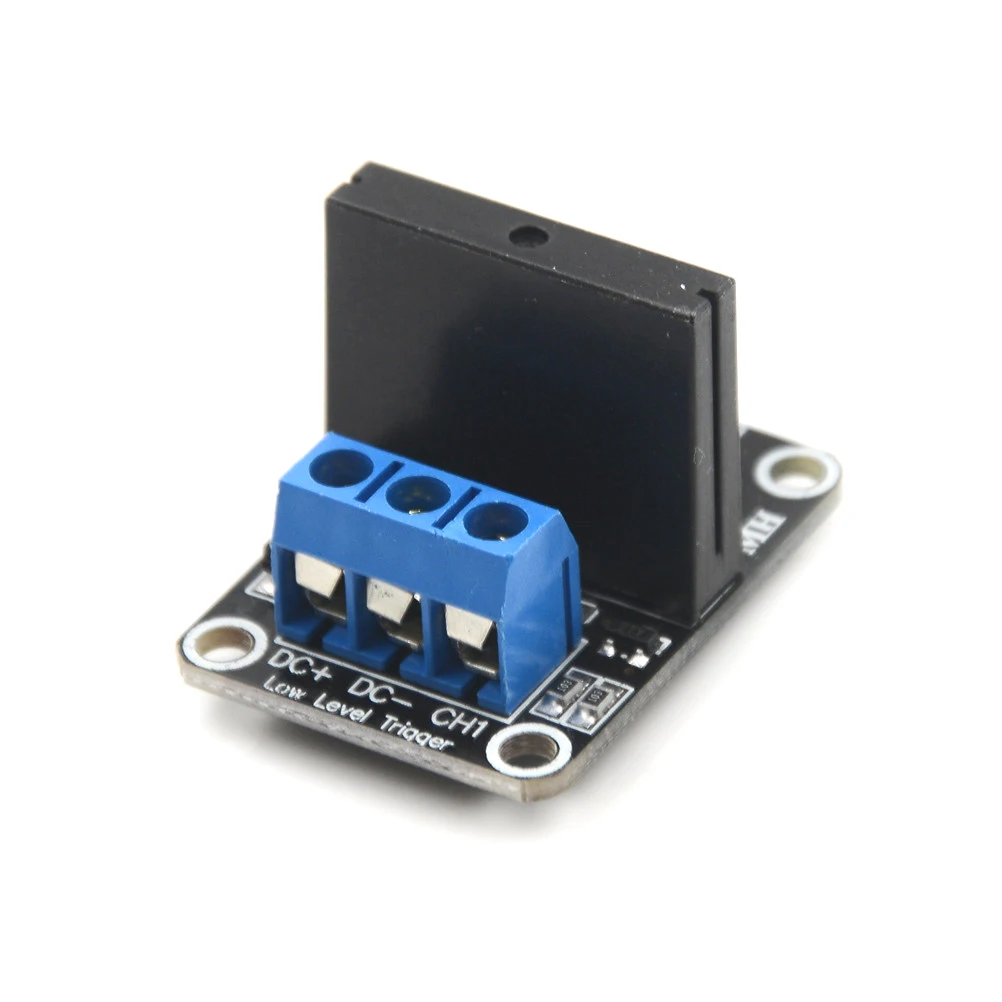

A low-level trigger activates the relay when there is no voltage difference between the trigger terminal and the power supply’s negative terminal, or when the trigger terminal voltage is less than the power supply’s positive terminal voltage. To enable this mode, the power supply’s negative terminal must be connected to the trigger terminal, which switches the relay ON.
The blue KF301 terminal is used for connecting the control line.
Specification:
| Operating Voltage (VDC) | 3 ~ 24 |
|---|---|
| Supply Current (A) | 2mA |
| Switching Voltage (VAC) | 50@2A |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Shipping Weight | 0.011 kg |
| Shipping Dimensions | 8 × 7 × 1 cm |
Package Includes:
1 x 1 Channel 3-24V Relay Module Solid State Low-Level SSR DC Control DC with Resistive Fuse
