This is the 24V variant of the 1 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse in Relay Modules. Available at Original price was: ₹142.78.₹103.84Current price is: ₹103.84. (₹88.00 + GST) with free shipping across India.

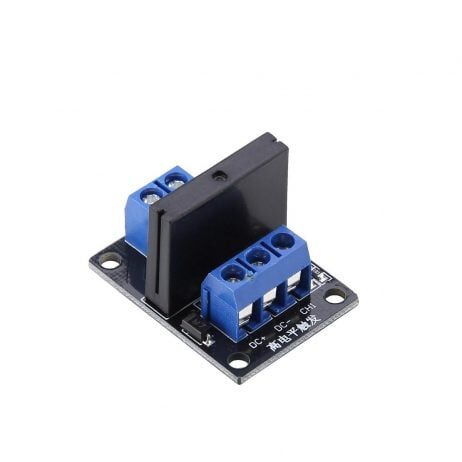

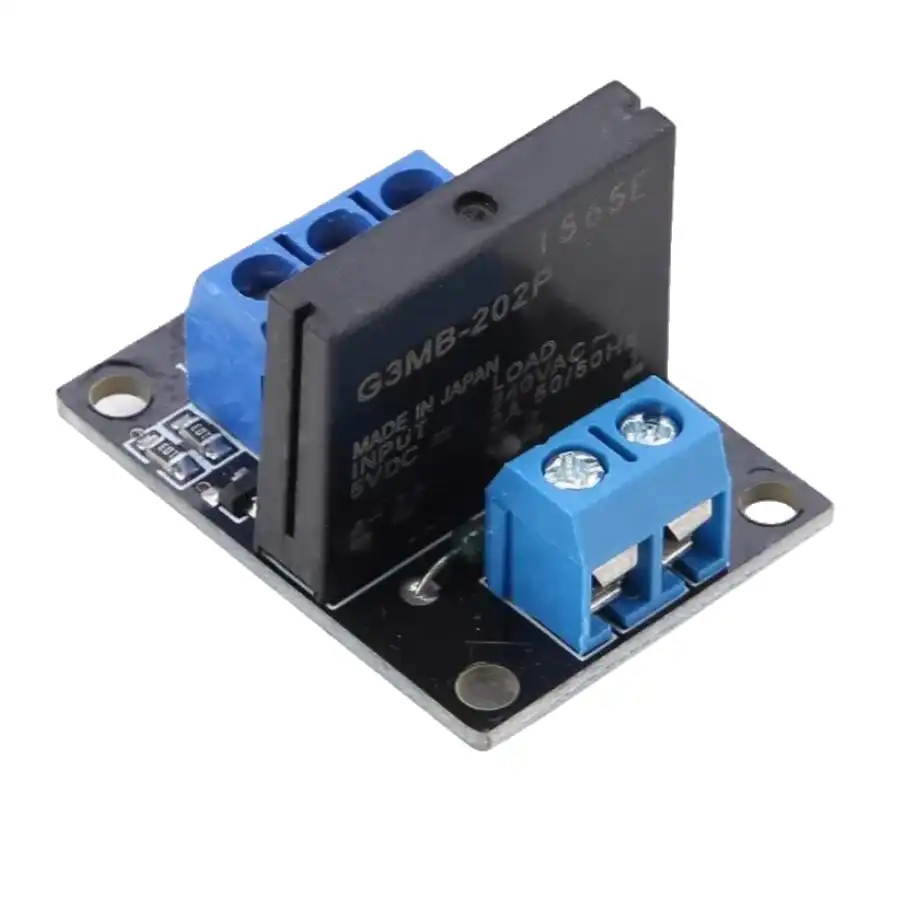

1 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
Upgrade your control system with the Ingenex 3-24VDC Solid State Relay, offering reliable switching for low-voltage DC loads. This SSR features a robust design with a 2A output capacity and a resistance-type fuse for added protection, ensuring safe and efficient operation in various applications.
Features:
- Solid State Relay Technology: Utilizes advanced solid-state relay technology, providing seamless switching without the need for moving parts, ensuring reliability and durability.
- Wide Voltage Range: Compatible with input voltages ranging from 3V to 24V DC, allowing for flexible integration into various control systems.
- High Load Capacity: Supports a load of up to 2A at 50V DC, making it suitable for a wide range of low-voltage DC applications.
- Input Control Signal Voltage: Accepts a control signal voltage range of 0-24V DC, with a high-level trigger signal between 3-24V and a low-level trigger signal below 2.5V, offering versatile control options.
- Resistance-Type Fuse: Equipped with a resistance-type fuse for added protection against overcurrent and short circuits, enhancing the safety and reliability of the relay.
- Trigger Modes: Supports high-level trigger mode, where the relay is energized when the trigger terminal (IN) receives a positive voltage signal relative to the negative power supply.
- Blue KF301 Terminal: Features a blue KF301 terminal for easy connection to control lines, providing convenience during installation and setup.
Enhance your control capabilities with the Ingenex 3-24VDC Solid State Relay, offering reliable switching performance and versatile applications for your projects. Whether you’re controlling DC motors, lighting systems, or other equipment, this SSR provides a dependable solution for your control needs.
Specification:
| Operating Voltage (VDC) | 3 ~ 24 |
|---|---|
| Supply Current (A) | 2mA |
| Switching Voltage (VAC) | 50@2A |
| Operating Temperature (°C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | – 65 to 125 |
| Shipping Weight | 0.011 kg |
| Shipping Dimensions | 10 × 7 × 3 cm |
Package Includes:
1 x 1 Channel 3-24V Relay Module Solid State High-Level SSR DC Control DC with Resistive Fuse
IoT Power Management: Battery Runtime Calculator for ESP32
IoT Power Management: Battery Runtime Calculator for ESP32 Effective IoT power management and battery runtime calculation for ESP32...
Read More →
Troubles with ESP32 Boot Loops: How to Diagnose and Fix
An ESP32 boot loop fix is something every maker eventually needs. You flash your code, the board restarts,...
Read More →
ESP32 Camera Streaming: MJPEG Video to Browser Tutorial
ESP32 camera streaming MJPEG video to a browser is one of the most impressive demonstrations of what a...
Read More →Technical Specifications
| Channels | 1-channel |
|---|---|
| SKU | AI3154 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 1 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
