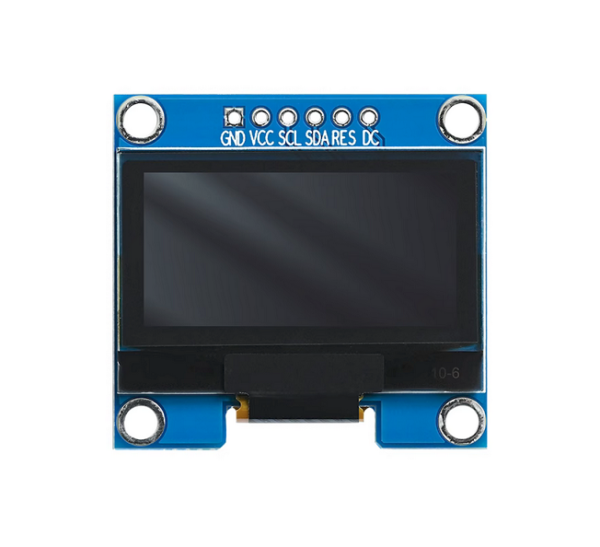

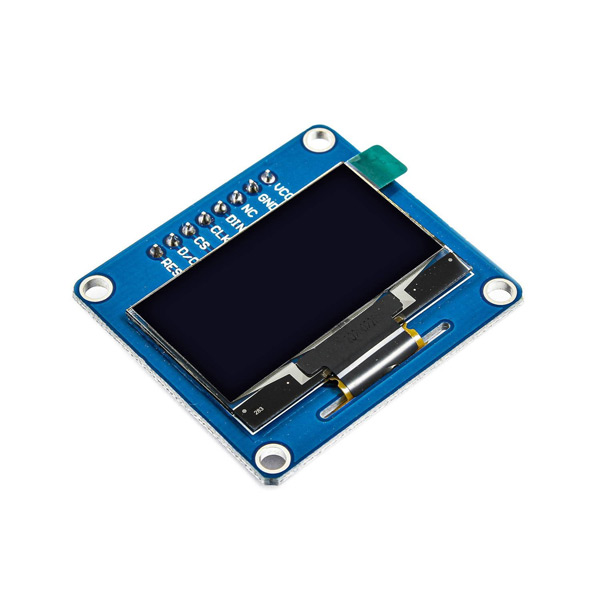

1.3Inch SPI OLED LCD Module 6pin (with GND VCC) White SH1106 Chip

Description:

The 1.3-inch SPI OLED LCD Module featuring a 6-pin interface, inclusive of GND and VCC, alongside the SH1106 Chip, serves as a compact display module commonly employed in various electronics projects and do-it-yourself endeavors. With an OLED display type, it boasts advantages such as high contrast, wide viewing angles, and low power consumption compared to conventional LCD displays. Its small 1.3-inch diagonal screen size caters to space-constrained applications. Employing the SPI communication interface ensures swift and efficient data exchange between the microcontroller and the display. Supported by the SH1106 chip, it typically maintains a resolution of 128×64 pixels, rendering text and graphics in a white color scheme against a black backdrop. Requiring connections for both Ground (GND) and Voltage (VCC), typically operating at 3.3V or 5V, depending on application specifications, this module finds utility in wearable devices, small gadgets, prototyping projects, and embedded systems. Its versatility extends to displaying sensor data, system status, or user interface elements, with seamless integration facilitated by the SPI interface and compatible libraries or software drivers. Overall, the 1.3-inch SPI OLED LCD Module with the SH1106 Chip presents a compact, adaptable, and energy-efficient display solution for diverse electronic applications.

Features:

• Compact Size: With a 1.3-inch diagonal screen size, it’s suitable for applications where space is limited.
• OLED Display: Offers high contrast, wide viewing angles, and low power consumption compared to traditional LCD displays.
• SPI Interface: Utilizes the Serial Peripheral Interface for fast and efficient communication with microcontrollers.
• Resolution: Typically supports a resolution of 128×64 pixels, providing clear and crisp text and graphics.
• White Color Scheme: Displays content in white against a black background, offering a sharp and distinct visual appearance.
• SH1106 Chipset: Drives the OLED panel and manages display functionalities, ensuring reliable performance.
• Versatility: Suitable for a wide range of applications including wearable devices, small gadgets, and embedded systems.
• Power Requirements: Requires connections for both Ground (GND) and Voltage (VCC), typically operating at 3.3V or 5V.
• User Interface: Capable of displaying text, graphics, and simple animations, making it useful for displaying sensor data, system status, or user interface elements.
• Integration: Can be easily integrated into existing circuits or microcontroller projects using available SPI libraries or software drivers compatible with the SH1106 chipset.

Specification:

• Working voltage: 3.3V-5V
• Size: 1.3-inch OLED
• Material: PM OLED
• Resolution: 128*64
• Interface type: SPI, IIC
• Control chip: SH1106.

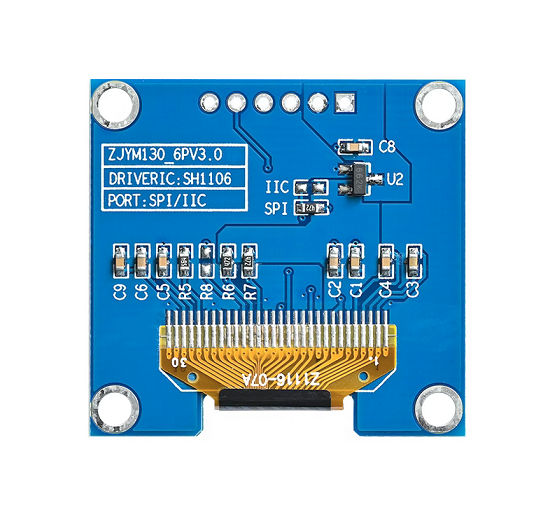

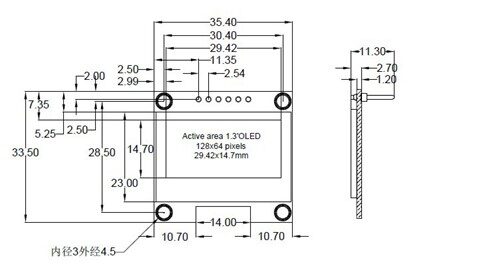

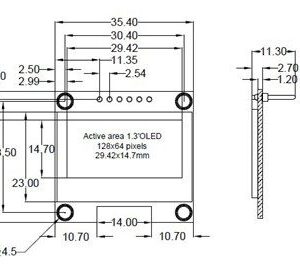

• Display area: 29.42*14.7mm
• Module size: 35.4*33.5mm
• Pixel pitch: 0.23*0.23mm
• Pixel size: 0.21*0.21mm
• Number of pins: 6
• Viewing direction: full view
• Working temperature: -40~70 degrees

SPI interface definition

1. GND: power ground wire
2. VCC: positive pole of power supply
3. SCL: SPI clock line
4. SDA: SPI data line
5. RST: Display reset
6. DC: Data command selection pin

Package Include:

1 x 1.3Inch SPI OLED LCD Module 6pin (with GND VCC) White SH1106 Chip

1.3Inch SPI OLED LCD Module 6pin (with GND VCC) White Overview

The 1.3-inch SPI OLED LCD Module with a 6-pin interface and SH1106 driver is a compact white-on-black display designed for microcontroller projects. It delivers high contrast, wide viewing angles, and low power consumption in a slim form factor ideal for space-constrained applications.

Key Features of 1.3Inch SPI OLED LCD Module 6pin (with GND VCC) White

• 1.3-inch PM OLED display with crisp 128×64-pixel resolution
• Works from 3.3 V to 5 V, compatible with most development boards
• 6-pin interface includes GND, VCC, SCLK, MOSI, DC and CS for SPI communication
• Also supports I²C mode via the same pins when wired accordingly
• Driven by the SH1106 chip for reliable graphics and text rendering
• Genuine module with fast shipping from Zbotic.in across India

Applications and Use Cases

• Arduino and Raspberry Pi status displays for sensor data
• Custom handheld meters and portable measurement tools
• Wearable electronics projects requiring low-power screens
• 3D printer or CNC controller interface panels
• Home automation panels showing temperature, humidity, time
• Embedded system prototypes and product demos

How to Use 1.3Inch SPI OLED LCD Module 6pin (with GND VCC) White

Connect VCC to a 3.3 V–5 V supply and GND to ground, then wire SCLK, MOSI, DC and CS to your microcontroller’s SPI pins. Install an SH1106 driver library for your platform, initialize the display in setup(), and use provided draw routines to render graphics or text on the 128×64 pixel canvas.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I use I²C instead of SPI with this OLED module?

Yes. Although wired by default for SPI, you can repurpose the MOSI and SCLK pins for SDA and SCL respectively. Adjust the wiring and initialize your SH1106 library in I²C mode.

What supply voltage is required for the display?

This OLED module accepts any supply between 3.3 V and 5 V. Simply connect VCC to your board’s 5 V or 3.3 V rail and GND to common ground.

Is the module compatible with Arduino Uno?

Absolutely. Wire the OLED’s SPI pins to the Uno’s MOSI (D11), SCLK (D13), CS (D10), DC and RST if used. Then install an SH1106 Arduino library to begin rendering text and graphics.
