This is the White variant of the 0.96 Inch I2C/IIC 4-Pin OLED Display Module -WHITE in OLED Display. Available at ₹219.48 (₹186.00 + GST) with free shipping across India.

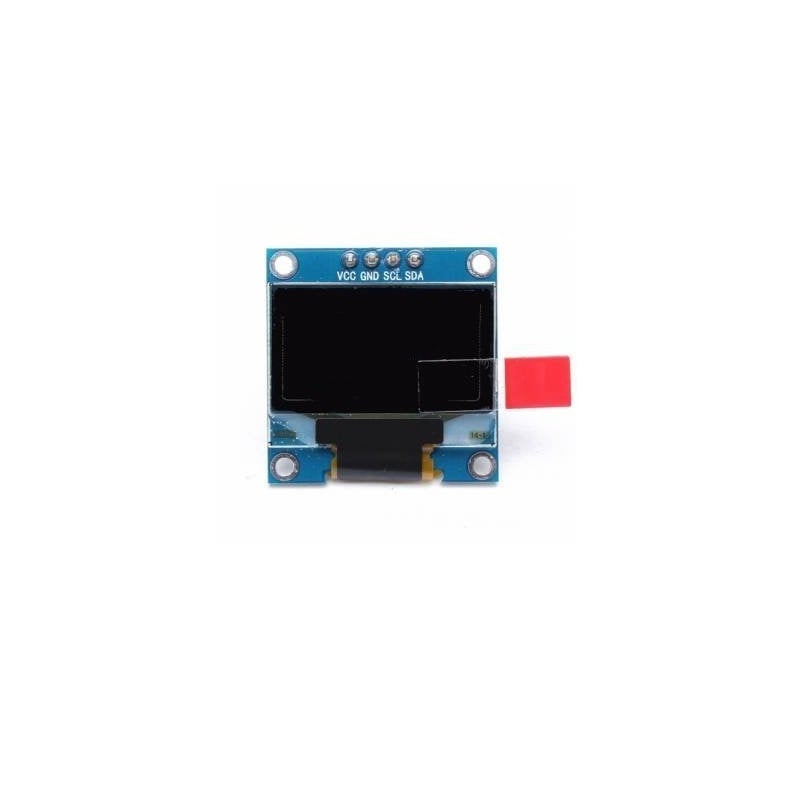

0.96 Inch I2C/IIC 4-Pin OLED Display Module -WHITE
Introducing the 0.96 Inch I2C/IIC 4-Pin OLED Display Module in White, a compact and versatile OLED monochrome display module with a resolution of 128×64 dots and an I2C interface. This display module is perfect for applications where a small yet high-quality display is needed. Compared to LCD screens, OLED displays offer several advantages including high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption.
This OLED display module is compatible with any 3.3V-5V microcontroller, such as Arduino, making it easy to integrate into your projects. With its 4-pin interface (GND, VCC, SCL, SDA), it can be easily connected and controlled.
Pin Definition:
GND: Power ground
VCC: Power positive
SCL: Clock wire
SDA: Data wire
Specifications:
Display Area
21.74 x 10.86mm
Driving Voltage
3.3-5V
Operating Temperature
-40º~70º Celsius
Interface Type
IIC
Pixel Color
White
Length (mm)
27
Width (mm)
27
Height (mm)
6
Weight (gm)
5
Enhance your projects with the crisp and clear display offered by the 0.96 Inch I2C/IIC OLED Display Module, suitable for a wide range of applications.
The 0.96 Inch I2C/IIC 4-Pin OLED Display Module -WHITE is a versatile oled display used across a wide range of applications including wearable electronics, IoT sensor readouts, small embedded displays, DIY clocks and meters, and battery-powered gadgets.
Common use cases:
Displaying temperature/humidity on an Arduino project
Building a DIY smartwatch
Adding a status display to a custom PCB
This product is ideal for makers, Arduino/ESP32 developers, and electronics hobbyists.
Technical Tip: OLED displays consume power per-pixel — black pixels use zero power, making them ideal for battery-powered projects with sparse displays.
