This is the Blue variant of the Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128*160 in Display for Arduino. Available at ₹277.30 (₹235.00 + GST) with free shipping across India.
Product Description
If you want to add a small, colorful, and bright display to any project, this display breakout is the perfect choice. It uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, so it works with any microcontroller, even the ones with low memory and few pins.

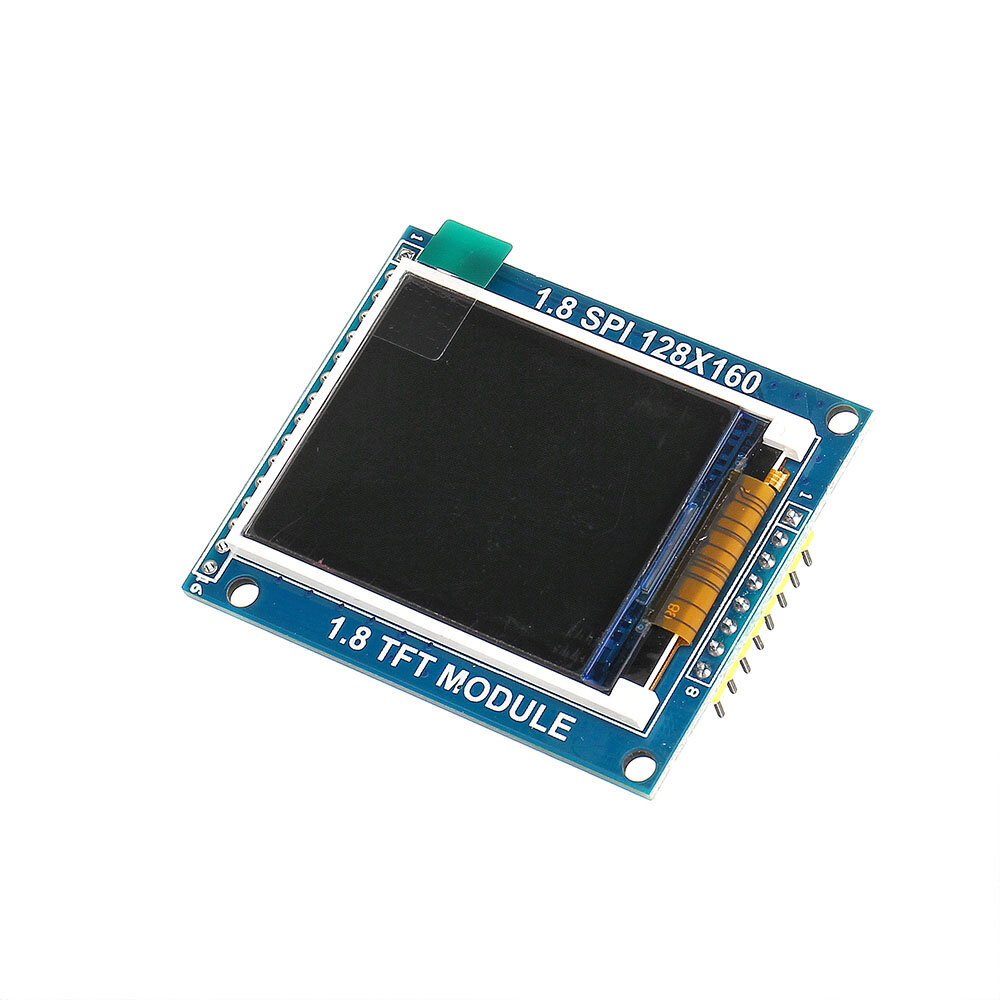

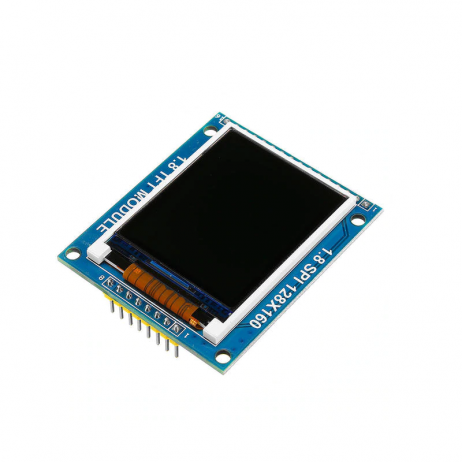

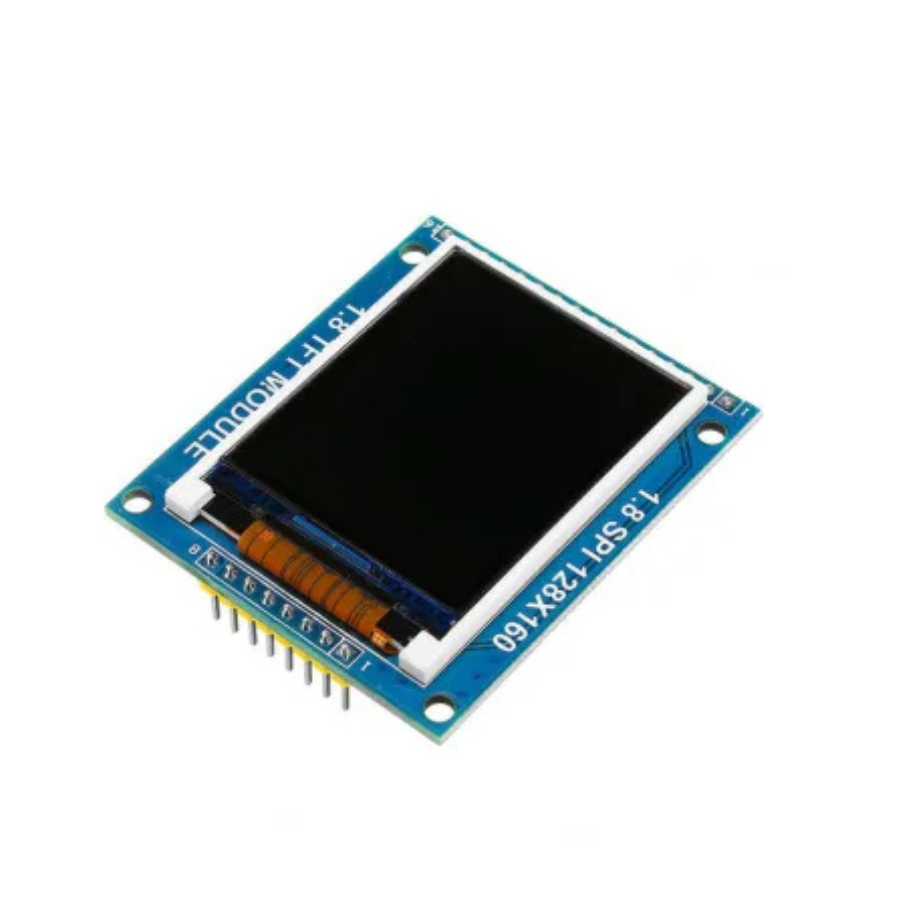

The display is 1.8 inches and has 128×160 color pixels. It is a true TFT display, unlike the cheap “Nokia 6110” and similar LCD displays that have poor color and slow refresh. The TFT driver (ST7735R) can show full 18-bit color (262,144 shades!).
You don’t have to worry about compatibility issues, because the 1.8 Inch SPI 128×160 TFT LCD Display Module always uses the same driver chip.

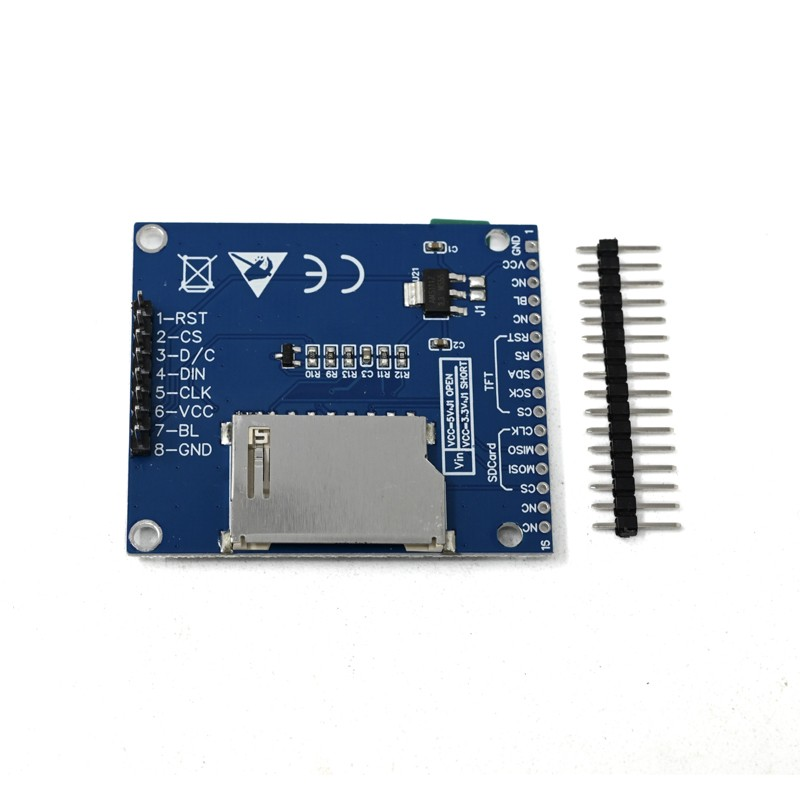

The breakout comes with the TFT display soldered on (it has a delicate flex-circuit connector), as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter, so you can use it with 3.3V or 5V power and logic.
It also has a microSD card holder, so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card.
For more displays click below,
LED/LCD Display

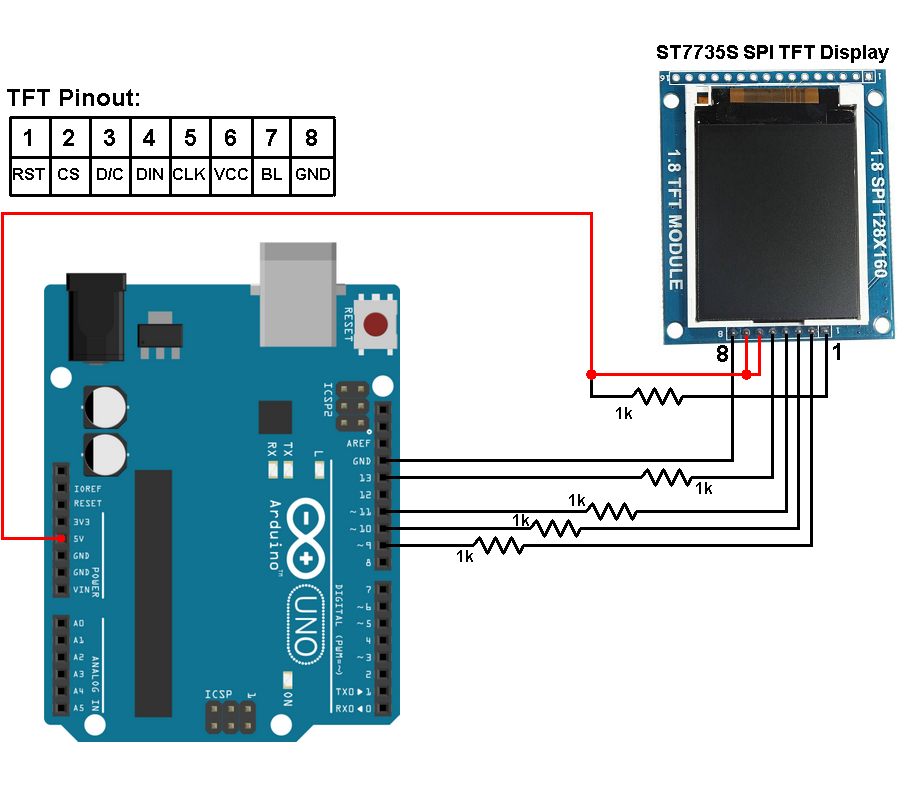

Connection Diagram:
Features :
- Compatible with the 3.3/5V operation voltage level.
- It comes with an SD card socket.
- Features Backlight Control Circuit
- SPI Serial bus-only require 4 IO least
- Compatible with QD-UTFT library for Arduino
Package Include:
1 x Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128*160
Arduino Multiplexer CD4051: Expand Analog Inputs
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino Bidirectional Visitor Counter with IR Sensors
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
ATmega328P vs ATmega2560: Choosing an AVR Microcontroller
Table of Contents Overview: Two Workhorses of the AVR Family Head-to-Head Specifications Flash, SRAM, and EEPROM Compared I/O...
Read More →Technical Specifications
| Model | ST7735 |
|---|---|
| Display Size | 1.8" |
| Color | Blue |
| SKU | AI2421 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The Blue 1.8 Inch ST7735 TFT LCD Module with 4 IO 128*160 is a versatile display for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
