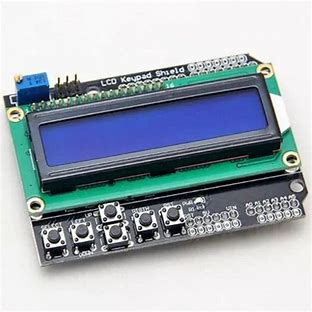

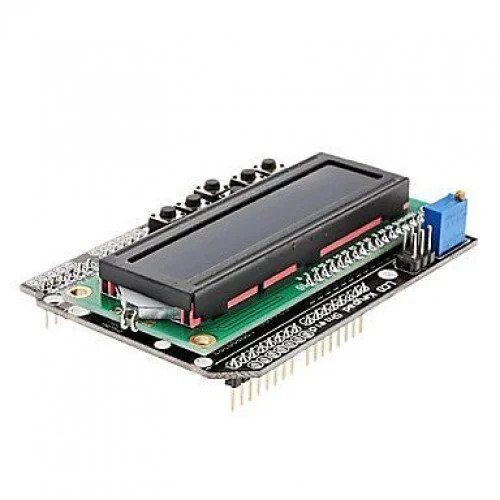

16×2 (1602) LCD Keypad Shield – Blue Backlight for Arduino
- The LCD Keypad shield is developed for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc.
- It consists of a 1602 white character blue backlight LCD.
- The keypad consists of 6 keys select, up, right, down, left and reset.
- To save the digital IO pins, the keypad interface only uses one ADC channel.
- The key value is read out through a 5 stage voltage divider.
Specifications:
| Operating Voltage (VDC): | 5 |
|---|---|
| Push Buttons | 5 |
| Reset Button | YES (Separate) |
| LCD Model | 1602 |
| Characters | 16 |
| Character Color | White |
| Backlight | Blue |
| Shield PCB Dimensions (mm) | 80×58 |
| Total Height (mm) | 26 |
| Weight (g): | 45 |
Pin Connections:-
Pin Function
Analog 0 Buttons (select, up, right, down and left)
Digital 4 DB4
Digital 5 DB5
Digital 6 DB6
Digital 7 DB7
Digital 8 RS (Data or Signal Display Selection)
Digital 9 Enable
Package Includes
- 1 x 16×2 (1602) LCD Keypad Shield – Blue Backlight for Arduino
16×2 (1602) LCD Keypad Shield – Blue Backlight for Arduino Overview
The 16×2 (1602) LCD Keypad Shield features a blue backlit 2×16 character display with white text, designed to stack directly onto Arduino Uno-compatible boards. It combines a clear LCD interface with five navigation buttons and a built-in reset switch, enabling on-board user input and menu control without additional wiring.
Key Features of 16×2 (1602) LCD Keypad Shield – Blue Backlight for Arduino
- Blue LED backlight with white characters for enhanced visibility
- Five momentary push buttons (Left, Right, Up, Down, Select) on a single analog pin
- On-shield contrast adjustment potentiometer for optimal readability
- Dedicated Arduino reset button for quick reboot during development
- Operates at a standard 5V logic level, compatible with Arduino Uno
- Uses the 4-bit Arduino LCD library, saving digital I/O pins
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Interactive menu systems for DIY electronics projects
- Status display and navigation in robotics prototypes
- On-device configuration panels for home automation modules
- Real-time data readout in sensor monitoring stations
- Educational demos to teach embedded UI design
How to Use 16×2 (1602) LCD Keypad Shield – Blue Backlight for Arduino
Simply plug the shield onto your Arduino Uno headers, include the standard LiquidCrystal library in your sketch, and initialize the display in 4-bit mode on pins 4–10. Adjust the contrast potentiometer to suit ambient light, read button values via analog pin A0, and use the built-in reset switch to restart the board as needed during development.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Arduino pins are used by this shield?
The LCD operates in 4-bit mode using digital pins 4, 5, 6, 7, 8, 9 and 10, while all five push buttons are read through a single analog input (A0).
Can I adjust the display contrast and backlight?
Yes. A small potentiometer on the shield allows you to fine-tune the LCD contrast, and the backlight remains on under 5V supply for clear text visibility.
Does this shield include a reset button?
Absolutely. The shield integrates a dedicated Arduino reset switch, enabling you to reboot your board without disconnecting power.
