This is the 12V variant of the XKC-Y26 NPN 5-12V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor 50CM in Water TDS, pH, Flow, Level and Pressure Sensor. Available at ₹755.20 (₹640.00 + GST) with free shipping across India.
Product Description
This sensor is a smart device that can measure the liquid level inside a sealed container without touching it. It uses advanced signal processing technology and a high-speed chip that can ignore the thickness of the container wall. The sensor can be attached to the bottom of the container (high or low level) without drilling any holes in a non-metallic container. It is easy to install and versatile. It can detect various liquids, including toxic, acidic, and alkaline ones, even in high-pressure sealed containers. It works with any liquid medium and container material.
Applications:
- Water tower
- Sewage treatment
- Drone irrigation
- Medical equipment
- Aquarium
- Smart Appliances
Features:

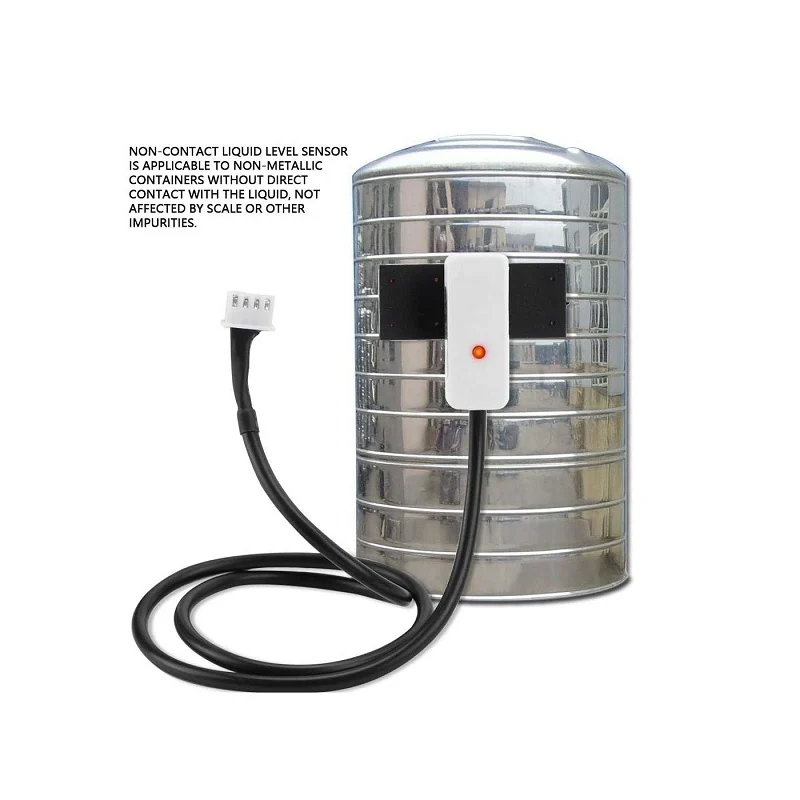

- The non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
- High stability, high sensitivity.
- Compatible with most 5 ~ 12V power adapters.
Specification:
| Input Voltage (V) | 5 to 12 |
|---|---|
| Current Consumption (mA) | 5 |
| Max Output Current (mA) | 1~100 |
| Response Time | 500mS |
| Working Humidity Range | 5~100% |
| Material | ABS |
| Cable Length (cm) | 49 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 3 × 2 × 2 cm |

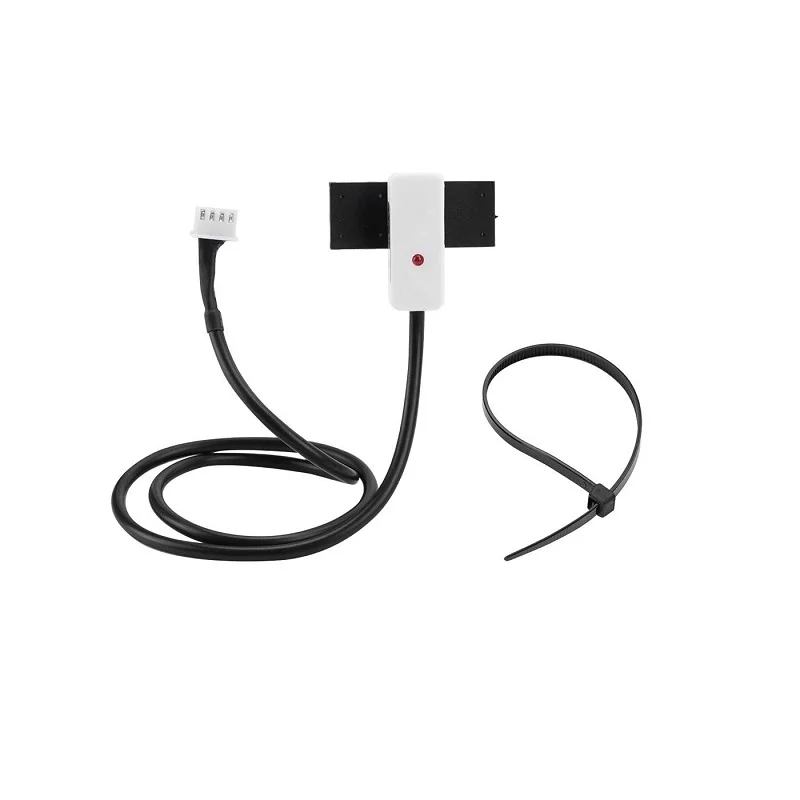

Package Includes:
1 x XKC-Y26 NPN 5-12V 50CM Intelligent Non-Contact Liquid Level Sensor Water Level Sensor
Optical Encoder vs Magnetic Encoder: Choosing for CNC
Encoders are the eyes of a CNC machine. Every servo loop, every stepper verification, every closed-loop motion system...
Read More →
Best Humidity Sensors for IoT Projects: DHT22 vs SHT31 vs HTU21D
Table of Contents Introduction Why Humidity Sensing Matters in India How Capacitive Humidity Sensors Work DHT22 (AM2302): Overview...
Read More →
Motor Current Sensing: Detect Overload and Stall Conditions
Motors are among the most common causes of electrical failures in industrial machinery, robotics, and hobbyist electronics. A...
Read More →Technical Specifications
| Model | XKC-Y26 |
|---|---|
| SKU | AI2676 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XKC-Y26 NPN 5-12V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor 50CM is a versatile water tds, ph, flow, level and pressure sensor used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
