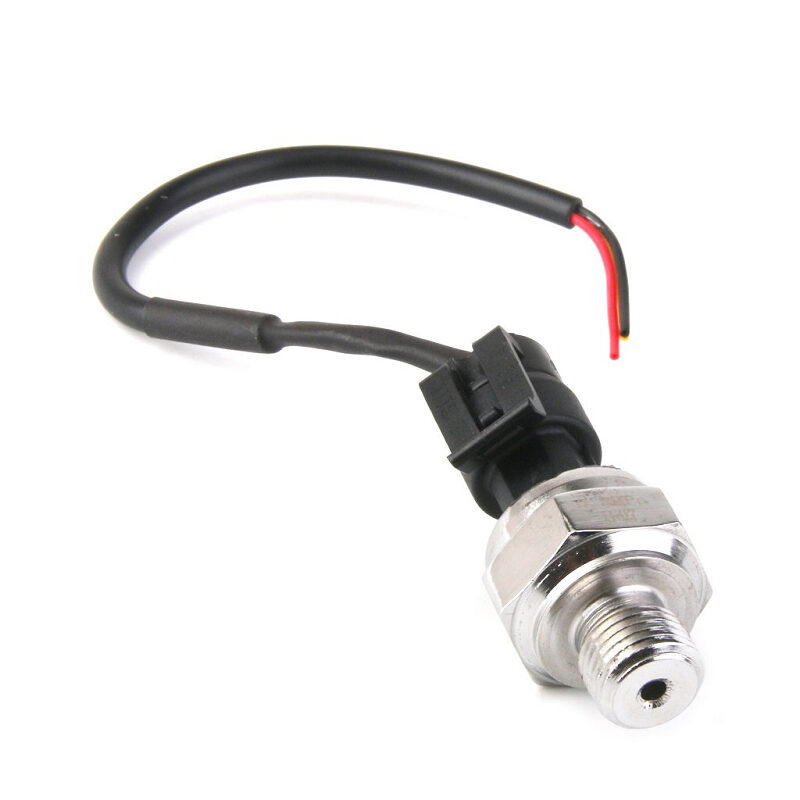

Pressure Transducer Transmitter Sensor G1/4 1.2MPa Stainless Steel
- Zbotic is proud to unveil the latest addition to its product range, the Pressure Transducer, which establishes a new benchmark in dependability and efficiency. Made from premium stainless steel, it provides outstanding strength and longevity. With a standard G1/4 thread size, its versatility extends to both air and water applications.
- Functioning at 5VDC, the transducer offers a digital output that spans from 0.5V to 4.5V, guaranteeing accurate measurements in various conditions. Renowned for its consistent performance and long service life, it is perfectly suited for applications that require dependable pressure detection solutions.
Features:
- Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.
- 0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.
- Light Weight and Small Volume, Easy to Install, and Operate.
- Stainless Steel Body, it has Complete Surge Voltage Protection Function.
Specification:
- Adopts Precision Compensation Technology
- High Accuracy Sensor
- Suitable For Gas, Liquid, Oil
- Stainless Steel Body
Applications:
- Pressure Detection in Oil Tank, Gas Tank
Package Includes:
- 1 x 1.2MPa Stainless Steel Pressure Transducer Sensor
Datasheet:
Pressure Transducer Transmitter Sensor G1/4 1.2MPa Overview
The Pressure Transducer Transmitter Sensor G1/4 1.2MPa is a stainless steel pressure transmitter that converts pressure into a precise voltage output for gas, liquid and oil systems. Its G1/4 connection and high-accuracy sensing element ensure reliable performance in industrial, hydraulic and process control applications.
Key Features of Pressure Transducer Transmitter Sensor G1/4 1.2MPa
- Precision Compensation Technology for stable, drift-free readings
- Measures up to 1.2 MPa with high accuracy and repeatability
- Operates at 5 VDC with a 0.5–4.5 V analog output for easy integration

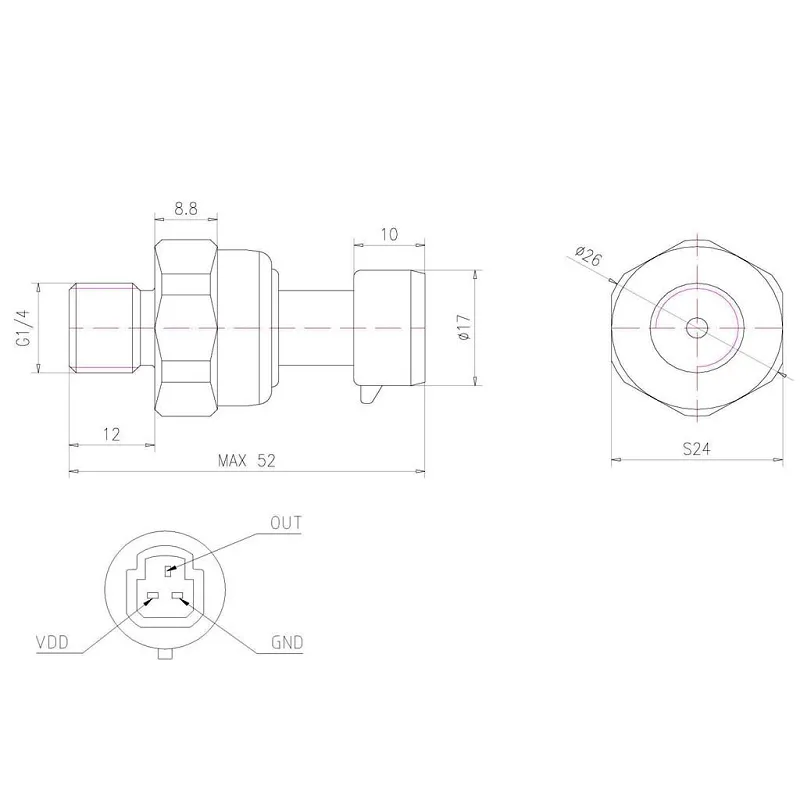

- Durable stainless steel body and G1/4 threaded port for leak-free mounting
- Compatible with gases, liquids and oils in diverse environments
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Monitoring hydraulic pressure in industrial presses and actuators
- Measuring water pressure in filtration and treatment systems
- Detecting air pressure in pneumatic control panels
- Gauging oil pressure in automotive testing and lubrication units
- Pressure feedback in HVAC chillers and refrigeration cycles
How to Use Pressure Transducer Transmitter Sensor G1/4 1.2MPa
Mount the sensor using its standard G1/4 threaded port with appropriate sealing tape, then connect the red and black leads to a 5 VDC power supply. Attach the output wire to your data acquisition system or PLC analog input, calibrate zero and full-scale readings if required, and monitor the 0.5–4.5 V signal corresponding to measured pressure.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the operating pressure range of this sensor?
This transducer accurately measures pressures from 0 to 1.2 MPa, making it suitable for medium-pressure applications.
Which voltage supply and output signal does it provide?
It operates on a 5 VDC supply and delivers a linear analog output from 0.5 V (zero pressure) to 4.5 V (full scale).
Is the sensor compatible with corrosive fluids?
With its stainless steel construction, it resists corrosion from most gases, oils and water-based fluids, though highly acidic or alkaline chemicals should be avoided.
