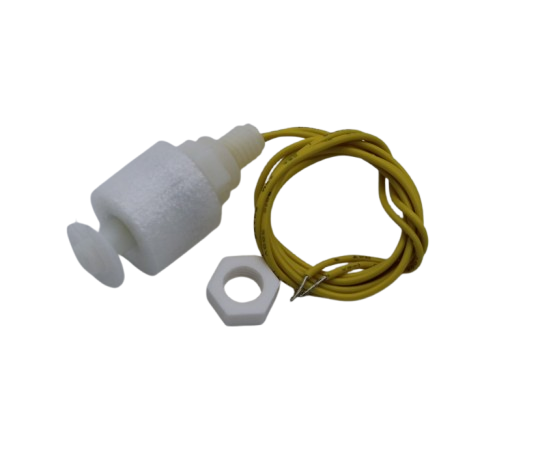

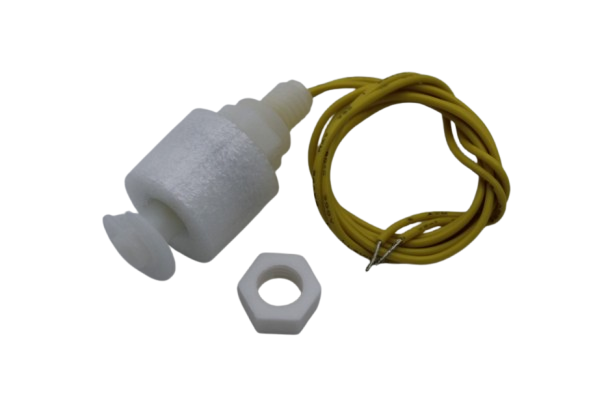

P31 Small Float Level Control Switch Plastic Float Switch
A float switch is a level sensor designed to monitor liquid levels in tanks. Its straightforward design allows for easy operation without the need for complex circuitry or external power. This switch features a mechanical mechanism that is larger than typical small switches.
When constructed from appropriate materials and shaped for specific liquids or pressures, it can also assist in temperature regulation. Float switches are utilized in various industries, including shipbuilding, power generation, petrochemicals, food processing, water treatment, textile dyeing and finishing, and hydraulic systems.
Features:
- Long-lasting life.
- Easy to use.
Specifications:
| Max. Contact Rating | 10 W |
|---|---|
| Max. Switching Voltage | 220 V |
| Max. Switching Current | 0.5 A |
| Max. Breakdown Voltage | 220 VDC |
| Max. Carry Current | 1 A |
| Max. Contact Resistance | 100 mΩ |
| Temperature Rating(˚C) | -10 ~ 60 |
| Float Ball Material | P.P. |
| Float Body Material | P.P. |
| Length of Body (mm) | 43 |
| Outer diameter (mm) | 20 |
| Cable Length (cm) | 35 |
| Weight (gm) | 10 |
Package Includes:
1 x P31 Small Float Level Control Switch Plastic Float Switch.
