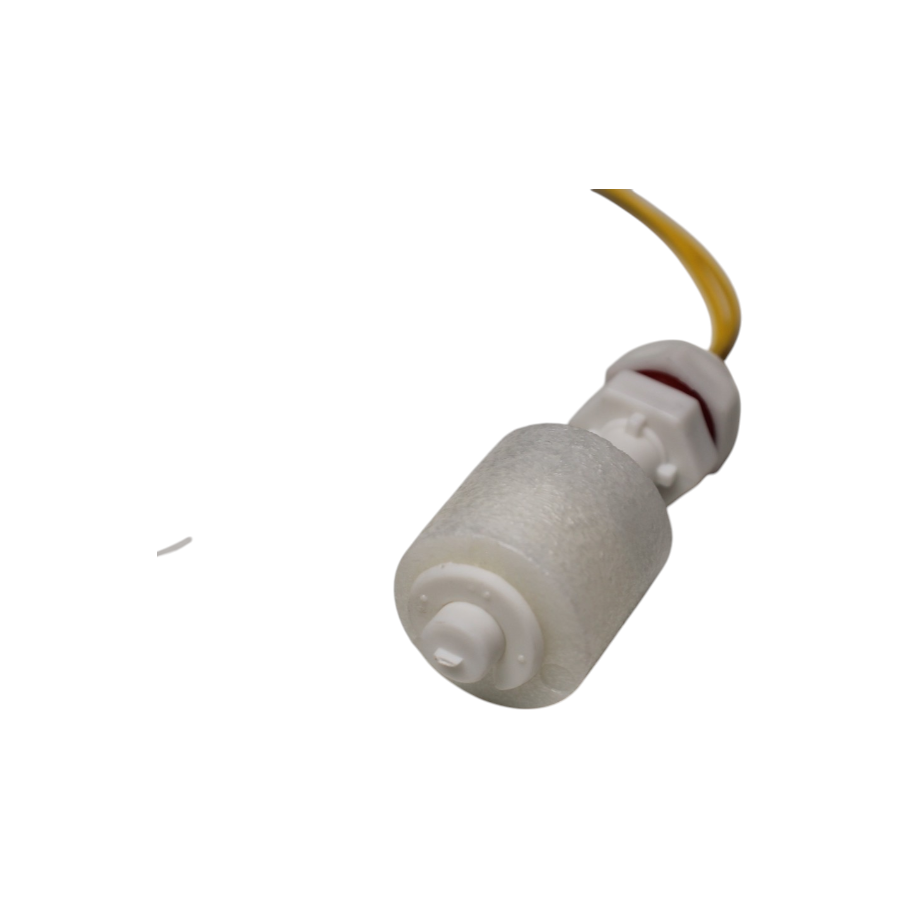

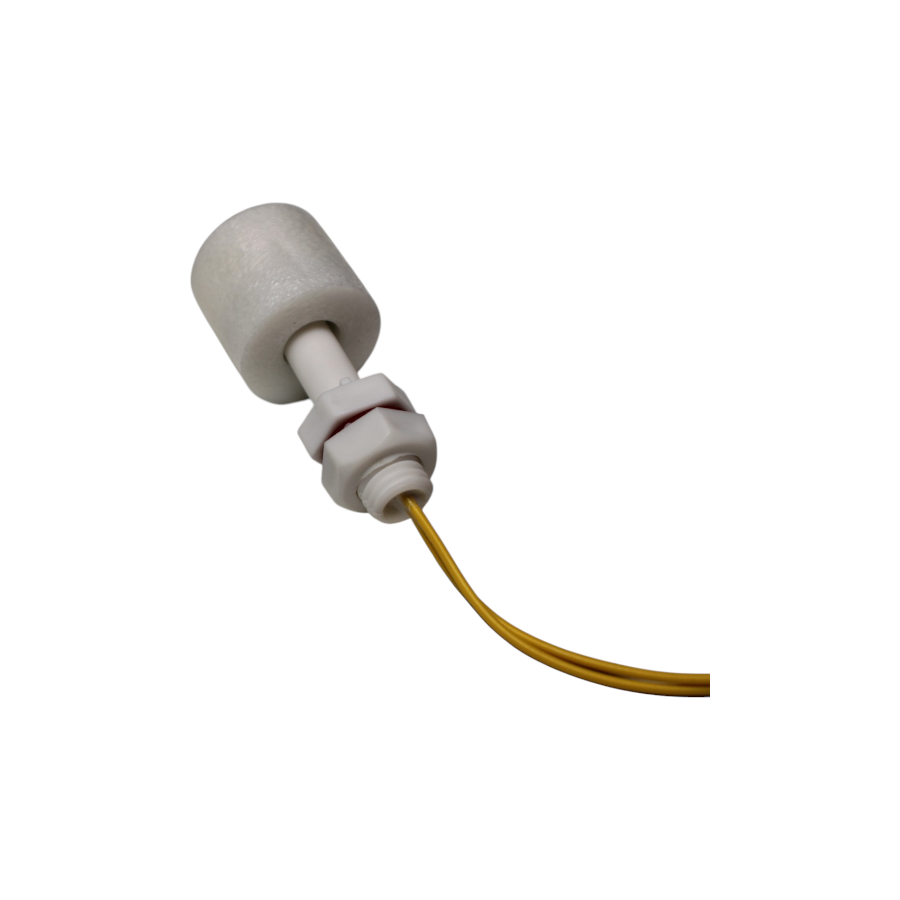

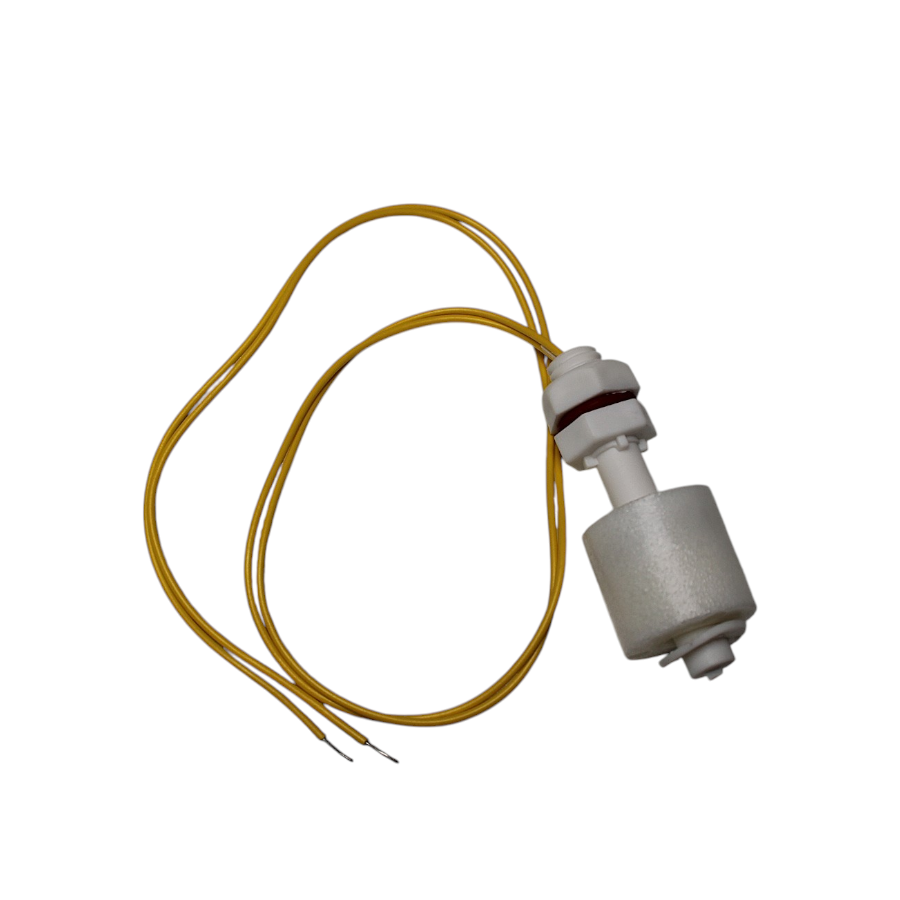

P45 Small Float Level Control Switch Plastic Float Switch
Description:
Introducing the P45 Small Float Level Control Switch Plastic Float Switch, a dependable solution for liquid level detection in tanks. This water level sensor is designed for accurate liquid level monitoring without requiring complex circuits or a power supply. Its straightforward structure and user-friendly design make it an excellent choice for a variety of applications.
Unlike traditional small switches, the P45 Float Switch utilizes a mechanical switch mechanism for enhanced reliability and durability. It effectively controls temperature by accurately detecting liquid levels, making it suitable for numerous industries, including shipbuilding, power generation, petrochemicals, food processing, water treatment, dyeing, and hydraulic machinery.
Features:
- Long-lasting life
- Easy to use.
Specification:
| Max. Switching Voltage | 220 V |
|---|---|
| Max. Switching Current | 0.5 A |
| Max. Breakdown Voltage | 220 VDC |
| Max. Carry Current | 1 A |
| Max. Contact Resistance | 100 mΩ |
| Temperature Rating(˚C) | -10 ~ 60 |
| Float Ball Material | P.P. |
| Float Body Material | P.P. |
| Length of Body (mm) | 59.1 |
| Cable Length (cm) | 35 |
Package Includes
- 1 x P45 Small Float Level Control Switch Plastic Float Switch
P45 Small Float Level Control Switch Plastic Float Switch Overview
The P45 Small Float Level Control Switch is a compact plastic float switch designed for reliable liquid level detection in tanks and reservoirs. It uses a mechanical internal switch to open or close circuits as the float moves with the liquid level, requiring no external power supply or complex electronics. Ideal for water level monitoring, it ensures simple and accurate control of pumps and alarms.
Key Features of P45 Small Float Level Control Switch Plastic Float Switch
- Contact Rating: 10 W for low-power control applications
- Switching Voltage: 220 V AC and Breakdown Voltage: 220 V DC
- Switching Current: 0.5 A with Carry Current up to 1 A
- Low Contact Resistance: 100 mΩ ensures minimal signal loss
- Compact plastic body for corrosion resistance and lightweight installation
- Mechanical switch mechanism—no external power supply needed
- Fast shipping across India from Zbotic, guaranteed genuine product
Applications and Use Cases
- Automatic control of household water tanks and overhead cisterns
- Sump pump activation in basements and drainage systems
- Aquarium water level monitoring and overflow prevention
- Liquid level sensing in industrial coolant reservoirs
- Rainwater harvesting tank management
- Backup alarms in boiler feedwater and heating systems
How to Use P45 Small Float Level Control Switch Plastic Float Switch
Mount the P45 float switch at the desired liquid height using a clamp or bracket on the tank sidewall. Run the two switch wires to your pump relay or alarm circuit, ensuring secure connections. Verify the float moves freely within the mounting position, then test by filling the tank—when the float rises, the internal switch will activate your control device.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum load the P45 float switch can handle?
The P45 switch is rated for a maximum contact load of 10 W at 220 V AC, with a switching current of 0.5 A and carry current up to 1 A. Its low contact resistance of 100 mΩ ensures reliable operation.
Do I need an external power supply to operate the P45 float switch?
No, the P45 operates via a sealed mechanical switch inside the float. As the liquid level changes, the float actuates the internal contacts directly—no additional power or electronics are required for sensing.
How do I install the P45 float switch in my water tank?
Attach the float switch to the tank wall at your chosen level using a suitable clamp or bracket. Connect the two output leads to your pump/control circuit, ensuring proper insulation. Test the setup by filling the tank to confirm the float movement triggers the switch as expected.
