Product Description:

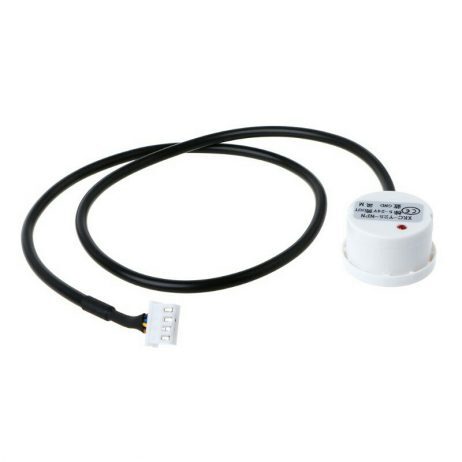

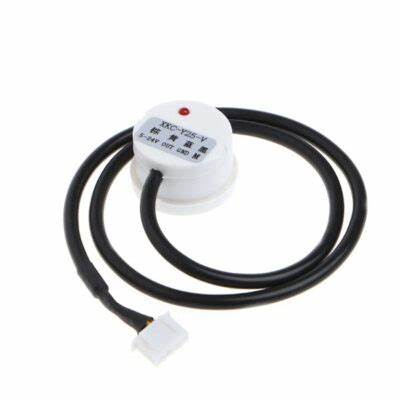

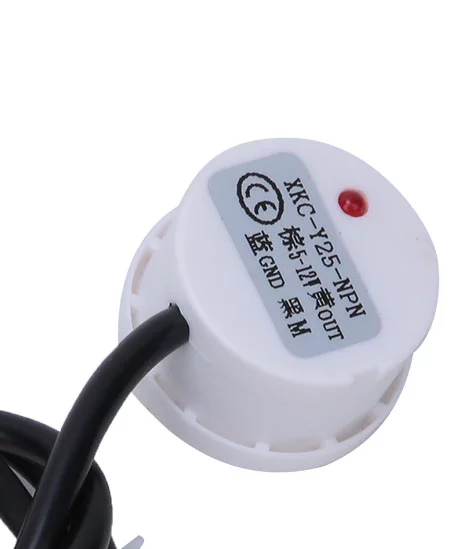

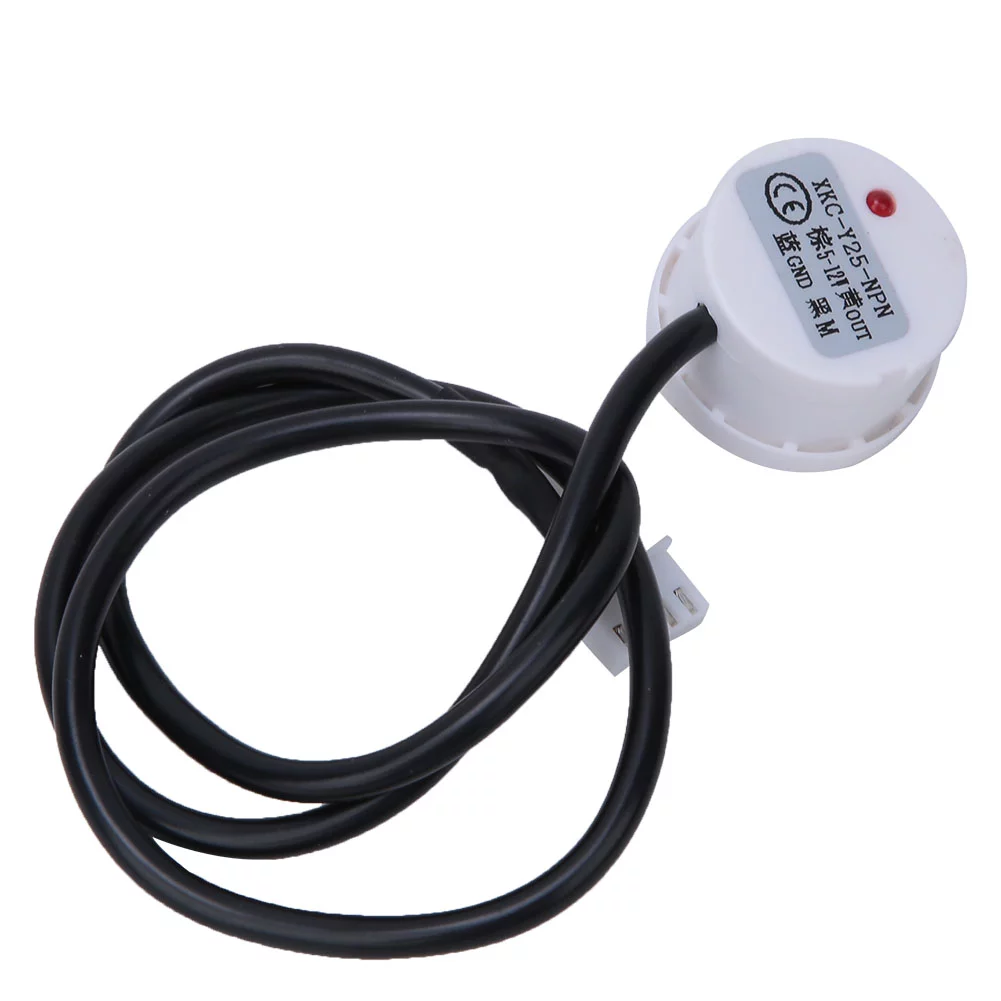

This is a XKC-Y25 NPN Intelligent Non-Contact Liquid Water Level Sensor.
This is an intelligent non-contact liquid level sensor that uses advanced signal processing technology and a high-speed signal processing chip. It can detect the liquid level in an airtight container without being affected by the thickness of the container wall. The sensor is easy to install under the container, without drilling holes in non-metallic containers. It can measure various toxic, acidic, alkaline, and high-pressure liquids in airtight containers. It is versatile and does not depend on the type of liquid or container.
Applications:
- Water tower
- Sewage treatment
- Drone irrigation
- Medical equipment
- Aquarium
- Smart Appliances
Features:
- The non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
- High stability, high sensitivity, and strong anti-interference against electromagnets.
- Compatible with most 5 ~ 12V power adapters.
Specification:
| Response Time | 500ms |
|---|---|
| Operating Ambient Temperature | 0~100ºC |
| Sensor Thickness (sensitivity) Range | 0-20mm |
| Communication | NPN |
| Material | ABS |
| Waterproof Performance | IP67 |
| Length (mm): | 30 |
| Diameter (mm): | 40 |
| Weight (g): | 35 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 4 × 4 × 2 cm |
Package Includes:
1 x XKC-Y25 NPN Intelligent Non-Contact Liquid Water Level Sensor
