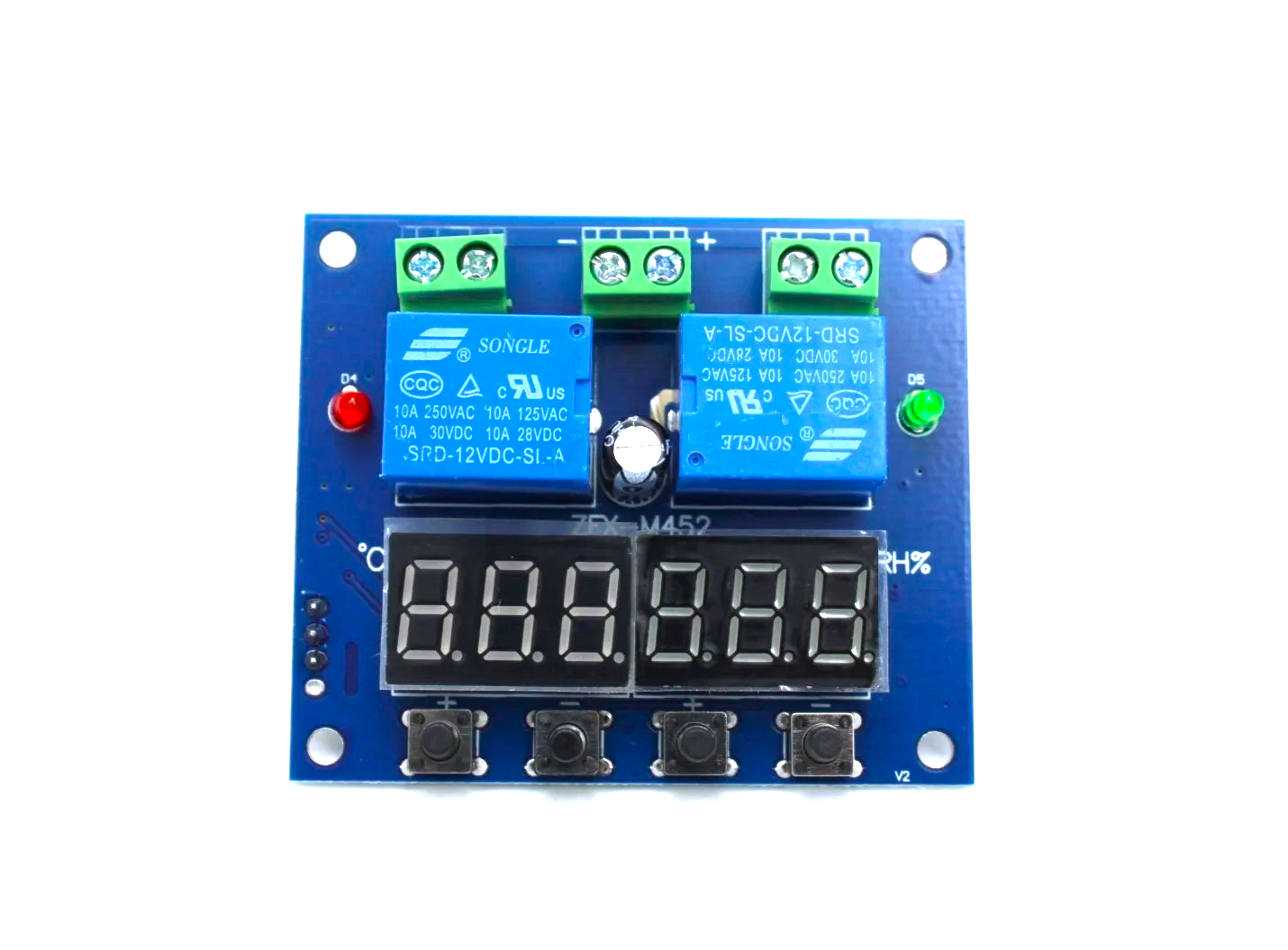

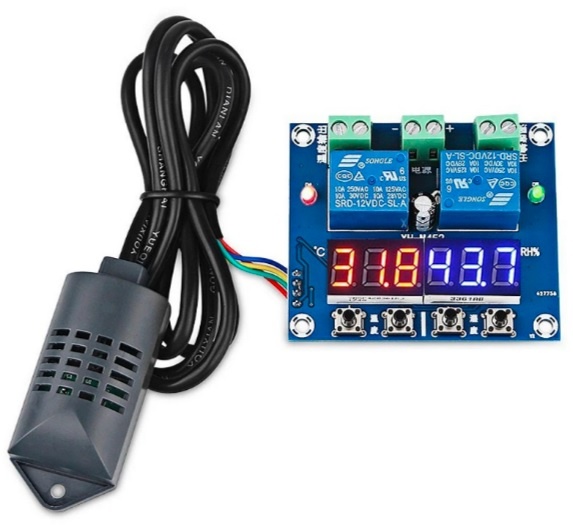

XH-M452 Temperature and Humidity Controller Module
Introducing the all-new DC 12V XH-M452 Temperature and Humidity Controller Module with a digital display. This advanced controller offers high accuracy with dual output, providing automatic, constant temperature and humidity control. Perfect for precise environmental regulation in various applications.
Humidity Control
- Set to start humidity: long-press the + key, start the humidity value flashing, set by + / – key launch humidity value
- Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value
Temperature Control
- Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
- Setting the temperature – :Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
- Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
- Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / – key
- Setting Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key
Features of XH-M452 Temperature and Humidity Controller Module:-
Power supply: DC 12V
Temperature measurement range:-40~120
Humidity range0~100%RH
Control precision0.1 0.1%RH

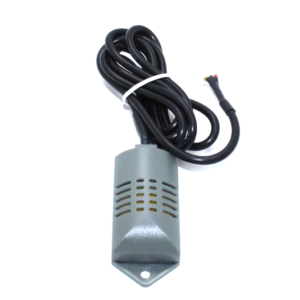

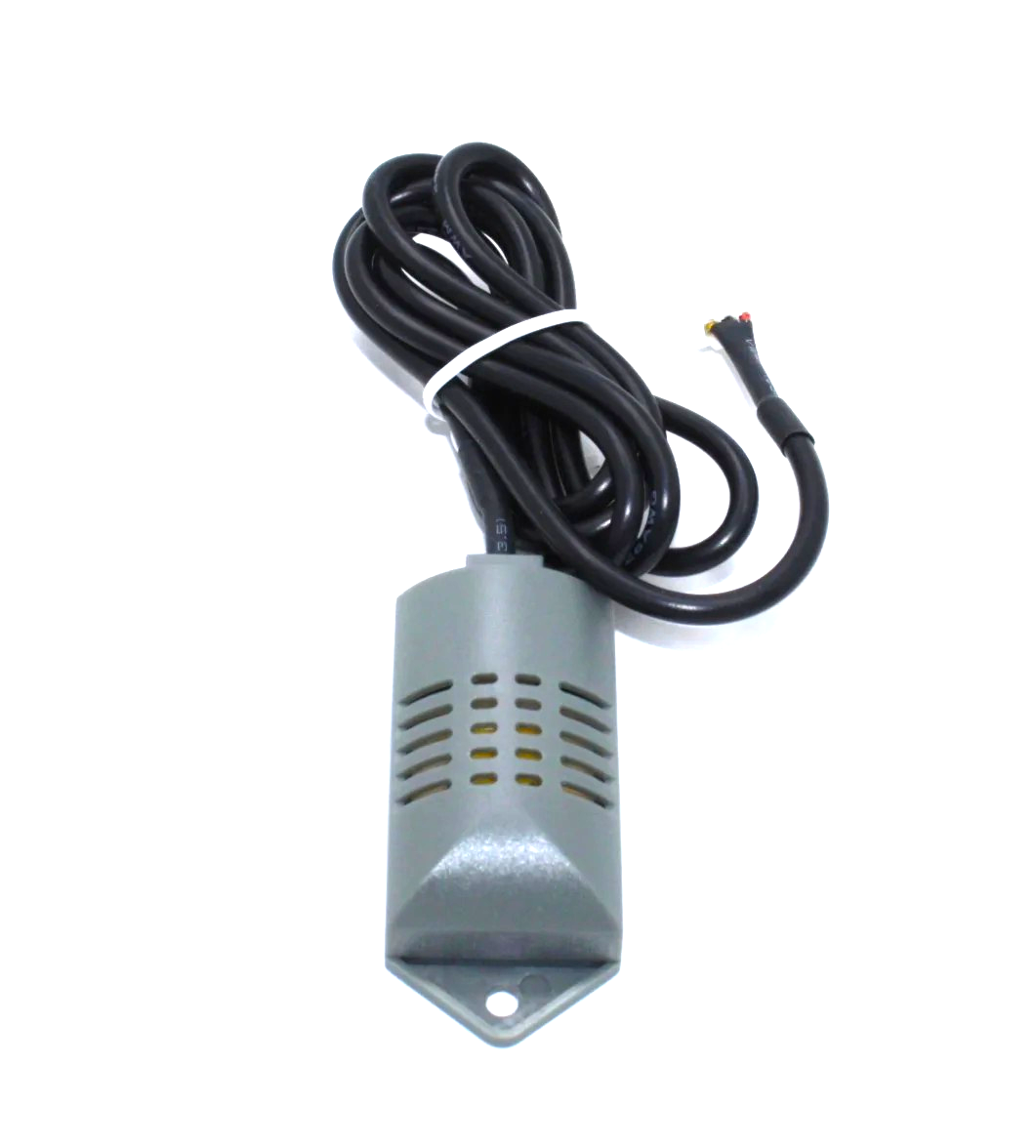

Test probe Integrated sensor
Specifications:
| Model | XH-M452 |
|---|---|
| Voltage | DC 12V |
| Temperature Range | 0% to 100%RH |
| Control Accuracy | 0.1°C, 0.1RH |
| Detector probe | Integrated sensor |
| Output type | Relay output |
| Output capacity | up to 10A |
| Length(mm) | 65 |
| Width(mm) | 55 |
| Height(mm) | 28 |
| Weight(g) | 69g (with sensor) |
Package Includes

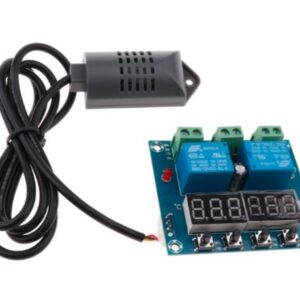

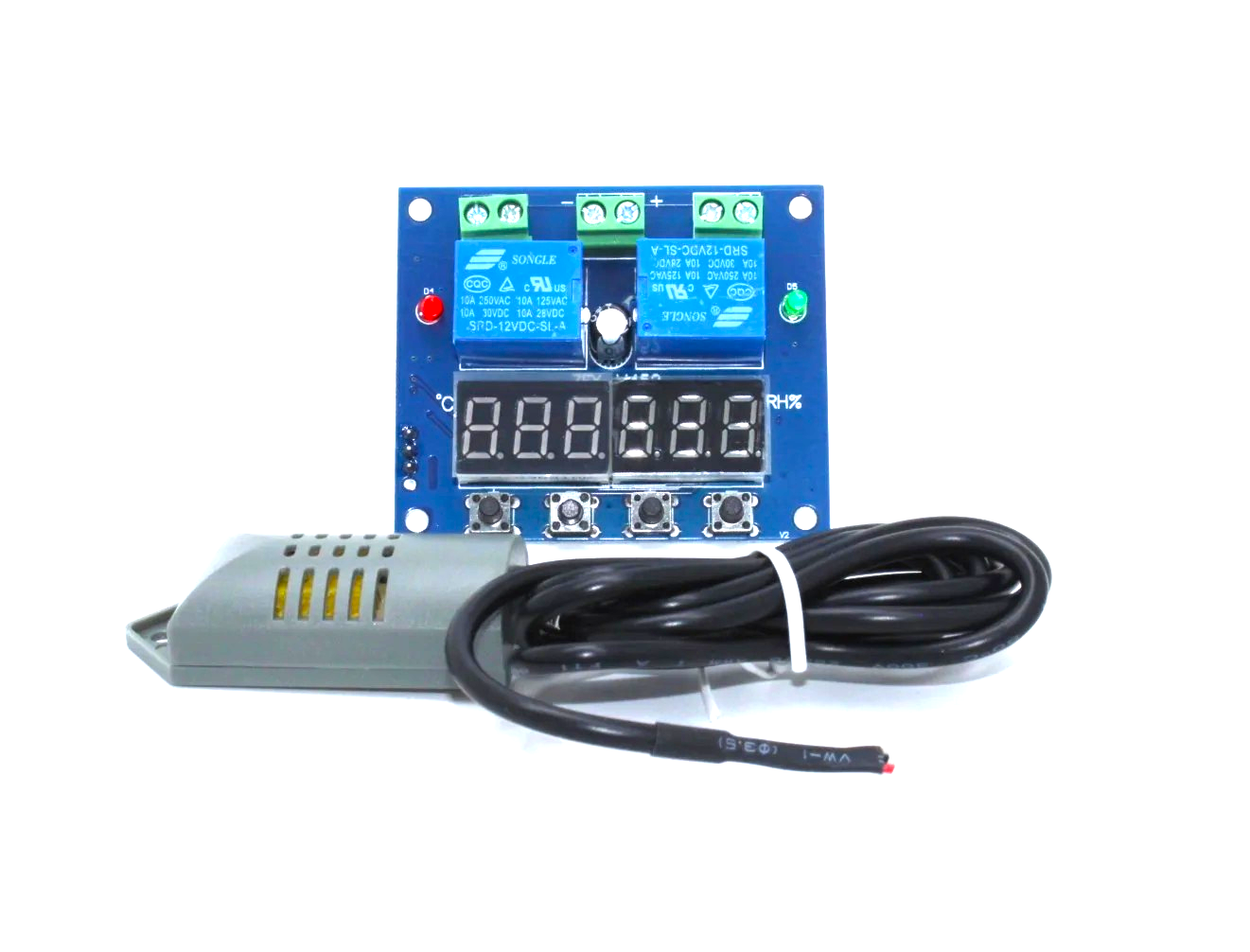

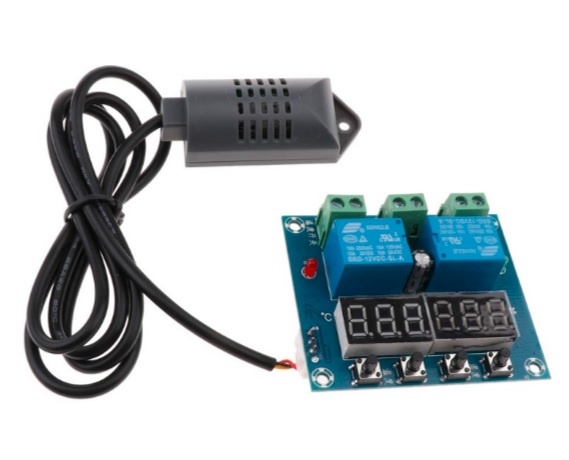

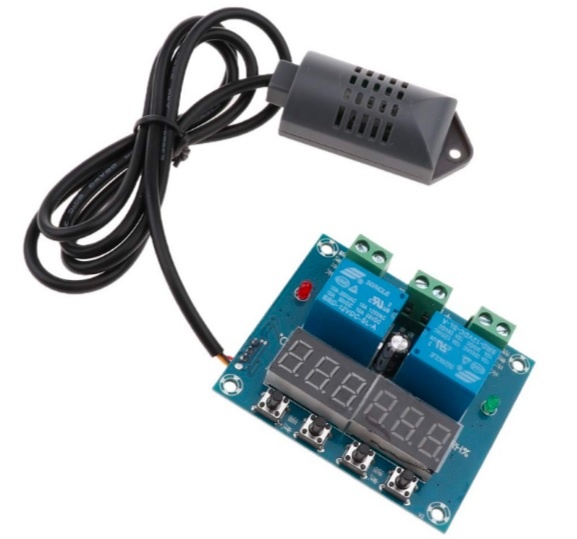

- 1 x XH-M452 Temperature and Humidity Controller Module With sensor
Video
PIR Motion Sensor: How It Works + Arduino Project
A PIR sensor (Passive Infrared Sensor) is one of the most popular components in electronics for motion detection....
Read More →
Best Soil Moisture Sensors for Agriculture & Gardening
Monitoring soil moisture is the single most impactful thing you can do for a smart garden or precision...
Read More →
OPT3001 Ambient Light Sensor: Lux Measurement for IoT
Table of ContentsIntroduction to the OPT3001Why OPT3001 Over LDR or BH1750?Key SpecificationsHardware Wiring to ArduinoI2C Register OverviewArduino Library...
Read More →Technical Specifications
| Model | XH-M452 |
|---|---|
| SKU | AI0487 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XH-M452 Temperature and Humidity Controller Module is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
