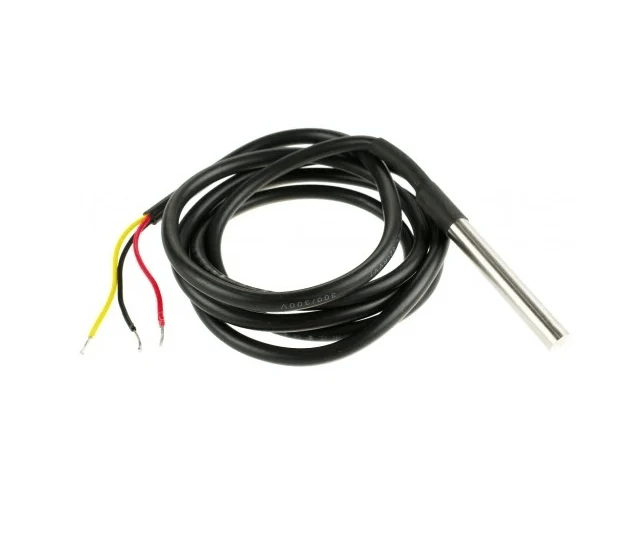

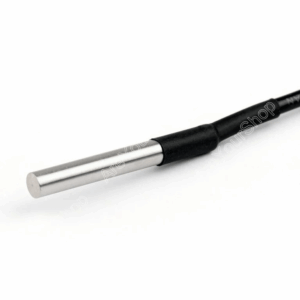

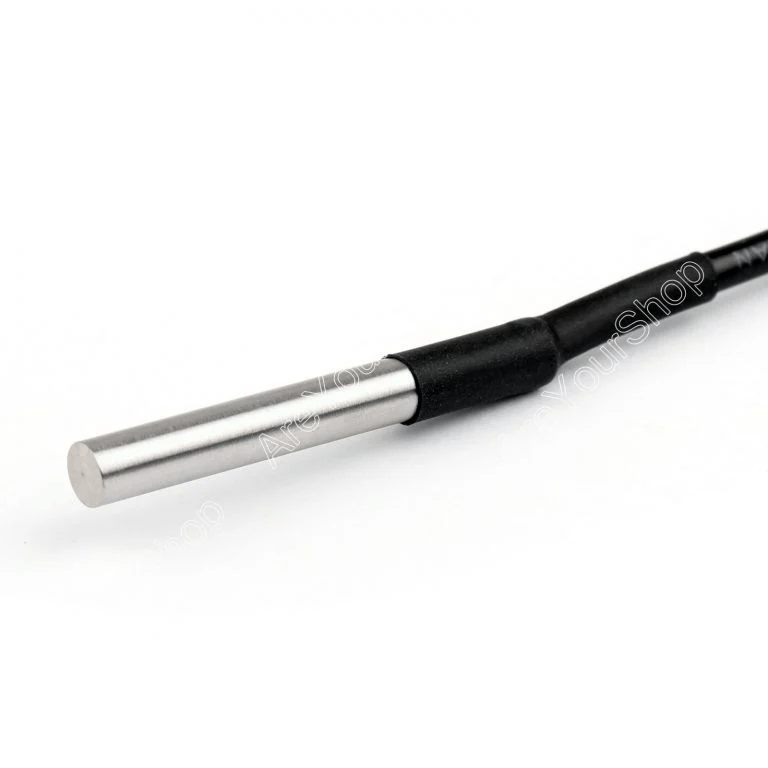

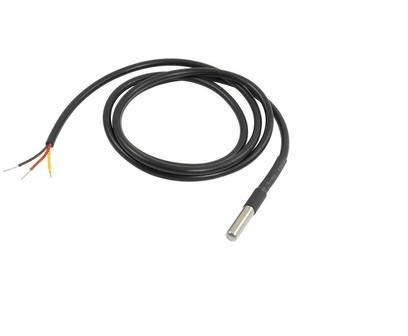

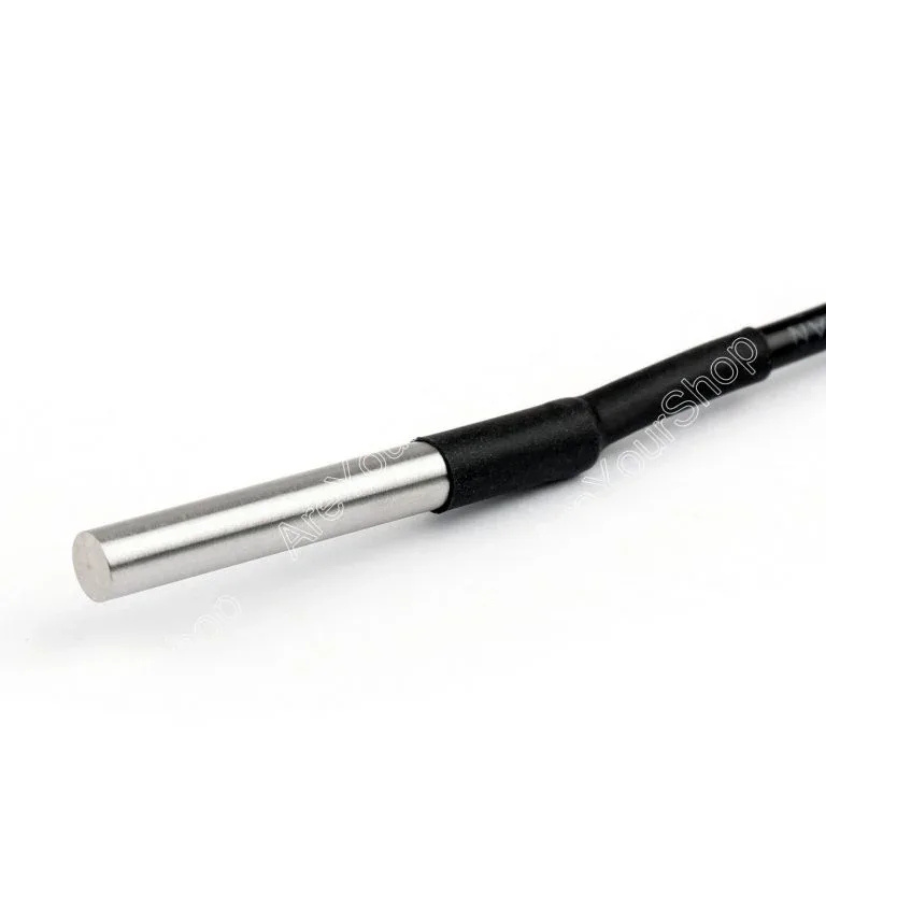

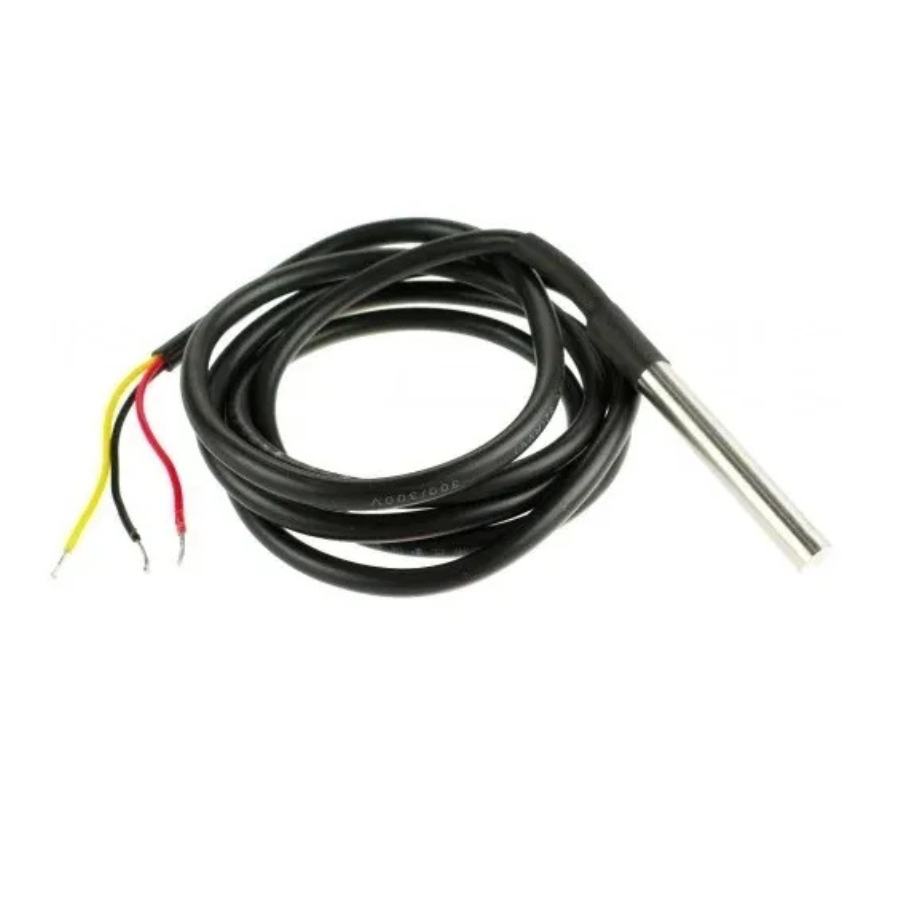

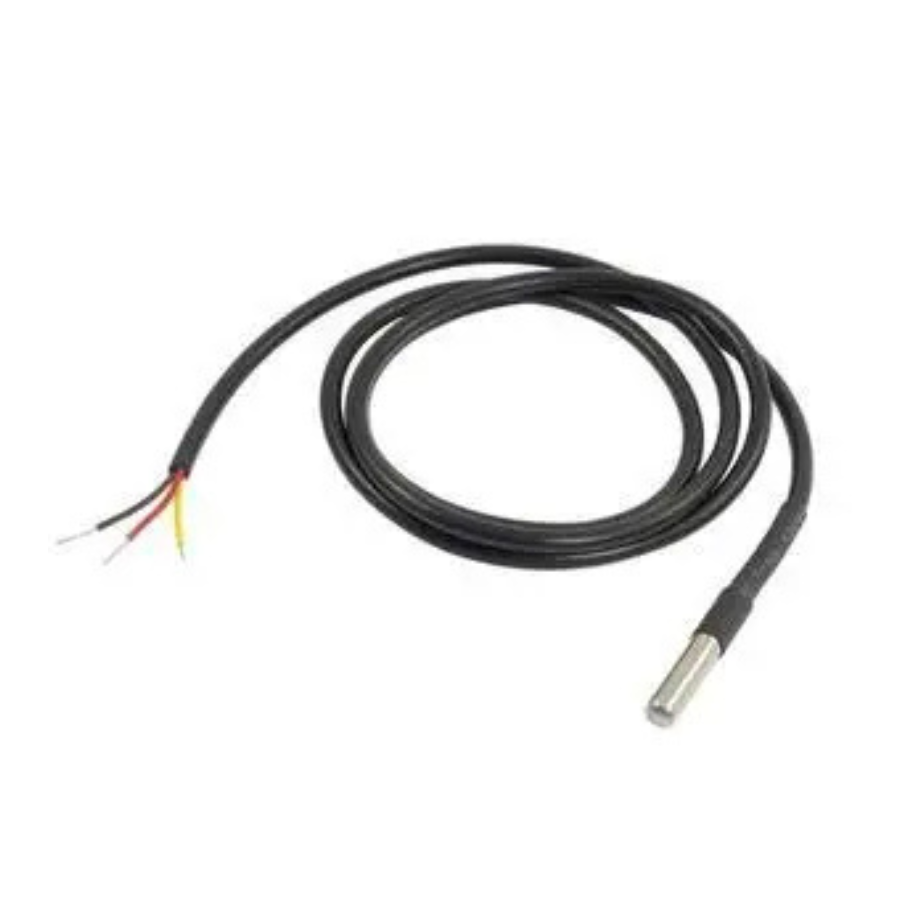

This is the DS18B20 Water Proof Temperature Sensor Probe which is based on the DS18B20 sensor.
It is very handy for when you need to measure something far away, or in wet conditions. Because they are digital, you don’t get any signal degradation even over a long distance.
These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter.
They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems. When using with microcontroller put a 4.7k resistor to the sensing pin, which is required as a pullup from the DATA to the VCC line.
- Red: VCC/VDD
- Yellow/White: DATA
- Black: GND
- Each pin uses a heat-shrinkable tube to prevent short circuits, internal sealing glue, waterproof, moisture proof.
- Stainless steel tube encapsulation waterproof moisture proof prevents rust.
- Stainless steel tube 6mm diameter by 30mm long
- A probe by new original installation import DS18B20 temperature sensor chip.
- Stainless steel shell (6 * 45 mm), lead length 100 cm (shielding wire) use stability.
- Without the external components, the unique single bus;
Note: The probe wire length may vary ±3%
- 1 x Waterproof Digital Thermal Probe DS18B20 1 meter cable.
