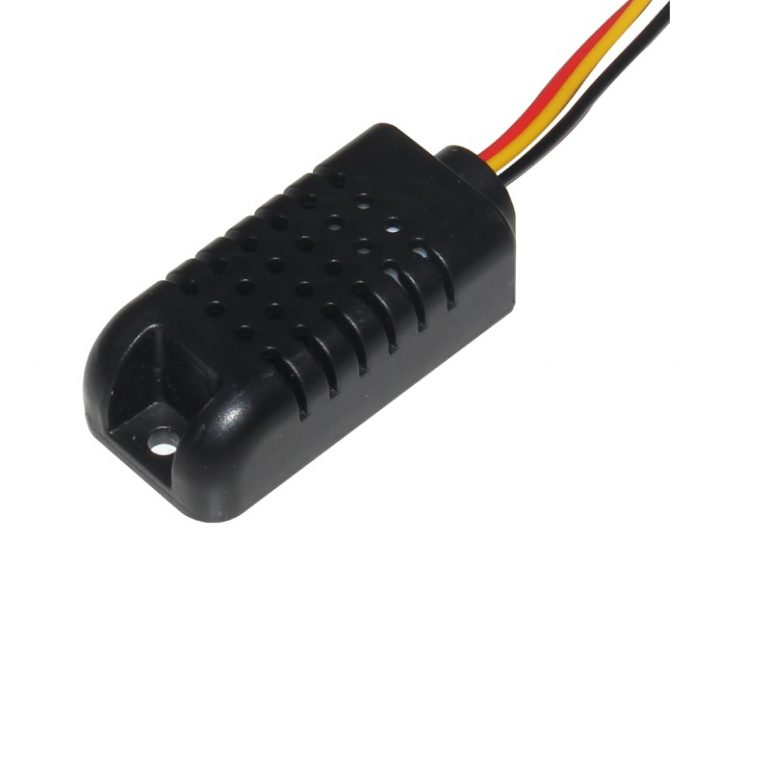

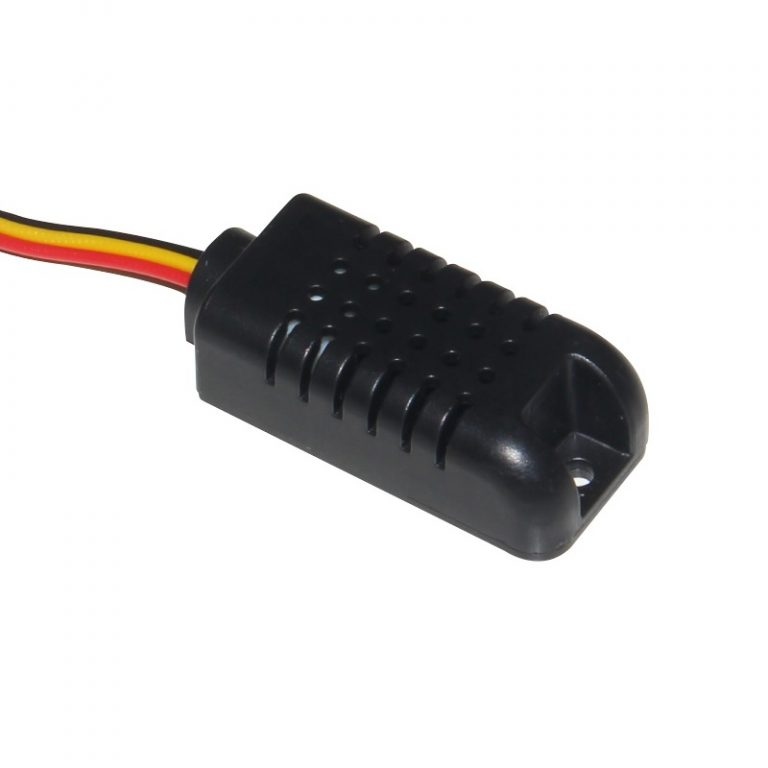

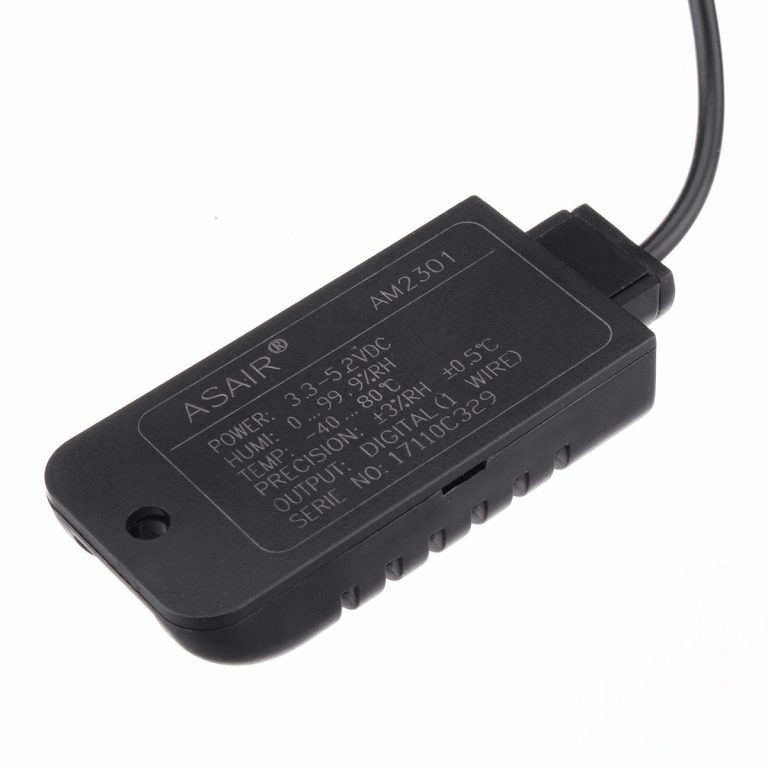

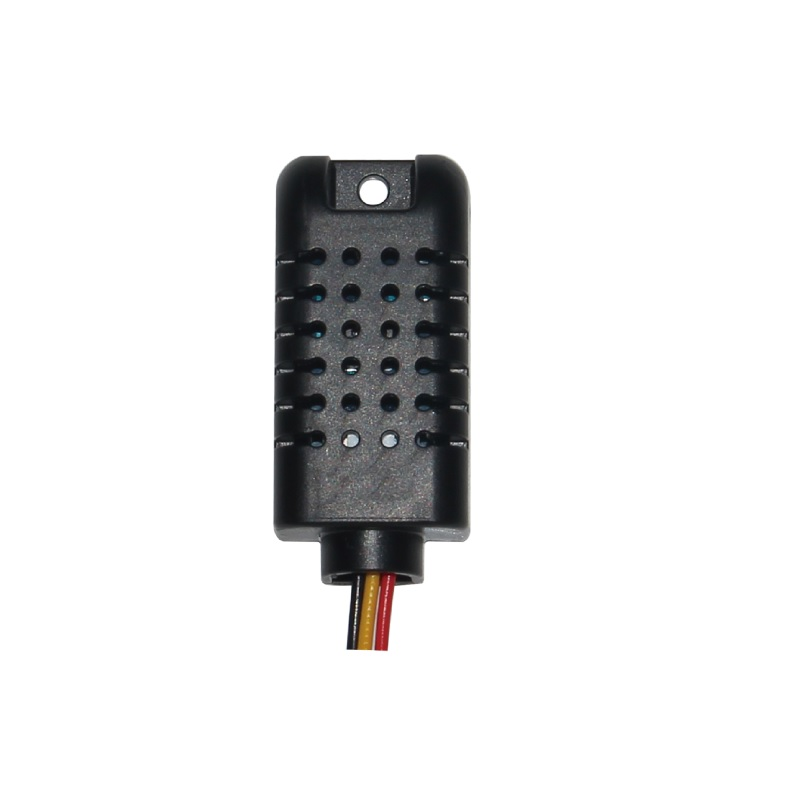

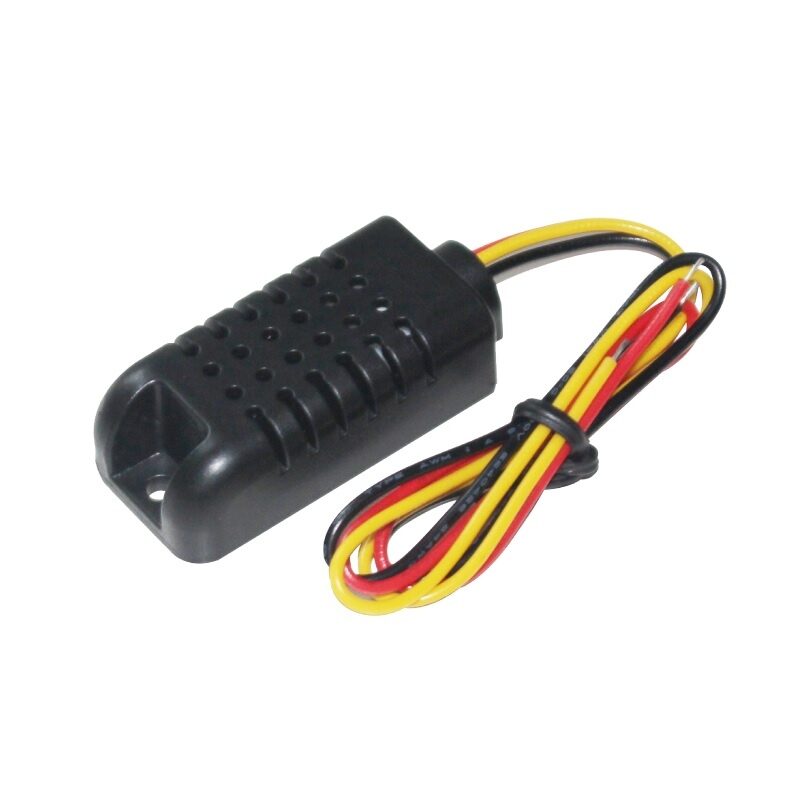

AM2301 Capacitive Digital Temperature and Humidity Sensor
The AM2301 Capacitive Digital Temperature and Humidity Sensor is a popular DHT sensor known for its accurate temperature measurement with a precision of ±0.5°C in 0.1°C steps and a relative humidity accuracy of ±3%.

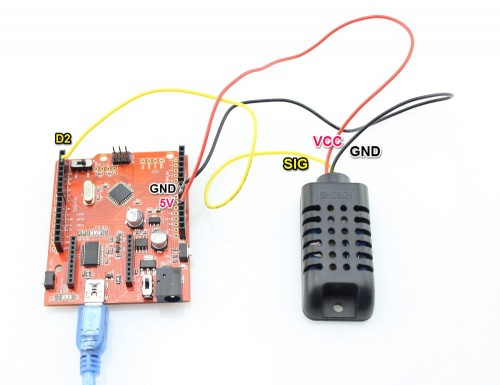

This sensor simplifies wiring with just three connections: power, ground, and data. It only requires a single digital pin on a microcontroller for operation. Full support for the AM2301 is available through the DHT library on the Arduino Playground, making it easy to integrate with Arduino platforms.
Example Arduino Sketch, Library, and Datasheet available on our support forum Visit ardumotive.com.
Note: This package does not include the Arduino board.
Features
- 4-pin package.
- Ultra-low-power.
- No additional components.
- Excellent long-term stability.
- All calibration, digital output.
- Completely interchangeable.
- Long-distance signal transmission.
- Relative humidity and temperature measurement.
Specification-
| Supply Voltage (V) | 3.3 ~ 5 |
|---|---|
| Average Current Consumption (μA) | 300 |
| Humidity | 0 ~ 99.9 %RH |
| Precision | 3% RH |
| Output type | Digital (1 wire) |
| Operating Temperature (℃) | -20 ~ +60 |
| Cable Length (cm) | 20 |
| Length (mm): | 60 |
| Width (mm): | 27 |
| Height (mm): | 14 |
| Weight (g): | 15 |
Package Includes
- 1 x AM2301 Capacitive Digital Temperature & Humidity Sensor.
Smoke Particle Counter: PM Sensor for Indoor Air Quality
Table of Contents Why Indoor Air Quality Matters Understanding PM2.5 and PM10 Types of PM and Smoke Sensors...
Read More →
Best IMU Sensors for Robotics & Drones in India (2026)
Choosing the right IMU (Inertial Measurement Unit) sensor can make or break your robotics or drone project. With...
Read More →
Capacitive Soil Sensor vs Resistive: Which Is More Accurate?
Table of ContentsIntroductionHow Resistive Soil Sensors WorkHow Capacitive Soil Sensors WorkAccuracy ComparisonDurability and LifespanWiring Both Sensors to ArduinoArduino...
Read More →Technical Specifications
| Model | AM2301 |
|---|---|
| SKU | AI0954 |
| Weight | 0.020001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The AM2301 Capacitive Digital Temperature and Humidity Sensor is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
