XH-M411 DC-DC Digital Booster Board Boost Module High-Power 5-45V Output 5A

This is the 45V variant of the XH-M411 DC-DC Digital Booster Board Boost Module High-Power 5-45V Output 5A in Boost Converter. Available at ₹684.40 (₹580.00 + GST) with free shipping across India.

Looking for Xh-m411 Module? XH-M411 DC-DC Digital Booster Board Boost Module High-Power 5-45V Output 5A is available at Zbotic with fast shipping across India.

XH-M411 DC-DC Digital Booster Board Boost Module High-Power 5-45V Output 5A

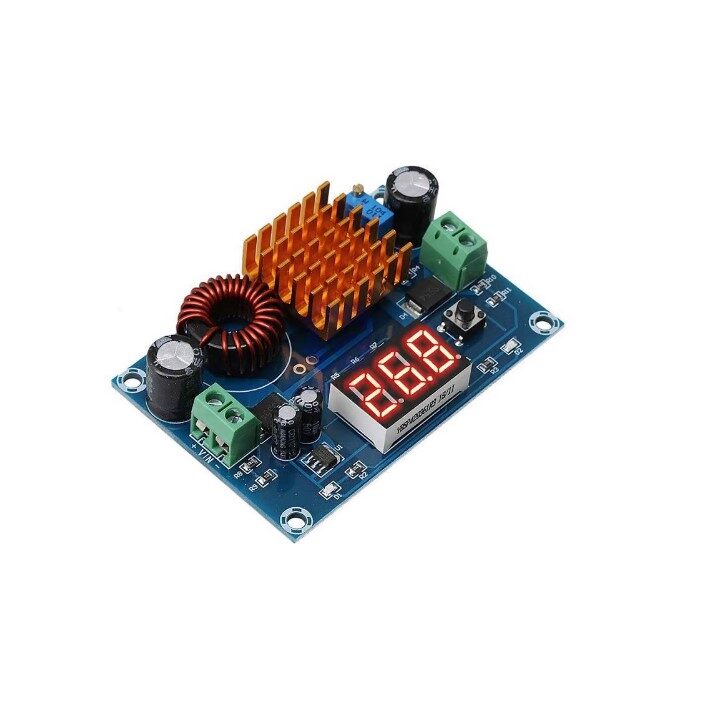

This is a great DC to DC step-up power supply module for electric equipment, digital products, etc. Input and output are designed with screw terminals for convenient wire connection and disconnection. There is a heat sink on board that would ensure better heat dissipation. Designed with USB and 2.5A large current output, can identify resistance and charge several phones at the same time. It can also be used as a power supply for laptops or voltage regulator for solar panels.

Application

1.  Make a DIY stable power supply, input 12V, the output can 12-35V adjustable, with a voltmeter, display more intuitive.
2.  Power supply for electronic equipment. You can set the output value according to your system voltage.
3.  Make car power supply. Powering laptops, PAD, or digital products.
4.  It can be used to make a DIY high-power notebook mobile power, configure a large capacity 12V lithium battery. Keep your laptop bright.
5.  Used as a solar panel voltage regulator.
6.  It can be used to make a DIY high current moving current and can be boosted to 5V with a single lithium battery. Ultra-large current output with USB port and identification resistor and 2.5A. It can charge several mobile phones at the same time.

Specification

1. Model: XH-M411
2. Input Voltage: 3V-35V
3. Output Voltage: 5V-45V
4. Input Current: 5A(Peak)
5. Voltage Display Range: 5V-30V(if input voltage is lower than 4.5V, it will not display)
6. Voltage Display Error: ±0.1V
7. Size: 72*48*16mm / 2.83*1.89*0.63″

Package Includes

1 x DC-DC Digital Boost Board Module

XH-M411 DC-DC Digital Booster Board Boost Module High-Power Overview

The XH-M411 is a high-power DC-DC step-up (boost) converter module that accepts 3–35 V input and delivers a stable 5–45 V output at up to 5 A peak. It features an integrated digital display, USB port and heatsink, making it ideal for DIY power supplies, device charging and voltage regulation in electronics projects.

Key Features of XH-M411 DC-DC Digital Booster Board Boost Module High-Power

• Wide input range: 3 V–35 V DC for batteries, adapters or solar panels
• Adjustable output: 5 V–45 V at up to 5 A peak current
• Integrated digital voltage display (5 V–30 V range, ±0.1 V accuracy)
• Screw-terminal connections and USB 2.5 A port for easy wiring and device charging
• On-board aluminum heatsink for improved thermal dissipation
• Genuine XH-M411 modules with fast shipping across India from Zbotic

Applications and Use Cases

• Boosting 12 V automotive battery to 5 V for USB-powered devices
• Adjustable bench power supply for prototyping and testing electronic circuits
• Regulating small solar panel output to charge 12 V battery packs
• Powering LED strips or to drive 24 V lighting from lower-voltage sources
• Supplying stable voltage for Raspberry Pi, Arduino and other microcontrollers
• Step-up supply for portable laptop chargers or small DC equipment

How to Use XH-M411 DC-DC Digital Booster Board Boost Module High-Power

Connect your 3–35 V DC source to the input screw terminals, attach your load to the output terminals or USB port, then turn the onboard potentiometer until the digital display shows your desired voltage (5–45 V). Ensure adequate airflow around the heatsink and stay within the 5 A peak current limit for reliable operation.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What input voltage range does the XH-M411 support?

The module accepts a DC input from 3 V up to 35 V, making it compatible with common battery and adapter sources.

How do I adjust the output voltage?

Use the onboard potentiometer to fine-tune the output while monitoring the digital display, which accurately shows voltages between 5 V and 30 V (±0.1 V error).

What is the maximum current I can draw continuously?

The XH-M411 can handle peak currents up to 5 A. For sustained loads, keep current below this peak and ensure sufficient cooling via the heatsink.
