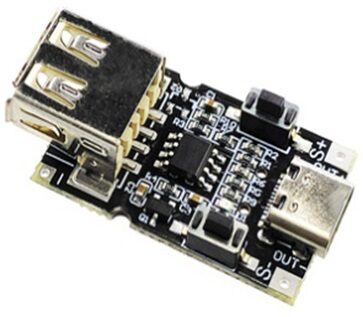

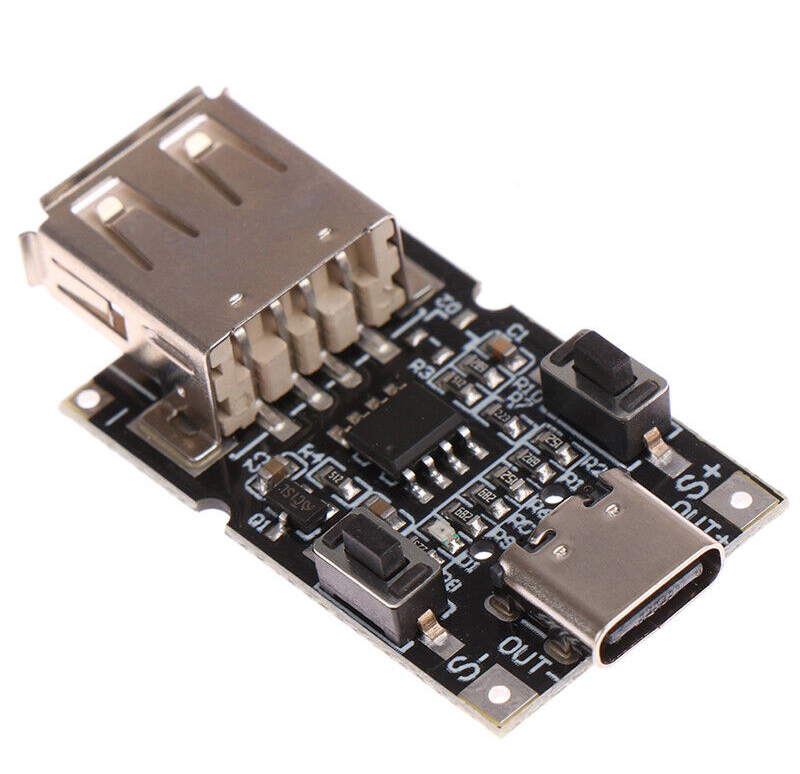

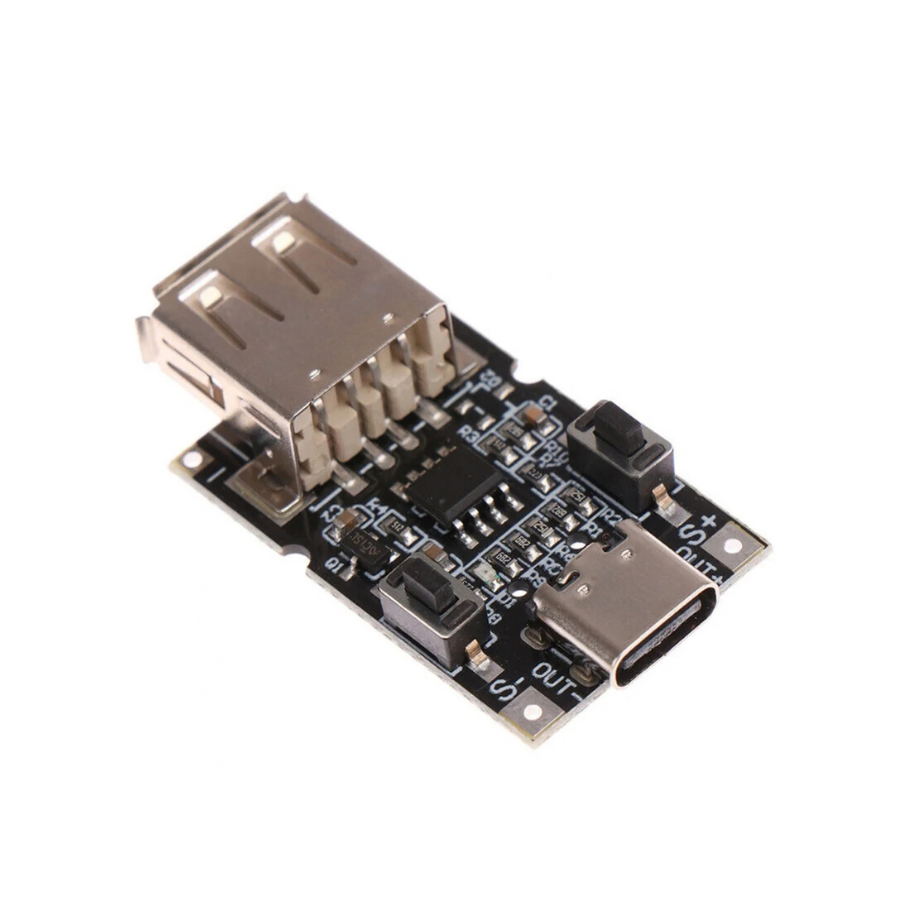

USB Input QC2.0/3.0 Decoy Module Boost Trigger Motherboard 9V 12V 20V Adjustable Power Supply
- PD2.0/3.0 Decoy: Used to mimic corresponding voltage for devices with PD protocol, such as notebooks and routers, using power banks and chargers.
- Supports PD3.0 and PD2.0 voltage cutoff output, with freely switchable modes.
- Key lock function to prevent accidental operation.
- LED output indicator to show working status.
- Automatic parameter saving; last decoy settings executed upon power-on.
- Ultra-low power consumption, supports 100W output.
Instructions for Use (PD Protocol Power Supply Required):
- Hold the S button and insert the module into the power supply, then reset it to 5V output (“>>” indicates power on).
- Press and hold the S button while inserting the module into the power source. Toggle key lock state, saving the state after power-on. If key lock is unlocked, it must be locked to adjust voltage after power-on.
- Press and hold the button after powering on. Once locked, press the button to unlock.
- After powering on, press and hold the button, then press to lock the button.
- Quick Start: Connect to PD power. LED will indicate currently set decoy voltage. Unlock the board and adjust output voltage. Unlocking involves holding down the S button, then pressing again. Use S button to increase or decrease voltage.
Test Function:
- Press S and S buttons simultaneously and power on to enter test mode. Output voltage will cycle automatically (5V>9V>12V>15V>20V). Voltage change time adjustable using S and S buttons.
- Note: Test mode settings are not saved to save switching time.

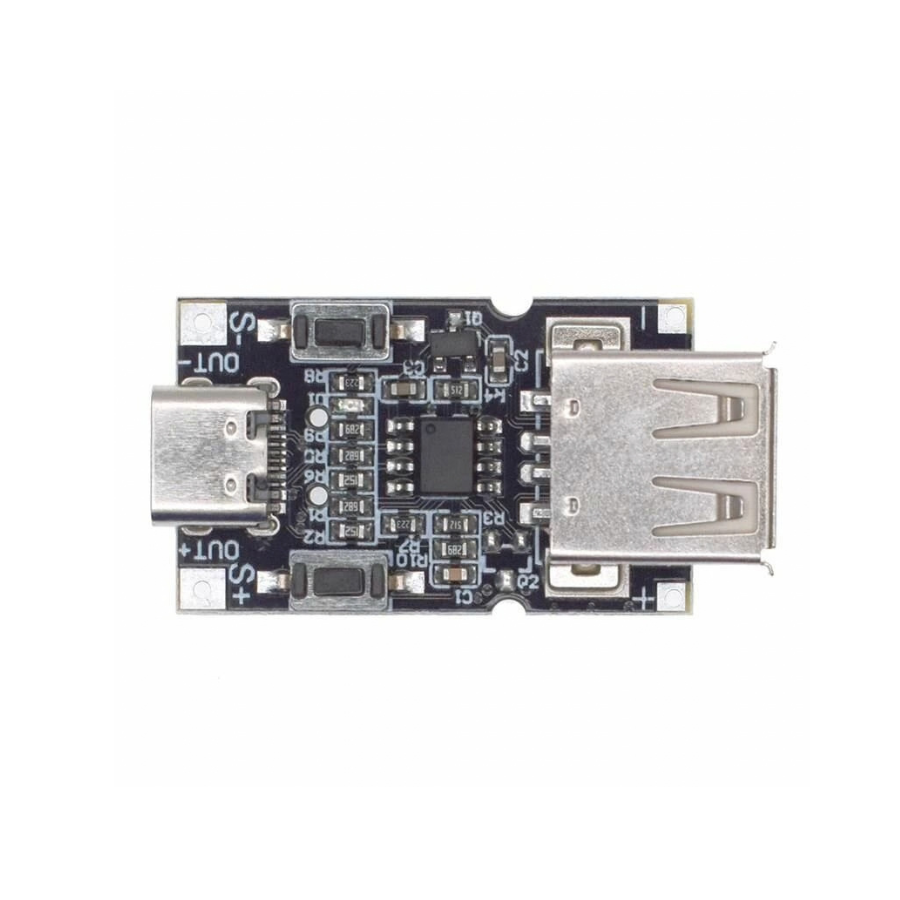

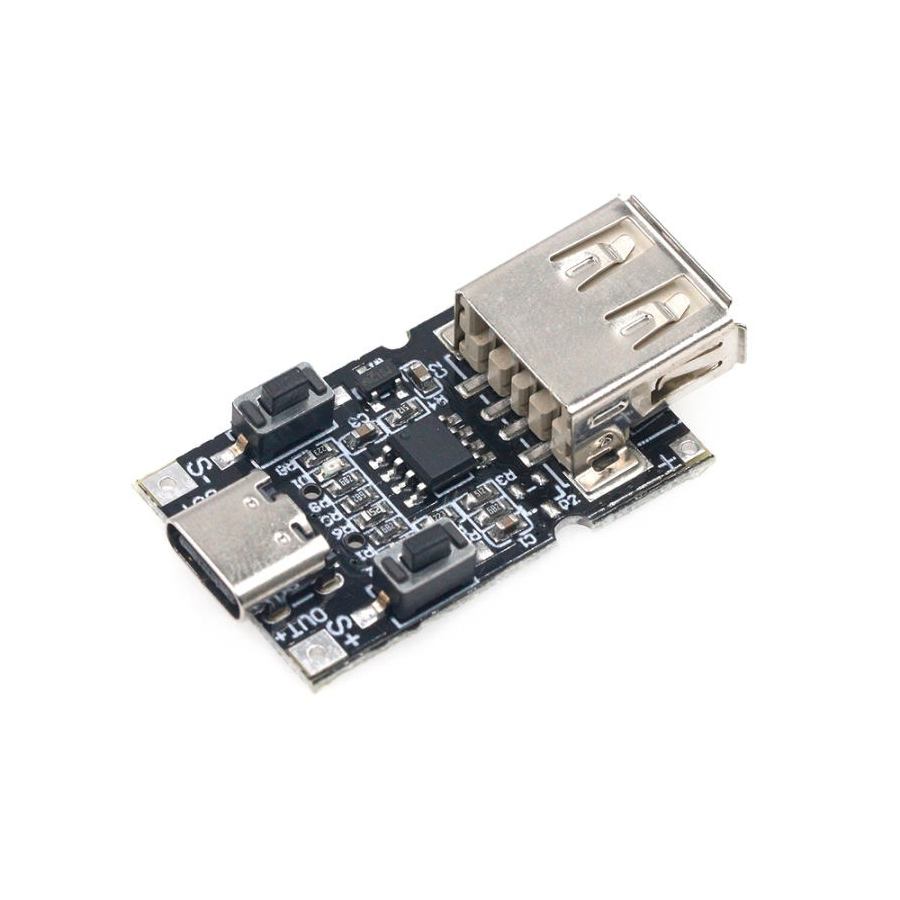

Interface Description:

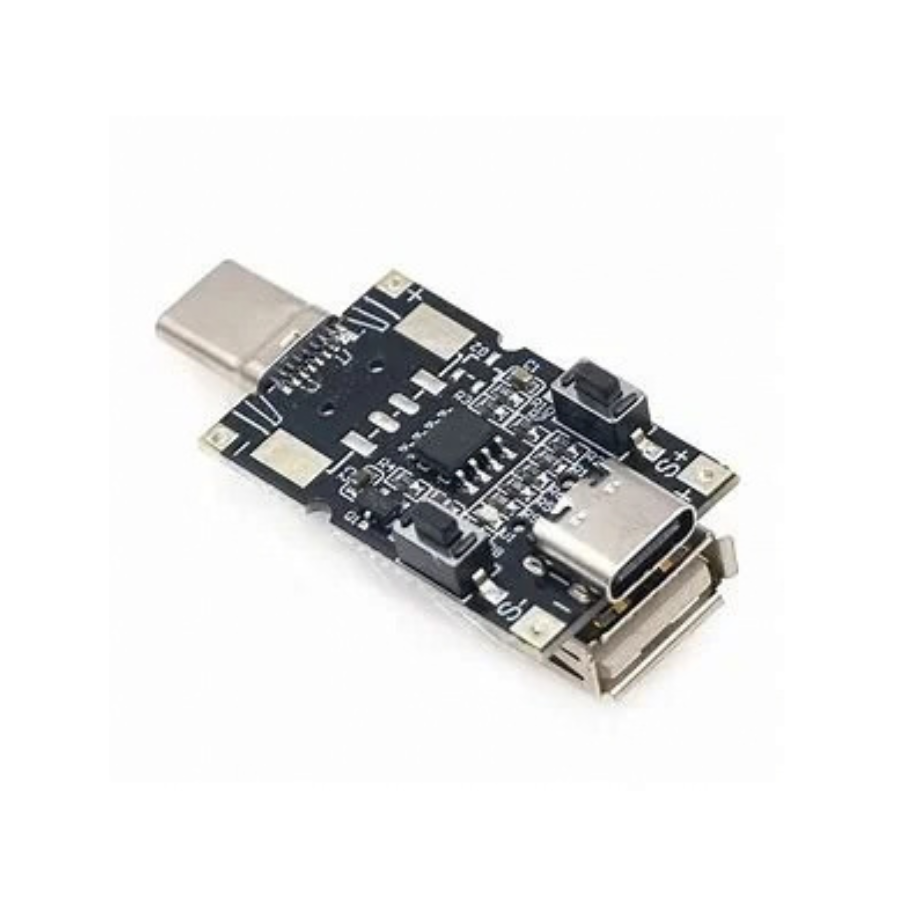

- Type-C Interface (Male): Input connector for PD power supply. Supports input voltage/current of 20V 5A.
- Type-C Interface (Female): Input to connect to PD power supply or output interface capable of 20V 5A voltage/current output.
- USB-A Female Interface: Output interface supporting 20V 3A voltage/current.
- Positive and Negative Wiring Pads: Output interface for 20V 5A voltage/current.
Specifications:
Product Name | PD2.0/3.0 decoy |
---|---|
Input Voltage (V) | DC 5V |
Output Voltage(V) | 5V> 9V> 12V> 15V> 20V |
Maximum Output Voltage | 20v |
Maximum Output Current | 5A |
Operating Temperature (°C): | -25 ℃ ~ 85 ℃ |
Working Humidity Range | 5% ~ 95% RH |
Product Dimensions (mm) | 38 x 20 x 8.5 |
Shipping Weight | 0.015 kg |
Shipping Dimensions | 7 × 6 × 2 cm |
Package Include:
1 x USB Input QC2.0/3.0 Decoy Module Boost Trigger Motherboard 9V 12V 20V Adjustable Power Supply
