Product Description

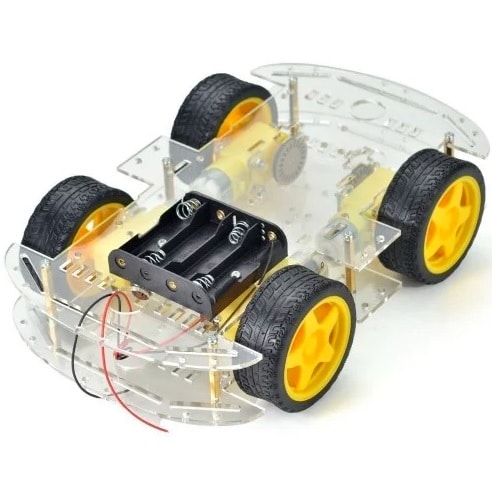

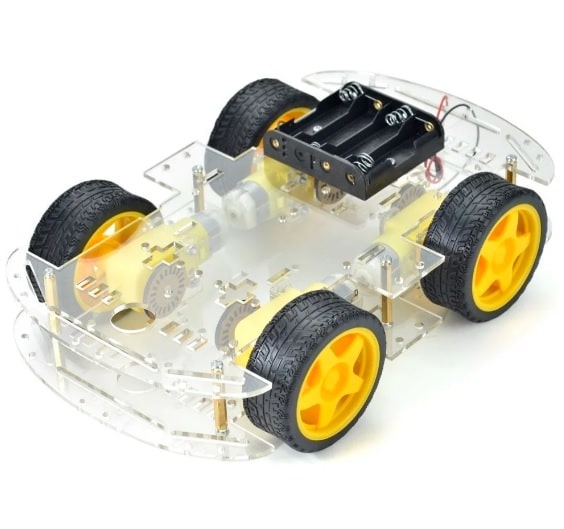

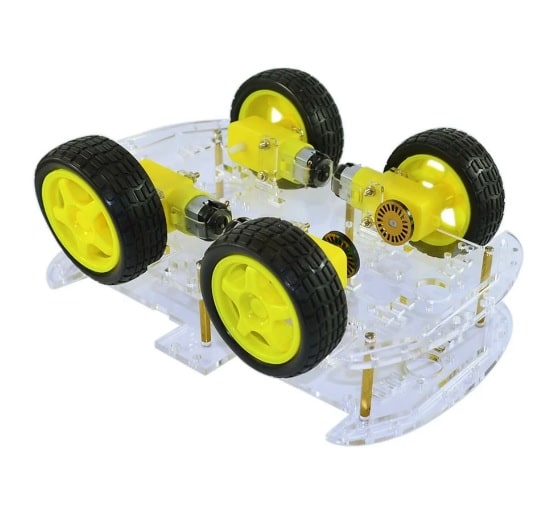

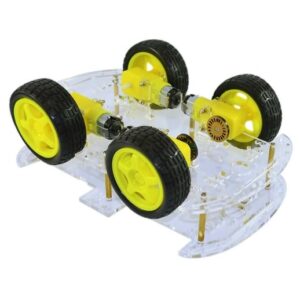

- The Extended Version of the 4WD Double Layer Smart Car Chassis offers a versatile platform for building robotic vehicles. It features four pairs of geared motors and wheels, ensuring high-quality components for durability and performance. The transparent design provides a modern aesthetic while facilitating the dynamic installation of components.
- Designed for easy assembly and disassembly, this chassis is ideal for DIY hobbyists of all skill levels. Its robust construction can handle challenging terrains, and the double-layered structure provides ample space and multiple mounting holes for various control panels and sensors. This makes it an excellent educational tool for exploring robotics and electronics, as well as for creative experimentation.
- Very handy and simple in assembling/disassembling.
- Strong components to withstand extreme terrain conditions.
- Transparent Car Chassis and Attractive design.
- Double-layer structure, much of mounting holes, enough space
- Easy to install a variety of control panels, sensors
- Educational toys, Ideal for the DIY platform
For BO Motor:
- Operating Voltage: 3V~6V DC
- Gear Ratio 1:48
- No-load speed(5V): about 208RPM
- Rated Torque: 0.8 Kg.cm @ 5V
- Load current: 170mA (when it is 4.5V)
- Size: 70 x 23 x 18 mm
- Weight:28g
- Shaft Length: 10 mm
- Shaft Type: 6 mm, Double-D
For Wheel:
- Loading Capacity: Max 2.5Kg
- Double D-hole For BO Motor: 6 mm
- Weight: 34g
- Wheel Diameter: 65 mm
- Color: Black (Tyre), Yellow (Rim)
- Wheel width: 27 mm
- Body Material: Plastic
- Grip Material: Rubber
Specifications:
| Shaft Length (mm) | 8.5 |
|---|---|
| Shaft Diameter (mm) | 5.4mm-(round side) and 3.5mm-(flat side) |
| Rated Speed After Reduction (RPM) | 200 |
| Rated Torque (Kg-Cm) | 0.8 |
| Gearbox Shape | Straight |
| Length (mm): | 70 |
| Width (mm): | 19 |
| Height (mm): | 22 |
| *********************************************************************** | Wheel *********************************************************************** |
| Color: | Black (Tyre), Yellow (Rim) |
| Internal Diameter(ID)(mm) | 51 |
| Load Capacity(Kg/Wheel) | 2.5 |
| Tyre Grip Material | Rubber |
| Wheel Body Material | Plastic |
| Wheel Diameter(mm) | 65 |
| Wheel Width (mm) | 27 |

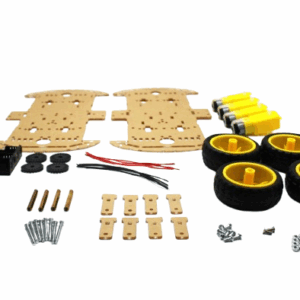

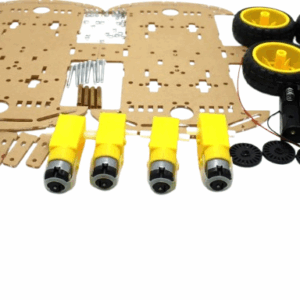

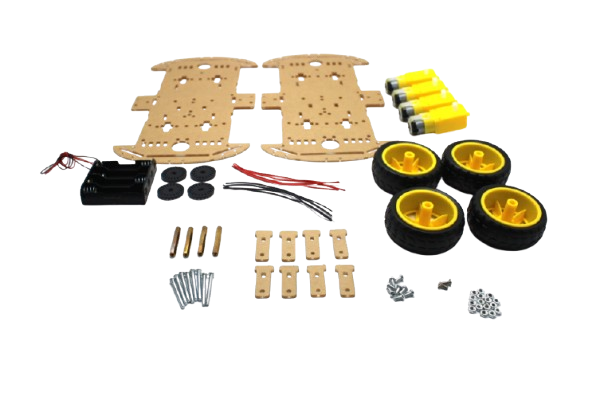

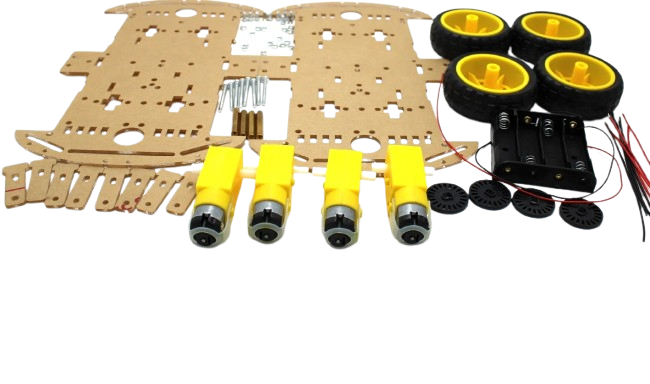

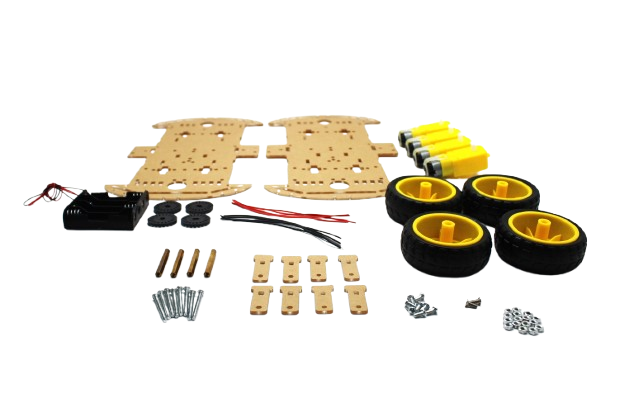

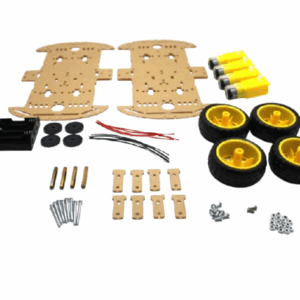

Package Includes
- 2 x Acrylic Transparent car floor
- 4 x High-Quality 65-mm Plastic wheels with Rubber Grip
- 4 x Dual shaft 200 RPM BO Gear Motor
- 4 x Coded Disk
- 8 x Acrylic Fasteners

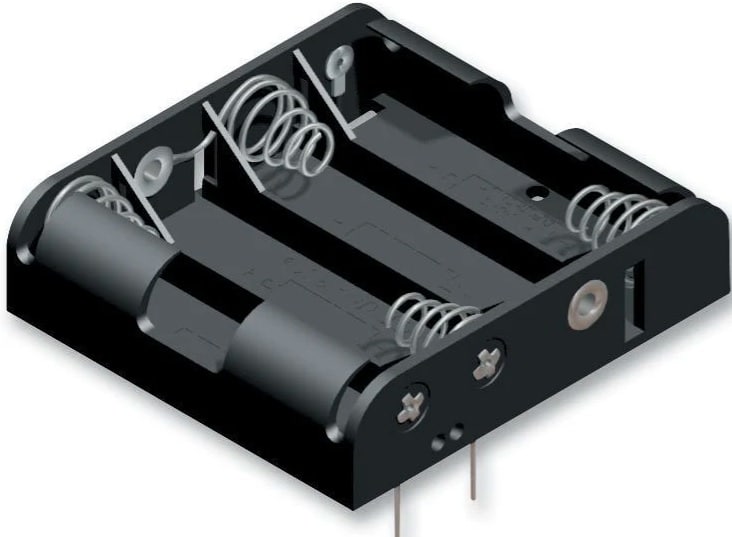

- 1 x 4-AAA Battery Holder
- 6 x Connecting Cable(Red and Black, Length: 20 cm each)
- 4 x M3 Brass Stand-Off (Female-Female)
- 6 x M3 Cross-Head Nut (Length: 8 mm )
- 8 x M3 Cross-Head Nut (Length: 30 mm )
- 8 x M3 Bolt
Video’s
ELEGOO Smart Robot Car: Unboxing, Assembly & Code Review
The ELEGOO Smart Robot Car is one of the most popular entry-level robot car kits for students and...
Read More →
Robot Obstacle Avoidance: HC-SR04 + Servo Sweep Algorithm
An obstacle-avoiding robot using the HC-SR04 ultrasonic sensor and servo sweep algorithm is the quintessential beginner robotics project...
Read More →
Outdoor Agricultural Robot: Weed Detection & Spraying System
India's agriculture sector is rapidly embracing automation, and one of the most impactful DIY projects you can build...
Read More →Technical Specifications
| Interface / Protocol | BLE |
|---|---|
| SKU | AI0111 |
| Weight | 1.72 kg |
| Availability | In Stock |
Applications & Use Cases
The Longer Version of 4WD Double Layer Smart Car Chassis is a versatile robot car chassis and accessories used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
