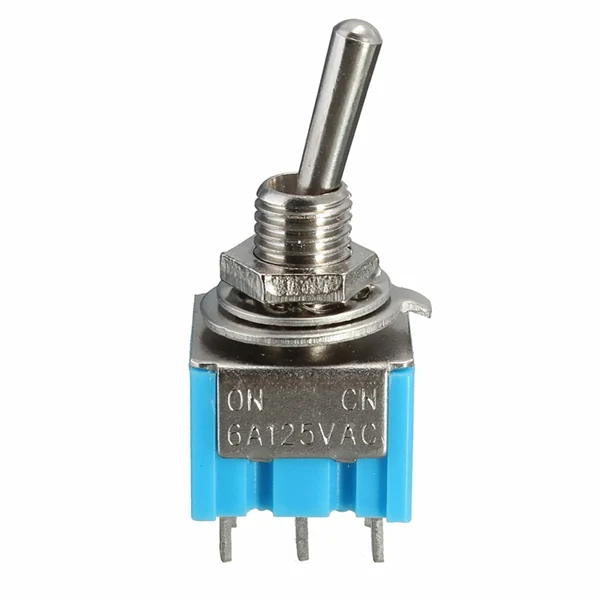

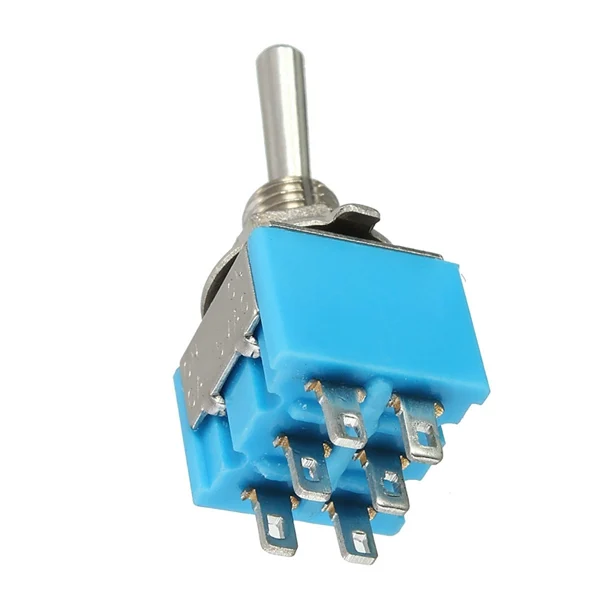

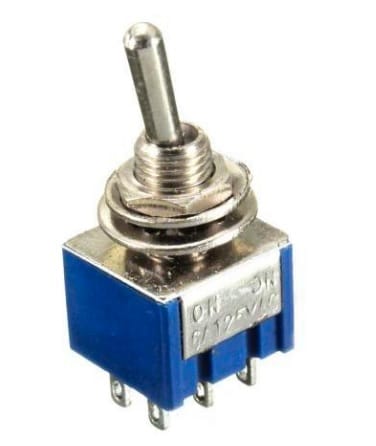

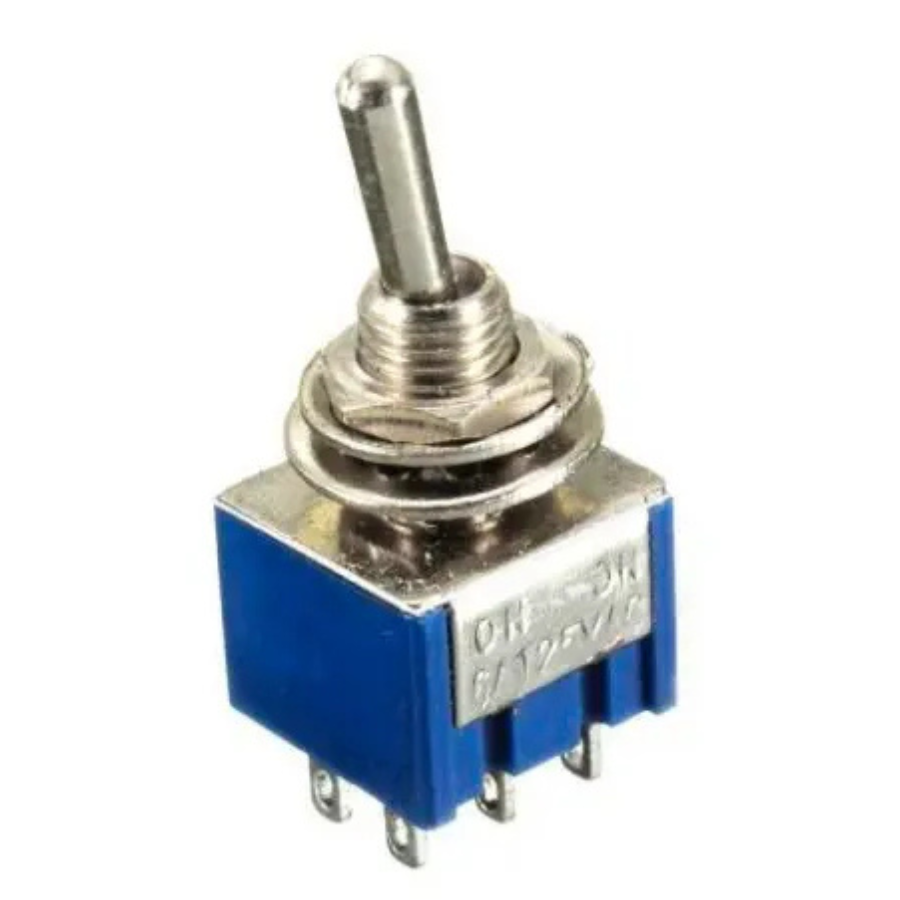

Mini Panel Mount DPDT Toggle Switch (Pack of 5)
Introducing our Mini Panel Mount DPDT Toggle Switch, a versatile solution for your electrical switching needs. This toggle switch allows you to choose between two options for each of its two switches, making it ideal for switching between voltages, audio outputs, or sensor inputs.
Compact and user-friendly, this toggle switch features a sleek blue design that is both functional and stylish. Although rated for 6A at 125VAC, we recommend using it for a maximum of 1A at 24V to ensure optimal performance and safety.
Features:
- DPDT 6 Terminal ON-ON 2 – Position Latching Toggle Switch.

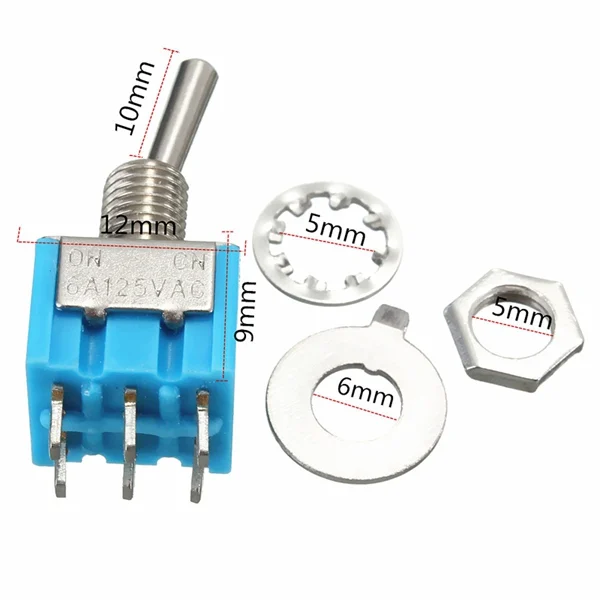

- Each switch is assembled with two hex nuts, a flat and a locking washer.
- Easy installation, fits into any 6mm hole.
- DPDT 6 Terminal ON-ON 2-Position Latching Toggle Switch
- Each switch comes assembled with two hex nuts, a flat washer, and a locking washer for easy installation

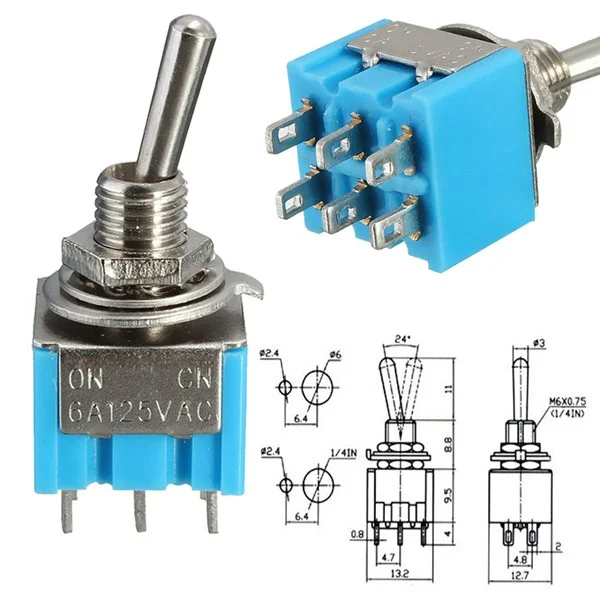

Specifications:
- Type: Double Pole Double Throw
- Main Body Dimensions: 12 x 12 x 10mm
- Lever Length: 11mm
Upgrade your electrical setup with our Mini Panel Mount DPDT Toggle Switch today!
Package Includes
- 1 x Mini Panel Mount DPDT Toggle Switch (Pack of 5)
Datasheet
