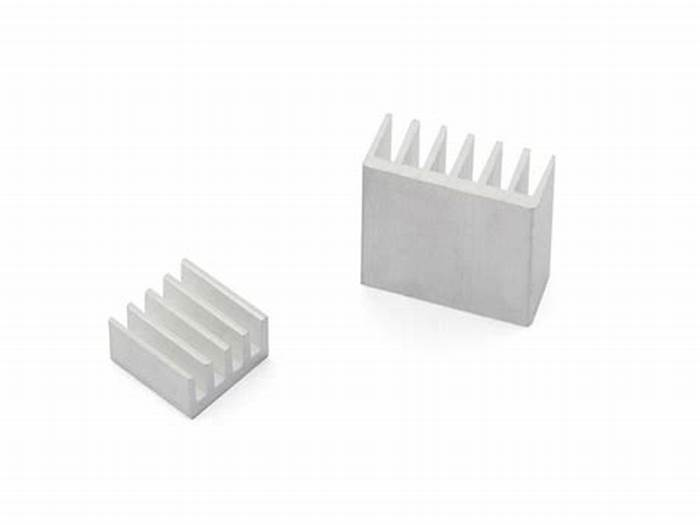

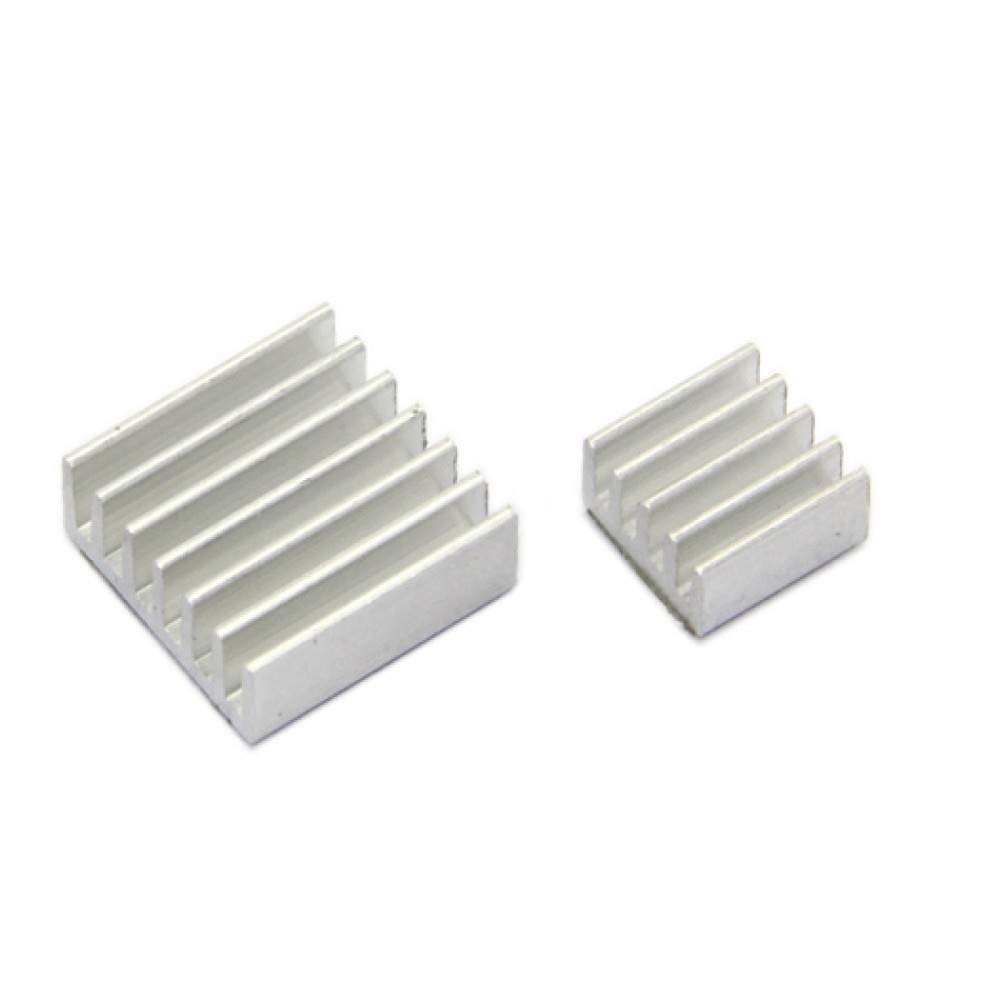

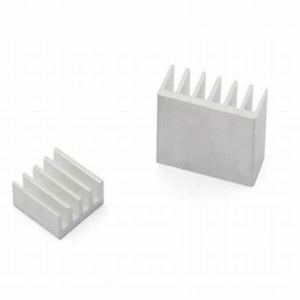

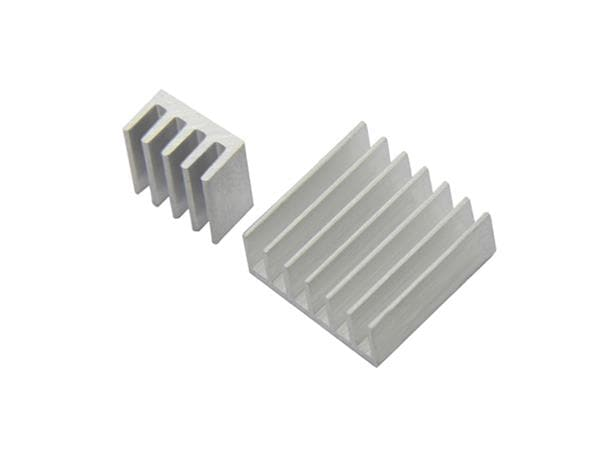

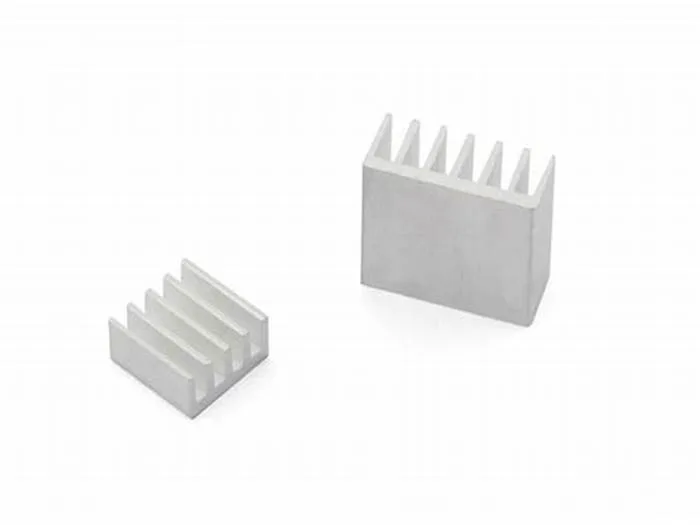

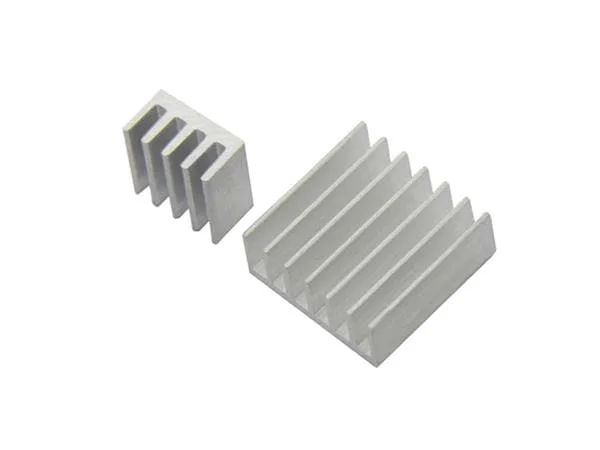

Set of Aluminum Heatsink for Raspberry Pi
This set of aluminum heatsinks for Raspberry Pi consists of two pieces that help cool down the chips on the board. Unlike other heatsinks, these ones come with thermally conductive adhesive tape that enhances the cooling efficiency of the Raspberry Pi. The installation is easy: just peel off the protective layer and stick the heatsinks on the board.
Features
Large Heatsink: 14 x 14 x 7 (LxWxH) mm
Small Heatsink: 9 x 9 x 5 (LxWxH) mm
Material: Aluminum
Color: White
Large Heatsink: 6 Teeth
Small Heatsink: 5 Teeth
Compatible with most Raspberry Pi cases
Can be used with other devices such as the Beaglebone
Can be used with stepper motors, motor driver boards etc.
Specifications:
| Material: | Aluminium |
|---|---|
| Color: | White |
| Shipping Weight | 0.01 kg |
Package Includes
1 x Set of Aluminum Heatsink for Raspberry Pi (Include 1 Small and 1 Large Heat Sink)
Set of Aluminum Heatsink for Raspberry Pi Overview
The Set of Aluminum Heatsink for Raspberry Pi includes two precision-machined heatsinks designed to improve thermal performance of your single-board computer. The white-anodized aluminum construction and integrated adhesive tape ensure efficient heat transfer from processor and peripheral chips to the heatsink fins.
Key Features of Set of Aluminum Heatsink for Raspberry Pi
- Two heatsinks: Large (14 × 14 × 7 mm, 6 fins) and Small (9 × 9 × 5 mm, 5 fins) for CPU/GPU and controller chips
- High-quality aluminum with white anodized finish for durability and corrosion resistance
- Pre-applied thermally conductive adhesive tape for secure, high-efficiency mounting
- Low-profile design compatible with most Raspberry Pi cases and enclosures
- Enhances stability under heavy computational or multimedia loads
- Genuine product from Zbotic with fast shipping across India
Applications and Use Cases
- Passive cooling for Raspberry Pi 4, 3, 2, Zero and Compute Module boards
- Thermal management on BeagleBone or other small form-factor SBCs
- Cooling motor driver ICs on robotics and automation control boards
- Heat dissipation for stepper motor drivers in 3D printers and CNC machines
- Stabilizing temperature-sensitive sensors and chips in DIY electronics projects
How to Use Set of Aluminum Heatsink for Raspberry Pi
Ensure the chip surfaces are clean and dry, peel off the protective liner from the adhesive tape on each heatsink, then carefully align and press them onto the CPU/GPU and supporting ICs. Apply firm, even pressure for a few seconds to secure the bond. The compact profile allows installation before or after seating the Raspberry Pi into most cases.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Will these heatsinks fit on a Raspberry Pi 4 Model B?
Yes. The large heatsink is sized for the Broadcom BCM2711 processor, and the small heatsink fits the LAN controller or other peripheral ICs on the Pi 4 Model B board.
Is the thermally conductive adhesive tape included?
Absolutely. Both heatsinks come with pre-applied high-performance thermal tape, eliminating the need for separate thermal pads or adhesives.
Can I install these heatsinks with my existing Raspberry Pi case?
Yes. Their low-profile design allows installation inside most standard Raspberry Pi cases without obstructing ports or mounting points.
