This is the 9inch variant of the Waveshare ESP32-S3 1.9inch Display Development Board in IoT Development Boards. Available at ₹1,762.92 (₹1,494.00 + GST) with free shipping across India.
Description:

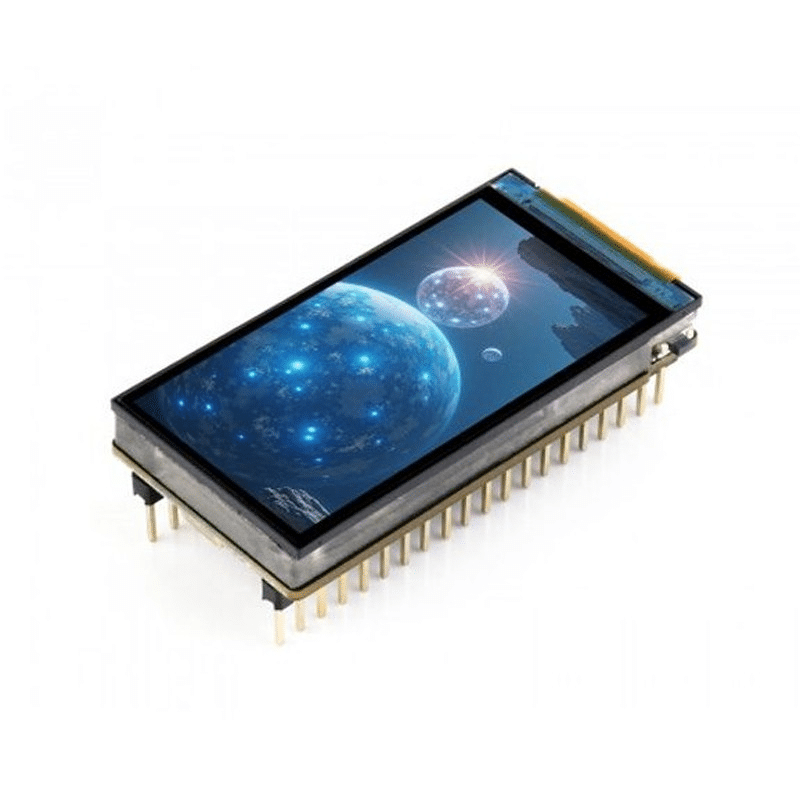

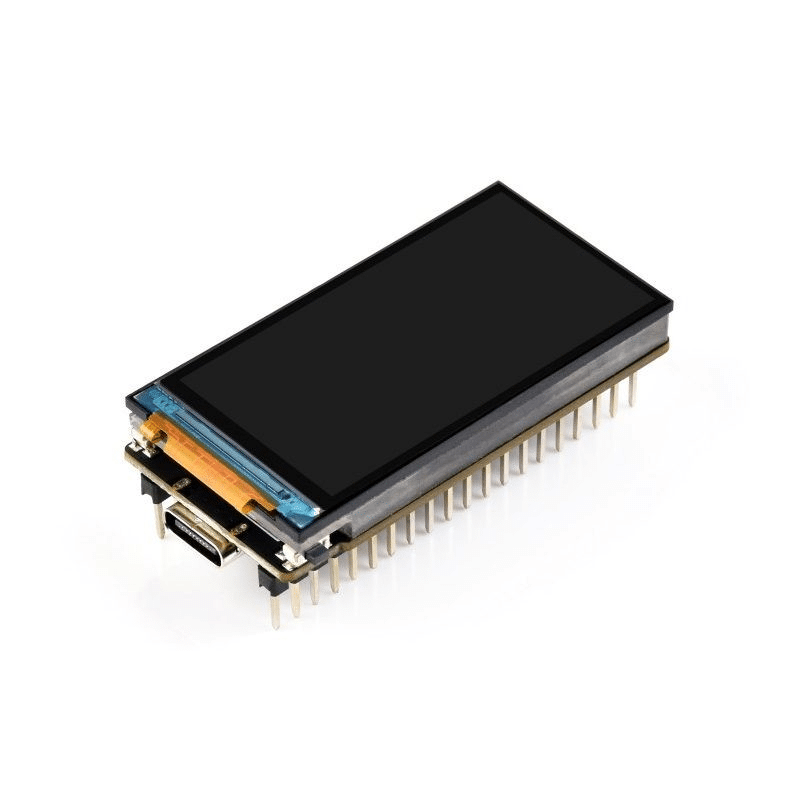

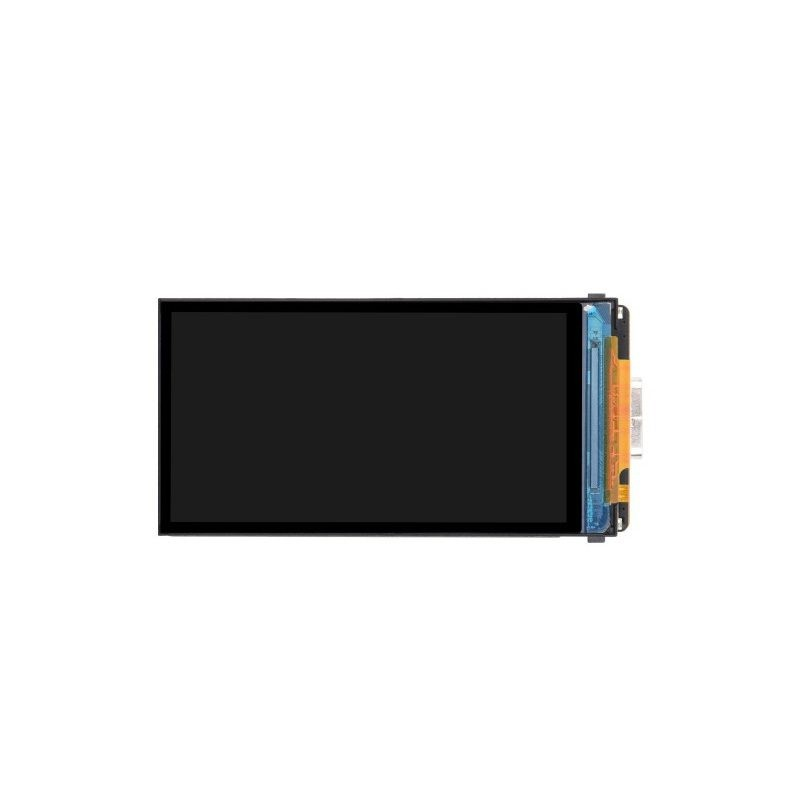

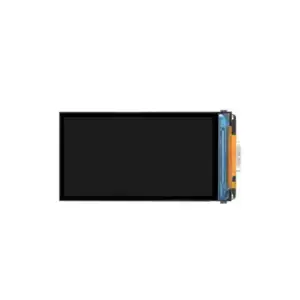

The Waveshare ESP32-S3 1.9-inch Display Development Board is a compact and versatile IoT development platform featuring a vibrant 170×320 LCD display with 262K colors. Powered by the ESP32-S3R8 chip, it includes a 32-bit LX7 dual-core processor running up to 240MHz, integrated 16MB Flash, and 8MB PSRAM, making it ideal for GUI-based applications like LVGL. With built-in WiFi (2.4GHz) and Bluetooth 5 LE, it supports wireless connectivity for smart device applications. This board includes an onboard 6-axis IMU (QMI8658), USB Type-C port, TF card slot, and a lithium battery interface.
It supports 90° hardware rotation and comes in two versions: with or without touch functionality. Compatible with Raspberry Pi Pico headers, it allows for extensive expansion. Ideal for rapid development of HMI, wearables, and embedded projects.
Compatible with Pico header, can be used with some Raspberry Pi Pico HATs, offering strong compatibility and expandability

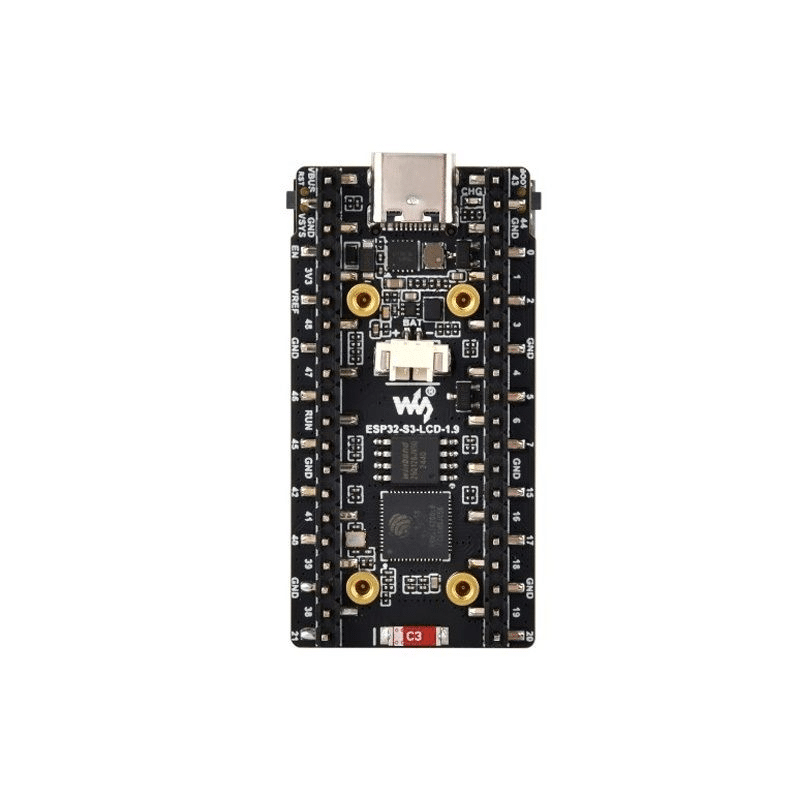

What’s On Board
Features:
- 32-bit LX7 Dual-Core Processor, up to 240MHz clock speed
- 1.9-inch LCD Display, 170×320 resolution, 262K colors
- WiFi (802.11 b/g/n) and Bluetooth 5 LE support
- 16MB Flash + 8MB PSRAM onboard for smooth GUI performance
- 6-axis IMU (QMI8658) for motion sensing and gesture detection
- USB Type-C Port for power, programming, and debugging
- TF Card Slot and Lithium Battery Header onboard
- Pico Header Compatibility for easy peripheral expansion
Specification:
| Item Type: | Display Development Board |
|---|---|
| RAM Capacity: | 512KB, 8MB |
| Processor Type: | LX7 dual-core |
| Model No.: | ESP32 S3 |
| Microcontroller: | ESP32 S3R8 |
| Clock Speed | 240MHz |
| Display Type | LCD |
| Display Size (Inch): | 1.9 |
| Brightness (cd/m²) | 500 |
| Length (mm): | 50 |
| External flash | 16MB |
| Power Interface | USB Type-C |
Package Includes:
1 x Waveshare ESP32-S3 1.9inch Display Development Board, 170×320 Pixels, 262K Color, 32-bit LX7 Dual-core Processor
ESP32 DAC Tutorial: Generate Analog Signals and Audio Output
The ESP32 DAC (Digital-to-Analog Converter) is a powerful built-in feature that sets the ESP32 apart from most other...
Read More →
LoRa vs WiFi vs Bluetooth: Which IoT Protocol to Use?
Choosing the right wireless protocol is one of the most critical decisions in any IoT project. The debate...
Read More →
Machine Learning for IoT: Anomaly Detection on ESP32
Table of Contents ML for IoT Overview Anomaly Detection Algorithms Training Data Collection Building the ML Pipeline Deploying...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 1.9" |
| SKU | AI7603 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 1.9inch Display Development Board is a versatile iot development boards used across a wide range of applications including rapid IoT prototyping, connected sensor platforms, edge computing, wearable devices, and home automation.
Common use cases:
- Prototyping a smart environmental monitor
- Building a BLE-connected fitness tracker
- Creating an edge AI inference device
This product is ideal for IoT engineers, embedded developers, and electronics students.
Technical Tip: Development boards with built-in displays and sensors accelerate prototyping. Check GPIO count and peripheral support for your project needs.
