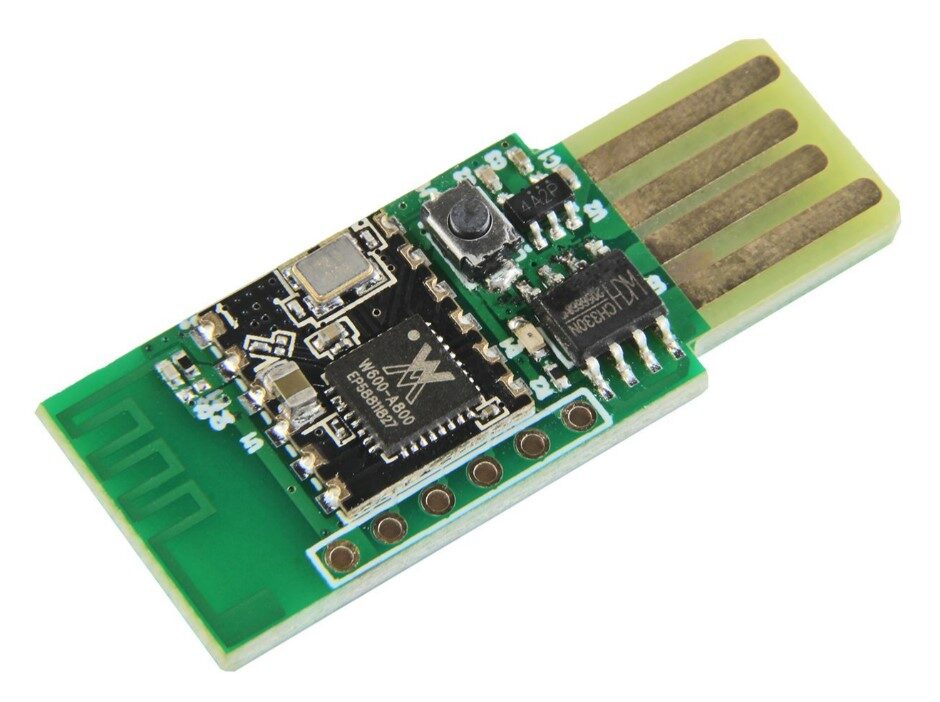

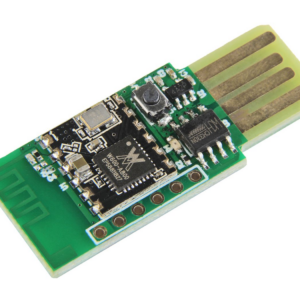

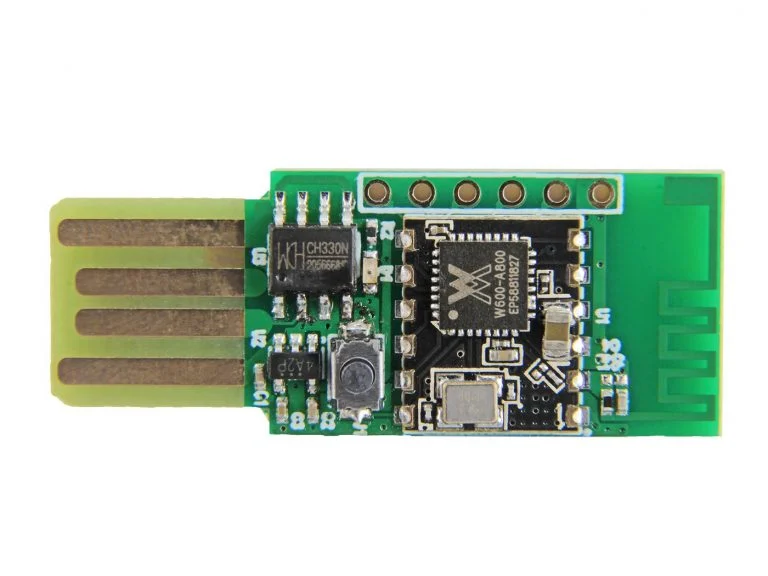

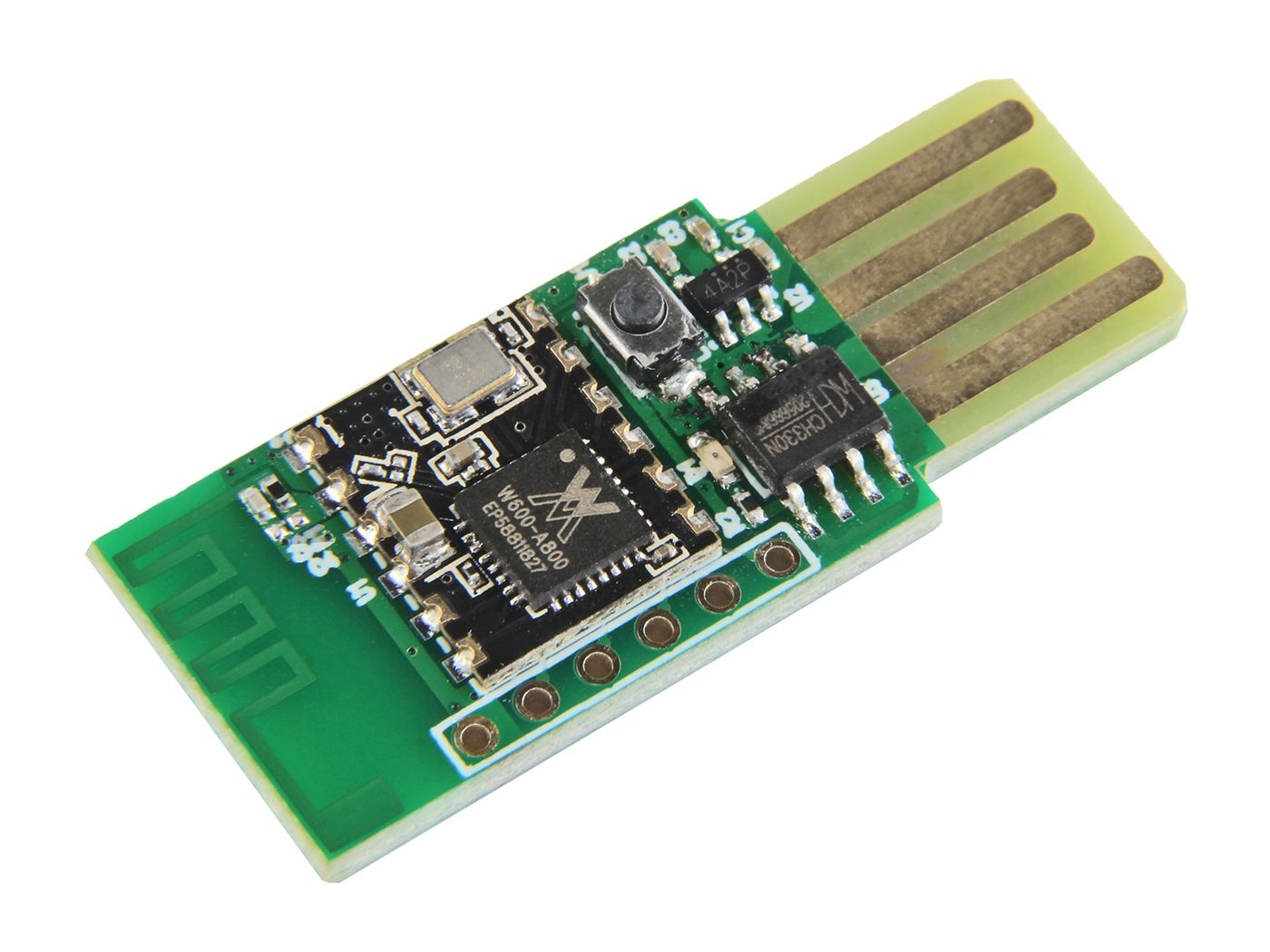

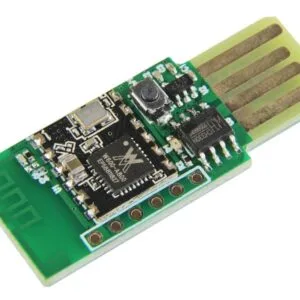

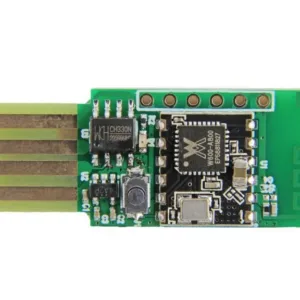

Air602 WiFi Development Board
The Air602 WiFi Development Board consists of the Air602 Wi-Fi module, a USB interface and an antenna. When you connect this board to your computer, it appears as a Ports (COM & LPT) device, which you can program with a Serial port tool. This module supports IEEE802.11b/g/n standards and AT commands.
Specifications
| Operating voltage (VDC) | 3.3 |
| WiFi Mode | IEEE802.11b/g/n |
| Frequency Range (GHz) | 2.4 ~ 2.4835 |
| Modulation | DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64 |

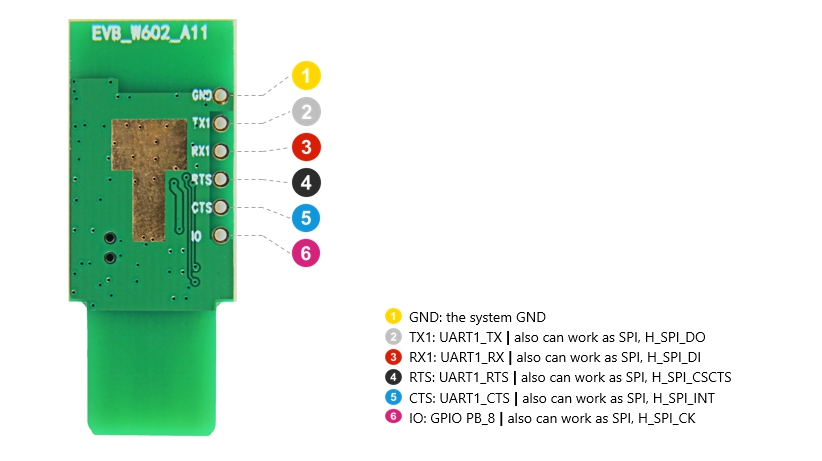

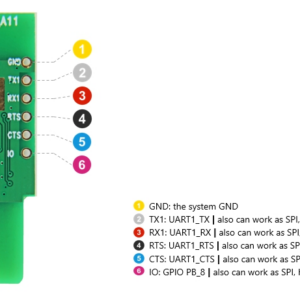

| Interface | UART, SPI, GPIO |
| Network Type | STA/AP/AP+STA/Wi-Fi Direct |
| Operating current (mA) | 110mA（PS Mode 35mA，DTIM = 1 |
| Operating Temperature (°C) | ‐40 ~ +85 |
| Storage Temperature (°C) | ‐40 ~ +125 |
| Length (mm) | 38.5 |
| Width (mm) | 16 |
| Height (mm) | 3.5 |
| Weight (gm) | 3 |
Applications:
- Intelligent home appliances.
- Smart home.
- Wireless audio and video.
- Smart toys.
- Medical monitoring.
- Industrial control.
- Other Internet of Things applications.

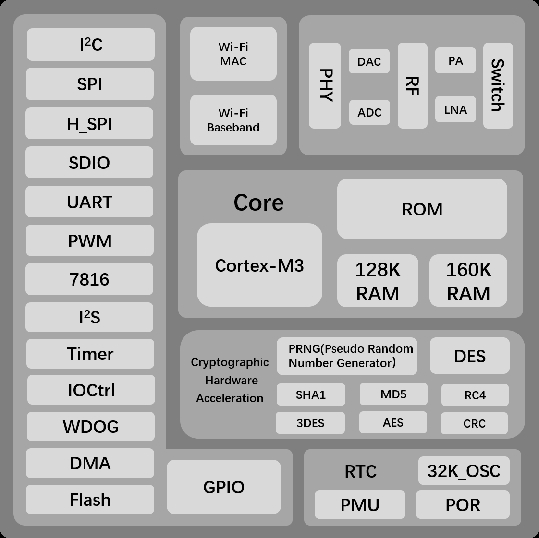

Functional Block Diagram
Useful Links:
Package Includes
1 x Air602 WiFi Development Board.
Air602 AT Command User Manual
Air602 Hardware Design Manual
AIR602_lbr for eagle
