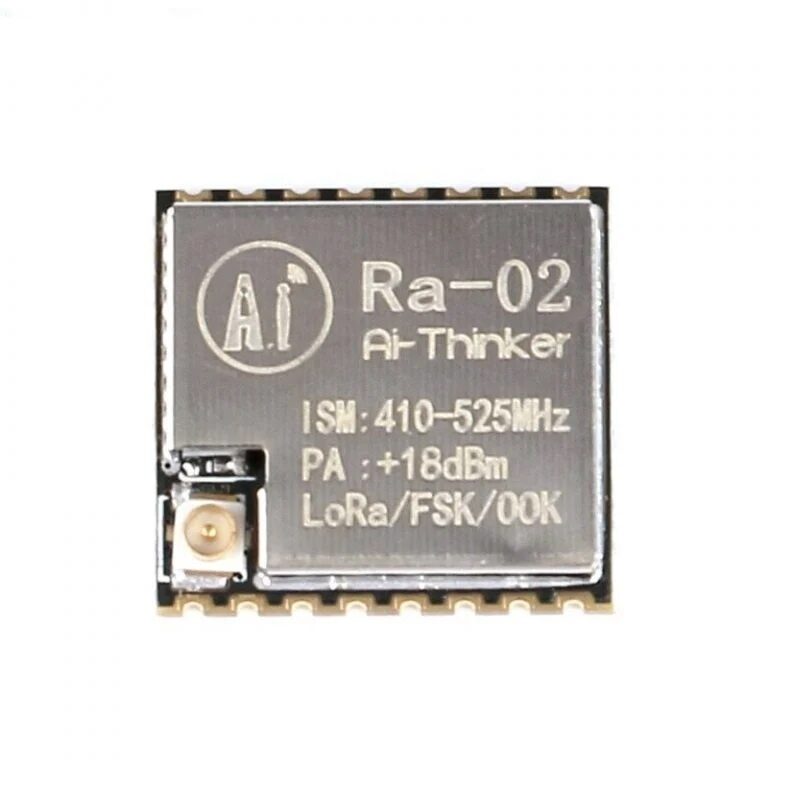

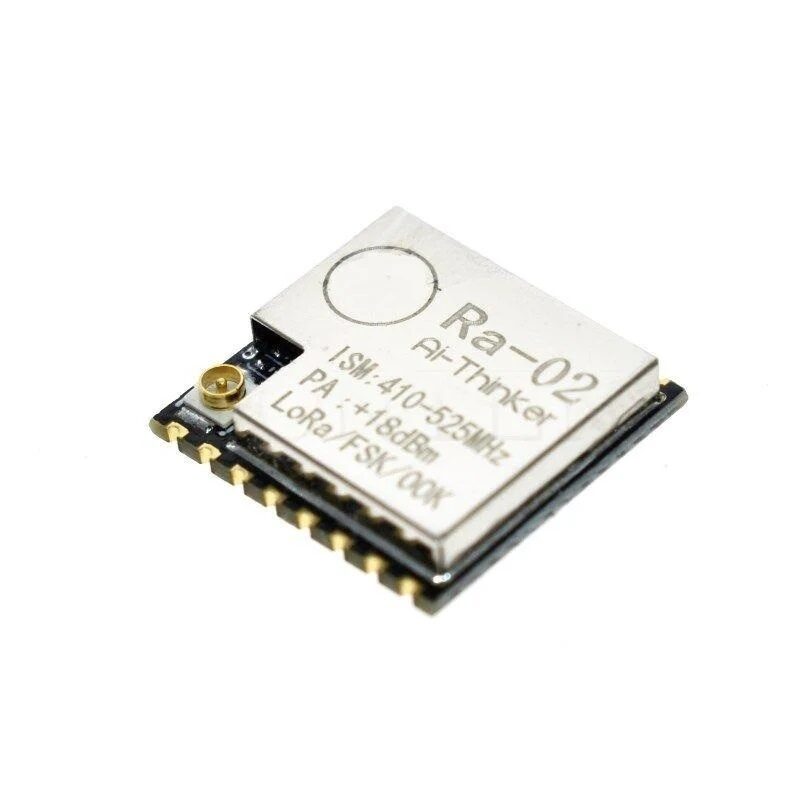

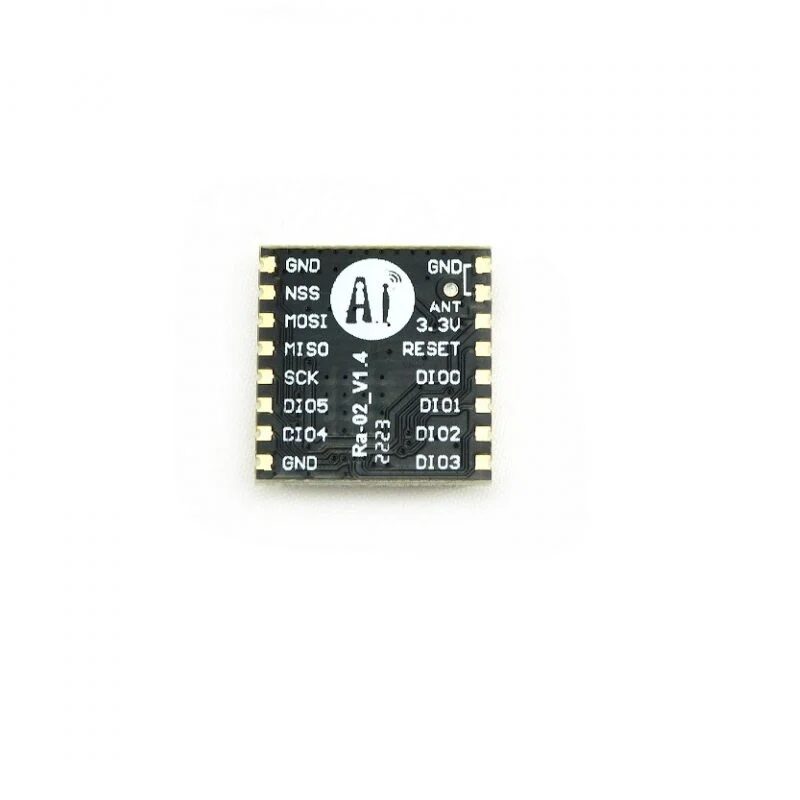

Ai-Thinker LoRa Series Ra-02 Spread Spectrum Wireless Module
This SX1278 Ai-Thinker LoRa Series Ra-02 Spread Spectrum Wireless Module is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH’s patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability.
At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme cannot consider the distance, interference and power consumption at the same time.
Features
LoRa Spread Spectrum modulation technology
Constant RF power output at + 20dBm-100mW voltage change
High sensitivity: down to -148dBm
Half-duplex SPI communication
Programmable bit rates up to 300kbps
Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes
127dB RSSI dynamic range
Automatic RF signal detection, CAD model, and very high-speed AFC
Packet engine with CRC up to 256 bytes
Small footprint dual-row stamp-hole patch package
Shielded housing
Specifications:
Module Model | LoRa-RA-02 |
---|---|
Package/Case | SMD-16 |
Interface | SPI |
Programmable bit Rate | UP to 300Kbps |
Antenna Type | IPEX |
Frequency Range | 410-525 MHz |
Input Supply Range (VDC) | 2.5 ~ 3.7 |
Transmit Power (dBm) | 18±1 dBm (Max) |
Operating Temperature (°C) | -10 to 85 |
Length (mm): | 17 |
Width (mm): | 16 |
Height (mm): | 3.3 |
Package Includes
1 x Ai- Thinker LoRa Series Ra-02 Spread Spectrum Wireless Module.
