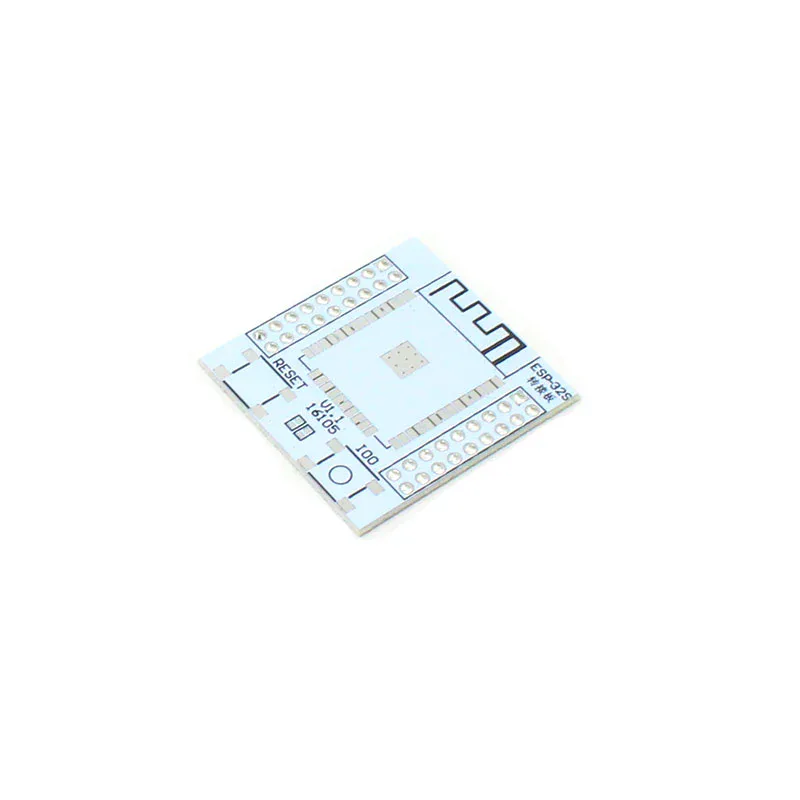

This is the Blue variant of the Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module in Other ESP WIFI Modules. Available at ₹22.77 (₹19.30 + GST) with free shipping across India.
This is Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module. Adapter Board Pinboard Converter for ESP-32S ESP32S ESP32 Wireless WIFI Module 2.54mm. This is an adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupont cable wire. Convenient to develop and debug.
This Adapter Board is suitable for ESP-32F module. ESP-32F Adapter Board minimum system needs only lead 4 lines to connect to USB serial adapter, TXD should be connected to TX, TXD should be connected to RX. Note: You must connect a 4,7K-20K pull-up resistor in the EN pin to 3.3V, we recommend 12K. According to the above description, power on after connecting the line and default operating mode, press IO0 button to get into download mode, and press the RESET button to download after you flash your code.
Features :
- For ESP32
- Onboard Reset button and flashing firmware button

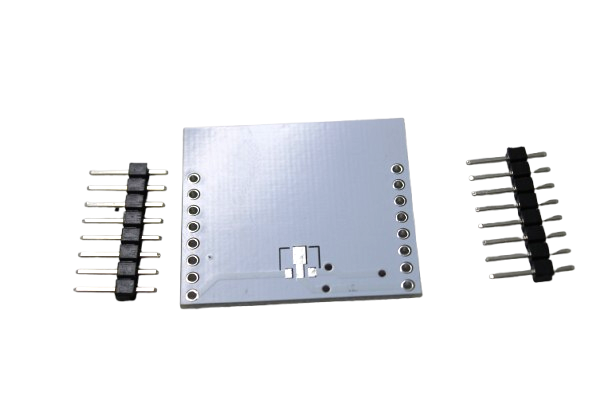

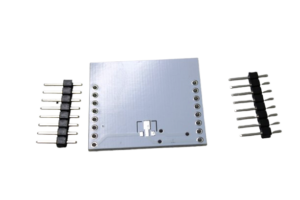

- Includes the adapter board and male double row pins connectors (not soldered)
- WiFi board ESP32 not included
Package Includes :
1 x Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module

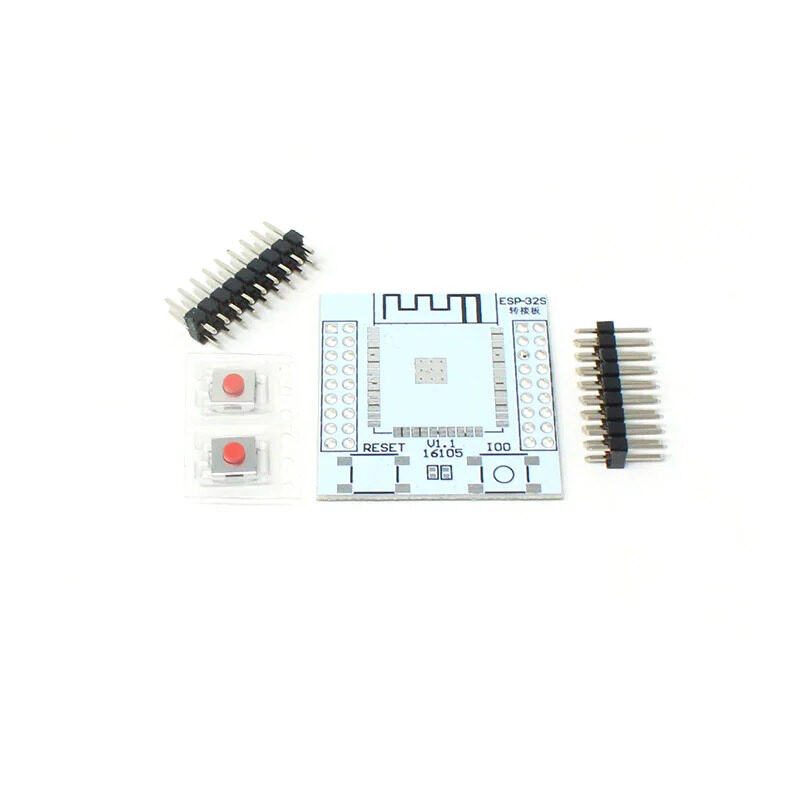

1 x Set of berg connector & Switches(as shown in image)
Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Overview
This Adapter Breakout Board is designed specifically for the ESP-32f (ESP-Wroom-32) wireless Bluetooth and Wi-Fi module. It converts the module’s castellated pins into a standard 2.54 mm double-row header, making it breadboard-friendly and ideal for development and debugging.
Key Features of Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32
- Compatible with ESP-32f / ESP-Wroom-32 Wireless Bluetooth & Wi-Fi Module
- Onboard RESET button and BOOT/FLASH button for one-touch firmware uploads
- 2.54 mm pitch male double-row headers included (unsoldered) for custom assembly
- Breadboard-ready layout with Dupont cable compatibility for quick prototyping
- Minimal wiring: only four connections (3.3 V, GND, TXD ↔ TX, RXD ↔ RX) to a USB-serial adapter
- Fast shipping from Zbotic with genuine, authorized-source products
Applications and Use Cases
- Rapid prototyping of Wi-Fi and Bluetooth IoT devices on a breadboard
- ESP32 firmware development and step-by-step debugging in lab environments
- Educational workshops teaching embedded networking and wireless sensors
- Proof-of-concept demos for mesh networking and home automation nodes
- Testing custom PCBs by swapping the ESP32 module onto the breakout board
How to Use Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32
Solder the provided 2.54 mm male headers onto the breakout board, insert the ESP-32f module, then place the board on your breadboard. Connect four lines to your USB-serial adapter (3.3 V, GND, TXD↔TX, RXD↔RX) and add a 12 KΩ pull-up resistor between EN and 3.3 V. To load firmware, press the BOOT (IO0) button, then hit RESET to enter download mode.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does this breakout board include header pins?
Yes. The package ships with male double-row 2.54 mm headers that you solder onto the board for breadboard or perf-board mounting.
How do I enter firmware download mode?
Connect 3.3 V, GND, TXD↔TX, RXD↔RX, add a 4.7–20 KΩ pull-up (12 KΩ recommended) on EN to 3.3 V. Press IO0 (BOOT), then RESET to boot into the serial flash loader.
Can I use this board with standard Dupont cables?
Absolutely. The 2.54 mm header spacing allows direct connection with Dupont jumper wires for easy breadboard prototyping.
Technical Specifications
| Interface / Protocol | Bluetooth |
|---|---|
| Color | Blue |
| SKU | AI1346 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module is a versatile other esp wifi modules used across a wide range of applications including WiFi connectivity for microcontrollers, IoT sensor nodes, remote monitoring, OTA firmware updates, and cloud-connected devices.
Common use cases:
- Adding WiFi to an existing Arduino project
- Building a cloud-connected weather station
- Enabling remote firmware updates
This product is ideal for IoT developers and electronics hobbyists.
Technical Tip: ESP-WROOM-32 modules need proper decoupling capacitors and antenna clearance for reliable WiFi performance.
