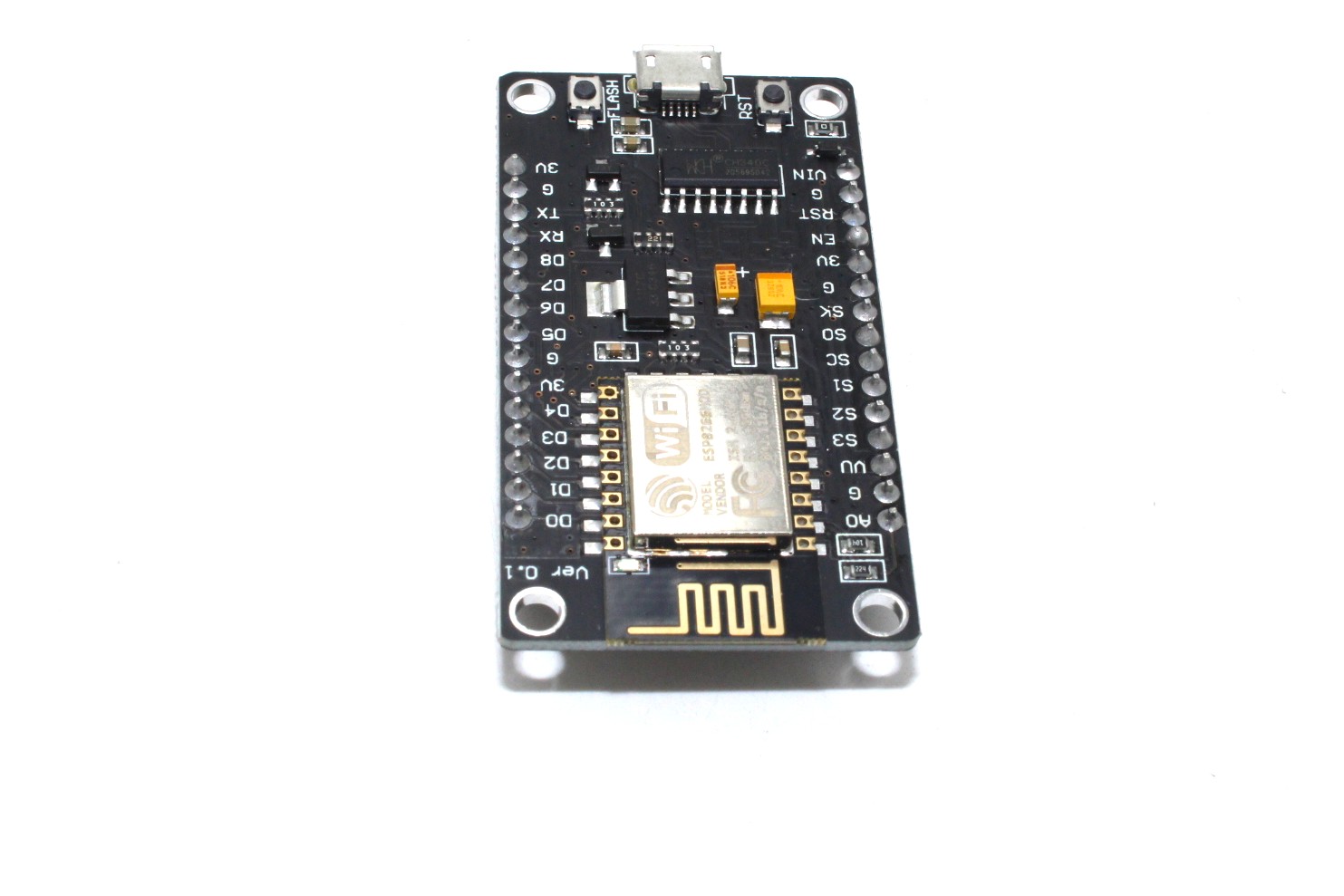

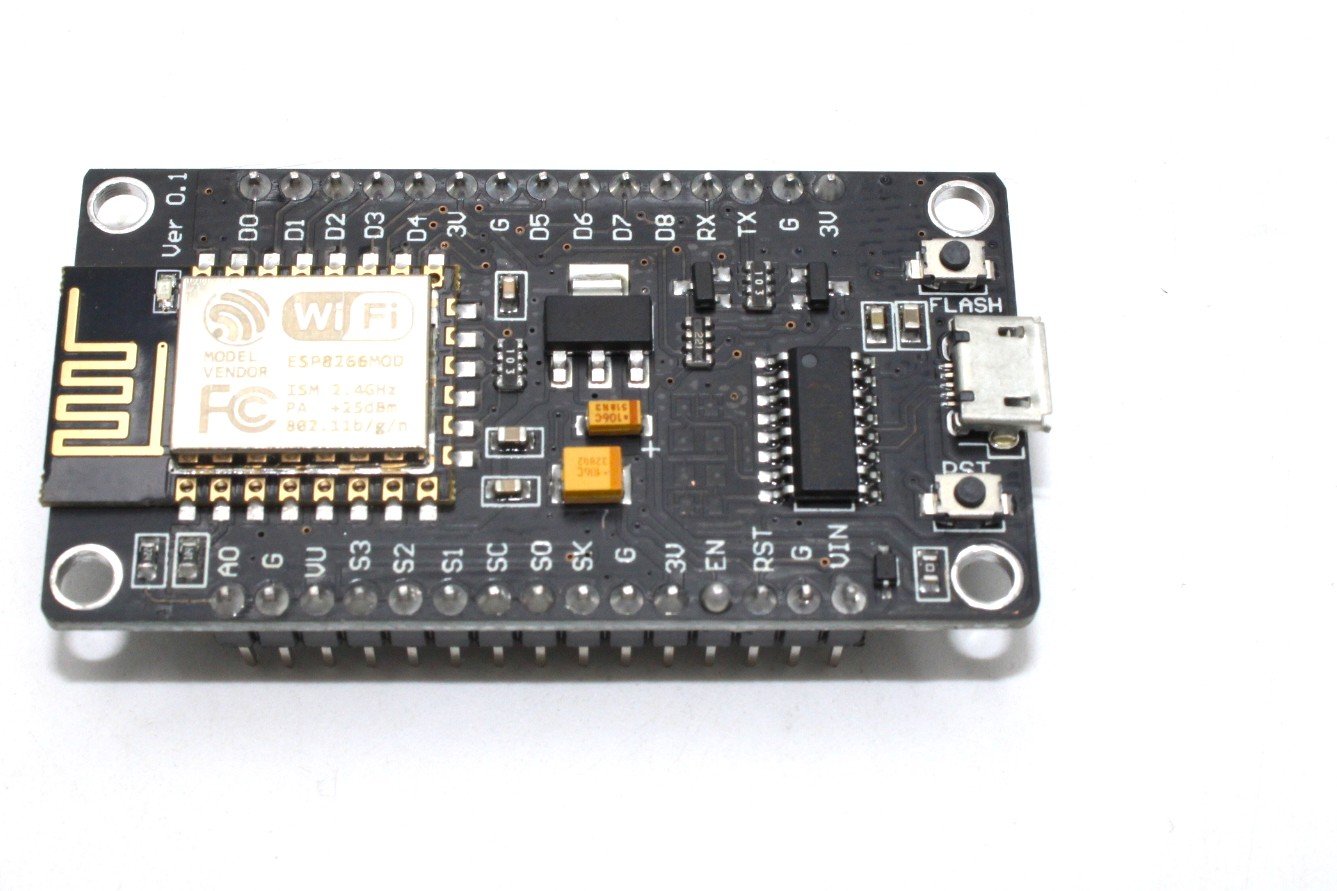

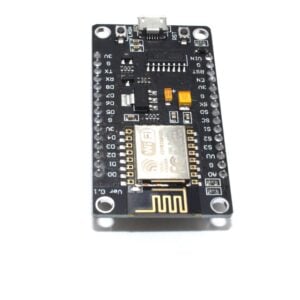

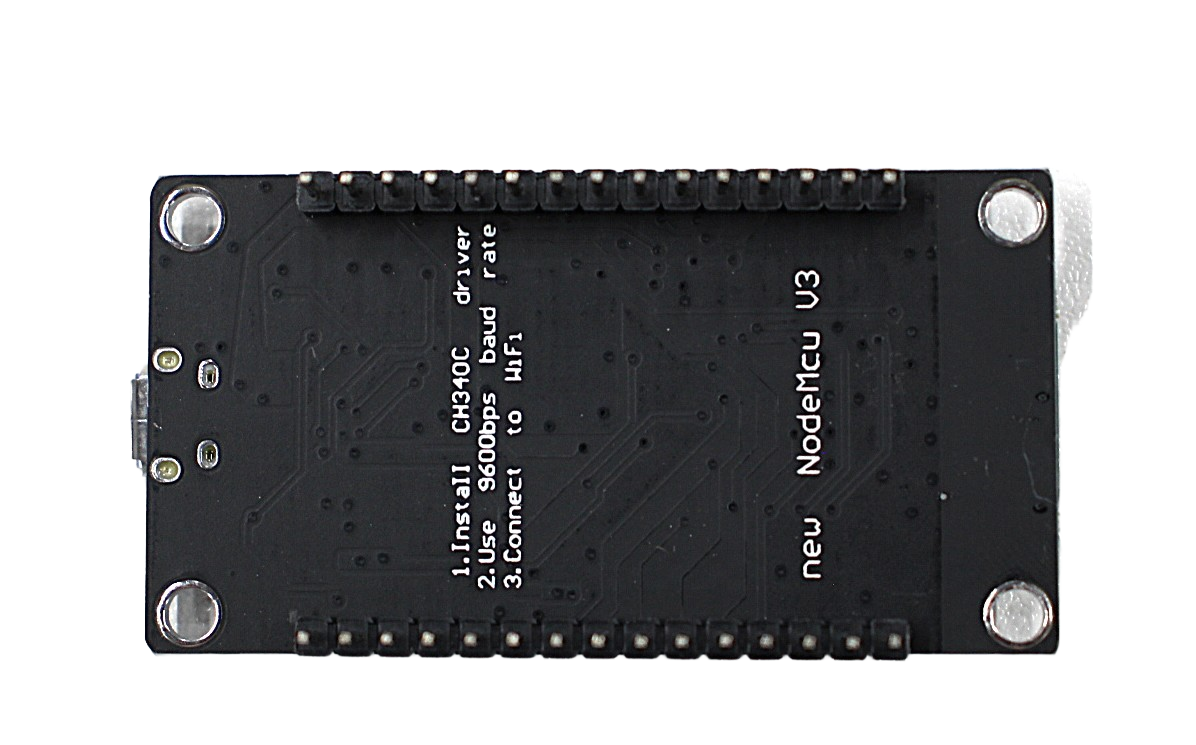

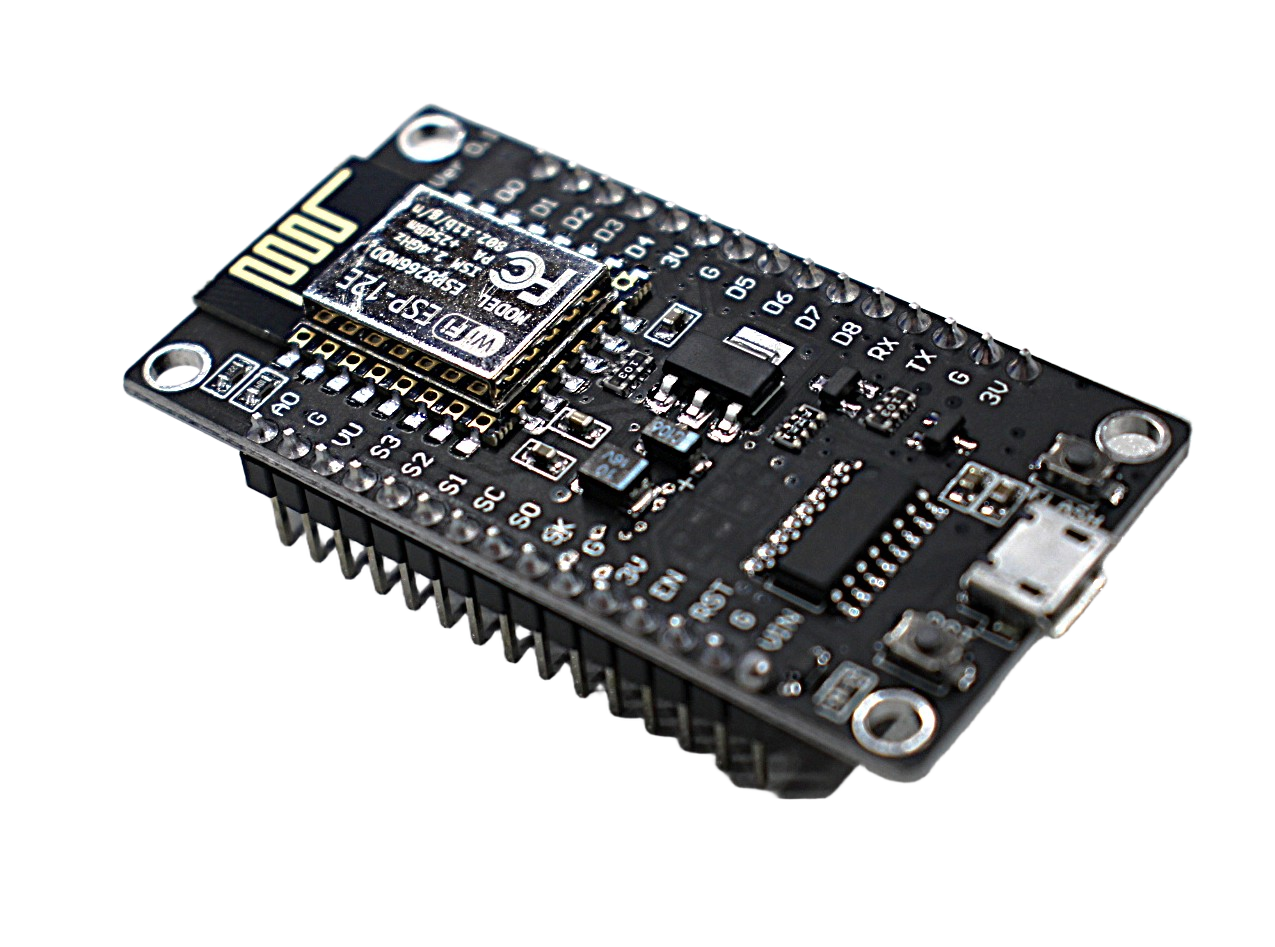

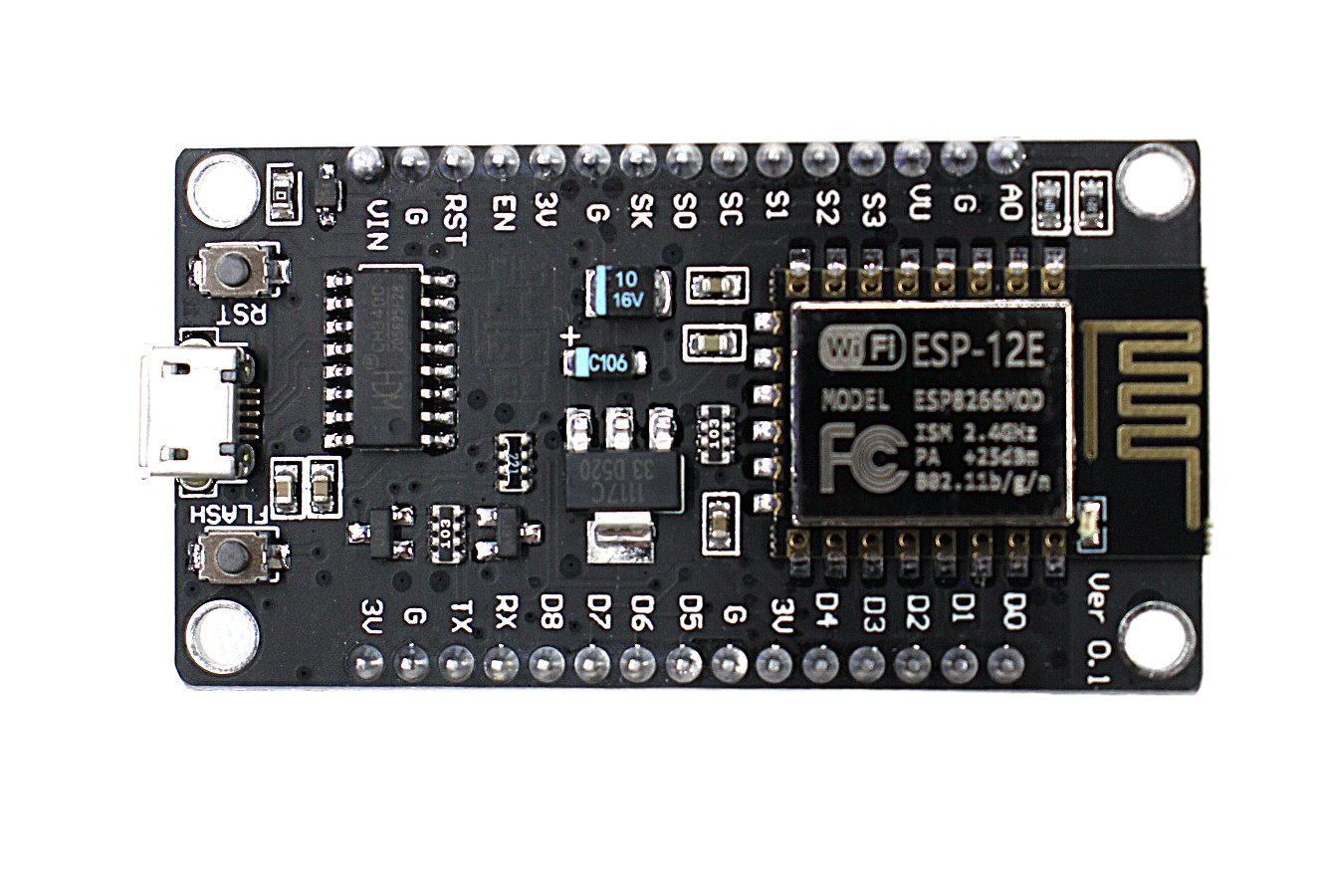

NodeMcu ESP8266 V3 Lua CH340 WiFi Development Board
Introducing the revolutionary NodeMcu ESP8266 V3 Lua CH340 Wifi Dev. Board! This cutting-edge, low-cost WiFi technology uses a modern, high-level and mature LUA-based programming. It has all the resources on board and I/O pins you need to enhance your existing Arduino projects or any development board with ease.
You can use modern Internet development tools such as Node.js with the built-in API of NodeMCU to put your idea on the fast track immediately. NodeMCU is built on the mature ESP8266 technology and leverages the abundant resources available on the web.
NodeMCU has ESP-12 based serial WiFi integrated on board, which provides GPIO, PWM, ADC, I2C and 1-WIRE resources at your fingertips. It also has a built-in USB-TTL serial with a super reliable industrial strength CH340 for superior stability on all supported platforms. This module is one of the most affordable wifi-modules in the market. V3 or Version3 is the latest version of this module. This tutorial will help you to connect all the versions of ESP8266 NodeMcu, i.e V1, V2 or V3.
1.Arduino-like hardware IO – An advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware. You can code like Arduino, but interactively in Lua script.
2.Nodejs style network API – An event-driven API for network applications, which enables developers to write code for a 5mm5mm sized MCU in Nodejs style. It greatly speeds up your IOT application development process.
Development Kit – The Development Kit based on ESP8266 integrates GPIO, PWM, IIC, 1-Wire and ADC all on one board. It powers your development in the fastest way with NodeMCU Firmware!
The NodeMcu is an open-source firmware and development kit that helps you to prototype your IoT product with a few lines of Lua script. It integrates GPIO, PWM, IIC, 1- Wire and ADC all on one board based on ESP8266.
Features :
Uses CH340G.
Wireless 802.11 b/g/n standard
WiFi at 2.4GHz, support WPA / WPA2 security mode
Support STA/AP/STA AP three operating modes
Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Support Smart Link Smart Networking
ESP8266 has IO Pin
Don’t need to download resetting
A great set of tools to develop ESP8266
Lowest cost WI-FI
FOR Arduino like hardware IO
Greatly speed up your IOT application developing process
Open-source, Interactive, Programmable, Low cost, Simple, Smart, WI-FI enabled
WI-FI MCU ESP8266 integrated and easy to prototyping development kit.
We provide the best platform for IoT application development at the lowest cost.
NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.
Event-driven API for network applications, which facilitates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.
specification-
| Drive Type | Dual high-power H-bridge |
|---|---|
| Power Input(V) | 4.5 to 9 |
| Communication Interface Voltage(V) | 3.3 |
| Flash size(MB) | 4 |
| Operating Temperature Range (°C): | -40 to 125 |
| Transfer Rate(Kbps) | 110 to 460800 |
| AD0 | 1 channel ADC |
| Length (mm): | 58 |
| Width (mm) | 31 |
| Height (mm) | 11 |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
Package Includes
1 x NodeMcu ESP8266 V3 Lua CH340 Wifi Development Board
Example Tutorial
Sekh Sahabaj (verified owner) –
good quality pcb, PCB is slightly wider than the one which has CP2102.
Kiran (verified owner) –
Good service, will order again.
Rajeev Kumar (verified owner) –
Anil Dhepe (verified owner) –
excellent service
V S. (verified owner) –
Size is slightly bigger than other modules, working as expected.
