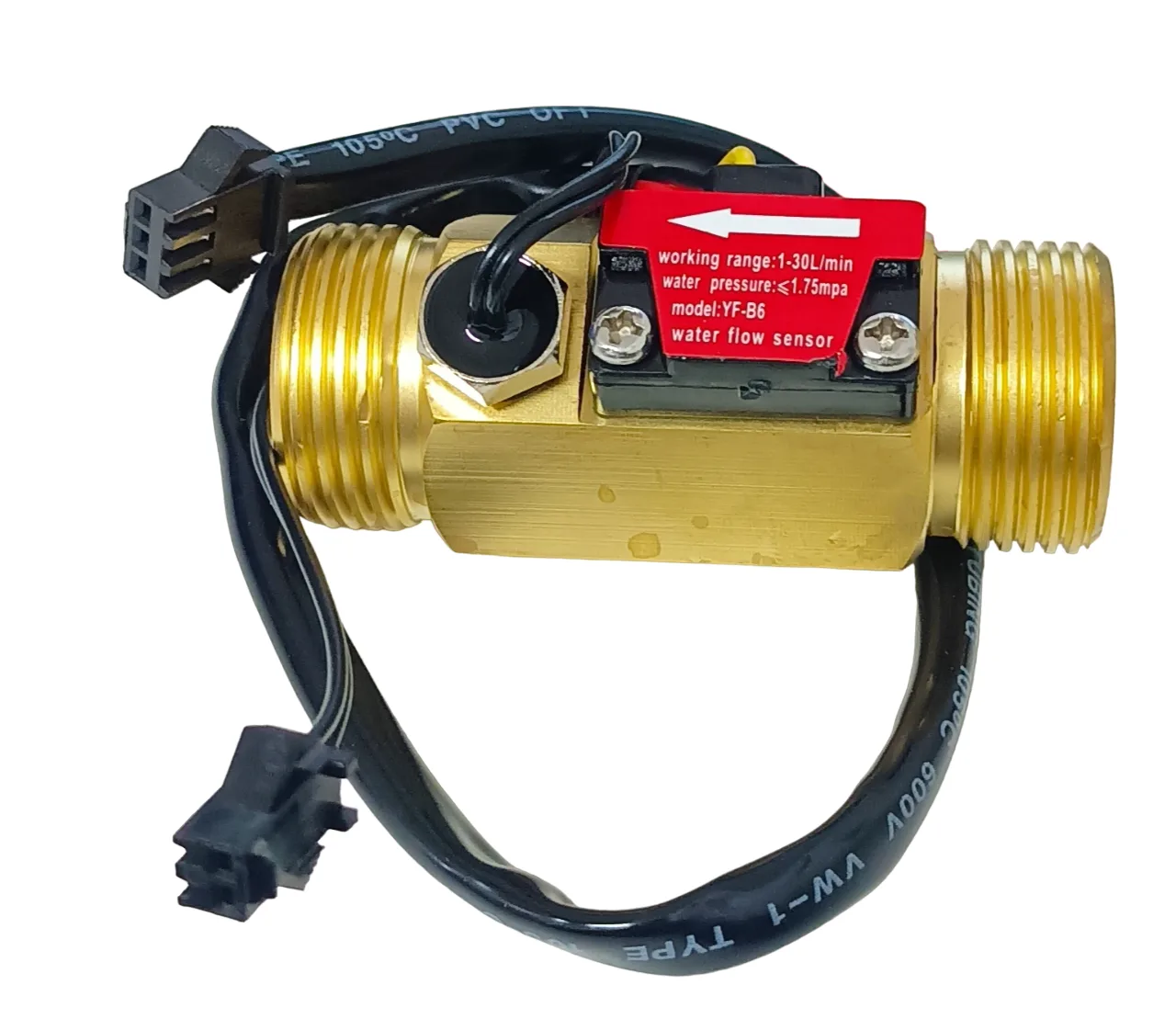

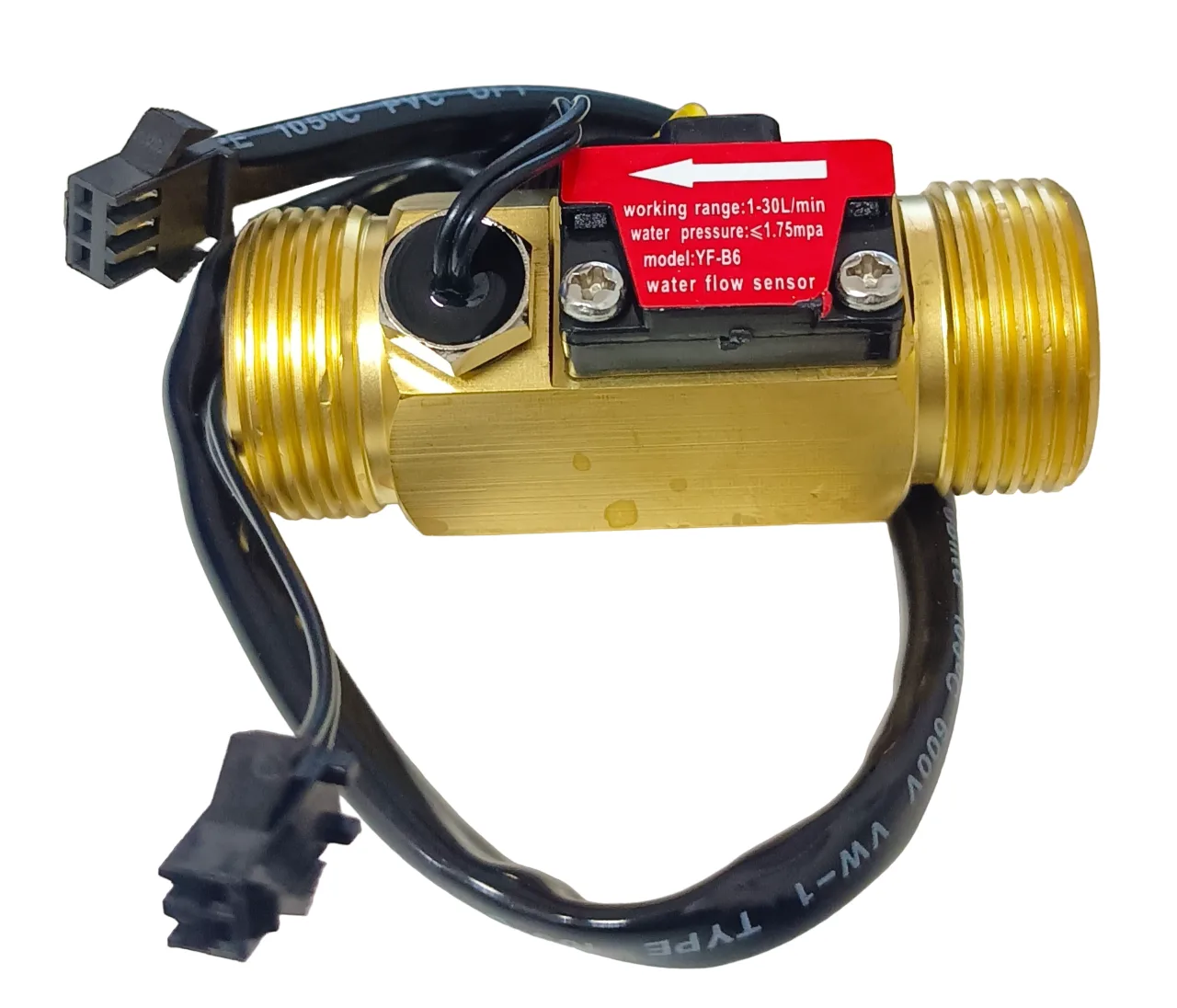

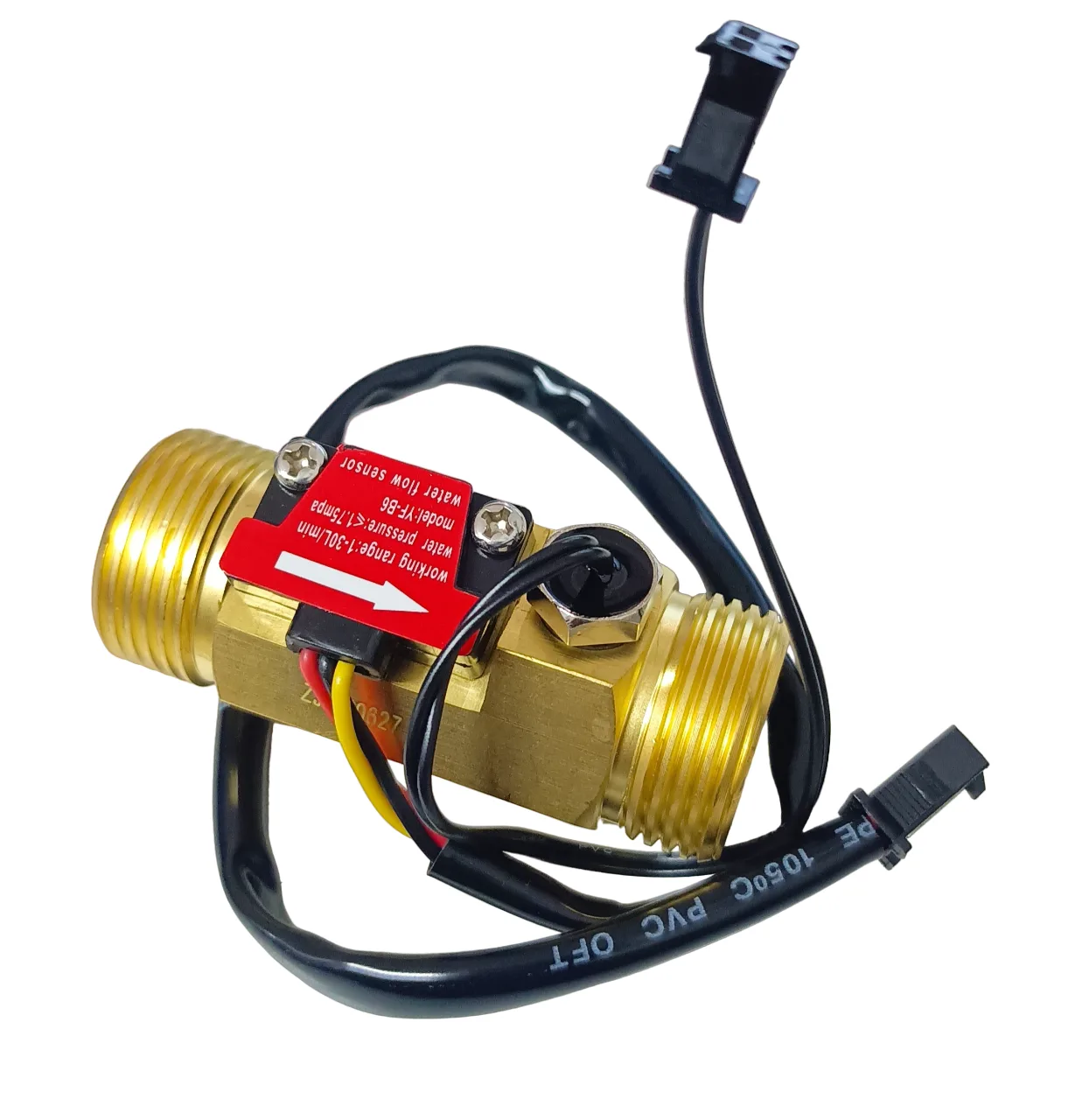

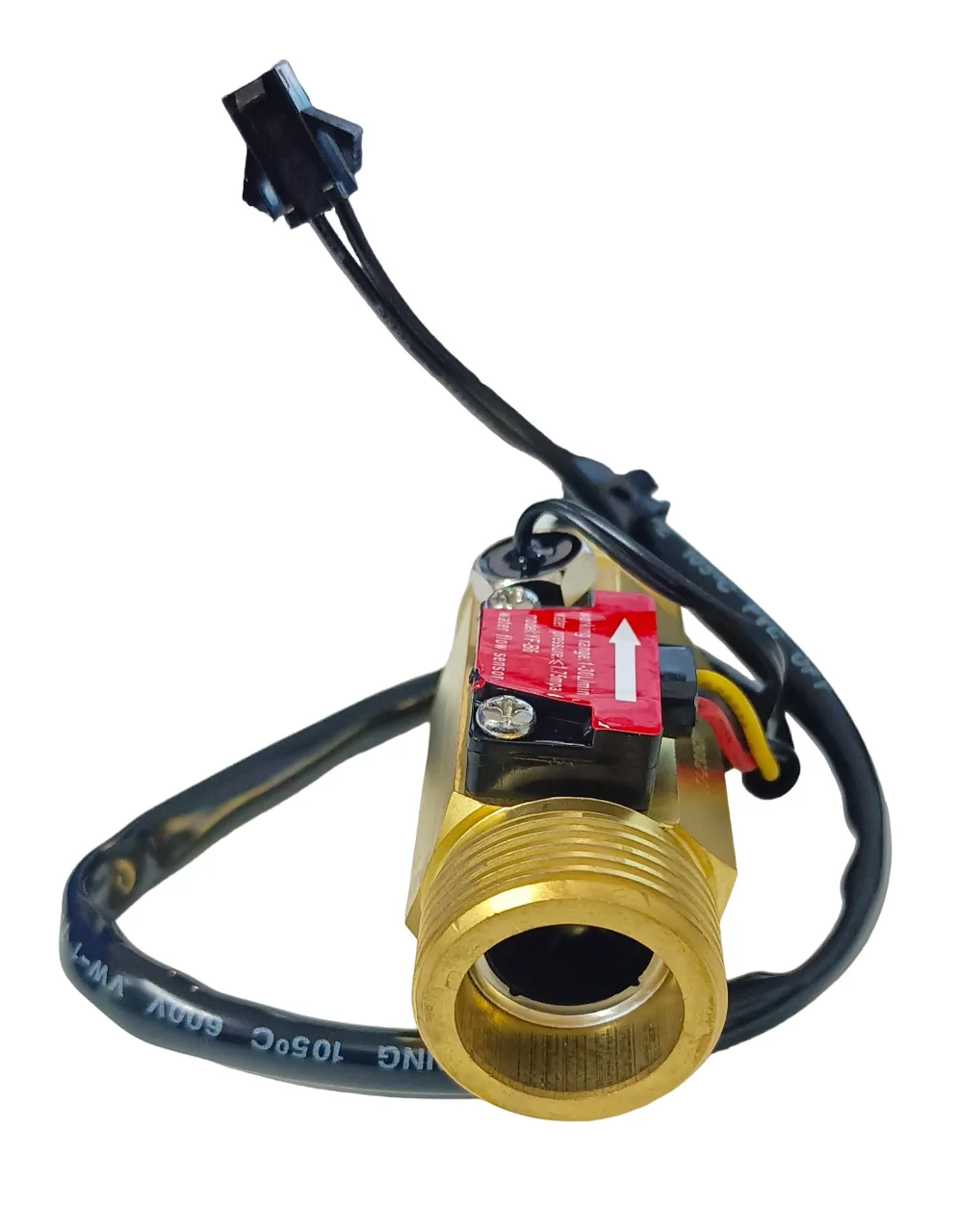

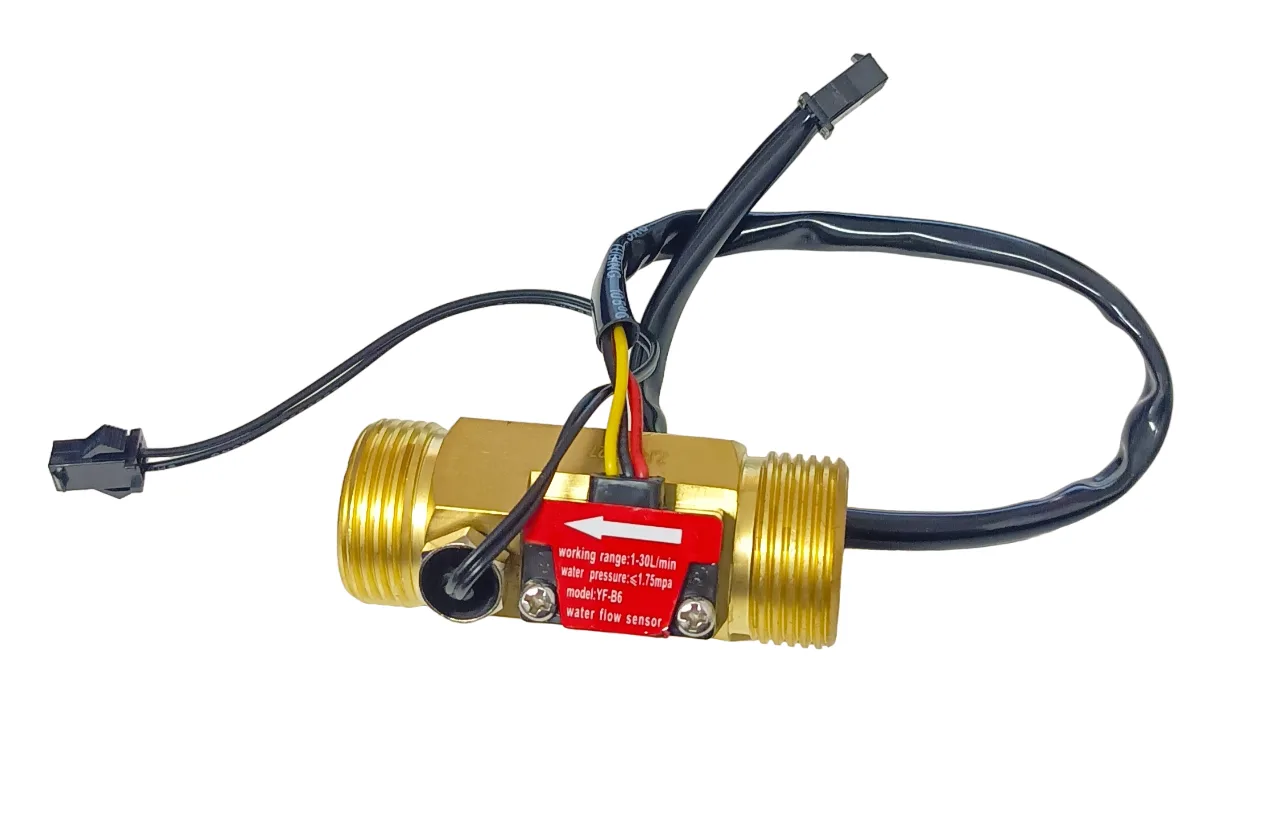

Water Flow Sensor (Sea) YF-B6
Water Flow sensor includes a plastic/brass body housing, a water rotor, and a hall-effect sensor, PCB electronics board.
Working performance : When the water flows through the rotor, then rotor is rolled.
Its speed changes with different rate of flow. Then the magnetic rotor make reaction to Hall sensor,
the hall-effect sensor outputs the corresponding pulse signal .
The flow sensor is suitable to detect the flow in water dispenser or coffee machine ….
Magnetic Hall effect Water Brass body Flow sensor meter
wire connection:
Terminal 1 (Red): Vdd ” + ”
Terminal 2 (Black) Vout ” – ”
Terminal 3 (Yellow) : NPN pulse signal output
Terminal 4 Temp Sensor
Terminal 5 Temp. Sensor
(13) Connector: Housing SM2.5-3P
Specification:
Product name : flow sensor
material : Brass Plastic Flow Sensor
Thread Connection: male G3/4 “-male G3/4 ”
Mounting Position: Horizontal
Flow Rate: 1~30 L/min
Flow Pulse: F= 6.6 *Q ± 5% , Q=L/min
Working Voltage: DC4.5V ~ 18V
Working Current: 15mA
Suffering Pressure: Max 1.5Mpa
Working Temperature: -40 °C ~+80 °C,
Min Insulation Resistance:100M Ohm
Output Pulse Duty Cycle: 50% +/- 10%
Max output Pulse Voltage: >DC4.7V ( input voltage DC5V)
Min Output Pulse Voltage :<DC0.5V ( input voltage DC5V)
Sensor : Hall effect sensor, Digital Output. and temperature sensor
PACKAGE INCLUDES
1 X Water Flow Sensor (Sea) YF-B6 Flowmeter with Temperature Probe G3/4 1-30L/min 5-15V Brass
