Looking for 0.8mpa Stainless Steel Sensor? 0.8MPa Stainless Steel Pressure Transducer Sensor is available at Zbotic with fast shipping across India.
Product Description
This is a Pressure Transducer from Zbotic.in’s new product line. It is made of high-quality stainless steel for durability. It has a standard G1/4 thread size and can work with both air and water. It operates at 5VDC and gives a digital output between 0.5V and 4.5V. It has stable performance and a long lifespan.
Applications:
- Pressure Detection in Oil Tank, Gas Tank.
Features:
- Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.
- 0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.
- Light Weight and Small Volume, Easy to Install, and Operate.
- Stainless Steel Body, it has Complete Surge Voltage Protection Function.
Package Includes:
1 x 0.8MPa Stainless Steel Pressure Transducer Sensor

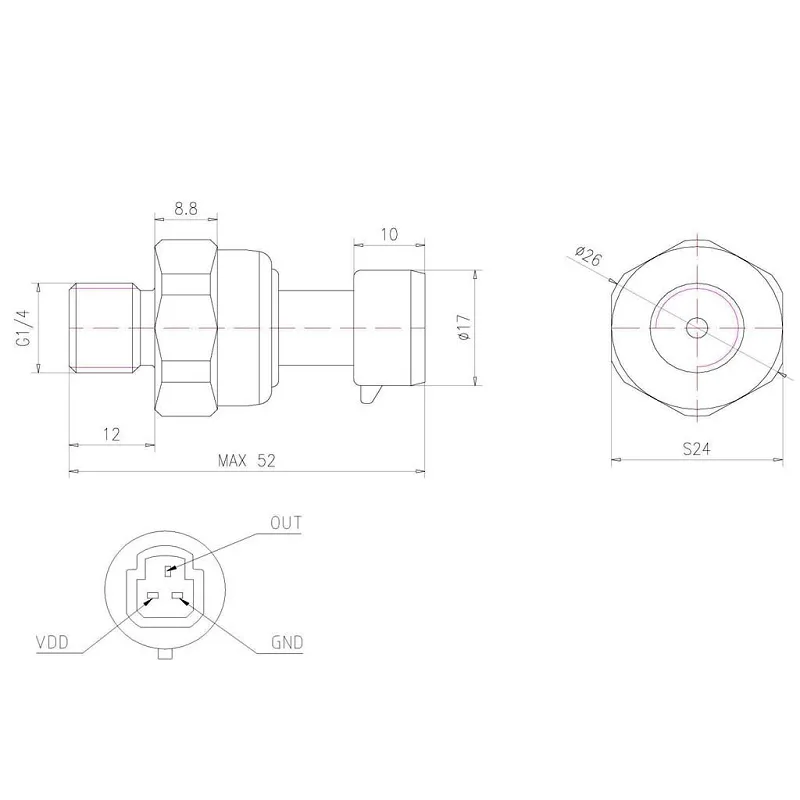

Datasheet:
0.8MPa Stainless Steel Pressure Transducer Sensor Overview
The 0.8MPa Stainless Steel Pressure Transducer Sensor is a compact, high-accuracy device designed to measure pressure up to 0.8 MPa in gases, liquids or oils. Built with a durable stainless steel body and precision compensation technology, it delivers a stable 0.5–4.5 VDC output when powered at 5 VDC.
Key Features of 0.8MPa Stainless Steel Pressure Transducer Sensor
- Pressure range up to 0.8 MPa with G1/4 threaded stainless steel housing
- Adopts precision compensation technology for 0.1% FS total error (non-linearity, hysteresis, repeatability)
- Digital voltage output from 0.5 V to 4.5 V at 5 VDC supply
- High-quality stainless steel construction for corrosion resistance and long lifespan
- Compact, lightweight design for easy installation in tight spaces
- Fast shipping across India from Zbotic.in—orders ship within 24 hours
Applications and Use Cases
- Monitoring pressure in oil storage tanks and pipelines
- Air compressor pressure feedback in industrial systems
- Water pressure measurement in treatment and distribution networks
- Gas cylinder pressure detection for safety and regulation
- Hydraulic and pneumatic system diagnostics in manufacturing
How to Use 0.8MPa Stainless Steel Pressure Transducer Sensor
Mount the sensor using its standard G1/4 threaded port into the pressure line, apply a stable 5 VDC supply, and connect the output wire to your data acquisition or control system. Calibrate zero and span if needed, then monitor the 0.5–4.5 V signal proportional to the applied pressure.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What electrical supply and output does this sensor require?
This transducer operates on a 5 VDC supply and provides a voltage output between 0.5 V (zero pressure) and 4.5 V (full-scale 0.8 MPa pressure).
Can I use this sensor for both oil and water applications?
Yes. The stainless steel body and precision components make it compatible with oil, water and most non-corrosive gases.
How do I install the pressure transducer safely?
Thread the sensor into a G1/4 port using appropriate sealant or PTFE tape, ensure no leaks, then wire the power and output correctly. Follow your system’s safety guidelines for working under pressure.
Photointerrupter and Encoder Disk: RPM Measurement Project with Arduino
Measuring rotational speed (RPM) is a fundamental requirement in motors, fans, industrial machinery, and hobby robotics. One of...
Read More →
Accelerometer Buying Guide India: ADXL345 vs MPU6050 vs LIS3DH
Accelerometers are fundamental sensors in modern electronics — they measure the rate of change of velocity (acceleration) in...
Read More →
SCD40 CO2 Sensor: Accurate Carbon Dioxide Measurement Guide
Indoor air quality is one of the most overlooked factors in health, productivity, and cognitive function. Studies show...
Read More →Technical Specifications
| SKU | AI2578 |
|---|---|
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 0.8MPa Stainless Steel Pressure Transducer Sensor is a versatile level and pressure sensor used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
