Black Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V
Black Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V
1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.
2. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect.
sensor is sealed from the water pipe and allows the sensor to stay safe and dry.

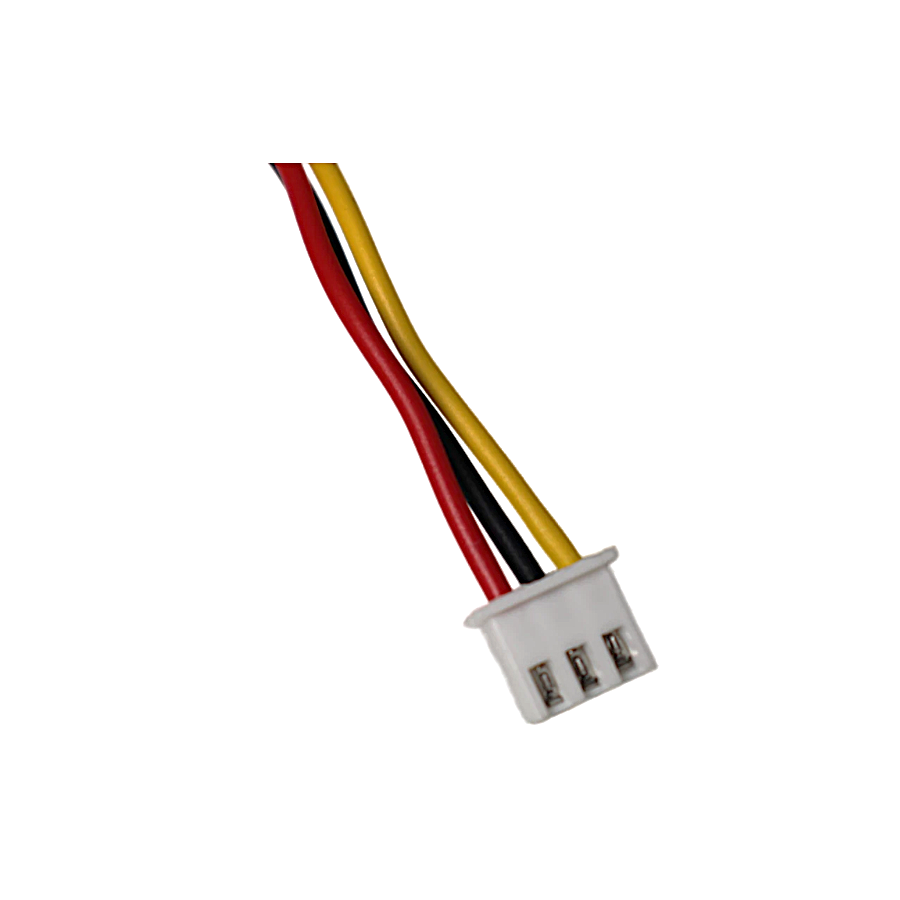

3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.
Specifications:
Product Name: Water Flow Sensor
Material: Plastic (Shell)
Liquid Temperature: Not More Than 60C
Rated Voltage: 5V
Max Current: 10mA( 5V)
Maximum water pressure: 1.75MPa
Flow range: 1-30L/min
Connector: Male XH-3P
External Thread Diameter: G1/2
Ingress Protection Rating: IP65
Color: Black
PACKAGE INCLUDES
1 X Black Water Flow Sensor (Sea) YF-S201C Flowmeter G1/2 1-30L/min 5-15V
