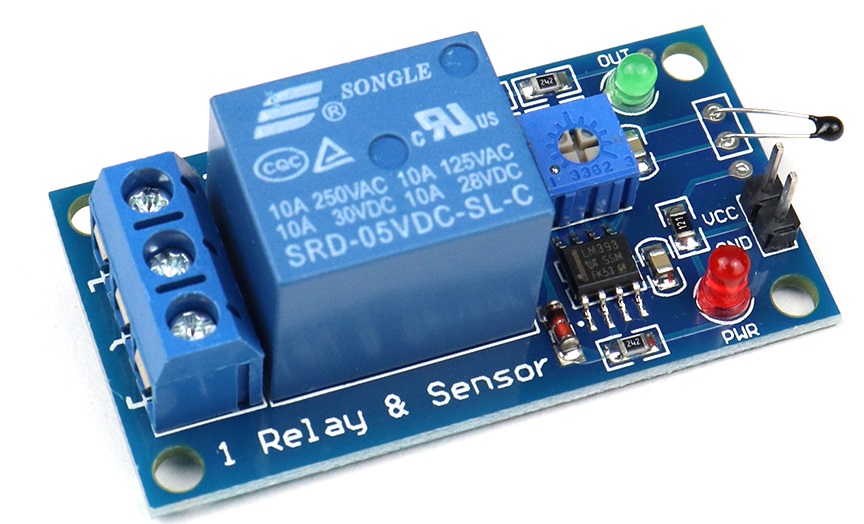

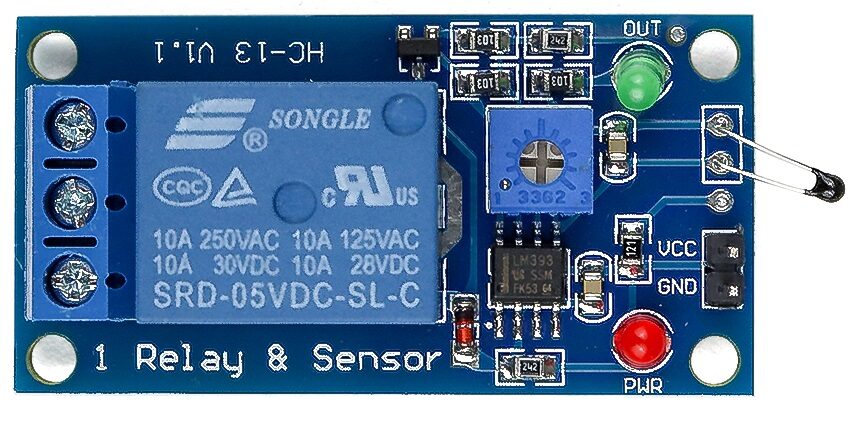

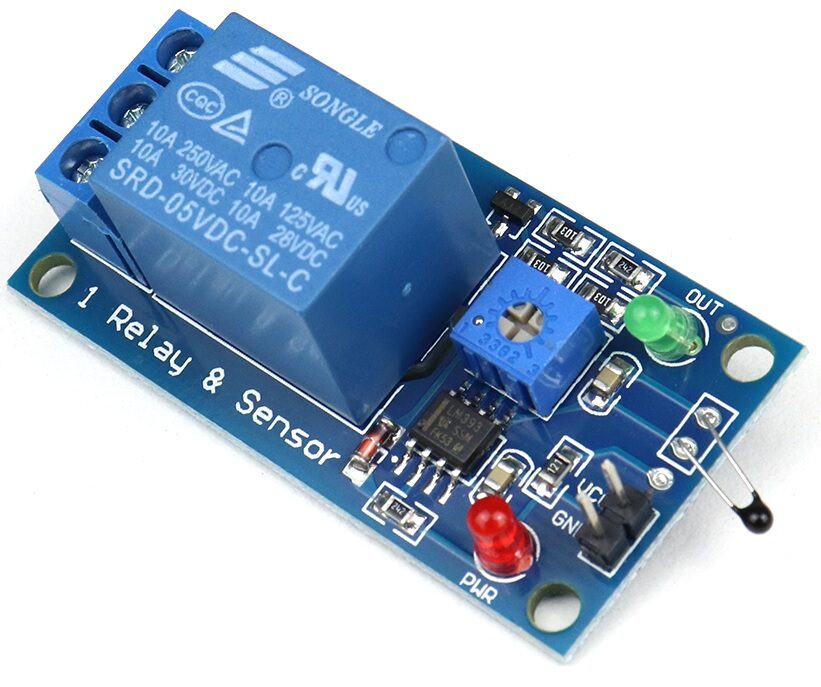

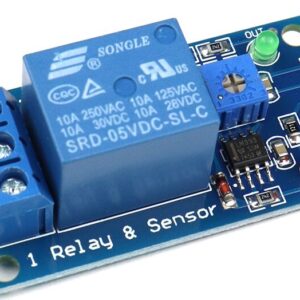

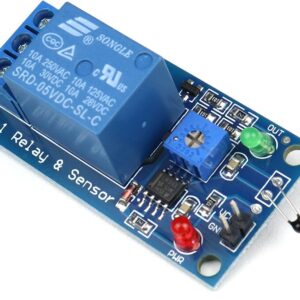

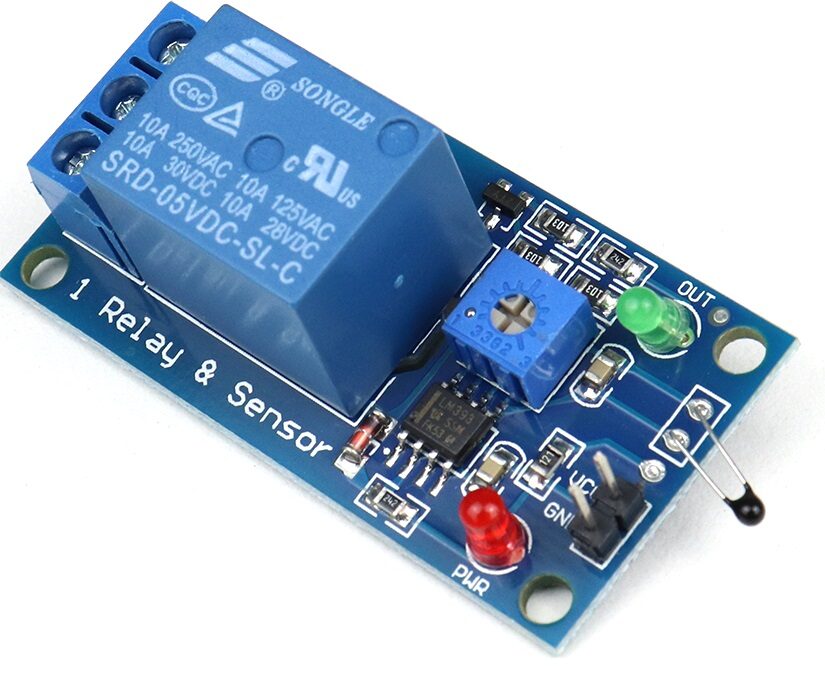

Thermal Sensor Relay Module
The Thermal Sensor Relay Module is designed for temperature detection and control. It utilizes a potentiometer to adjust the temperature threshold, which in turn controls a valve. The module’s relay output can be directly connected to AC high-power devices for efficient temperature regulation.
Specifications:
| Operating Voltage (VDC): | 3.3 ~ 5 |
|---|---|
| Maximum Voltage(V) | 5V DC |
| Max Operating Current (A) | 0.15 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (°C) | -40 to 100 |
| Opt. Relative Humidity(RH) | 20% ～ 85% |
| Storage condition (℃) | -40 to 125 |
| Length (mm): | 50 |
| Width (mm): | 26 |
| Height (mm): | 17 |
| Weight (g): | 16 |
Package Includes
1 x Thermal Sensor Relay Module.
Thermal Sensor Relay Module Overview
The Thermal Sensor Relay Module is a compact temperature detection board with an onboard potentiometer for setting a precise activation threshold. Once the ambient temperature crosses this threshold, the built-in relay switches AC or DC loads up to 10 A, making it ideal for automated heating, cooling, or safety cut-off applications.
Key Features of Thermal Sensor Relay Module
- Adjustable temperature threshold via onboard potentiometer for accurate control
- Wide operating voltage range: 3.3 V to 5 V DC with a trigger voltage of 5 V DC
- High-power relay output rated at 250 VAC @ 10 A or 30 VDC @ 10 A
- Works reliably in harsh conditions: -40 °C to 100 °C operating temperature and 20%–85% RH
- Compact footprint (50 × 26 × 17 mm) and lightweight (16 g) for easy panel or enclosure mounting
- Genuine product from Zbotic, backed by fast shipping and quality assurance
Applications and Use Cases
- Automatic fan or exhaust control in electronics cabinets to prevent overheating
- Temperature-based switching for water heaters, boilers, or radiators
- Safety cutoff for industrial motors and machinery at preset temperature limits
- Climate regulation in small incubators or terrariums
- Monitoring and controlling temperature in aquarium heaters
- Enclosure temperature management for 3D printers and CNC machines
How to Use Thermal Sensor Relay Module
Connect the module’s VCC and GND pins to a stable 5 V DC supply, then wire your load between the COM and NO (or NC) relay terminals. Power up the board and rotate the potentiometer until the relay actuates at your desired temperature. Place the module near the target area, ensuring good thermal contact, and it will switch connected devices automatically when the temperature crosses the set point.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I set the desired activation temperature?
Rotate the onboard potentiometer clockwise to increase the trigger temperature and counterclockwise to lower it. Test by monitoring when the relay clicks as ambient temperature approaches your set point.
Can the relay handle high-voltage AC appliances?
Yes. The module’s SPDT relay is rated for up to 250 VAC at 10 A or 30 VDC at 10 A. Always ensure your load does not exceed these limits and follow proper insulation and wiring practices.
What power supply voltage is required for reliable operation?
The module operates on a DC supply between 3.3 V and 5 V, with a recommended 5 V input to guarantee stable trigger performance and full relay activation.
