Looking for Tk-052-4? Tact Switch-TK-052-4 Pin 4×4 Availability: In stock is available at Zbotic with fast shipping across India.
Tact switches are widely used in various applications, both in daily life and work. They offer significant benefits, including long service life and precise operation. The quality and specifications of tact switches can vary, influencing their applications and locations. Without a proper understanding of their fundamentals and operation, improper use can lead to common tact switch failures, which could potentially cause damage to the equipment circuit or prevent proper operation.
Specifications :
| Manufacturer: | KKG |
|---|---|
| Voltage Rating (V): | 12 |
| Rated Current (A) | 50 |
| Operation Force | 250±40gf |
| Life Cycle | 100,000 |
| Contact Resistance | ≤50mΩ |
| Operating Temperature (°C) | -20~260 |
Features:
- Good tactile feedback and long life.
- Micro-miniature design with light operating force.
- Snap-in type, can be mounted directly on a P.C. board, and is resistant to electrostatic discharge.

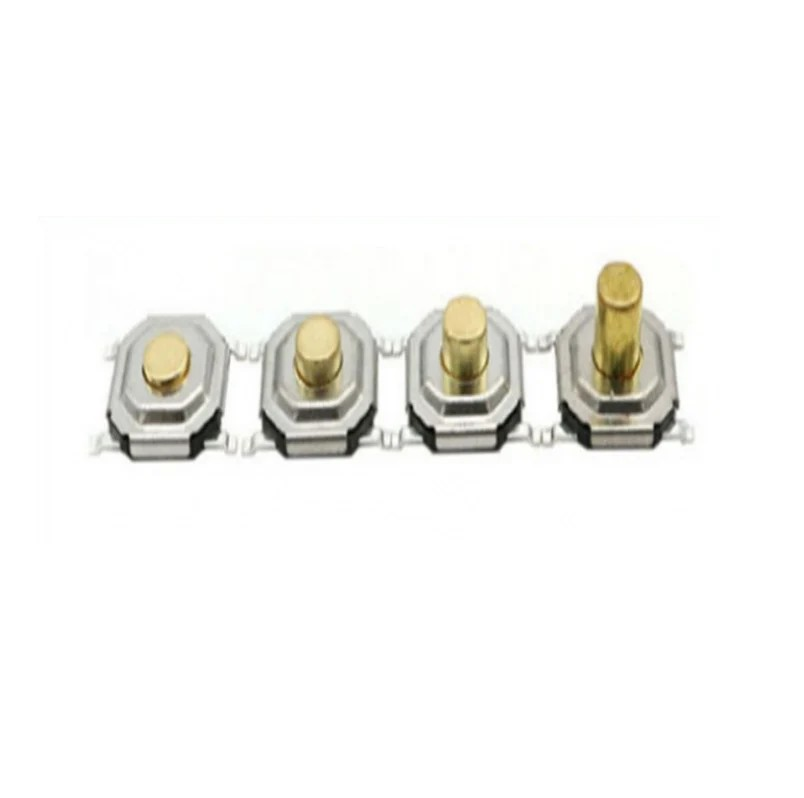

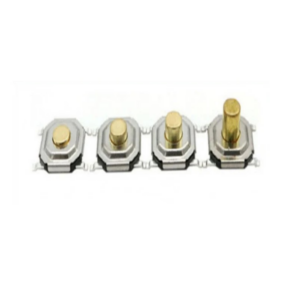

- Multiple button shape and height options for versatility and ease of installation.
- Available with various cap and color choices, offering excellent tactile feedback and high reliability due to dome technology.
Package Includes:
1 x Tact Switch-TK-052-4 Pin 4×4.
Tact Switch-TK-052-4 Pin 4×4 Availability: In stock Overview

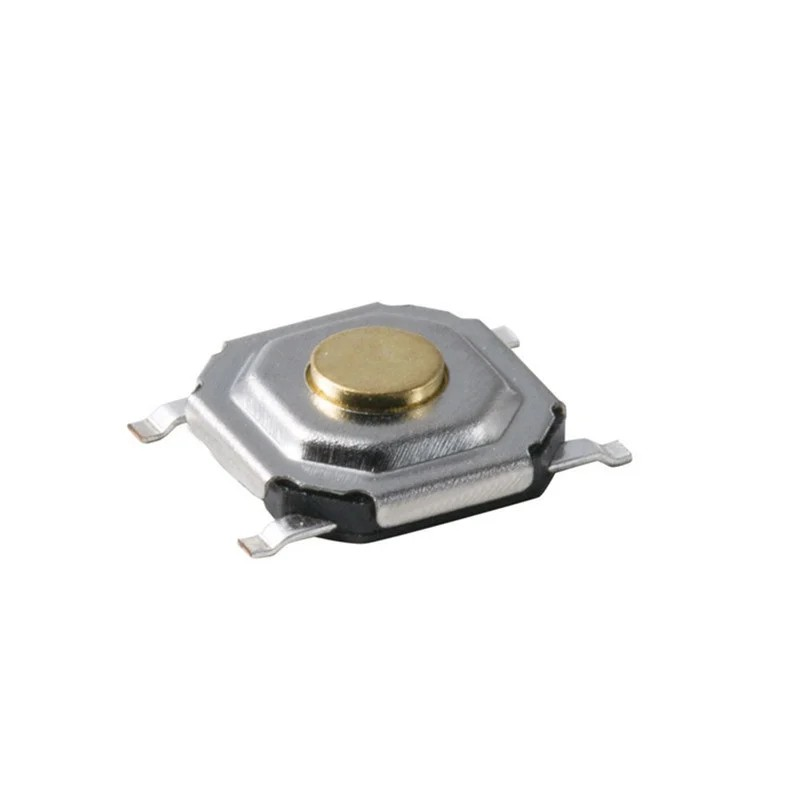

The Tact Switch-TK-052-4 Pin 4×4 is a micro-miniature snap-in tactile switch designed for direct mounting on PC boards. With a compact 4×4 mm footprint and a crisp tactile feel, it’s ideal for consumer electronics, industrial controls, and DIY projects requiring precise push-button inputs.
Key Features of Tact Switch-TK-052-4 Pin 4×4 Availability: In stock
- Micro-miniature 4×4 mm housing with four snap-in pins for secure PCB installation
- Light operation force of 250 ± 40 gf for responsive, fatigue-free actuation
- Voltage rating up to 12 V DC and rated current of 50 A for reliable performance
- Durable metal contacts with a life cycle of 100,000 operations
- Multiple cap shapes and color options to match your design aesthetic
- Fast shipping from Zbotic—order today and dispatches within 24 hours
Applications and Use Cases
- User interfaces on handheld devices, calculators and remote controls
- Reset and programming buttons on industrial control panels
- Input keys for consumer electronics such as game controllers and MP3 players
- Prototype and DIY electronics boards, development kits and maker projects
- Front-panel switches in networking equipment and instrumentation
How to Use Tact Switch-TK-052-4 Pin 4×4 Availability: In stock
Position the switch over the PCB holes aligned to its four pins and press firmly until it snaps into place. Solder each pin to its pad, attach your chosen cap, then connect the board to your 12 V circuit. Press the actuator for tactile feedback and confirm continuity with a multimeter for proper installation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the mounting style of the TK-052-4 switch?
The TK-052-4 uses a snap-in mounting style with four resilient pins that securely lock into a PCB without additional hardware.
How durable is the Tact Switch-TK-052-4?
Each switch is rated for a life cycle of up to 100,000 operations, ensuring long-term reliability in repetitive applications.
Can I select different cap colors and shapes?
Yes. Zbotic offers the TK-052-4 with multiple cap styles and color options to suit various panel designs and user preferences.
Technical Specifications
| Model | TK-052-4 |
|---|---|
| Pin Count | 4-pin |
| Package Quantity | 4 pcs |
| SKU | AI6476 |
| Availability | Out of Stock |
Applications & Use Cases
The Tact Switch-TK-052-4 Pin 4×4 Availability: In stock is a versatile tactile switches used across a wide range of applications including control panels, DIY electronics, industrial equipment, automotive dashboards, and arcade machines.
Common use cases:
- Adding a power switch to a project enclosure
- Building a custom control panel
- Replacing a worn-out switch in equipment
This product is ideal for electronics builders, panel designers, and DIY enthusiasts.
Technical Tip: Momentary switches return to OFF when released; latching switches stay in position. Check voltage and current ratings for your load.
