SeeedStudio Grove Sound Sensor

Product Description

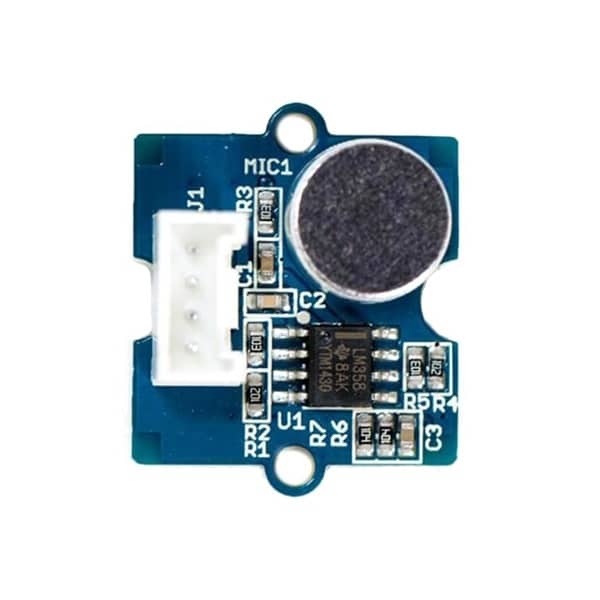

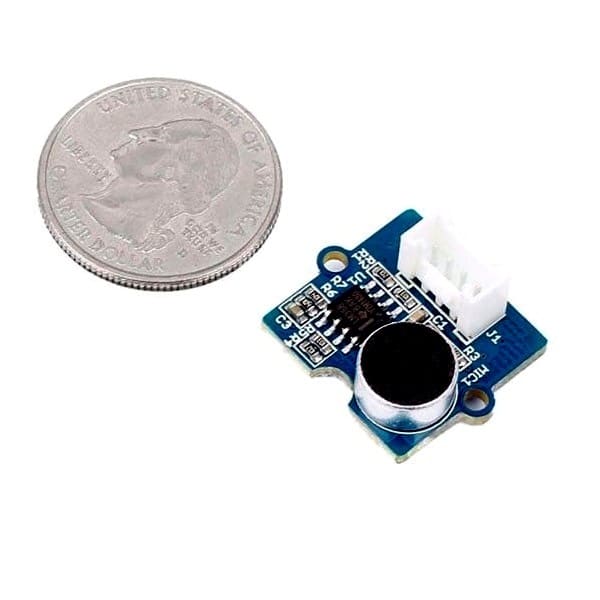

The Sound sensor module is a simple microphone.  It detects the sound intensity of the environment. It is a simple microphone based on the LM386 amplifier and an electret microphone. The output of this module is analog so that you can easily sample and test it by a Seeeduino or an Arduino. The sensor also comes with a potentiometer, so you can adjust the value of output by varying it.

This sensor is very useful for the GoPiGo & GrovePi System; moreover, it allows your GrovePi or GoPiGo robot car to listen to sound strength, so you can control it to take a picture or move around based on changes in noise!

For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents.

Please download and read through Preface – Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts.

Features

1. High microphone sensitivity
2. Minimum external parts
3. Inbuilt potentiometer

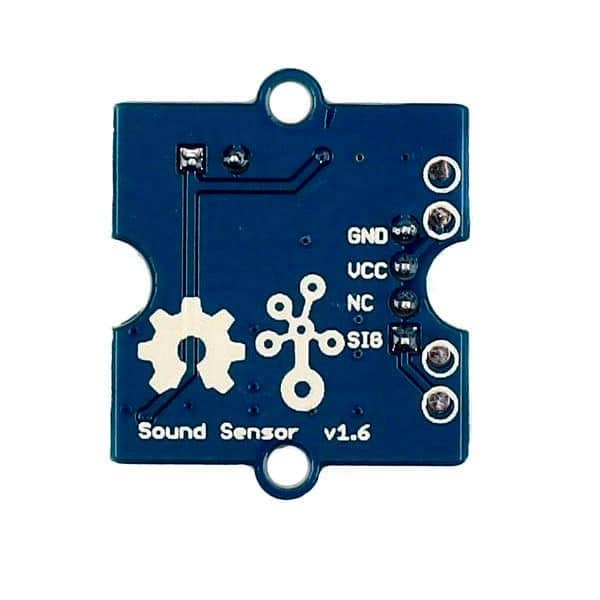

4. Grove compatible interface

Package Includes

• 1 x Grove Sound Sensor Module

Documents

• Schematic in Eagle File
• LM386.pdf

Useful Links

• Tutorial

Project Links:

1. Dog Bark Tracker with the Intel Edison
2. LinkIt ONE IoT Demo
3. Internet of Beer: Introducing Simple Beer Service
4. BBGW starter tutorial#3 Speak louuuuuudly
5. Baby Monitor with Wifi Micro
6. Create a multi-tasking IoT Wi-Fi sensor
7. LED Sound Meter using Wio-Link and Node-Red
