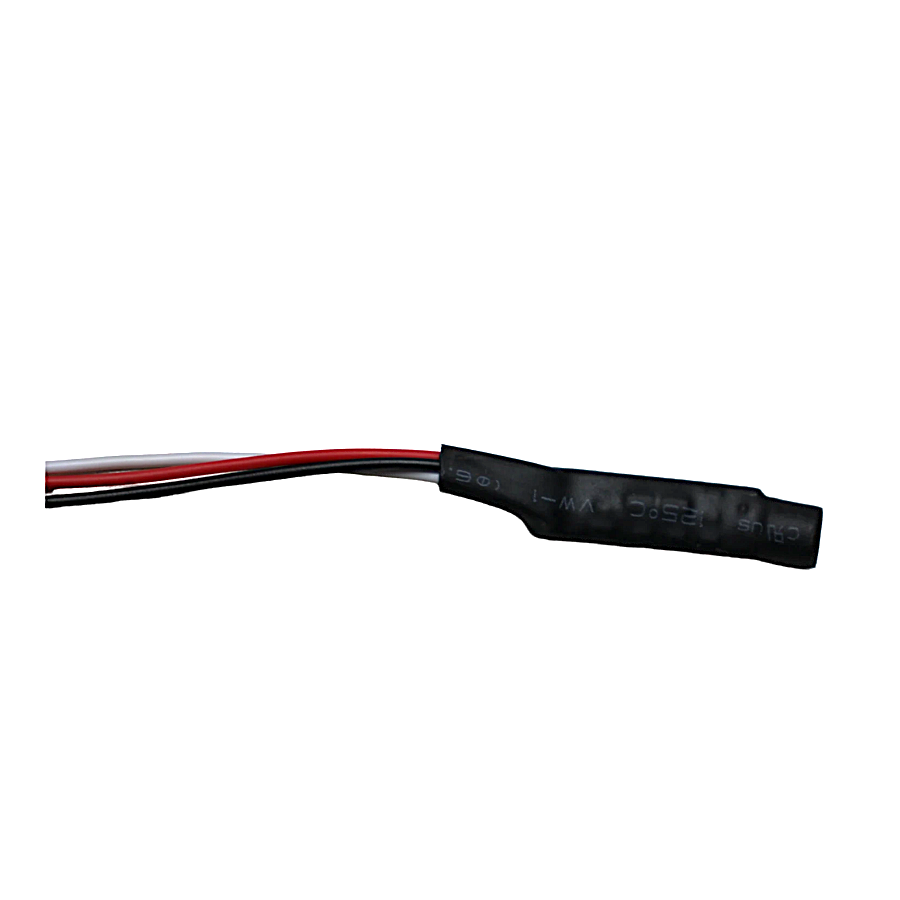

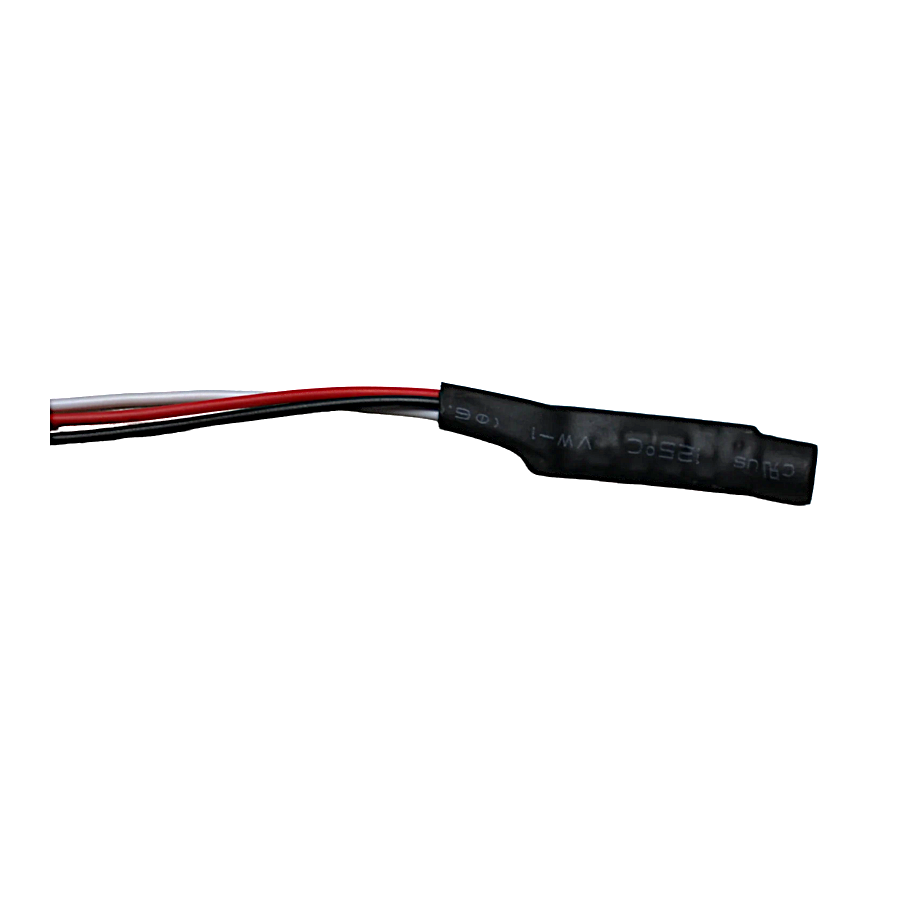

6-12VDC Mini Microphone Pickup Aerial Audio Signal Collection For Camera FPV QAV250 mini Quadcopter
This is 6-12VDC Mini Microphone Pickup Aerial Audio Signal Collection For Camera FPV QAV250 mini Quadcopter. The Mic is easily installed and only weighs a gram. Like your FPV camera, it is also wired to your FPV transmitter. Note that your FPV transmitter must have an audio input. Alternatively, most of the FPV transmitters have a microphone built-in, however, the audio quality isn’t as good as running a dedicated microphone like this one.
A microphone might sound like a pointless add-on to many, but there are benefits to be had from having a live audio feed coming back from your FPV drone as well as the video. Sound yields a surprising amount of feedback; it is one of our great senses after all.
By being able to hear what your FPV Motors are doing live, you’ll get an instinctive feeling for your throttle position which if you are racing circuits, might just help you to be more consistent and go even faster.
It could also help you to get into the zone so to speak and not get confused by the sound coming from other drones flying around you.

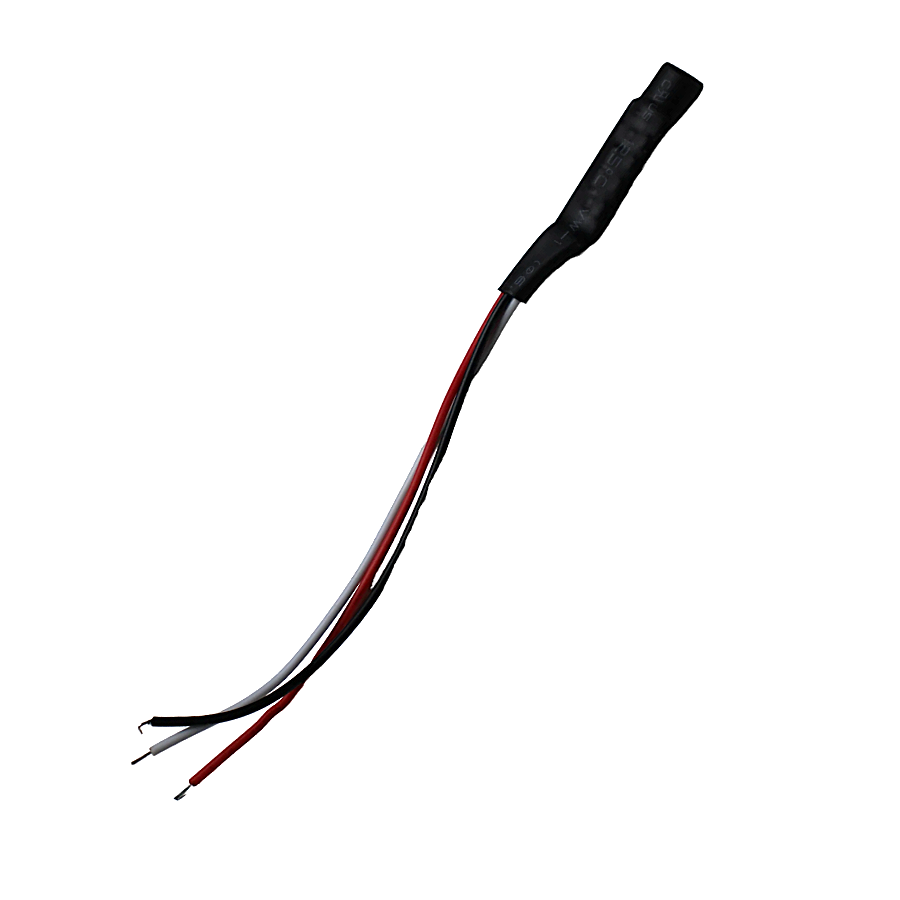

Connection
Red line:Â connect power anode
Black line:Â connect power cathode
White line:Â the output of the audio signal, the input of the transmission imageÂ
Features:
- Low noise
- High fidelity
- Wide working voltage range
- Low power consumption
- Long transmission distance
- Using the implementation of audio synchronization with the camera.
Specification:
Input Supply Voltage (VDC) | 6 ~ 12 |
---|---|
Frequency Range (Hz) | 100 to 5500 |
Output | 2.5Vpp/-25db |
