Looking for Waveshare Sound Sensor? Waveshare Sound Sensor is available at Zbotic with fast shipping across India.
LM386 is an audio power amplifier with features of low power consumption, adjustable voltage gain, wide voltage power supply, fewer requirements on peripheral components, and minimum total harmonic distortion. LM386 can be applied to consumer products with low voltage requirements. To minimize the number of peripheral components used, the voltage gain should be set to 20.
In the case of working with an MCU:
VCC ↔ 3.3V ~ 5.3V
GND ↔ power supply ground
AOUT ↔ MCU.IO (analog output)
DOUT ↔ MCU.IO (digital output)
Applications:
- Audio amplifier
- Ambient sound detection
- Sound level detection
Features:
- Onboard audio power amplifier LM386
- Audio signal gain up to 200
- Adjustable accuracy
- Signal output indicator
Package Includes:
1 x Sound Sensor
1 x 4-pin custom connector jumper wire
Useful Link:
https://www.waveshare.com/wiki/Sound_Sensor
Waveshare Sound Sensor Overview

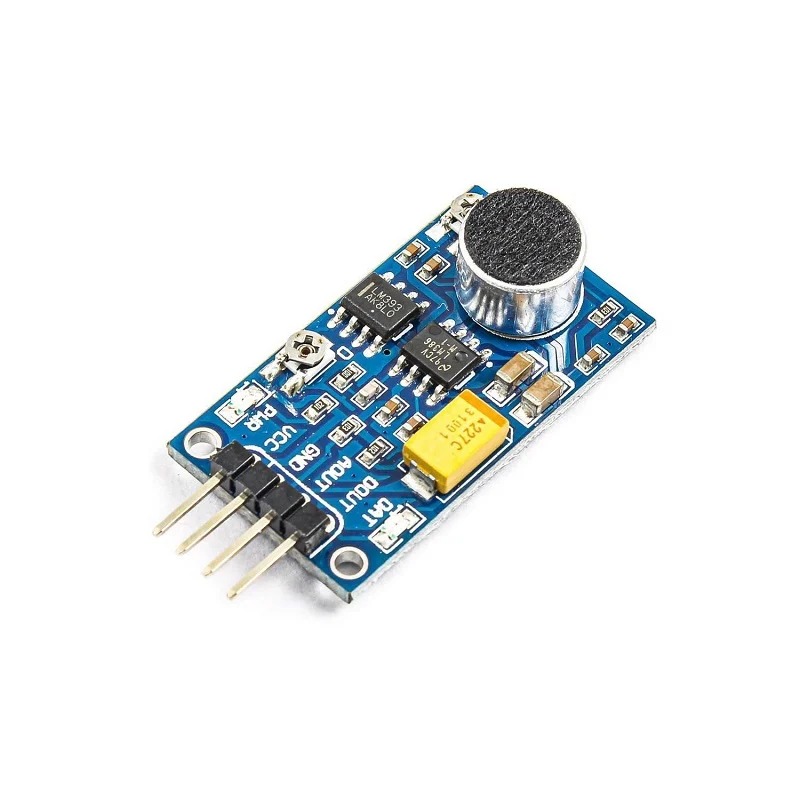

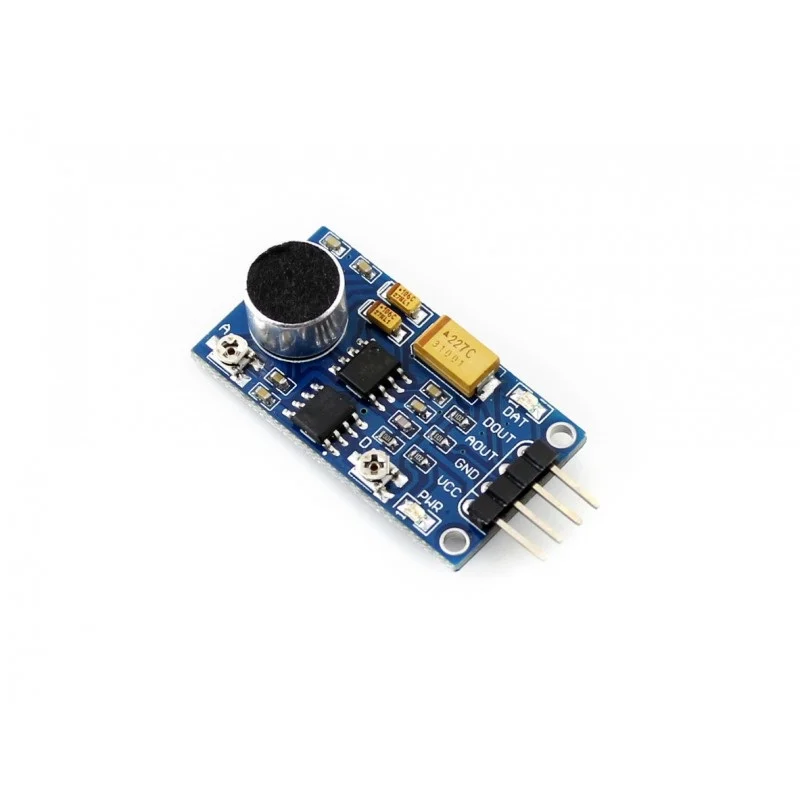

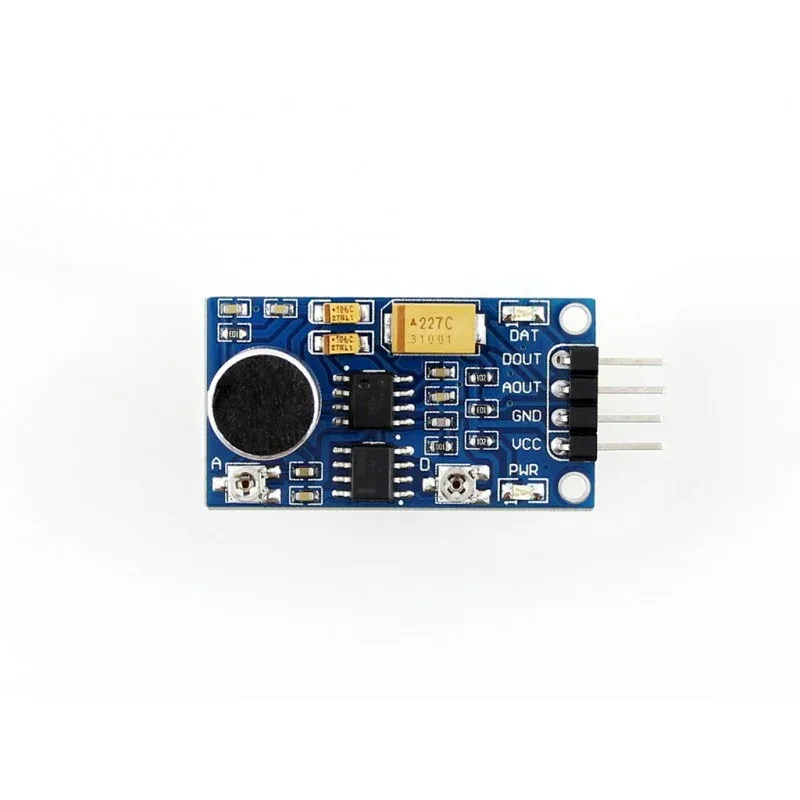

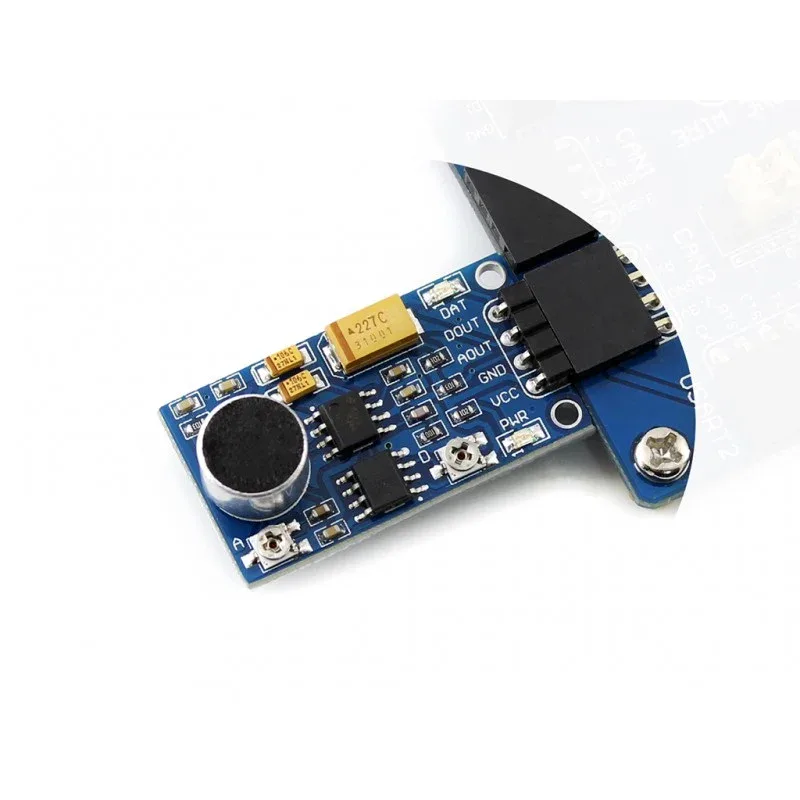

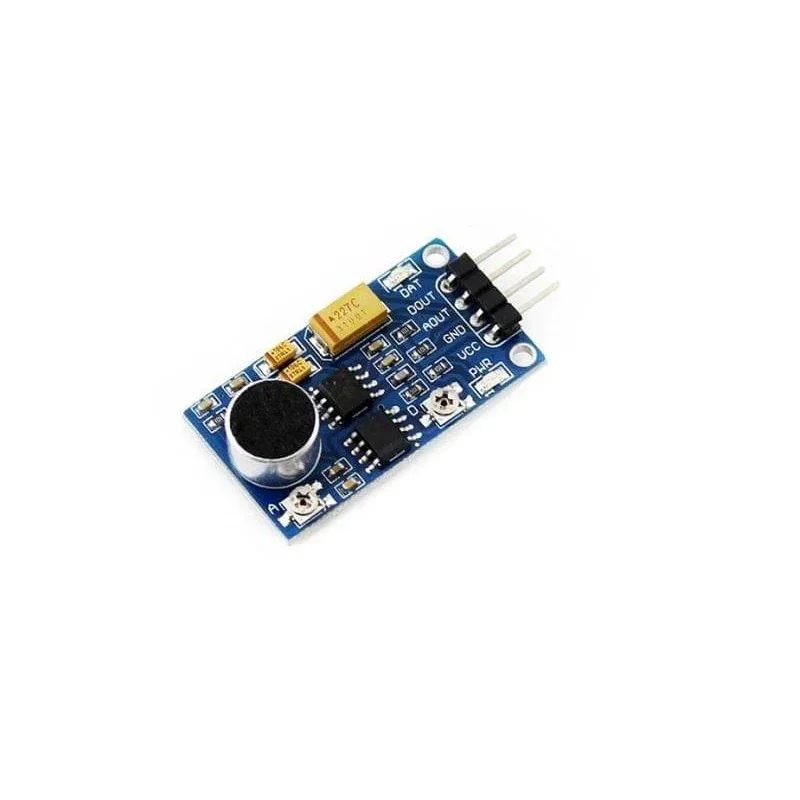

The Waveshare Sound Sensor is a breakout module designed to detect and amplify ambient audio signals. Equipped with an onboard LM386 audio power amplifier, it provides both analog and digital outputs for easy integration with microcontrollers in sound-level detection projects.
Key Features of Waveshare Sound Sensor
- Mic sensitivity: 52 dB for reliable sound pickup
- Frequency response from 50 Hz to 20 kHz covering human hearing range
- Wide supply voltage: 3.3 V–5.3 V compatible with Arduino, ESP32, Raspberry Pi Pico, etc.
- Onboard LM386 amplifier offering up to 200× audio gain
- Dual outputs: analog waveform on AOUT and digital signal indication on DOUT
- Genuine Waveshare product with fast shipping from Zbotic across India
Applications and Use Cases
- Ambient noise monitoring in smart home or office environments
- Triggering alarms, LEDs or relays on sudden sound events
- Implementing voice-activated switches in DIY electronics
- Measuring and logging sound levels in robotics and automation systems
- Building sound-responsive musical instruments or interactive art
How to Use Waveshare Sound Sensor
Connect VCC to a 3.3 V–5.3 V supply and GND to the common ground. Feed AOUT into your microcontroller’s ADC pin to read the audio waveform and use DOUT on a GPIO pin to detect when sound amplitude passes a built-in threshold. Secure the module using standard M2 screws in its mounting holes and adjust your code to interpret sound levels or trigger events.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltage does the Waveshare Sound Sensor require?
The sensor operates from 3.3 V to 5.3 V, making it compatible with most Arduino, ESP32, and other microcontroller boards.
How can I mount this sensor on my project?
The PCB features two 2.0 mm mounting holes so you can secure it to enclosures or mounting plates using standard screws or standoffs.
What is the detectable frequency range of the Waveshare Sound Sensor?
This module captures audio frequencies between 50 Hz and 20 kHz, covering the typical human hearing spectrum for sound level detection.
