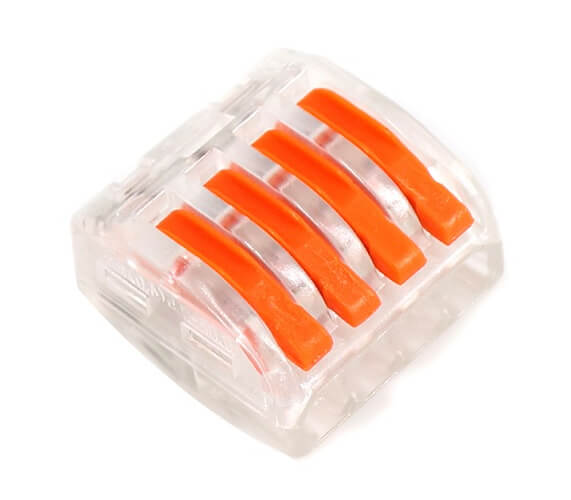

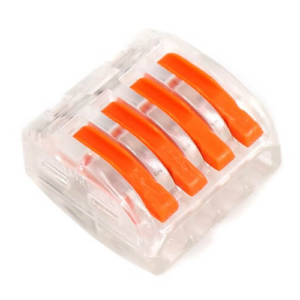

PCT-214T Transparent Quick Connection Terminal
Introducing the PCT-214T Transparent Quick Connection Terminal, the perfect solution for your electrical wiring needs. This universal terminal offers convenient and reliable cable connections with its innovative design and durable construction.
Features:
- Universal Compatibility: Compatible with a wide range of wires, including single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12), ensuring versatility for various applications.
- High-Quality Construction: Crafted from high-grade insulative nylon material, this connector ensures durability and longevity in use. The strong spring locking lever and nickel-plated metal point inside guarantee secure connections and excellent conductivity.
- Temperature Resistance: With good temperature resistance, this connector operates effectively in a wide range of temperatures, making it suitable for diverse environments.
- Compact Design: Featuring a compact splicing connector design with a 4-conductor terminal block and operating levers, this connector offers convenience and ease of use in wiring projects.
- Max. Continuous Service Temperature: With a maximum continuous service temperature of 85°C, this connector maintains reliable performance even in challenging conditions.
- Lightweight: Each unit weighs only 3.21 grams, ensuring easy handling and installation.
Specifications:
| Specification | Details |
|---|---|
| Model | PCT-214T |
| Compatibility | Universal Terminal for cable connection |
| Wire Compatibility | Single-strand hardwire: 0.08mm² to 2.5mm² |
| Soft wire: 0.08mm² to 4.0mm² (AWG28 to AWG12) | |
| Rated Voltage | Up to 400V |
| Electric Current Peak | 32A |
| Maximum Power | Up to 7KW |
| Material | Housing: High-grade insulative nylon |
| Contact: Nickel-plated metal | |
| Temperature Resistance | Up to 85°C |
| Connector Type | Compact splicing connector |
| Terminal Block | 4-conductor |
| Operating Levers | Included |
| Weight | 3.21 grams per unit |
Enhance your electrical projects with the reliability and efficiency of the PCT-214T Transparent Quick Connection Terminal. Whether you’re a professional electrician or a DIY enthusiast, this connector provides secure and hassle-free cable connections for your wiring needs.
Package Includes:
- 1 X PCT-214T Transparent Quick Connection Terminal
