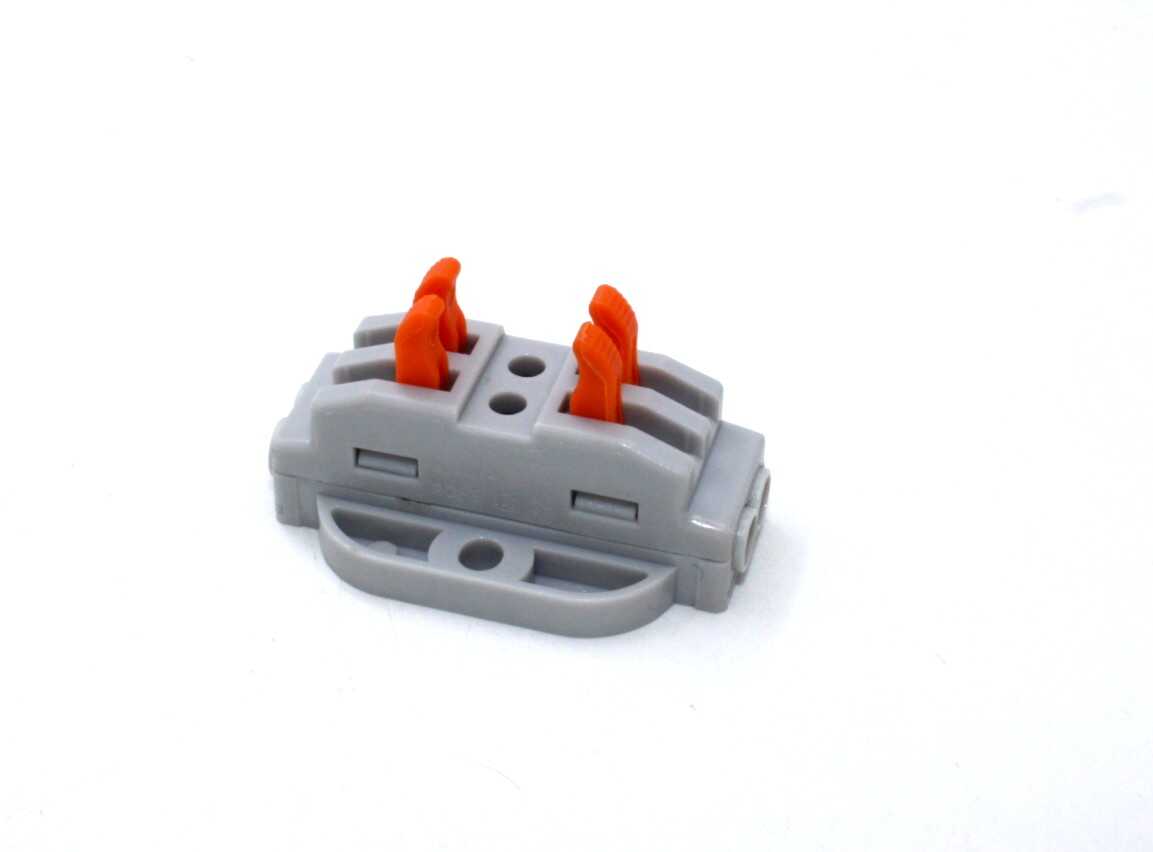

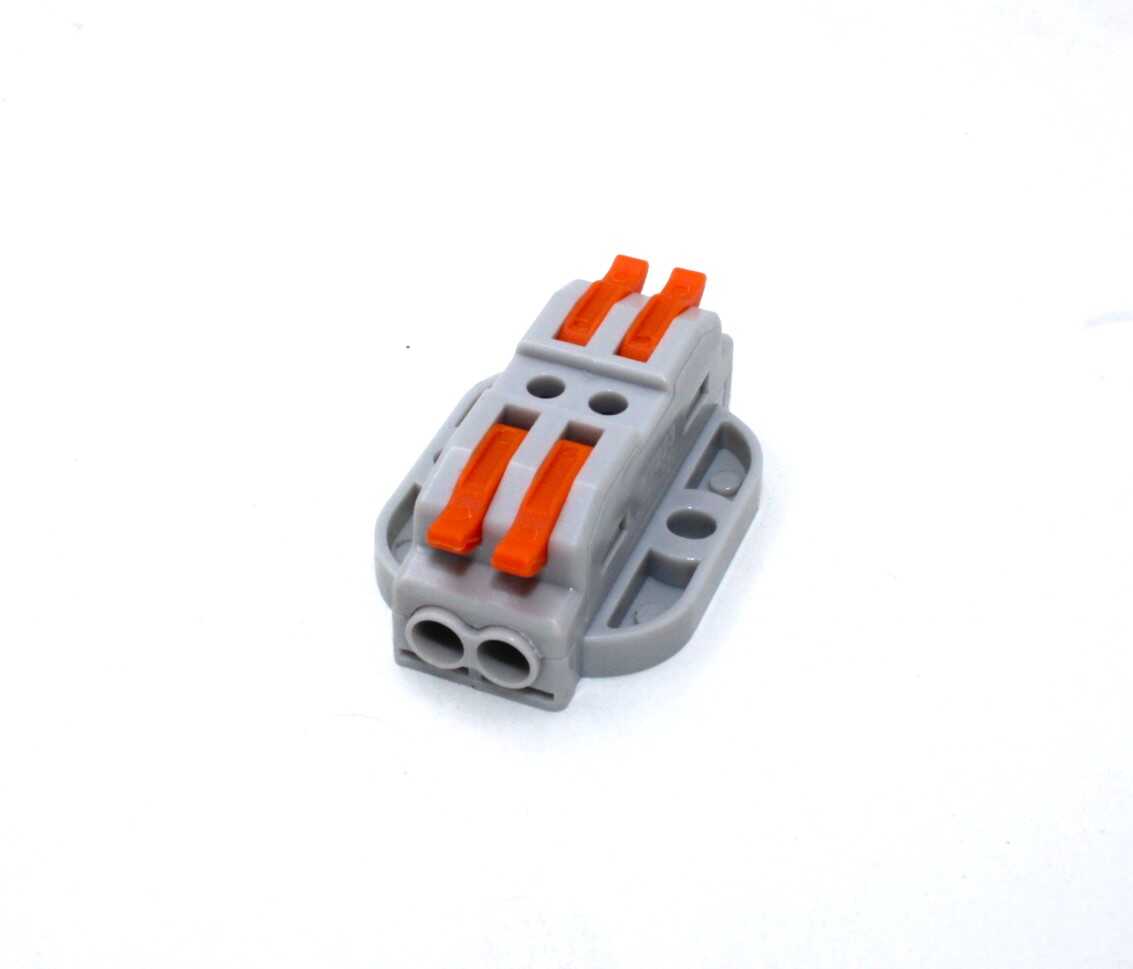

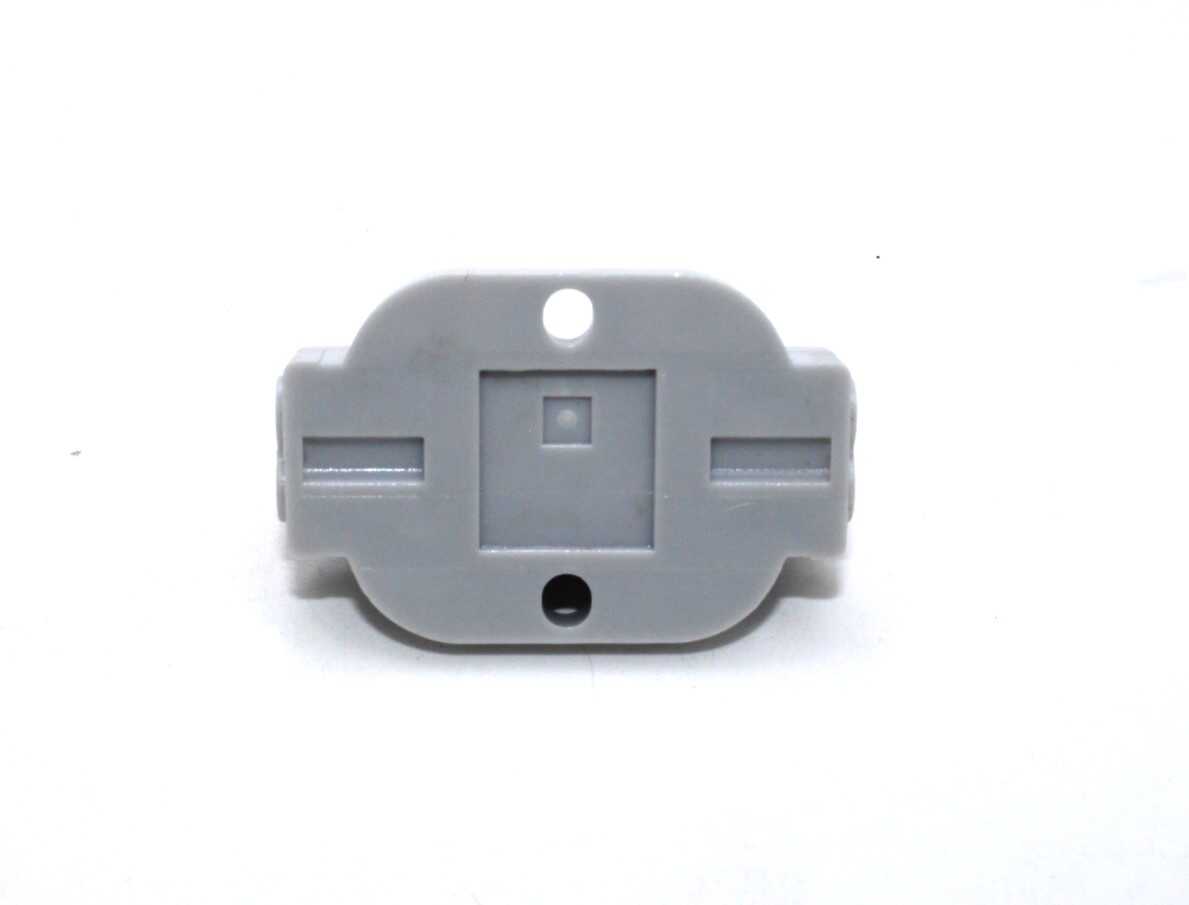

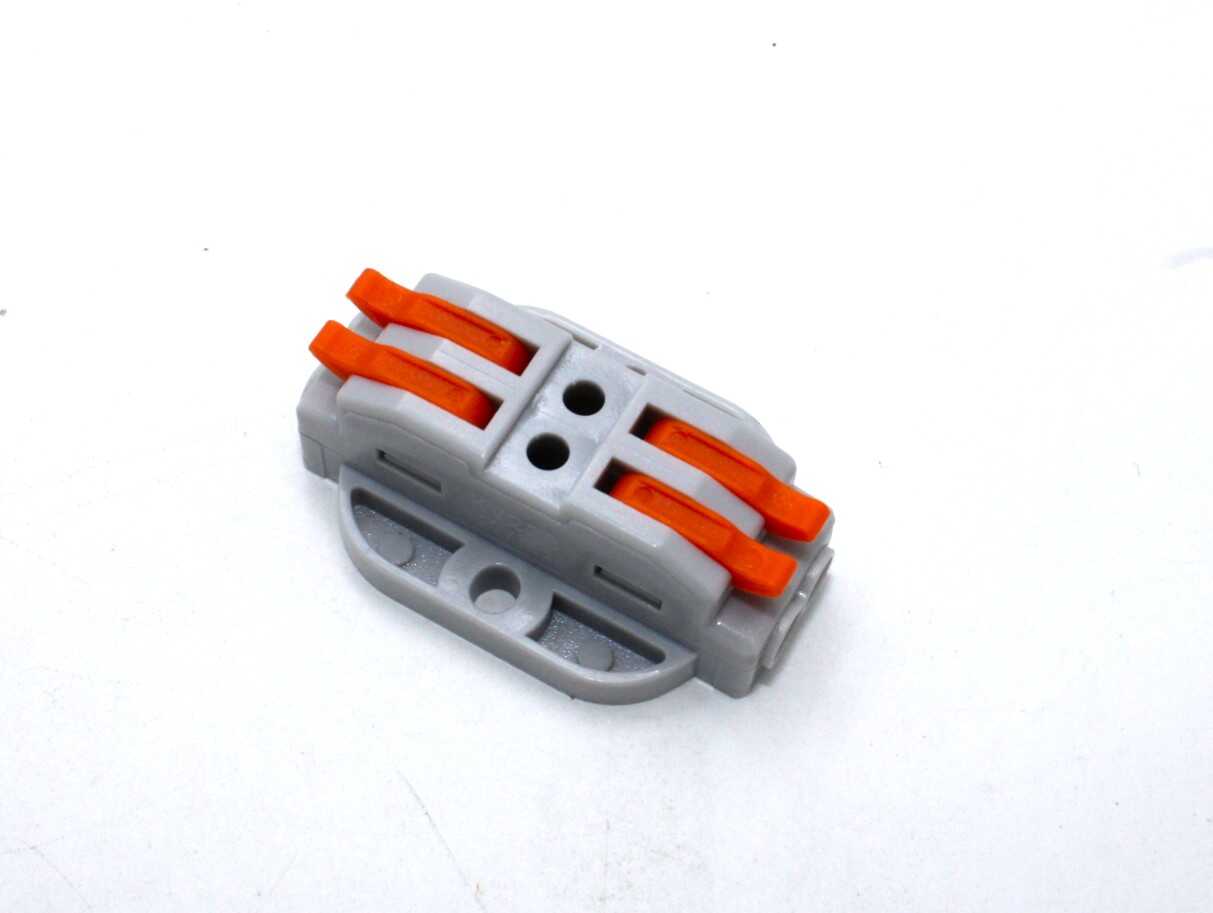

PCT-223-2 Stationary Type, Quick Connection Terminal
Introducing the PCT-223-2 Stationary Type Quick Connection Terminal, a versatile 2-pole wire connector terminal block with spring lock lever, designed for efficient cable connections. This PCT Spring Lever Connector features a compact locking wire connector with a spring lever mechanism, suitable for both single-strand hardwire and soft wire applications ranging from 0.08mm² to 4.0mm².
The PCT-223-2 offers remarkable electrical tolerance, with a rated voltage of up to 400V and a peak electric current of 32A, ensuring reliable performance in various electrical setups. Additionally, it boasts a rated impulse voltage of approximately 4 kV, providing enhanced safety and stability.
With a strip length of approximately 9-10mm, this connector facilitates easy installation and maintenance, making it an ideal choice for a wide range of wiring applications.
Features:
- Fast and easy to use.
- Suitable for a variety of applications
- Minimal space requirements allow for high wiring density.
- Enables clearly organized wiring in control cabinets and junction boxes.
- Maintenance-free installation.
- Provides permanent, secure connections.
Specifications:
| Item Type | PCT |
|---|---|
| Rated Current (A) | 32 |
| Rated Voltage (V): | 400 |
| Allowed Wire Size (AWG): | 28 ~ 12 |
| Color: | Grey, Orange |
| No of poles | 2 |
| No. of Clamps | 4 |
| Wire Section (mm2) | 0.08 ~ 4.0 |
Upgrade your cable connections with the PCT-223-2 Stationary Type Quick Connection Terminal, ensuring efficiency, reliability, and safety in your electrical setups.
Package Includes:
1 x PCT-223-2 Stationary Type Quick Connection Terminal
