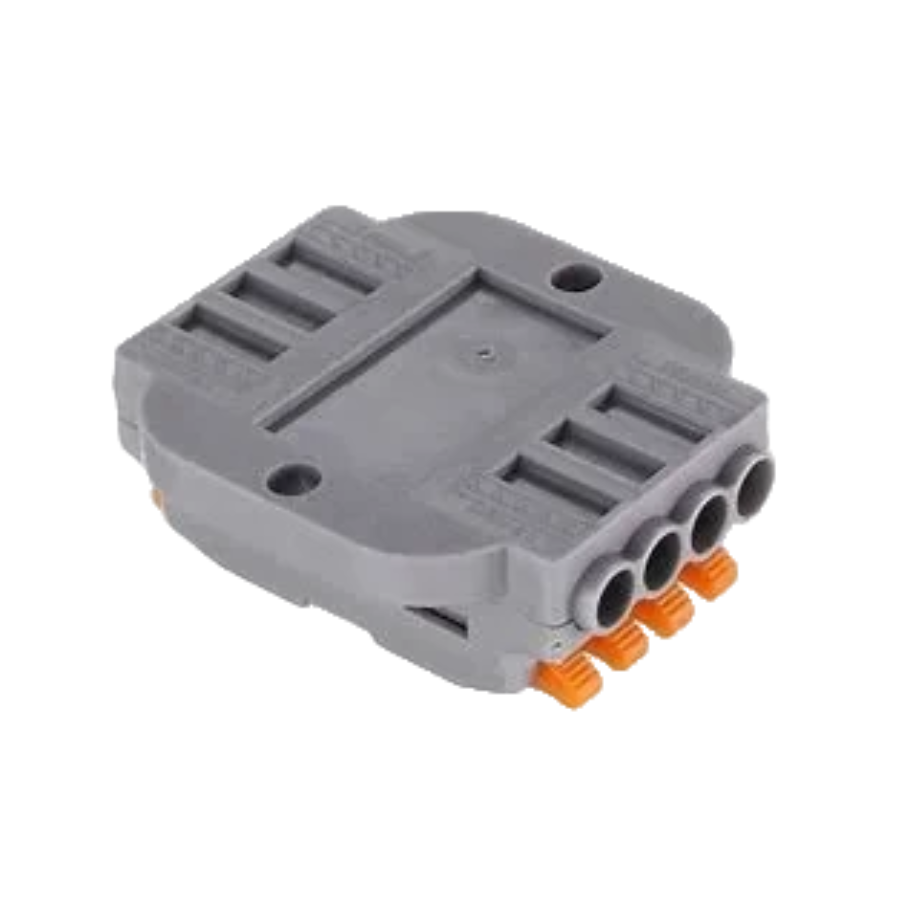

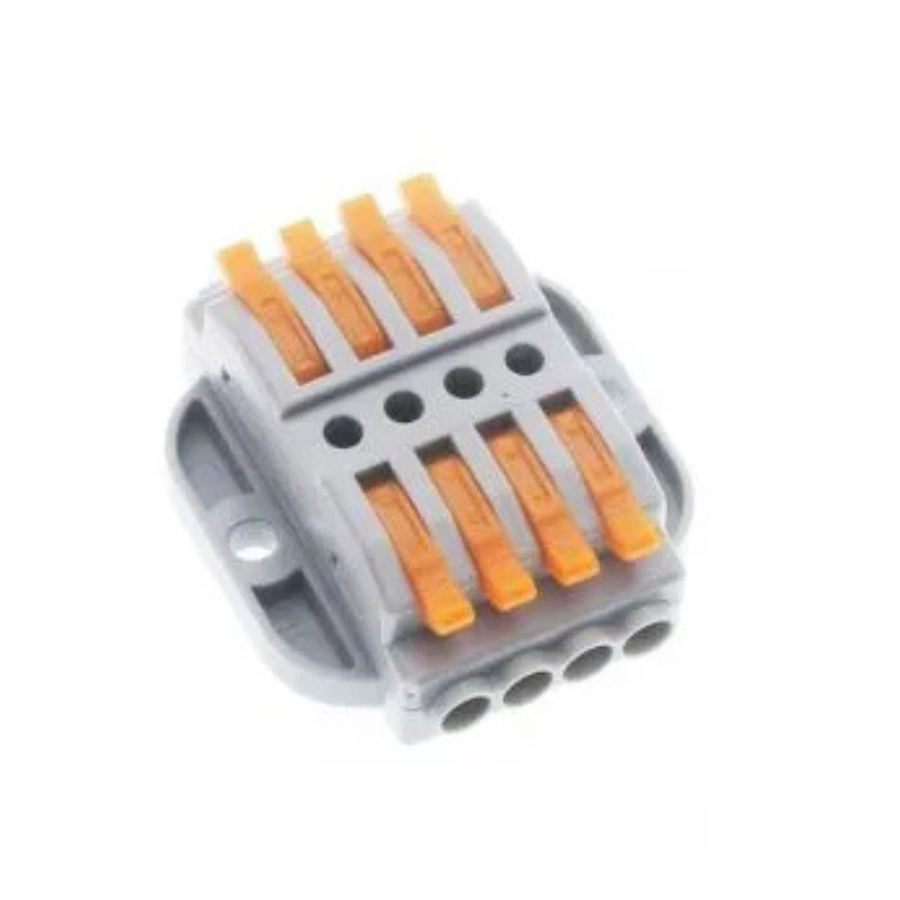

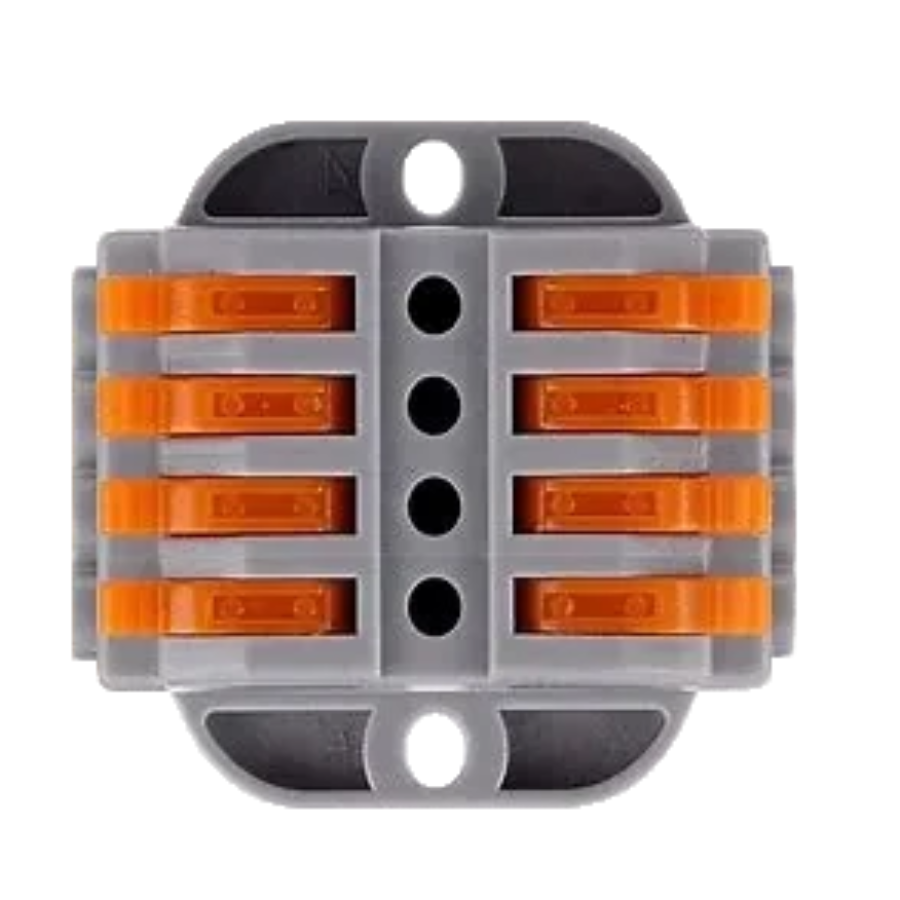

PCT-223-4 Stationary Type, Quick Connection Terminal
Experience seamless cable connections with our PCT-223-4 4-Pole Spring Lever Connector Terminal Block. Engineered for efficiency, this connector boasts a swift and secure spring lock lever mechanism, facilitating rapid wire installations.
Versatility meets precision as this terminal block accommodates single-strand hardwires ranging from 0.08 to 4.0 mm² or soft wires within the same gauge specifications. With a robust tolerance for voltages up to 600V and a peak current capacity of 32A, rest assured your connections are safeguarded against electrical demands.
Crafted for convenience, our connector supports wire gauges from 28 to 12 AWG, ensuring compatibility with various cable sizes. Whether it’s control cabinets or junction boxes, its compact design allows for high wiring density, optimizing space utilization without compromising organization.
Embrace hassle-free installations with maintenance-free assurance, delivering permanent and reliable connections every time. Enhance your wiring setup with the PCT-223-4 Stationary Type Quick Connection Terminal, where efficiency meets dependability.
Specifications:
| Specification | Details |
|---|---|
| Rated Voltage | 600V |
| Rated Current | 32A |
| Number of Poles | 4 |
| Wire Section | 0.08~4.0mm² |
| Wire Gauge Range | 28~12 AWG |
| Number of Clamps | 8 |
| Connector Type | Spring Lever |
| Wire Compatibility | Single-strand hardwire, soft wire |
| Application | Control cabinets, junction boxes |
Unlock seamless connectivity with our PCT-223-4 Spring Lever Connector Terminal Block.
- PCT-212 is a Two-wire connector
- PCT-213 is a Three-wire connector
- PCT-214 is a Four-wire connector
- PCT-215 is a Five wire connector
- PCT-218 is an Eight-wire connector
- CH-812 is a Two to Two-wire connector
- CH-2-4 is a Four to Two-wire connector
- CH-2-6 is a Six to Two-wire connector
- LT-633(SPL-63) Stationary Type Quick Connector
Features:
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
Specifications:
- Rated voltage: 600V
- Rated current: 32A
- Number of poles: 4
- Wire section :0.08~4.0mm2
- Number of clamps: 8
Package Includes:
1 x PCT-223-4 Stationary Type Quick Connection Terminal
Technical Specifications
| Model | PCT-223-4 |
|---|---|
| SKU | AI2152 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The PCT-223-4 Stationary Type, Quick Connection Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
