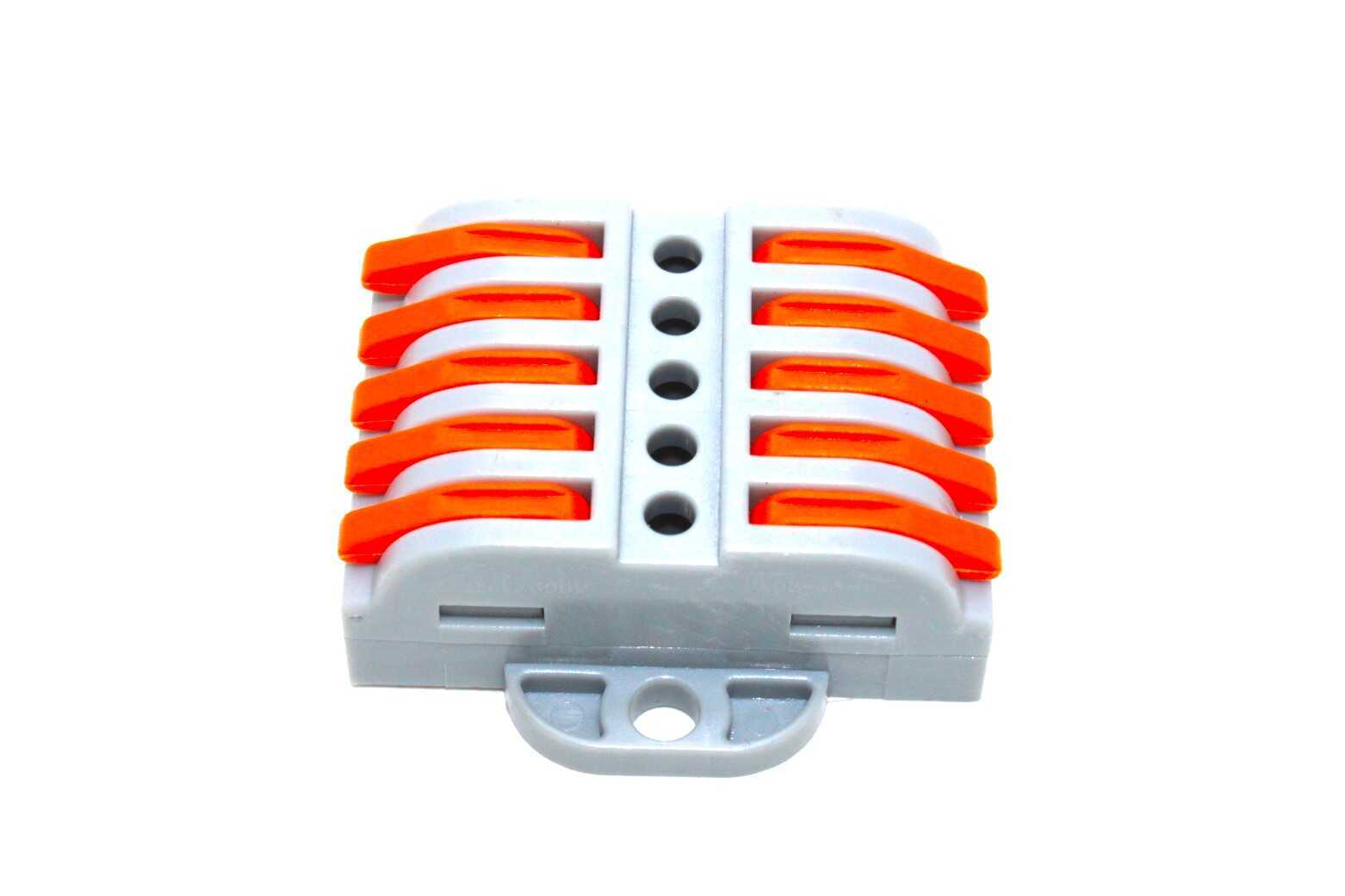

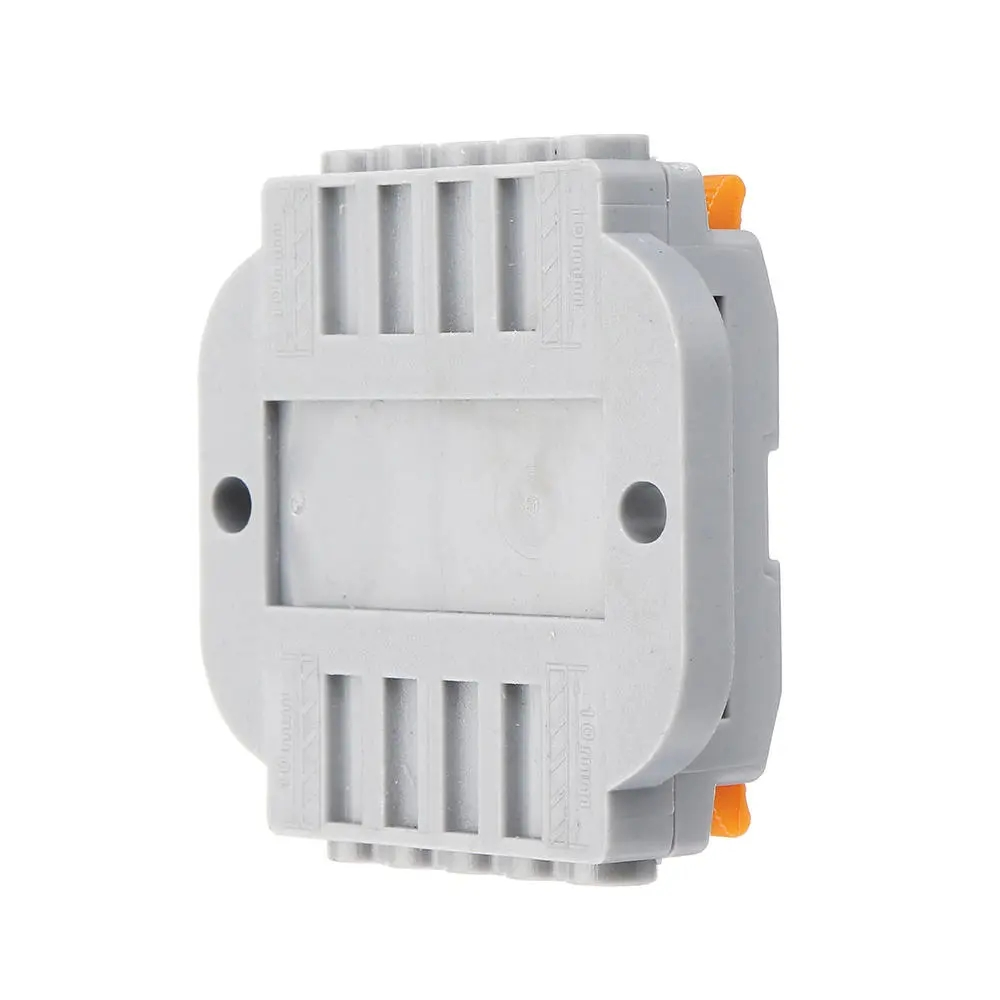

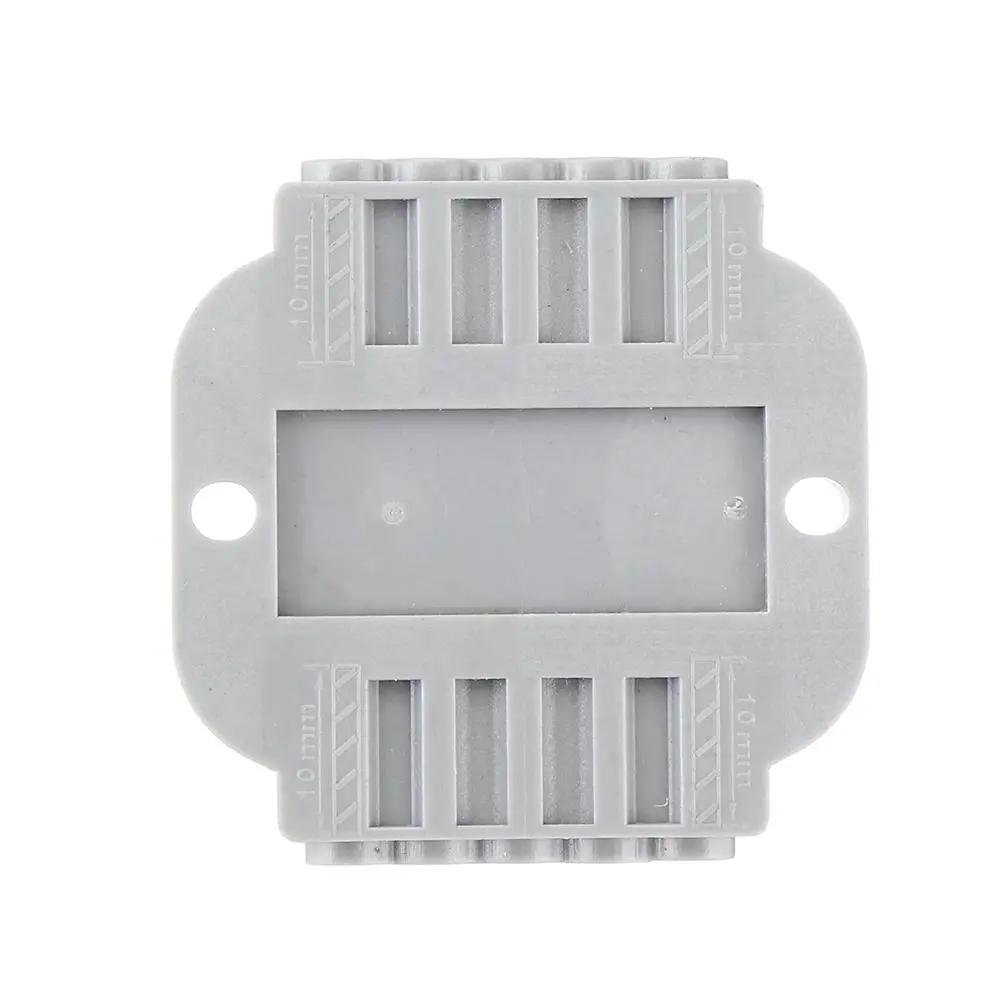

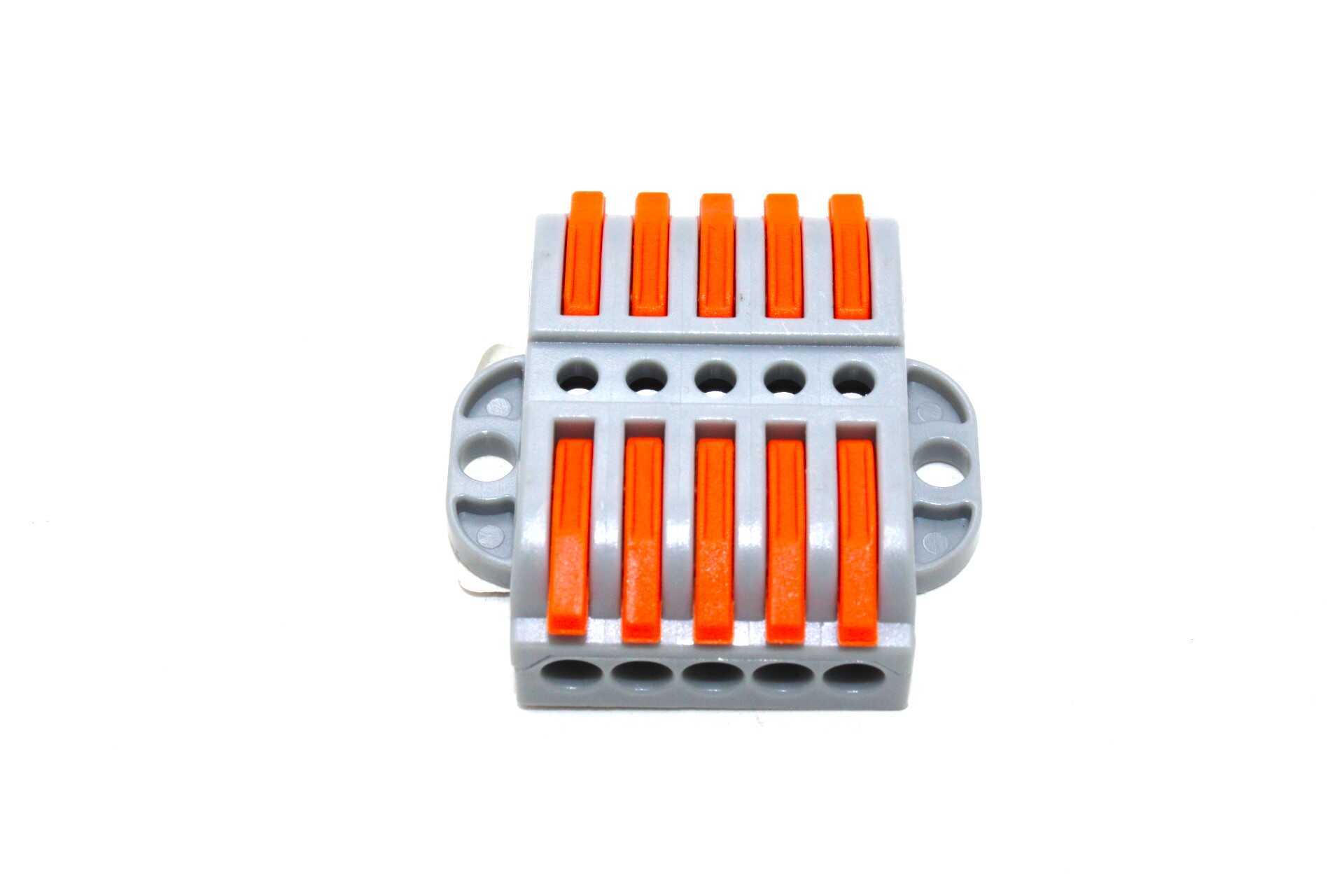

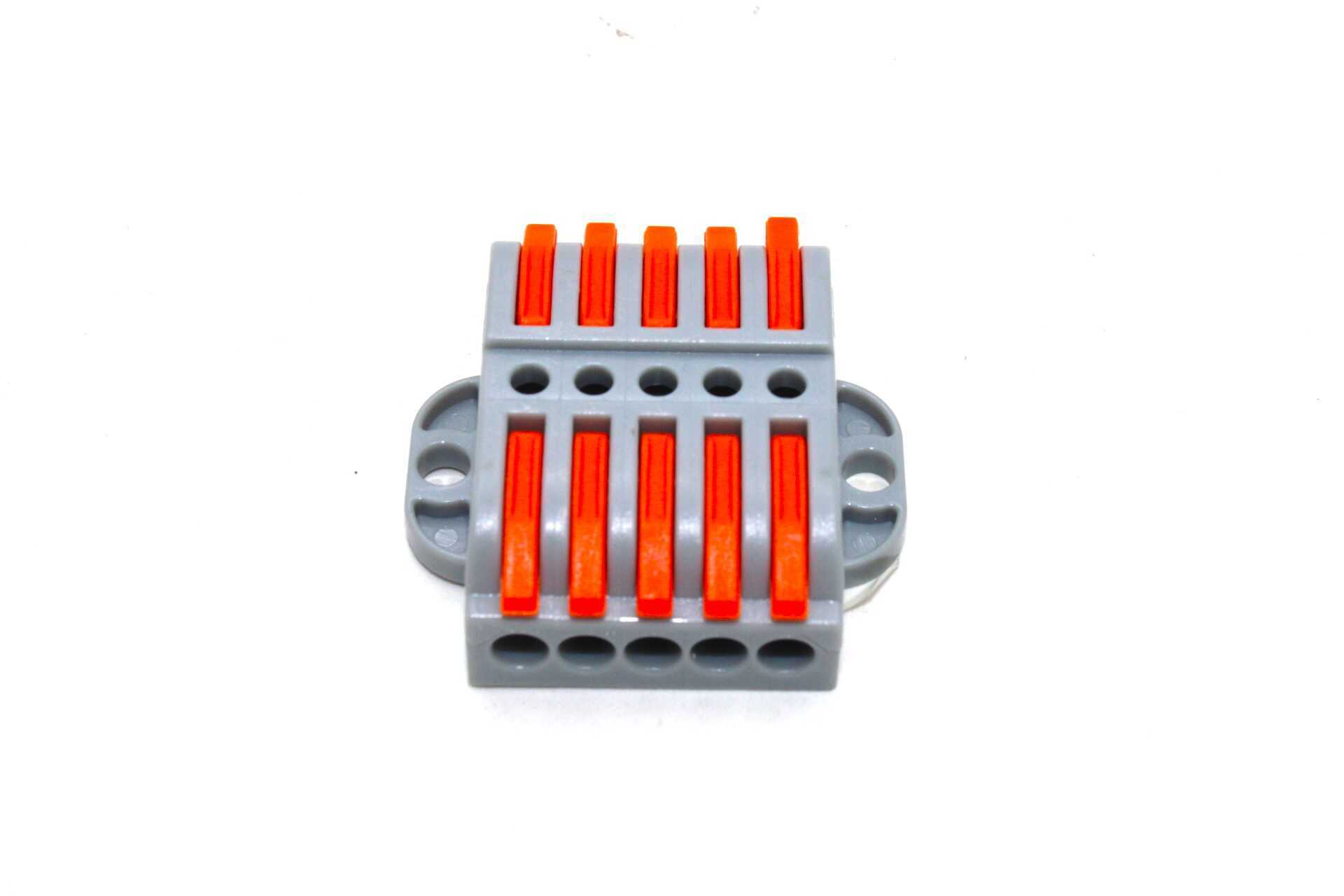

PCT-225(SPL-5) Quick, Connection Terminal
Introducing the PCT series compact splicing connectors, designed to simplify connections and save time and money in distribution boxes or junction boxes. With their compact body, these connectors enable easy connection even in narrow spaces and allow for high wiring density.
The PCT-225(SPL-5) 0.08-4mm2 5 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection is a part of this series. It features a compact locking wire connector with a spring lever, suitable for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12).
These connectors can handle a rated voltage of up to 400V with an electric current peak of 32A, resulting in a power capacity of 4KW.
Features:
- Made of high-grade insulative nylon material
- Equipped with a strong spring locking lever for secure connections
- Nickel-plated metal points inside ensure reliable conductivity
- Offers good temperature resistance
- Compact design for space-saving installation
- Features a 4-conductor terminal block with operating levers
- Max. continuous service temperature of 85°C
Specifications:
| Item Type: | PCT |
|---|---|
| Rated Current (A) | 32 |
| Rated Voltage (V): | 600 |
| Allowed Wire Size (AWG): | 10 ~ 8 |
| Model | PCT-225(SPL-5) |
| Operating Temperature (°C) | -20 to 85 |
Explore our range of connectors with different optional models, sizes, and pole configurations to meet your specific requirements. Choose the perfect fit for your project and experience efficient and reliable cable connections with the PCT series splicing connectors.
Package Includes:
1 x PCT-225(SPL-5) Quick, Connection Terminal
Technical Specifications
| Model | PCT-225 |
|---|---|
| SKU | AI1037 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PCT-225(SPL-5) Quick, Connection Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
