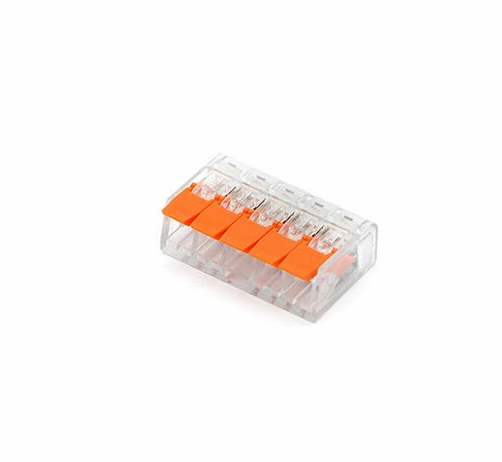

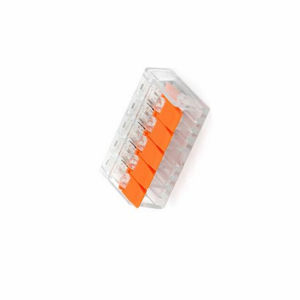

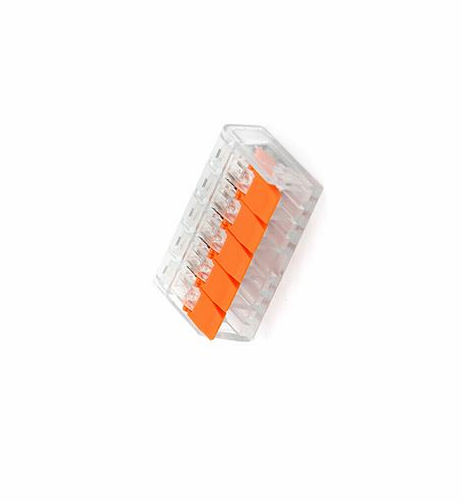

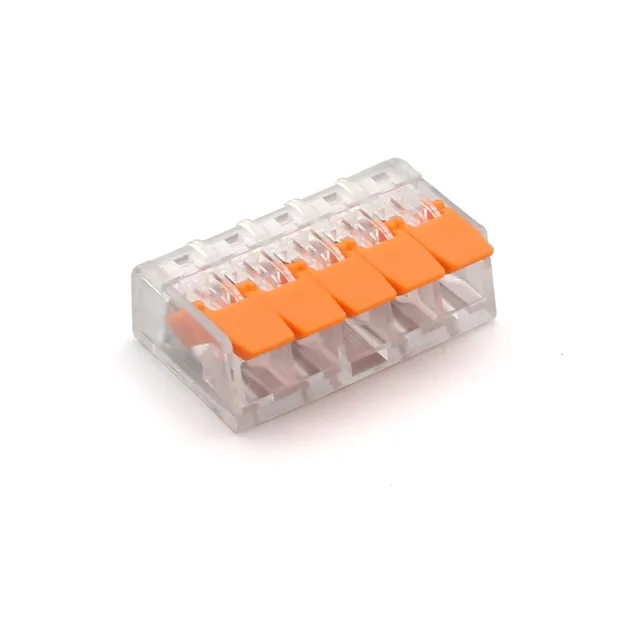

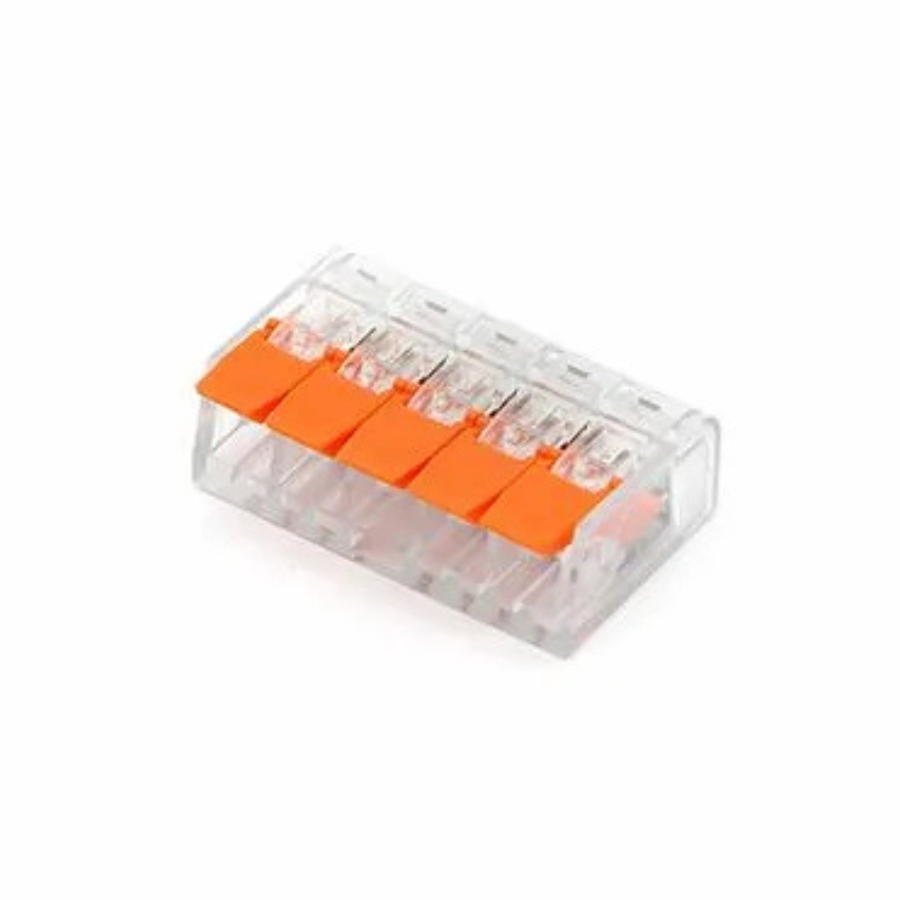

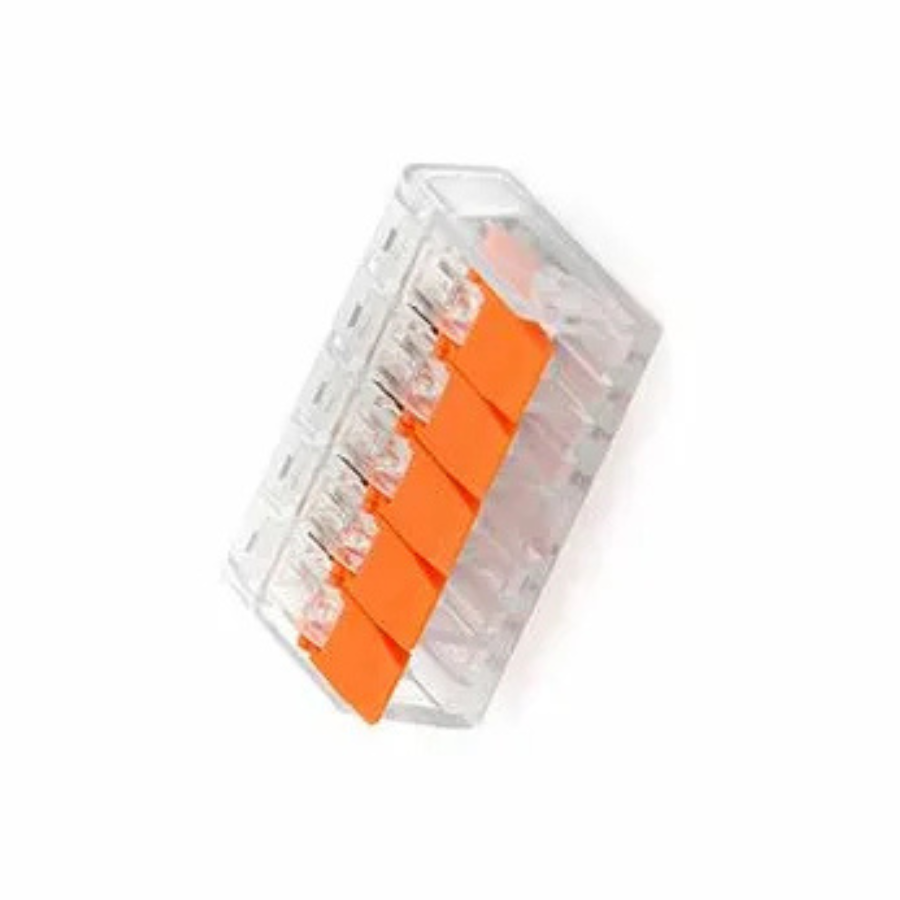

PCT-415 Quick Connection Terminal

Looking for Pct-415 Quick Connection? PCT-415 Quick Connection Terminal is available at Zbotic with fast shipping across India.

PRODUCT DESCRIPTION

Suitable for all wire types

Easily connect various types of wires with this compact splicing connector, supporting wire sizes up to 4 mm². Available in 2-, 3-, and 5-wire versions, these connectors accommodate fine-stranded wires from 0.14 to 4 mm², as well as solid and stranded wires from 0.2 to 4 mm². This broad compatibility allows you to connect different wire types and bridge wires with varying cross-sectional sizes, making it ideal for versatile wiring applications.

Two test slots

Now you can perform testing from two different sides with the PCT Series – even when it is installed.

The PCT Series connectors have two test slots: One in the direction of wire insertion and one on the opposite side. These test slots ensure convenient testing, even when the connectors are installed and in varying installation environments. They also provide good contact for all standard test probes.

Very simple handling

These splicing connectors can be opened very easily and quickly.

The operating levers of the PCT Series require less force to be opened, enabling fast connection of wires – without the use of any tools! The recessed grips on the side also prevent slipping and make it easier to hold the connector while inserting the wire.

Wide range of applications

Every millimeter counts in electrical installations: Building technology requires more and more functions integrated into ever smaller spaces.

This results in greater wiring effort required for power supply and control of the systems. Separate junction boxes are also used less and less. The PCT Series connectors make connection of all types of wires directly into the device junction boxes easy and fast. Potential functions can be for electric blinds, door and gate controls and lighting systems.

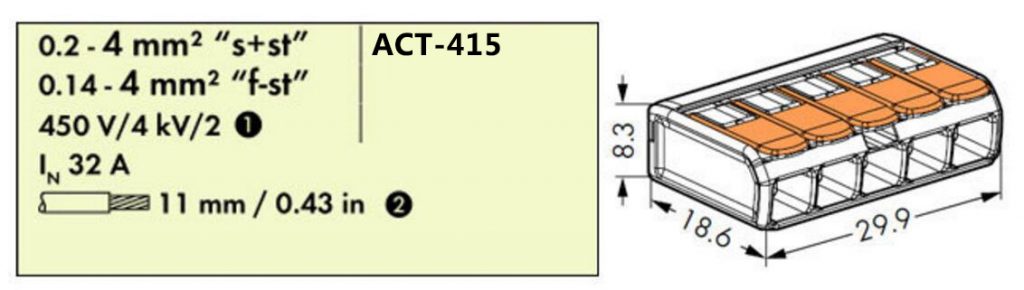

Main technical Parameter and Mounting Dimensions

Specification:

Product Number: 0.20 – 4mm
• Product Color: Transparent – Orange
• Current (A): 32A
• Degree of tightness (IP): IP20
• CE mark: Yes
• Operating Temperature ° C: -40 ° C – + 105 ° C
• Product Material: PC

PACKAGE INCLUDES

• 1 X PCT-415 Quick Connection Terminal

PCT-415 Quick Connection Terminal Overview

The PCT-415 Quick Connection Terminal is a compact splicing connector designed for fast, reliable wire connections in electrical installations. Rated for up to 32 A and accommodating wire sizes from 0.2 mm² to 4 mm², it streamlines wiring tasks in control panels, lighting circuits, and general electrical distribution.

Key Features of PCT-415 Quick Connection Terminal

• Supports fine-stranded conductors of 0.14 – 4 mm² and solid/stranded wires of 0.2 – 4 mm²
• 32 A current rating with CE certification and PC housing material
• Transparent orange casing allows visual inspection of connections
• Two test slots enable voltage checks from either side without disassembly
• Wide operating temperature range from –40 °C to +105 °C meets diverse environmental needs
• Fast shipping across India from Zbotic’s warehouse—order today and dispatch within 24 hours

Applications and Use Cases

• Control panel wiring for industrial automation and machinery
• Lighting installations in residential and commercial buildings
• Quick repairs and modifications in electrical junction boxes
• Prototyping and testing of circuits in R&D labs
• Bridging conductors with different cross-sections in distribution boards

How to Use PCT-415 Quick Connection Terminal

Strip the insulation off each conductor to the recommended length, insert the wires into the PCT-415 ports until they lock, and verify secure seating with a gentle pull. Use the built-in test slots to probe voltage presence without removing the connector. Suitable for 2-, 3-, and 5-way configurations, it simplifies series and parallel connections.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What wire sizes can the PCT-415 accept?

The PCT-415 accommodates fine-stranded conductors from 0.14 mm² to 4 mm², as well as solid and stranded wires from 0.2 mm² to 4 mm², making it versatile for most low-voltage wiring tasks.

How do I perform voltage testing on installed terminals?

Simply insert a standard test probe into either of the two integrated test slots. These slots provide access to the conductor for quick voltage checks without disassembling the connector.

Is the PCT-415 suitable for outdoor use?

The connector has an IP20 rating, which protects against solid objects over 12 mm but offers no water ingress protection. It is best used in indoor, dry environments within its –40 °C to +105 °C operating range.
