The PCT series compact splicing connectors make the connecting easily save time and money in distribution boxes or junction boxes. With the compact body, we can make connecting possible to be done in the narrow space and enable the high wiring density.

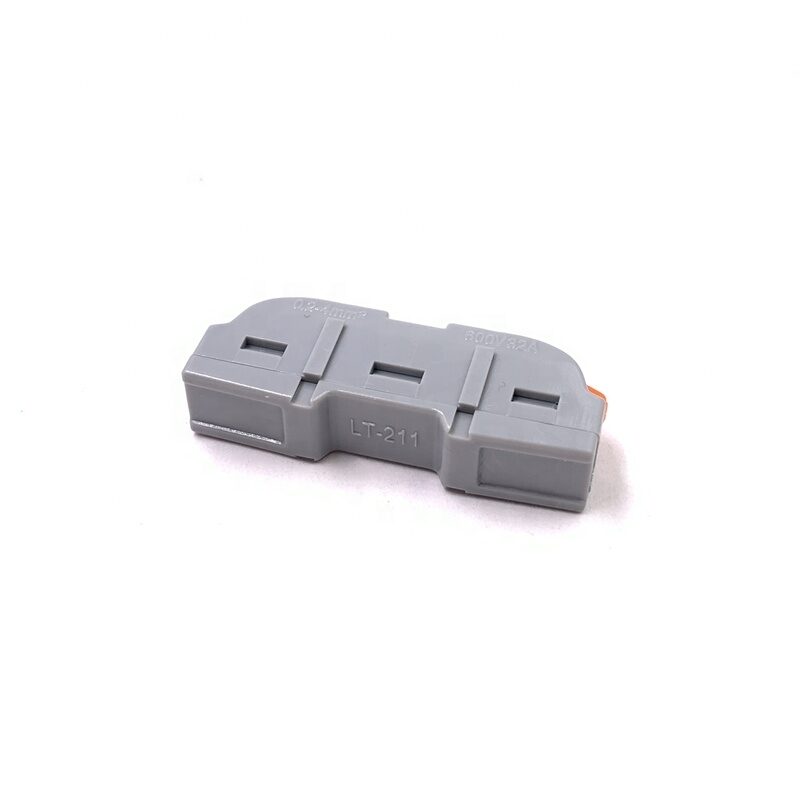

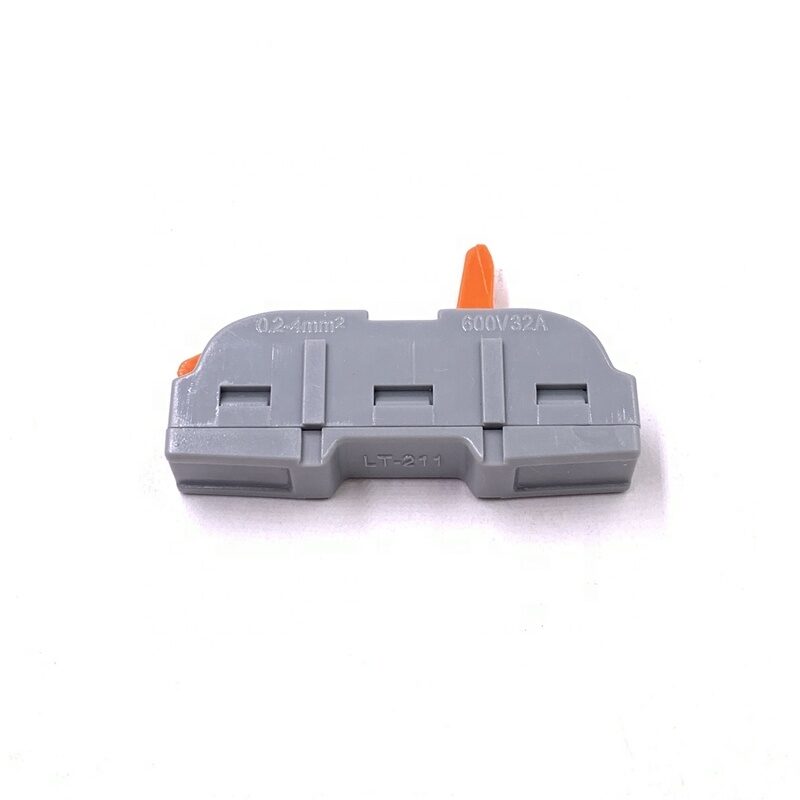

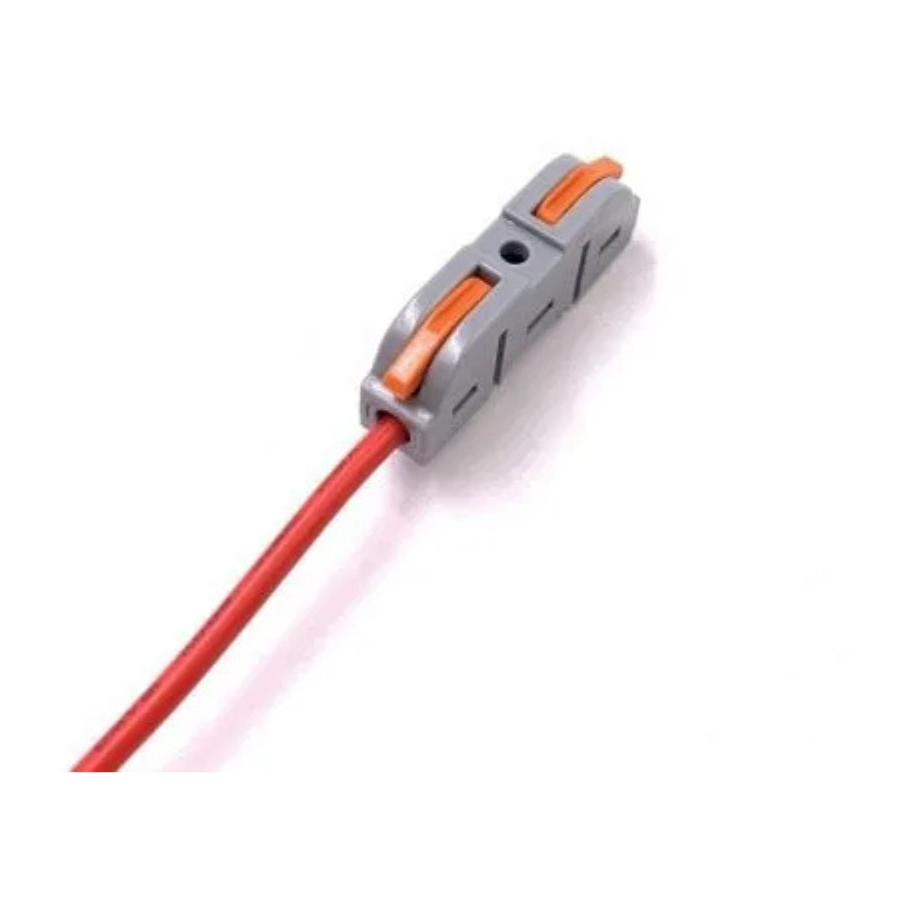

This is a PCT-211(SPL-1) 0.08-4mm2 Single Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 32a.
These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.
- PCT-212 is a Two-wire connector
- PCT-213 is a Three-wire connector
- PCT-214 is a Four-wire connector
- PCT-215 is a Five wire connector
- PCT-218 is an Eight-wire connector
- CH-812 is a Two to Two-wire connector
- CH-813 is Three to Three wire connector
- CH-2-4 is a Four to Two-wire connector
- CH-2-6 is a Six to Two-wire connector
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Package Includes:
1 x LT-211(SPL-1) Quick Connection Terminals Can be Spliced
Technical Specifications
| Model | LT-211 |
|---|---|
| Interface / Protocol | CAN |
| SKU | AI2080 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The LT-211(SPL-1) Quick, Connection Terminals Can be, Spliced is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
