Looking for Tmc2208 Module? TMC2208 Stepper Motor Driver Module is available at Zbotic with fast shipping across India.
Description:

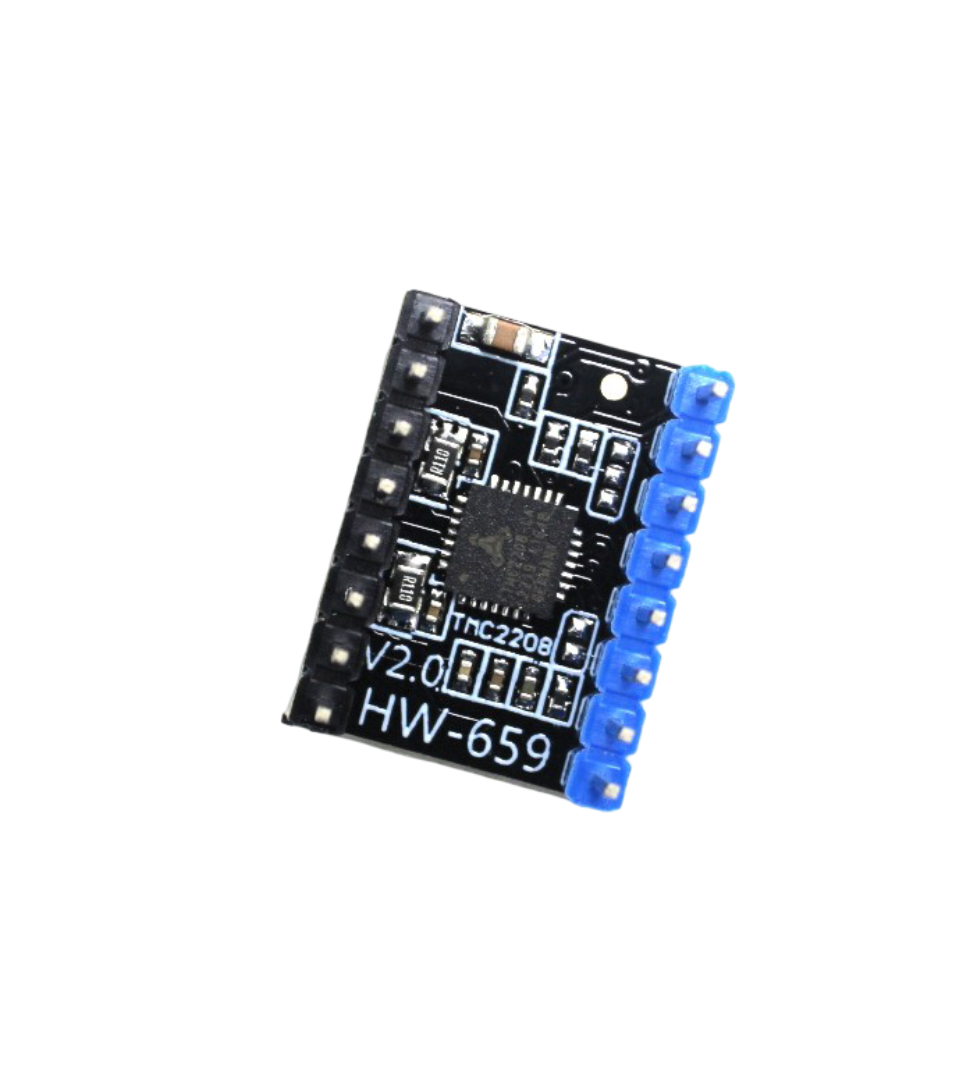

TMC2208 Stepper Motor Driver Module
The TMC2208 V1.2 is the latest version that uses the UART function directly and eliminates the need for extra wiring.
It has a flexible micro-Plyer interpolation unit that can provide up to 256 micro steps per step resolution. This allows for smooth sinusoidal control even in systems with limited pulse rates. As a stealth chip, it uses fine music technology that is widely used in 3D printing. Therefore, it is compatible with existing 3D printer electronics and does not require costly redesign. It has pulse/direction input and can operate independently. The configuration is done through a digital input.
Features:
- This device has the following features:
- It can operate with a voltage range of 3.3-5V.
- It can handle a maximum current of 1.2A per phase continuously (with cooling) and 2A per phase in short bursts.
- It is compatible with both 3.3V and 5V signals.
- It supports up to 1/256-step microstepping.
- It allows configuration via CFG pins or UART interface.
- It uses Stealth Chop technology to reduce noise from stepper motors.
- It uses Spread Cycle technology to improve motion smoothness.
- It has built-in protection against high temperatures, high currents, low voltage, and short circuits.
- It comes with a heatsink to enhance cooling performance.
Specifications:
| Voltage range | 3.3-5V |
| Maximum Current | 1.2A per phase, 2A peak per phase |
| Length(mm) | 21 |
| Width(mm) | 15 |
| Height(mm) | 13 |
| Weight(g) | 6 |
Package Includes:

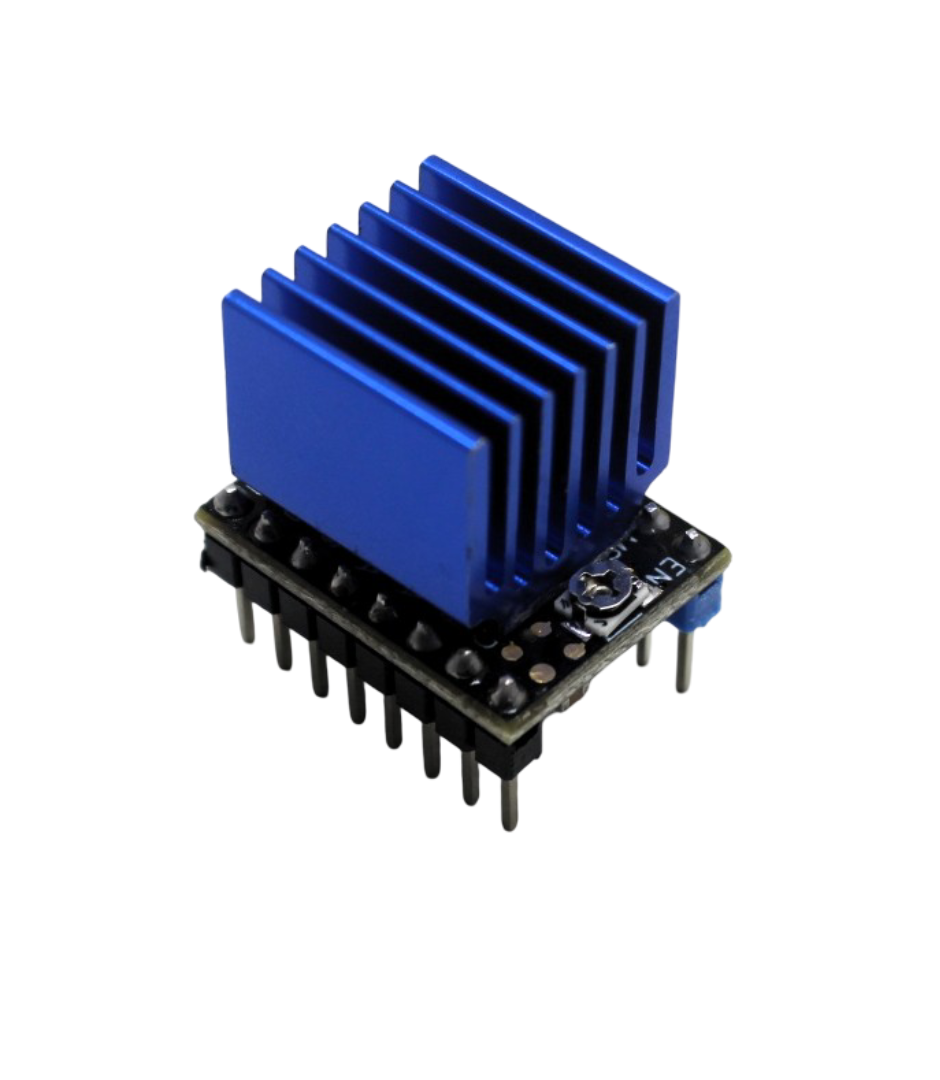

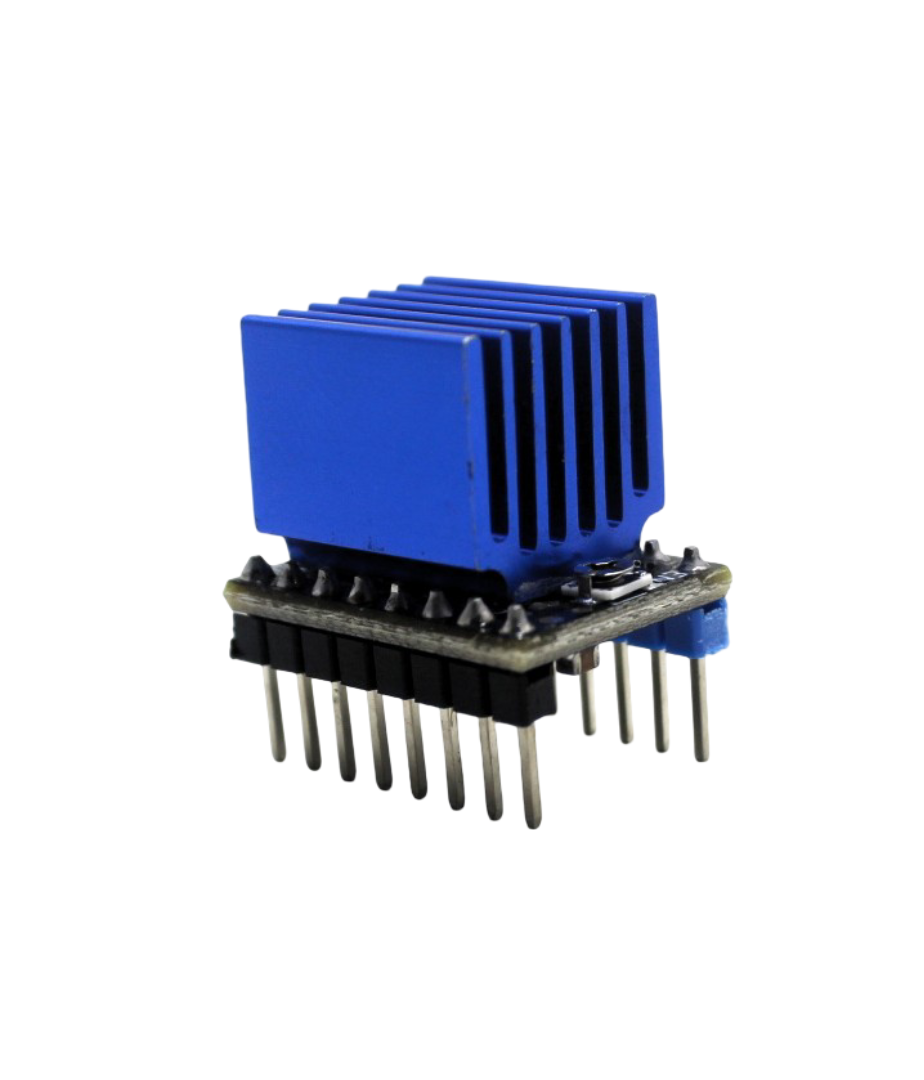

- 1 x TMC2208 Stepper Motor Driver Module with Heatsink.
TMC2208 Stepper Motor Driver Module Overview
The TMC2208 V3.0 is a compact stepper motor driver module designed for precise motor control in robotics, 3D printers, and automation projects. This UART-compatible driver delivers smooth sinusoidal motor movement with advanced microstepping technology, making it an ideal choice for applications requiring quiet, accurate stepper motor operation.
Key Features of TMC2208 Stepper Motor Driver Module
- Wide Input Voltage Range: Operates reliably from 5V to 36V, suitable for various power supply configurations
- High Microstepping Resolution: Supports up to 1/256 microstepping for ultra-smooth motor movement and reduced vibration
- UART Communication: Direct UART interface eliminates the need for extra wiring and complex configurations
- Dual Logic Voltage Support: Compatible with both 3.3V and 5V logic systems for flexible integration
- Stealth ChopperTM Technology: Uses advanced sound reduction algorithm, making it ideal for 3D printers and noise-sensitive applications
- Pulse/Direction Input: Standard interface allowing independent operation with minimal setup
Applications and Use Cases
- 3D printer extruder and bed stepper control with ultra-quiet operation
- CNC machines and laser cutters requiring precise axis movement
- Robotics projects needing smooth, accurate motor positioning
- Automation systems with limited space and power constraints
- Camera sliders, pan-tilt mechanisms, and motion control rigs
- RepRap and compatible printer electronics upgrades
How to Use TMC2208 Stepper Motor Driver Module
Connect the module to your controller board using pulse and direction pins, or configure via UART for advanced settings. Supply power between 5V-36V to the input terminals and connect your NEMA stepper motor to the output connectors. Set your firmware to recognize the TMC2208 and adjust microstepping levels as needed—the module handles the rest. For 3D printers, it typically drops into existing slots without requiring firmware changes on compatible boards.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking
- Free Shipping: Free delivery on orders above ₹499
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum current rating of the TMC2208?
The TMC2208 V3.0 has a maximum current rating of 1.4A per phase, making it suitable for standard NEMA 17 and smaller stepper motors commonly used in 3D printers and robotics.
Is the TMC2208 compatible with my 3D printer?
Yes, the TMC2208 is widely used in 3D printing and is compatible with most modern printer electronics like Creality boards and RepRap systems. Its Stealth ChopperTM technology is specifically designed for printer use, and it integrates without costly redesigns.
Why is the TMC2208 priced at ₹219 compared to other drivers?
At ₹219, the TMC2208 offers exceptional value with advanced features like 256 microstepping and UART communication at an affordable price point. This makes it the cost-effective choice for upgrading or building stepper-driven projects without compromising on quality.
Build a Motorized Camera Slider with Stepper Motor & Arduino
A motorized camera slider turns any smartphone or DSLR footage into cinematic video — smooth, repeatable pulls that...
Read More →
SG90 Servo Motor: Pinout, Torque Specs & Arduino Projects
Table of Contents What Is the SG90 Servo Motor? SG90 Specifications & Pinout How a Servo Motor Works...
Read More →
Servo Motor Buying Guide for Robotic Arm Projects India
Table of Contents What Is a Servo Motor and How Does It Work? Types of Servo Motors for...
Read More →Technical Specifications
| Model | TMC2208 |
|---|---|
| SKU | AI0537 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TMC2208 Stepper Motor Driver Module is a versatile stepper motor drivers used across a wide range of applications including CNC machines, 3D printers, robotics, camera sliders, and pick-and-place machines.
Common use cases:
- Driving NEMA 17 stepper motors in a 3D printer
- Building a CNC router
- Precise positioning in a robotic arm
This product is ideal for CNC builders, 3D printer makers, and robotics engineers.
Technical Tip: TMC2208/2209 drivers offer silent operation via StealthChop. A4988/DRV8825 are more affordable. Set current limit via the onboard potentiometer.
