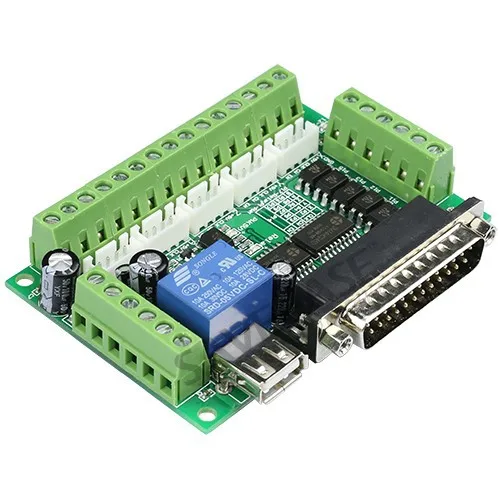

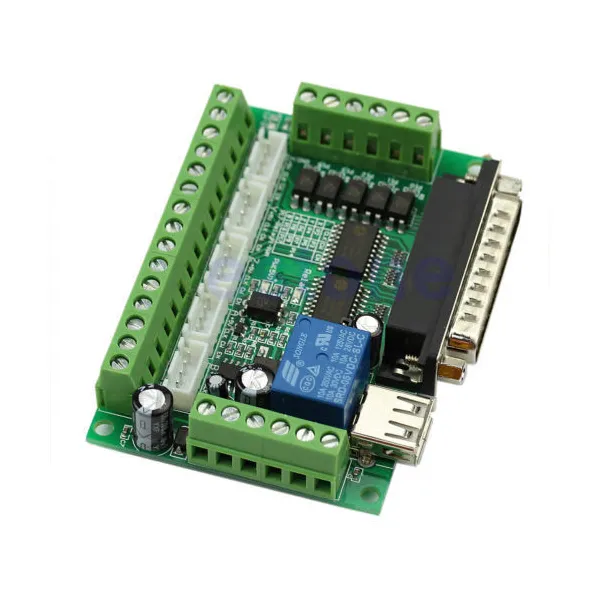

MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver is the latest upgraded 5 axis breakout board, specially designed for the CNC single axis 2-phase stepper driver controller, such as TB6560, M542, M542H, MA860H, 2M542, 2M982, DM542(A), DM860(A) etc. single axis stepper driver controller series. With this 5 axis breakout board, any 1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc
All the way to the relay output port, control spindle switch. Output port P17 mouth.
All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled. P1 as PWM outputs can be controlled with optocoupler input spindle governor. This can access by a common cathode or common anode input level to 5V drive.
Features
Maximum support 5-axis stepper motor driver controllers
Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
USB power supply and peripherals powered phase are separated to protect computer security.
All the signals are opto-isolated which can protect your computer security.
5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.
Wide input voltage range: 12-24V, and with anti-reverse function.
One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
Output 0-10V analog voltage for inverter to control the spindle speed.

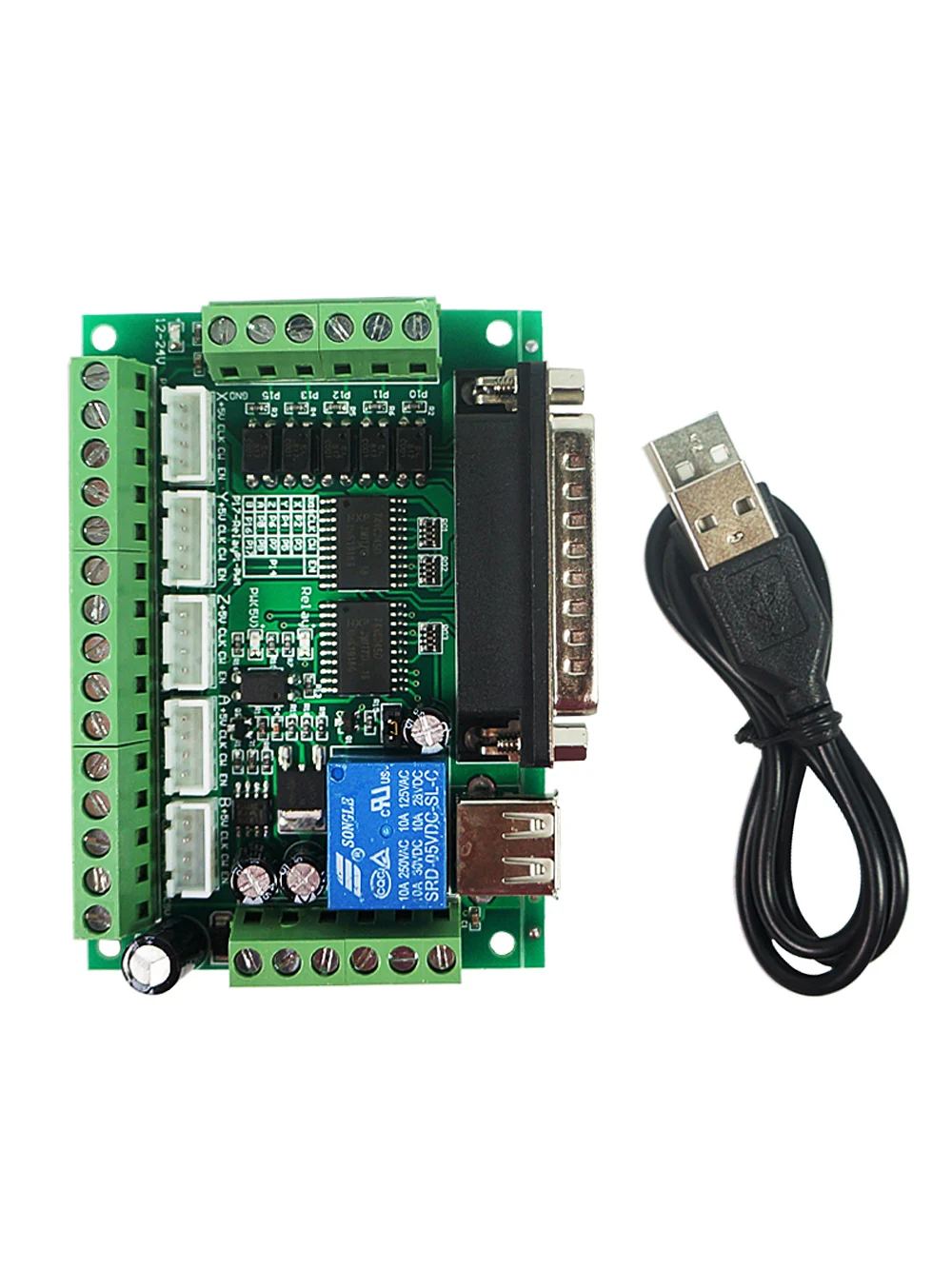

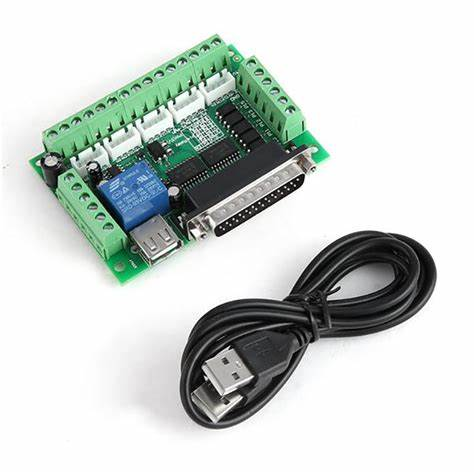

The MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver and USB cable (Length-50 cm) is a versatile stepper motor drivers used across a wide range of applications including CNC machines, 3D printers, robotics, camera sliders, and pick-and-place machines.
Common use cases:
Driving NEMA 17 stepper motors in a 3D printer
Building a CNC router
Precise positioning in a robotic arm
This product is ideal for CNC builders, 3D printer makers, and robotics engineers.
Technical Tip: TMC2208/2209 drivers offer silent operation via StealthChop. A4988/DRV8825 are more affordable. Set current limit via the onboard potentiometer.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Weight
0.13 kg
15 Days Warranty
Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
