This is the 6V variant of the N20-6V-400 Rpm Micro Metal Gear Motor in N20 Gear Motor without Encoder. Available at Original price was: ₹296.18.₹241.90Current price is: ₹241.90. (₹205.00 + GST) with free shipping across India.
Looking for N20 Motor 6v? N20-6V-400 Rpm Micro Metal Gear Motor is available at Zbotic with fast shipping across India.
Product Description

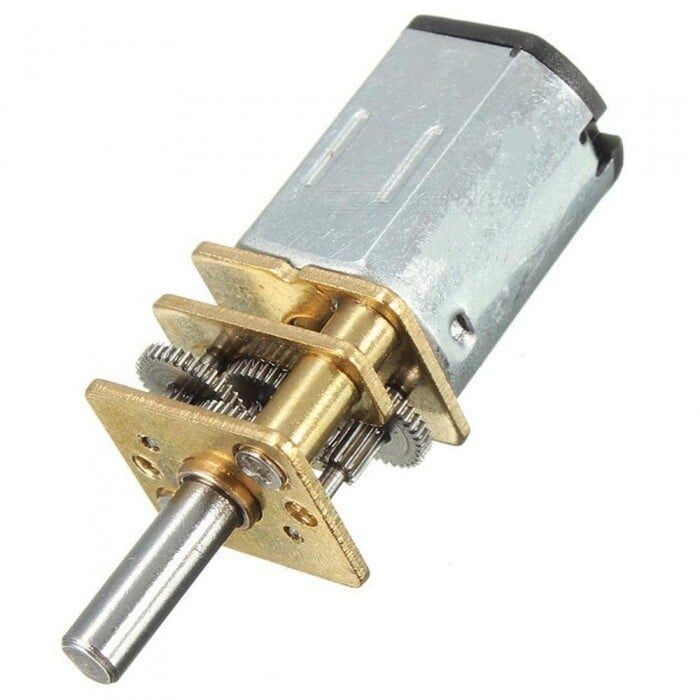

This N20-6V-400 Rpm Micro Metal Gear Motor is compact, powerful, and durable. It has all-metal gears that are resistant to wear and tear. It is ideal for replacing the old or damaged DC geared speed reduction motor on your machine. You can use it for various applications, such as boats, cars, electric bicycles, fans, and home appliances.
The N20 Micro Gear 6V 400 RPM DC Motor (High Torque) is a lightweight, high-torque, and low-RPM motor. It comes with a gearbox assembly that increases its torque. It has a 10 × 12 mm cross-section, and a 9 mm long and 3 mm wide D-shaped gearbox output shaft. It is very small and can fit in tight spaces of small-scale applications. You can attach this Micro Gear Motor to wheels to move them from one place to another while carrying heavy loads.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification-
| No Load Current (mA) | 0.04 A |
|---|---|
| Stall Current (A) | 0.67 |
| Stall Torque(Kg-Cm) | 0.65 |
| Rated Torque(kg-cm) | 0.18 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 3 ~ 6 |
| Rated Operating Voltage (VDC) | 6 |
| No load Speed (RPM) | 400 |
| Rated Speed (RPM) | 400 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (g): | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
Package Includes :
1 x N20-6V-400 Rpm Micro Metal Gear Motor
N20-6V-400 Rpm Micro Metal Gear Motor Overview
This N20-6V-400 Rpm Micro Metal Gear Motor is a compact DC geared motor with all-metal gears designed to deliver high torque at low speeds. Operating at 6 V, it provides 400 RPM output ideal for precision robotic drives, small vehicles, and automated mechanisms.
Key Features of N20-6V-400 Rpm Micro Metal Gear Motor
- Compact 10 × 12 mm gearbox profile with 9 mm long, 3 mm wide D-shaped output shaft
- All-metal gear train for enhanced durability and resistance to wear
- High-torque, low-RPM performance (400 RPM at 6 V) with strong stall characteristics
- Lightweight construction suitable for weight-sensitive projects
- Easily mounts wheels or pulleys directly onto the D-shaped shaft
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Drive wheels on micro robotic platforms and line-following robots
- Power small RC cars, boats, and tracked vehicles
- Operate mini conveyor belts or rotary display stands
- Actuate automated drawer slides, mini pumps, or valve systems
- Integrate into DIY home appliance prototypes and model-making projects
How to Use N20-6V-400 Rpm Micro Metal Gear Motor
Connect the motor leads to a 6 V DC power supply or motor driver, secure the gearbox housing to your chassis using mounting brackets or double-sided tape, and attach your wheel, gear, or pulley onto the D-shaped output shaft. Use a motor driver for precise speed and direction control, and ensure proper wiring polarity for forward or reverse rotation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What input voltage does the N20-6V-400 require?
This motor is designed to operate at a nominal voltage of 6 V DC. Supplying 6 V ensures it achieves its rated speed of 400 RPM and optimal torque.
What are the dimensions of the output shaft?
The gearbox has a 10 × 12 mm cross-section and the output shaft is D-shaped, measuring 3 mm wide and 9 mm in length for easy wheel or pulley mounting.
Is the gearbox material suitable for long-term use?
Yes, the N20-6V-400 uses all-metal gears that offer superior wear resistance and durability, making it ideal for repeated start-stop cycles and moderate loads.
Worm Gear Motor Applications: Self-Locking Mechanism Guide
The worm gear motor's self-locking property is one of the most underappreciated features in the robotics and automation...
Read More →
Build a Pan-Tilt Camera Mount with Servo Motors & Arduino
Table of Contents Project Overview Parts List Understanding the Pan-Tilt Mechanism Wiring the Servos to Arduino Basic Joystick...
Read More →
L298N Motor Driver: Complete Guide for DC Motors and Steppers
The L298N motor driver is one of the most widely used motor driver modules in the Arduino and...
Read More →Technical Specifications
| Model | N20-6V |
|---|---|
| SKU | AI2465 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The N20-6V-400 Rpm Micro Metal Gear Motor is a versatile n20 gear motor without encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
