This is the 12V variant of the N20 Micro Gear 12V 100RPM DC Motor (High Torque) in N20 Gear Motor without Encoder. Available at Original price was: ₹283.20.₹218.30Current price is: ₹218.30. (₹185.00 + GST) with free shipping across India.
Product Description

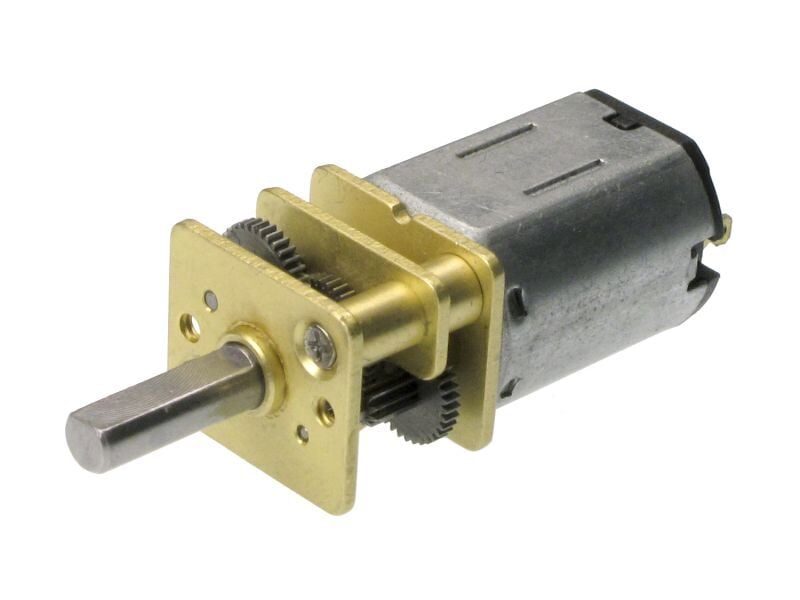

The N20 Micro Gear 12V 100RPM DC Motor (High Torque) is a lightweight motor that delivers high torque and low speed. It has a gearbox assembly that enhances the motor’s torque. The motor has a 10 × 12 mm cross-section, and its D-shaped output shaft is 9 mm long and 3 mm in diameter. The motor’s small size makes it suitable for small-scale applications that require complex space arrangements. This Micro Gear Motor can be attached to wheels to move them from one place to another while carrying heavy loads.
The N20 Micro Gear 100RPM 12V DC Motor (High Torque) features an all-metal gear that is durable and resistant to wear and tear. It is an ideal replacement for DC geared speed reduction motors that are rusty or damaged on machines. It can be widely used on boats, cars, electric bicycles, fans, and home appliances.
Features:
- Type: N20 Micro Gearbox

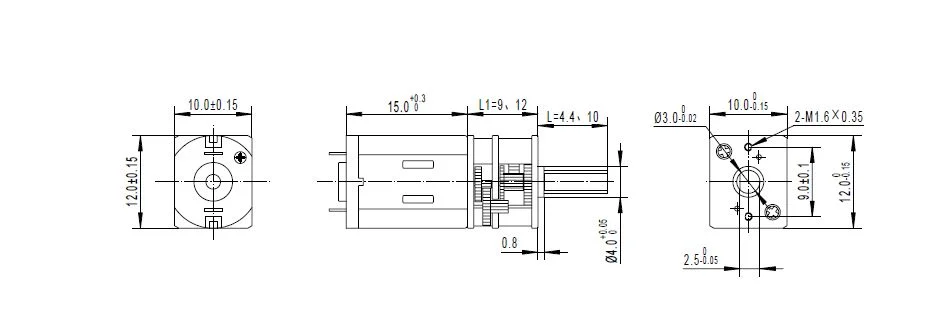

- Fuselage Dimensions: 15 x 12 x 10 (LxWxH) mm
- Gearbox Dimensions: 10 x 12 x 10 (LxWxH) mm
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification-
| Model No. | N20-12-100 |
|---|---|
| Motor Type | Single Shaft |
| Rated Operating Voltage (VDC) | 12 |
| No Load Current (mA) | 0.06 A |
| Stall Current (A) | 0.75 |
| Rated Speed (RPM) | 100 |
| Operating Voltage (VDC) | 6 ~ 12 |
| Rated Torque(kg-cm) | 0.52 |
| Stall Torque(Kg-Cm) | 1.8 |
| No load Speed (RPM) | 100 |
| Shaft Type | D-type, Single Side |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Weight (g): | 10 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 8 × 7 × 5 cm |
Package Includes:
1 x N20 Micro Gear 12V 100RPM DC Motor (High Torque)
