This is the 12V variant of the N20-12V-60 RPM Micro Metal Gear-box DC Motor in N20 Gear Motor without Encoder. Available at ₹227.74 (₹193.00 + GST) with free shipping across India.

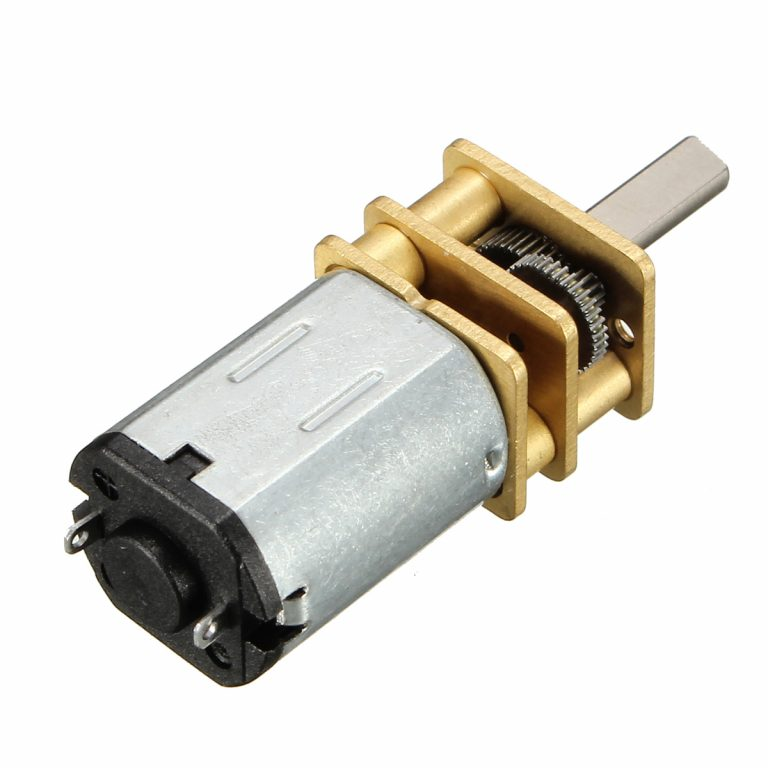

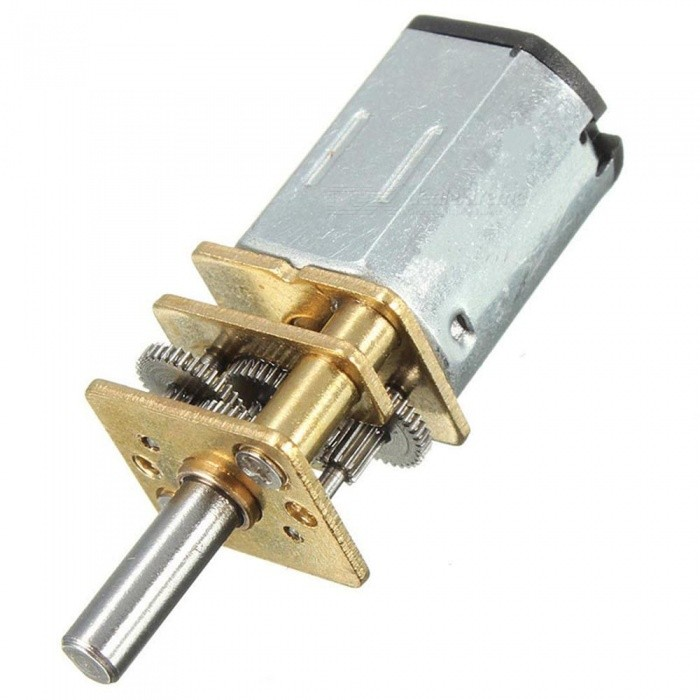

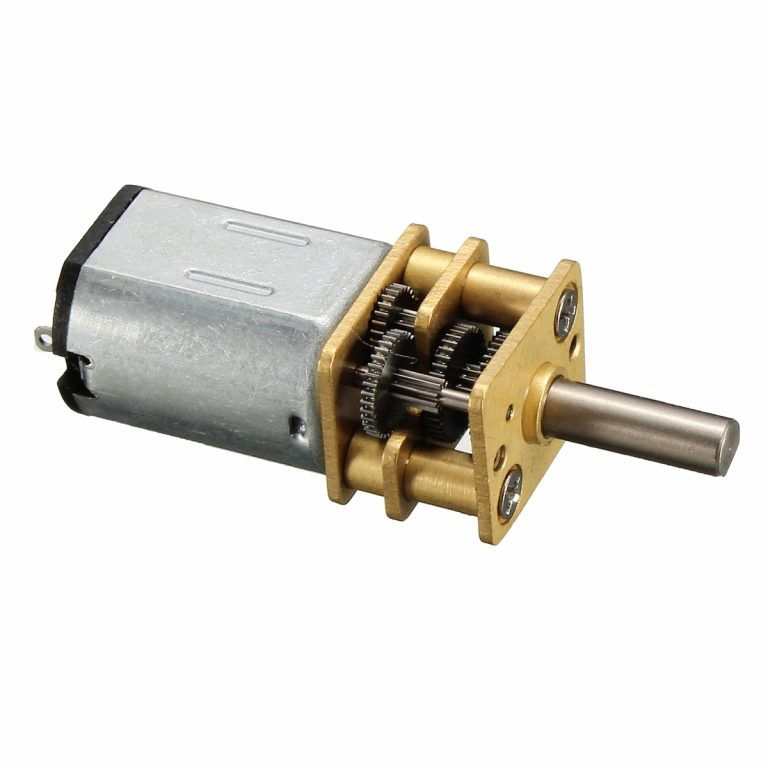

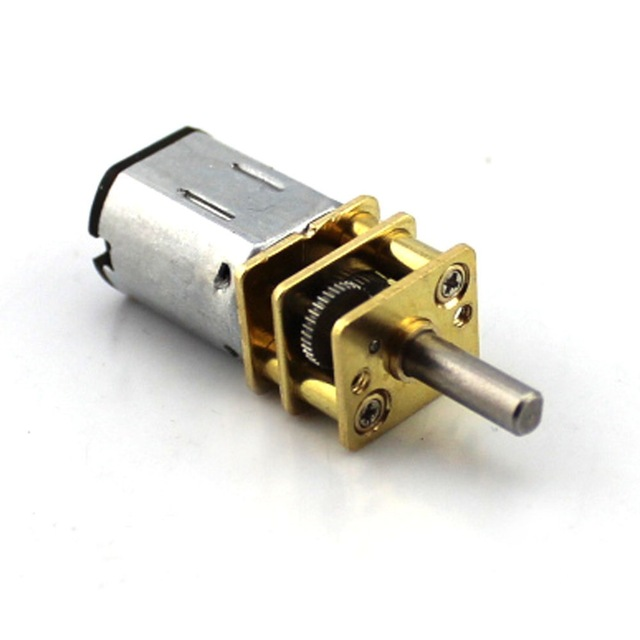

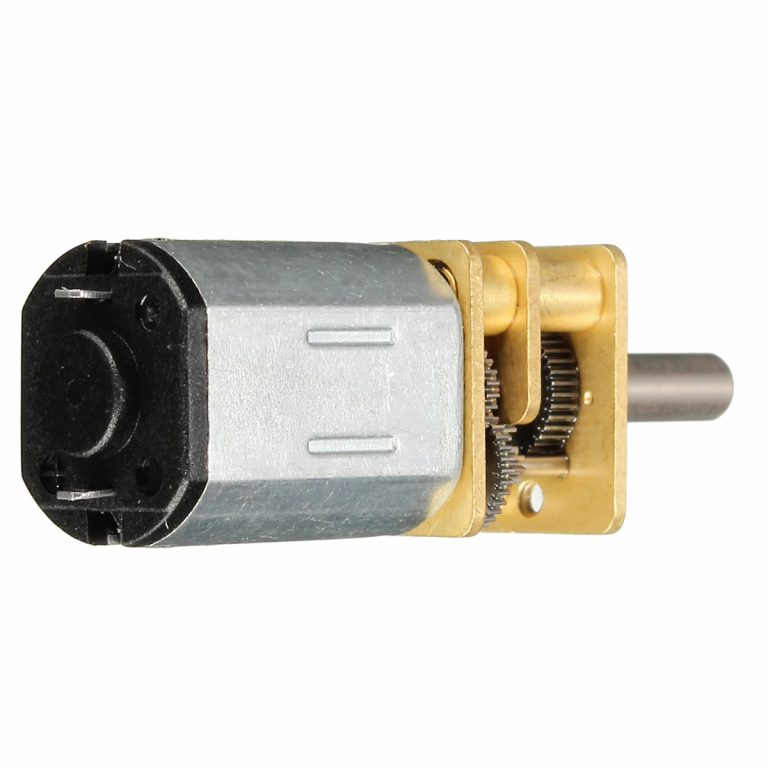

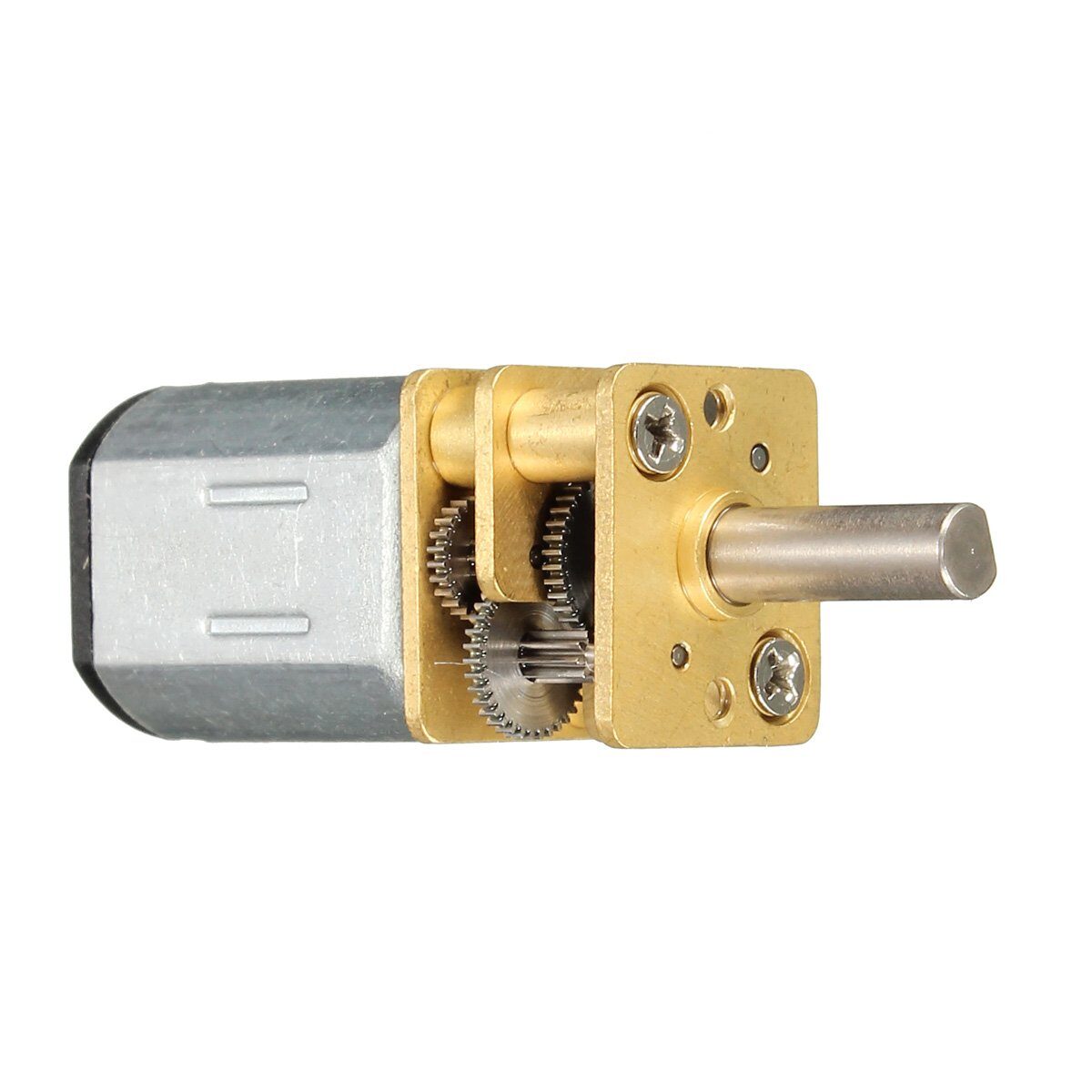

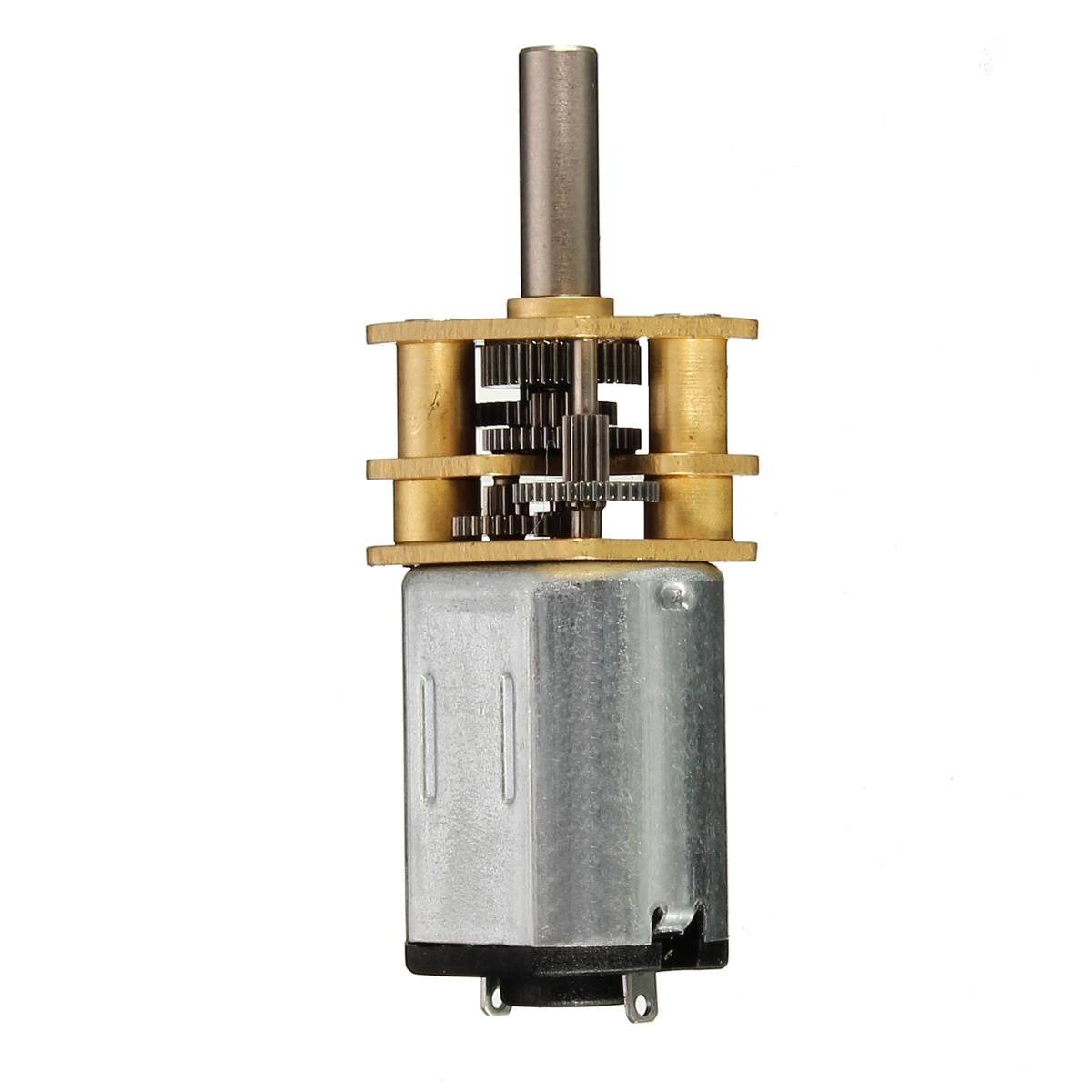

N20-12V-60 RPM Micro Metal Gear-box DC Motor
The N20-12V-60 RPM Micro Metal Gear-box DC Motor is compact yet robust, featuring high torque and a low RPM. Its all-metal gear construction ensures durability and resistance to wear, making it an excellent replacement for worn-out or damaged DC geared speed reduction motors in various applications. Widely utilized in boats, cars, electric bicycles, fans, and home appliances, this motor offers reliable performance.
Equipped with a gearbox assembly to enhance torque, this motor boasts dimensions of 10 × 12 mm with a D-shaped output shaft measuring 9 mm in length and 3 mm in diameter. Its small size enables seamless integration into tight spaces, making it ideal for small-scale applications. By connecting this Micro Gear Motor to wheels, it efficiently drives them even under heavy loads, making it a versatile choice for diverse projects.
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
| Stall Current (A) | 0.75 |
|---|---|
| Rated Torque(kg-cm) | 0.97 |
| Stall Torque(Kg-Cm) | 3 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 12, 6 ~ 12 |
| No load Speed (RPM) | 60 |
| Rated Speed (RPM) | 60 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (g): | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
Package Includes:
1 x N20-12V-60 RPM Micro Metal Gear-box DC Motor
BLDC Motor Controller Programming: Six-Step Commutation Guide
Table of ContentsIntroduction to BLDC Motor ControlBLDC vs Brushed Motors: Why It MattersSix-Step (Trapezoidal) Commutation TheoryHall Effect Sensors:...
Read More →
Digital Servo vs Analog Servo: Speed, Accuracy & Power Differences
Choosing between a digital servo and an analog servo is one of the most common dilemmas faced by...
Read More →
Servo Signal Wire: PWM Timing, Signal Voltage & Level Shifting
The three-wire servo connector looks deceptively simple — power, ground, and signal. Yet that signal wire carries the...
Read More →Technical Specifications
| Model | N20-12V |
|---|---|
| Speed | 60 RPM |
| SKU | AI2544 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The N20-12V-60 RPM Micro Metal Gear-box DC Motor is a versatile n20 gear motor without encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
