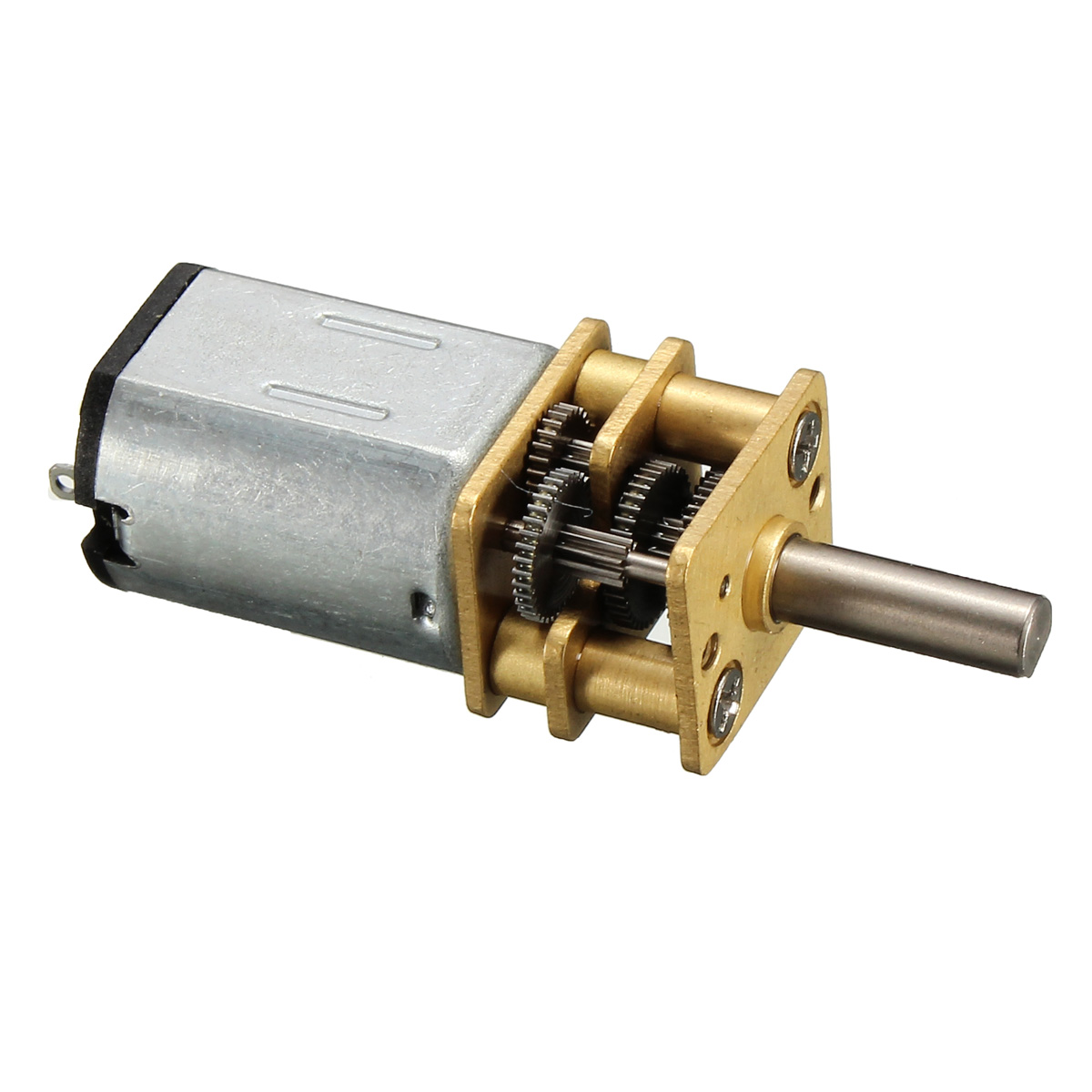

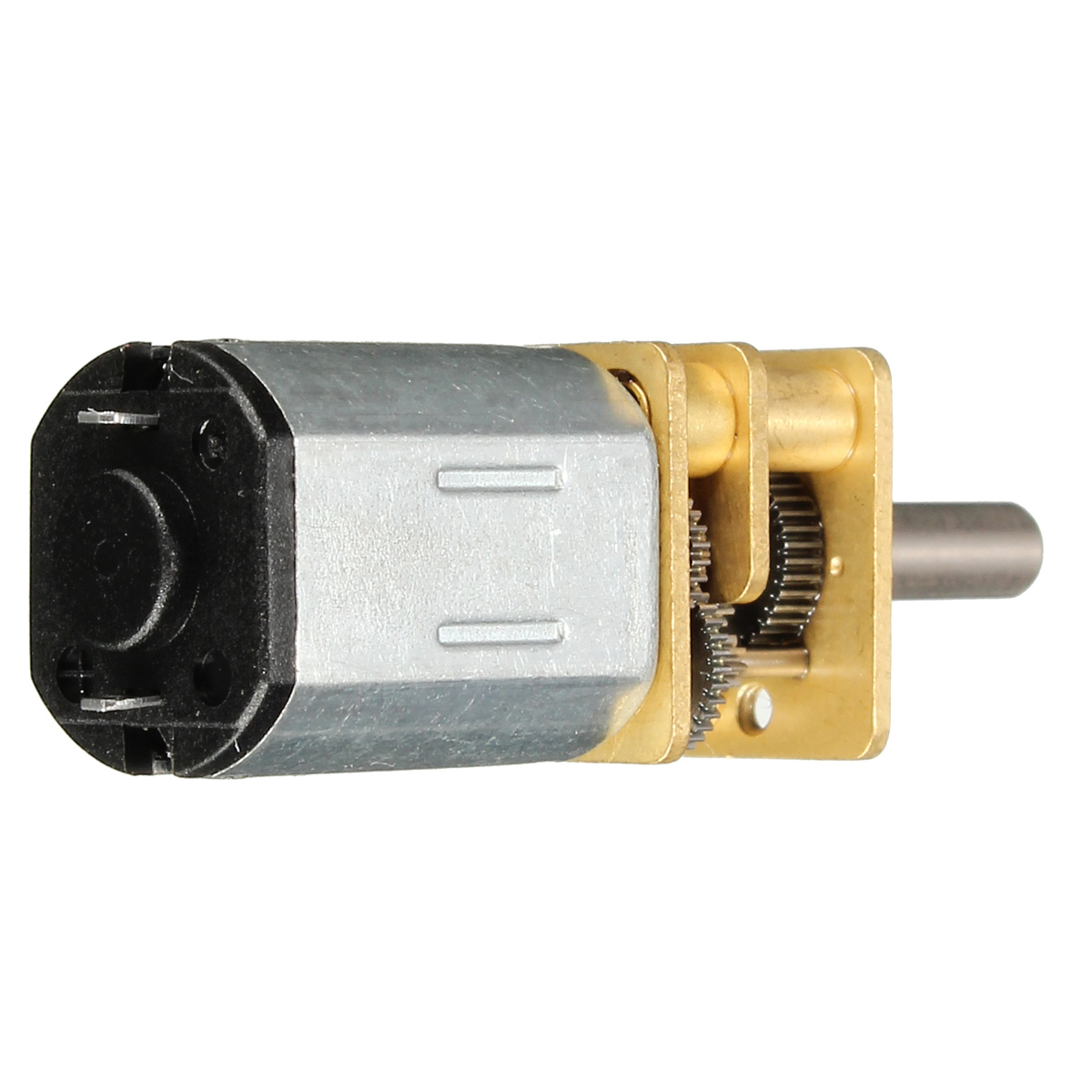

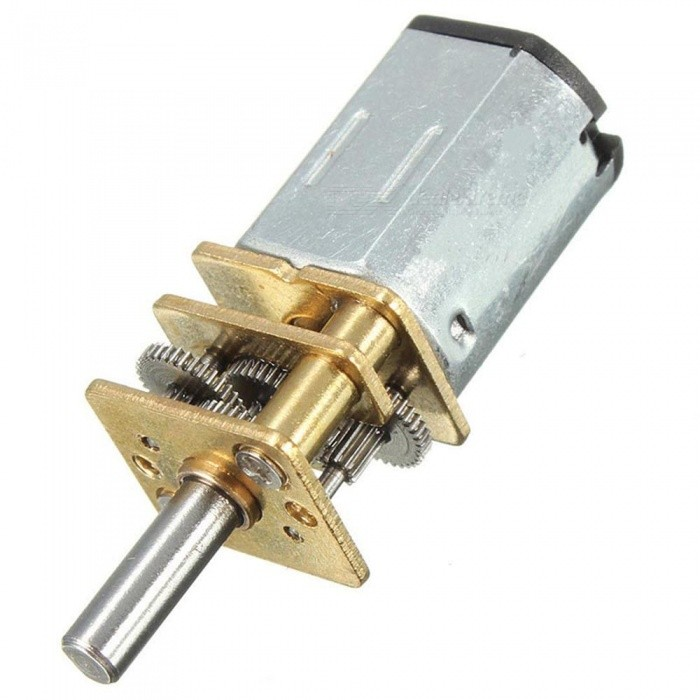

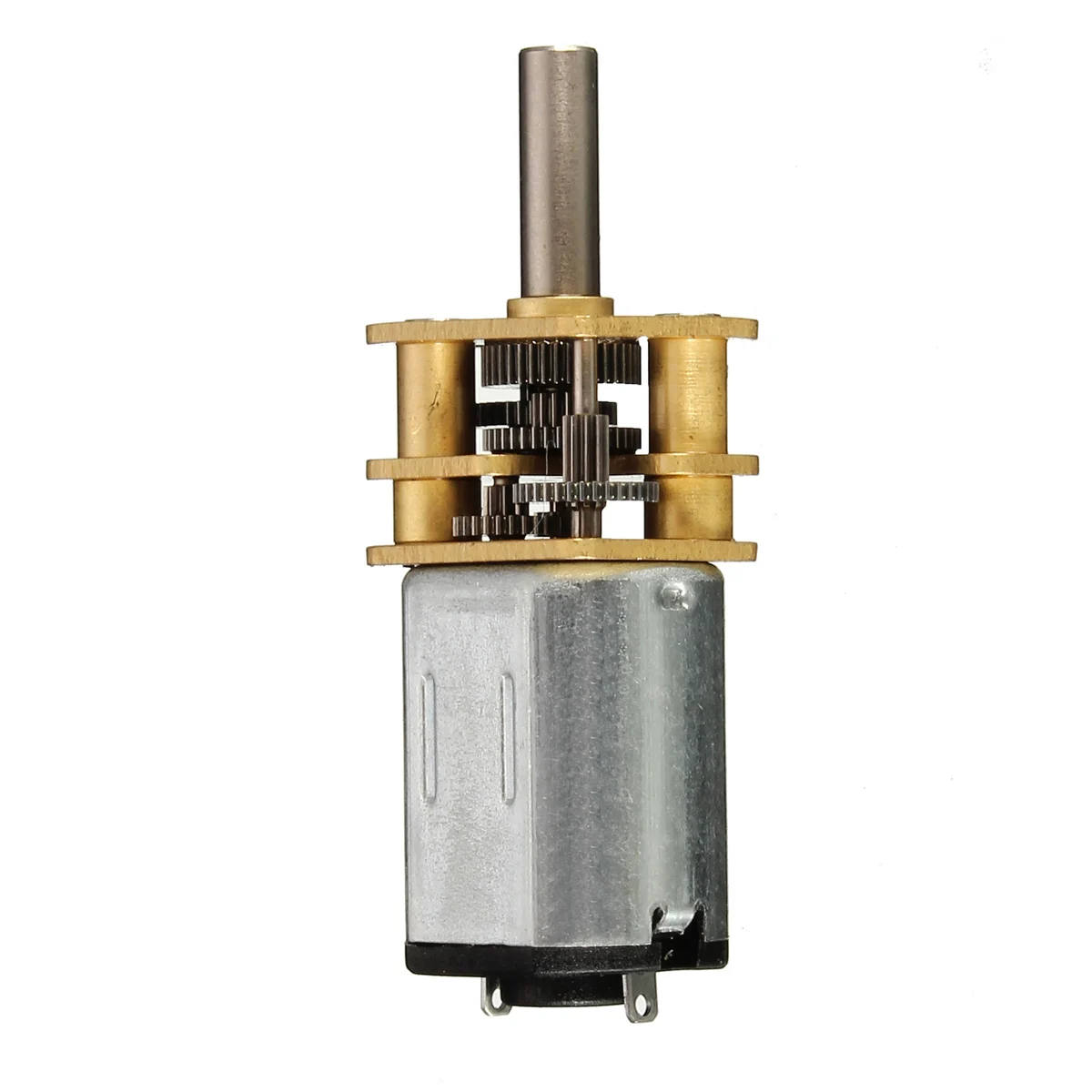

This is the 3V variant of the N20-3V-300 RPM Micro Metal Gear-box DC Motor in N20 Gear Motor without Encoder, N20 Micro Gear Motor. Available at ₹284.38 (₹241.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
The N20-3V-300 Rpm Micro Metal Gear Motor is a durable DC motor with a small size, a high torque, and an all-metal gear that resists wear and tear. It is an ideal replacement for DC geared speed reduction motors that are rusty or damaged. It can be used for various applications, such as boats, cars, electric bicycles, fans, and home appliances.
The N20 Micro Gear 3V 300 RPM DC Motor (High Torque) is a low-RPM motor that is lightweight and has a high torque. It has a gearbox assembly that increases the motor’s torque. The motor has a 10 × 12 mm cross-section, and its D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. The motor’s small size allows it to fit in complex spaces of small-scale applications. The Micro Gear Motor can be connected to wheels to move them from one place to another while carrying heavy loads.
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification:
| Motor Type | Center Shaft DC Geared Motor |
|---|---|
| Rated Operating Voltage (VDC) | 3 |
| No Load Current (mA) | 25 ~ 45 |
| Stall Current (A) | 0.1 |
| Rated Speed (RPM) | 280 |
| Operating Voltage (VDC) | 1.5 ~ 5 |
| Rated Torque(kg-cm) | 0.06 |
| Stall Torque(Kg-Cm) | 0.80 |
| No load Speed (RPM) | 300 |
| Gear Ratio | 298 : 1 |
| Shaft Type | D-type, Single Side |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 10 |
| Overall length | 35mm (top to bottom) |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 6 × 4 × 3 cm |
Package Includes :
1 x N20-3V-300 Rpm Micro Metal Gear-box DC Motor
Miniature Pump Hydroponics: Automated Nutrient Dosing System
Hydroponics grows plants in nutrient-rich water instead of soil, and automating the nutrient dosing process with peristaltic pumps...
Read More →
Hall Effect Sensor for Motor Speed Measurement with Arduino
Accurate motor speed measurement is the foundation of any closed-loop control system. Without knowing how fast your motor...
Read More →
Build a Pan-Tilt Camera Mount with Servo Motors & Arduino
Table of Contents Project Overview Parts List Understanding the Pan-Tilt Mechanism Wiring the Servos to Arduino Basic Joystick...
Read More →Technical Specifications
| Model | N20-3V |
|---|---|
| Speed | 300 RPM |
| SKU | AI3215 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The N20-3V-300 RPM Micro Metal Gear-box DC Motor is a versatile n20 gear motor without encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
