This is the 12V variant of the N20-12V-400 Rpm Micro Metal Gear Motor in N20 Gear Motor without Encoder. Available at ₹277.30 (₹235.00 + GST) with free shipping across India.
Product Description

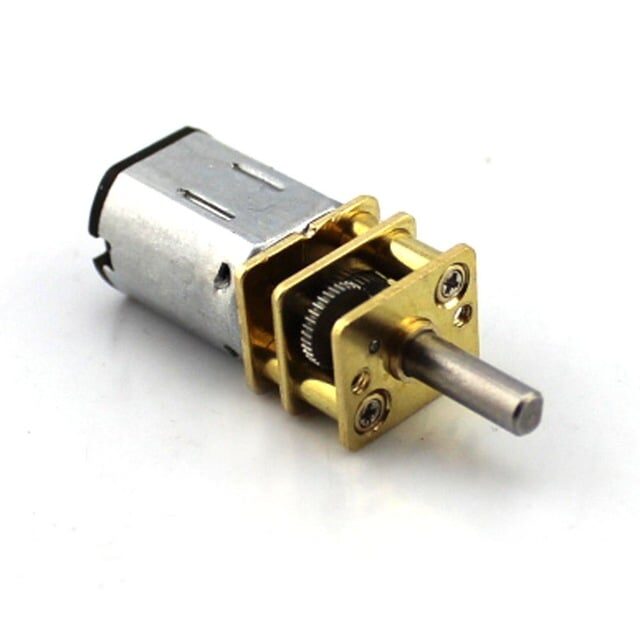

This N20-12V-400 Rpm Micro Metal Gear Motor is a compact, high-torque, and low-speed motor with an all-metal gear that is durable and resistant to wear. It is an ideal replacement for the rusty or damaged DC gear reduction motor on your machine. You can use it for various applications such as boats, cars, electric bicycles, fans, and home appliances.
The N20 Micro Gear 12V 400 RPM DC Motor (High Torque) is a lightweight, high-torque, and low-speed motor with a gearbox assembly that increases its torque. It has a cross-section of 10 × 12 mm, and a D-shaped output shaft that is 9 mm long and 3 mm in diameter. It has a very small size that can fit in complex spaces of small-scale applications. You can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying heavy loads.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification-
| Model No. | N20-12V-400 |
|---|---|
| No Load Current (mA) | 0.06 A |
| Stall Current (A) | 0.75 |
| Rated Torque(kg-cm) | 0.35 |
| Stall Torque(Kg-Cm) | 1.0 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 6 ~ 12 |
| Rated Operating Voltage (VDC) | 12 |
| Rated Speed (RPM) | 400 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Weight (g): | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Motor Type | Single Shaft |
| No load Speed (RPM) | 400 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
Package Includes:
1 x N20-12V-400 Rpm Micro Metal Gear Motor
12V Servo Motor for Heavy Robotics: DS3225 & DS5160 Guide
Standard hobby servos — the SG90s and MG996Rs that fill every Arduino starter kit — operate on 4.8–6...
Read More →
5V DC Motor vs 12V DC Motor: Which to Use in Arduino Projects
Table of ContentsIntroductionDC Motor Basics: Voltage, Torque & Speed5V DC Motors: Strengths & Limitations12V DC Motors: Strengths &...
Read More →
Best Motor Drivers: L298N vs L293D vs L9110S vs TB6612
Every DC motor and stepper motor project that involves a microcontroller needs a motor driver — an intermediate...
Read More →Technical Specifications
| Model | N20-12V |
|---|---|
| SKU | AI2461 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The N20-12V-400 Rpm Micro Metal Gear Motor is a versatile n20 gear motor without encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
