This is the 6V variant of the N20-6V-100 RPM Micro Metal Gear-box DC Motor in N20 Gear Motor without Encoder. Available at Original price was: ₹202.96.₹197.06Current price is: ₹197.06. (₹167.00 + GST) with free shipping across India.
Product Description:
This N20-6V-100 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.

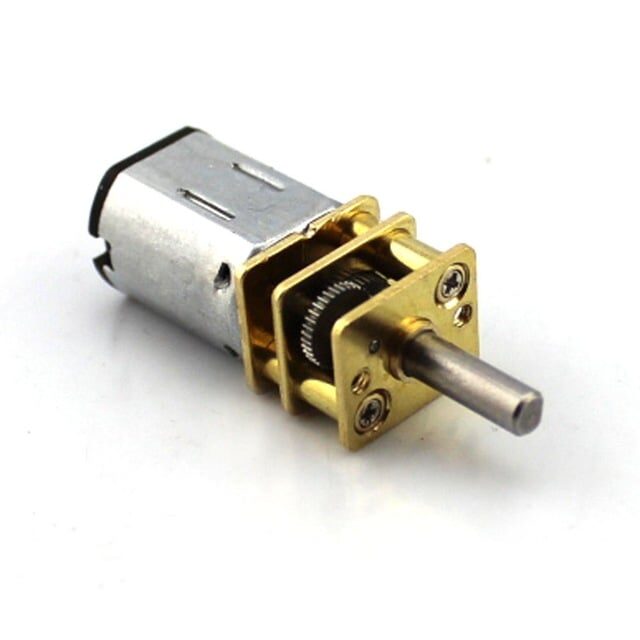

The N20 Micro Gear 6V 100 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 100RPM 6V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
Specification-
| Model No. | N20-6V-100 |
|---|---|
| No Load Current (mA) | 0.04 A |
| Stall Current (A) | 0.67 |
| Rated Torque(kg-cm) | 0.7 |
| Stall Torque(Kg-Cm) | 2.2 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 3 ~ 9 |
| Rated Operating Voltage (VDC) | 6 |
| No load Speed (RPM) | 100 |
| Rated Speed (RPM) | 100 |
| Weight (g): | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Shaft Type | D-type, Single Side |
| Shaft Diameter (mm) | 3 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
Package Includes :
1 x N20-6V-100 RPM Micro Metal Gear-box DC Motor
Stepper Motor Datasheet Reading: Understanding Phase, Current & Steps
Table of Contents Why Reading the Datasheet Matters Step 1: Identify the Motor Type Step 2: Step Angle...
Read More →
Water Pump Motor Control with Relay & Float Sensor Arduino
Table of ContentsIntroduction: Why Automate Your Water Pump?Components RequiredHow a Float Sensor WorksRelay Module Basics for BeginnersWiring Diagram:...
Read More →
Motor Speed Sensor: Optical vs Magnetic Encoder Comparison
Choosing the right motor speed sensor can make or break a robotics or automation project. Whether you're building...
Read More →Technical Specifications
| Model | N20-6V |
|---|---|
| Speed | 100 RPM |
| SKU | AI2463 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The N20-6V-100 RPM Micro Metal Gear-box DC Motor is a versatile n20 gear motor without encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
