RS-555 Motor Multipurpose Brushed 12Volt DC Motor for DIY Applications PCB Drill

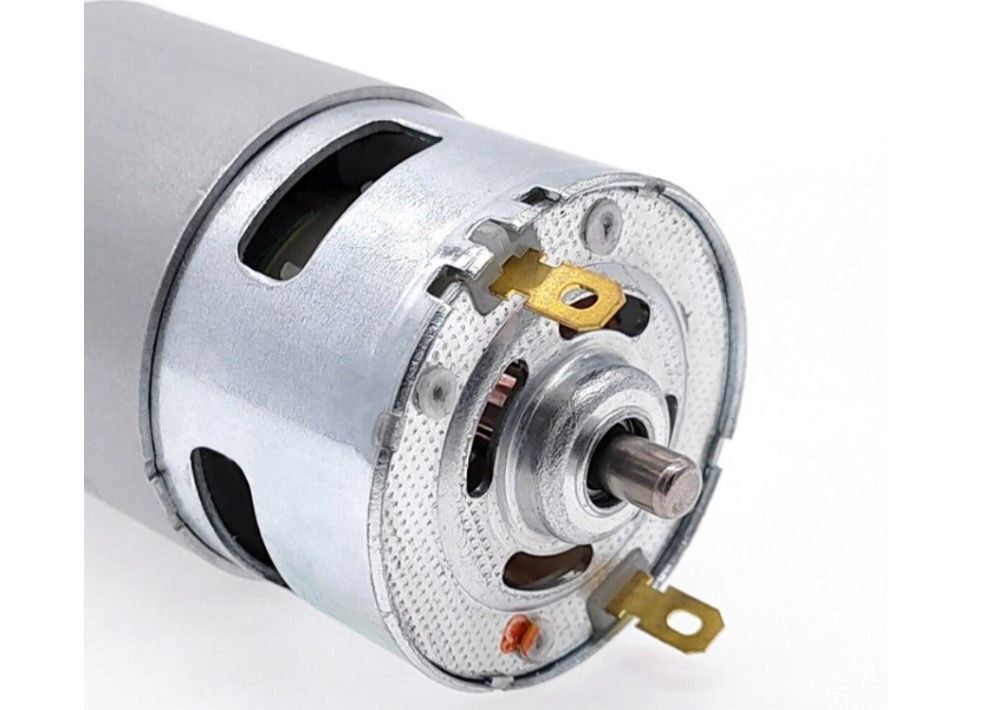

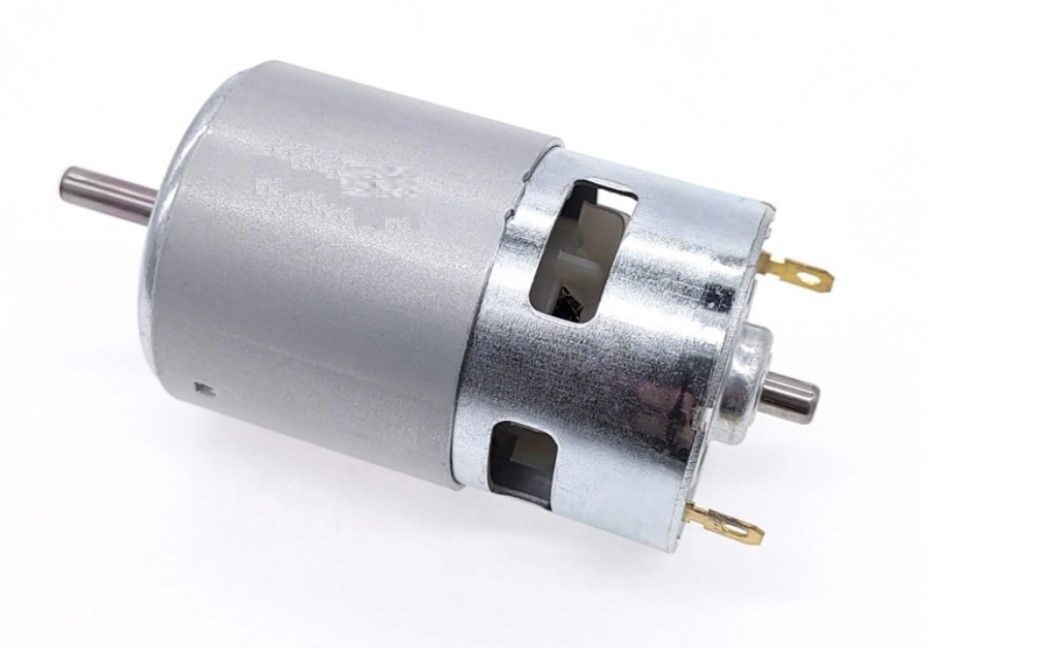

This is the RS-555 12V 4000RPM Brushed DC Motor. This motor will mount to any of the manufacturer’s stock P60 gearboxes. It has a round shaft connector. Its operating voltage is 5V-15V and this motor is 68.5% efficient. Great for the rusty or damaged DC motor on the machine. Comes with a magnetic shield (as shown in the image) To run this motor, you would need a 12 Volt DC Power supply. The Amperage rating on it should be 2 Amp or above. Alternatively, you can also directly connect it to a 12 Volt Battery. Perfect for various DIY applications Like a Drill machine, Water pump, etc. The main application of this motor is to build low RPM; high torque DC motors which are achieved by including gear-box reduction. We can decrease a base motor RPM from 4000 to 1 by just by arranging an extra gear-box.

Features

• Operating Voltage: 5-15VDC
• No Load Current: 0.2A
• No-load Speed: 4000RPM
• Rated Torque: 265 g.cm
• Full Load Current: ≤2A
• Rated Current: ≤2A
• Rated Power: 24W
• Rated Speed: 4000RPM
• Shaft Length: 13.5mmShaft Diameter: 3.17mm
• Motor Total Length: 75mm
• Motor Diameter: 35.5mm
• Approx. Weight: 150gm

Applications

• Printers
• Fuel pumps
• Electric vehicles
• Solar airplanes
• Electric aircraft
• Propulsion systems so on so forth.
• DIY Application
• Drilling Machine

Package Includes

1 x RS-555 Motor Multipurpose Brushed 12Volt DC Motor for DIY applications PCB Drill
