This is the 6V variant of the SEN51 PWM DC 6V 12V 24V 28V 3A DC Motor Speed Regulator in Brushed / Brushless DC motor Driver. Available at ₹96.76 (₹82.00 + GST) with free shipping across India.

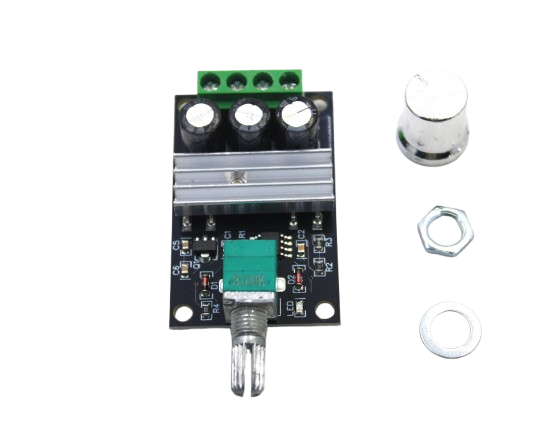

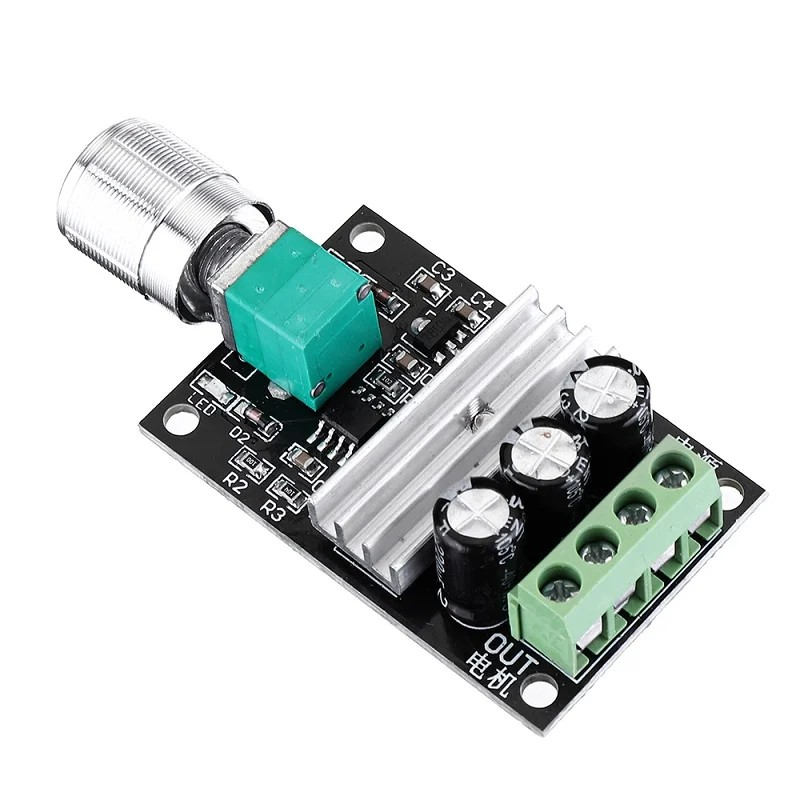

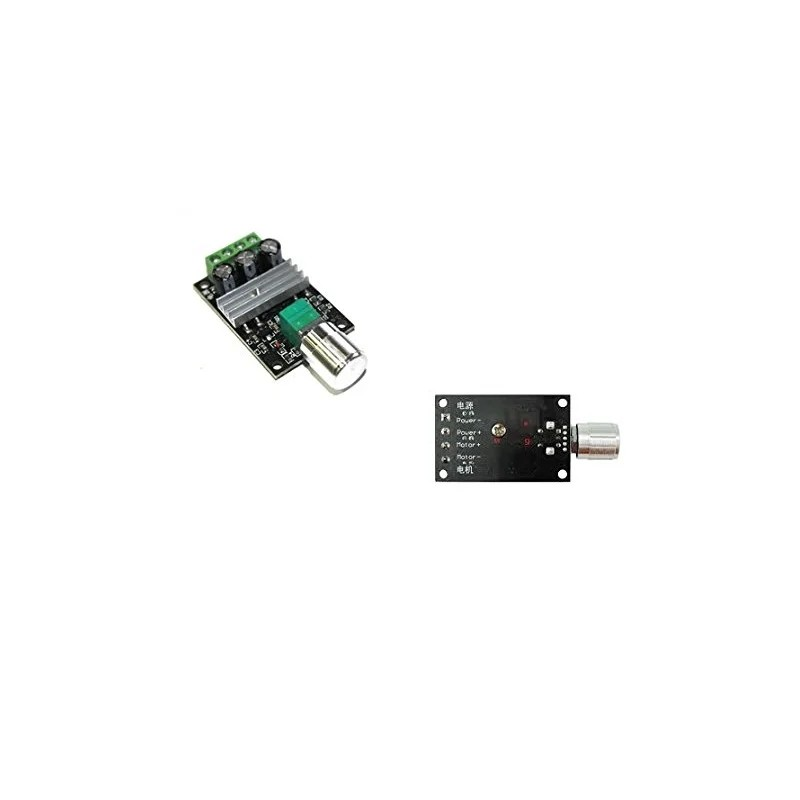

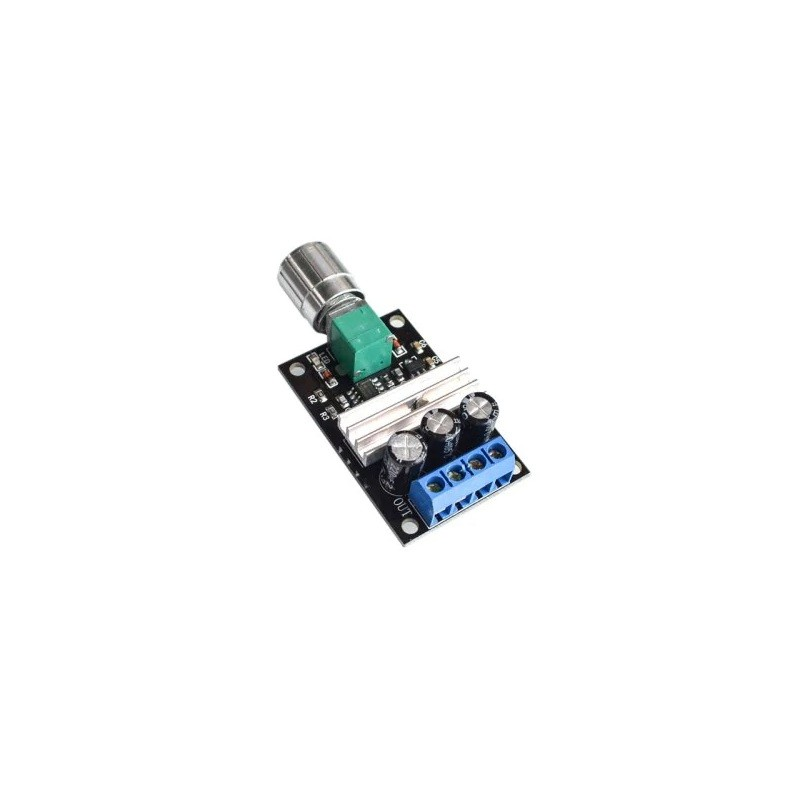

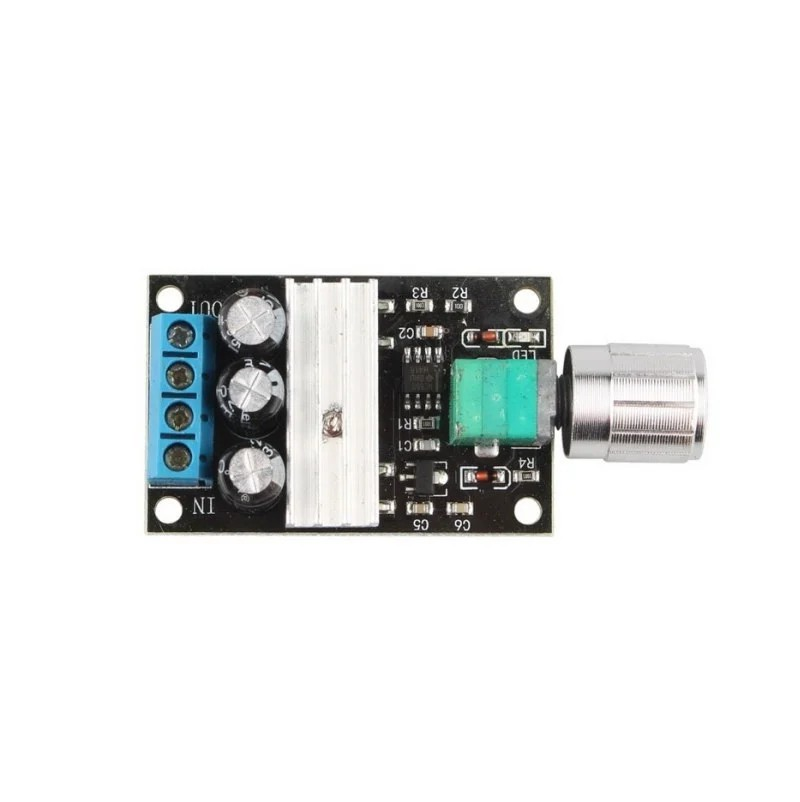

SEN51 PWM DC Motor Speed Regulator
Gain precise control over your motor’s speed with the SEN51 PWM DC Motor Speed Regulator. This versatile device allows you to effortlessly adjust the speed of your DC motor from 0% to 100%. With a continuous current output of up to 3A, it guarantees smooth and dependable motor performance.
Application:
- Suitable for DC motors operating at voltages ranging from 6V to 28V.

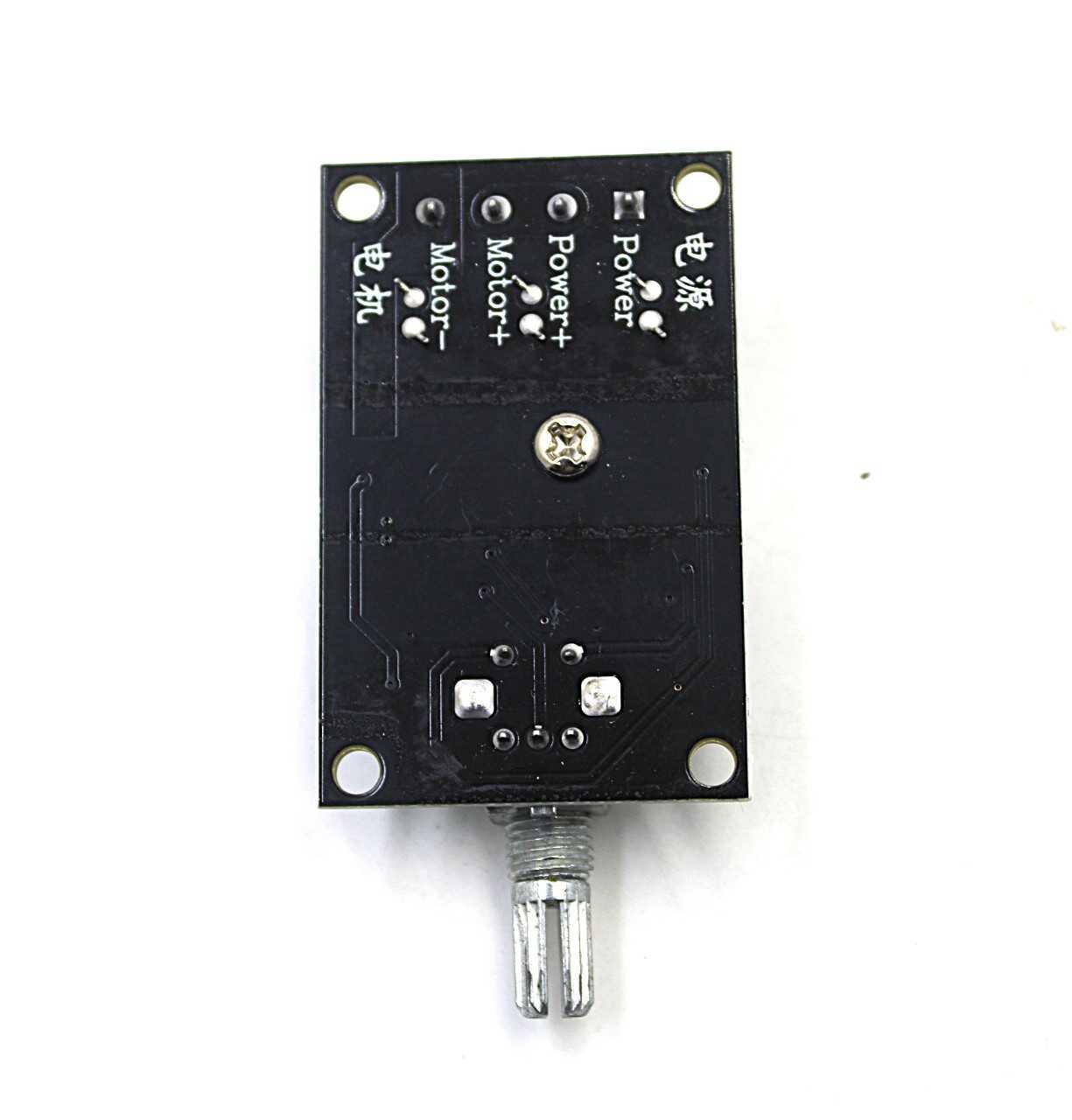

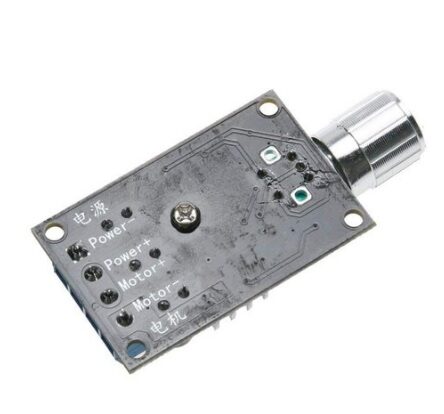

Pinouts:
- Motor+: Motor Positive Terminal
- Motor-: Motor Negative Terminal
- Power+: DC Power Input (6V – 28V)
- Power-: Ground
Note: Product image may vary in terms of front knob or connector color according to availability.
Features:
- Fully Adjustable Speed: Easily adjust the speed of your motor to suit your application’s requirements, ranging from 0% to 100%.
- Wide Voltage Compatibility: Supports DC motors operating within the voltage range of 6V to 28V, offering versatility for various motor types and applications.
- High Current Capacity: Capable of delivering a continuous current of up to 3A, ensuring reliable and efficient motor operation.
- Compact Design: With dimensions of 65 x 30 x 15mm and a lightweight construction weighing only 25g, this speed regulator is compact and easy to integrate into your projects.
- Switch Function: This speed regulator does not include a switch function, providing simple and straightforward operation.
- Durable Construction: Built to last, this speed regulator is designed for longevity and dependable performance in various environments.
Specifications:
| Specification | Details |
|---|---|
| Voltage Range | DC 6V – 28V |
| Current Range | Up to 3A |
| Switch Function | None |
| Speed Range | 0% – 100% |
| Dimension | 65 x 30 x 15mm |
| Weight | 25g |
Enhance the performance of your DC motor applications with the SEN51 PWM DC Motor Speed Regulator. Whether you’re controlling the speed of fans, pumps, or other motor-driven devices, this speed regulator offers the precision and reliability you need for your projects.
Package Includes
- 1 x 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator
Motor Coupling Types: Jaw, Rigid & Oldham for CNC Machines
Motor couplings are one of those components that most hobbyist CNC builders overlook until something goes wrong —...
Read More →
Stepper Motor Wiring: 4-Wire, 6-Wire & 8-Wire Types Explained
Stepper motors are the backbone of precision motion control in 3D printers, CNC machines, robotic arms, and DIY...
Read More →
Water Pump Motor Control with Relay & Float Sensor Arduino
Table of ContentsIntroduction: Why Automate Your Water Pump?Components RequiredHow a Float Sensor WorksRelay Module Basics for BeginnersWiring Diagram:...
Read More →Technical Specifications
| Model | SEN51 |
|---|---|
| Voltage Range | 6V - 28V |
| Current Rating | 3A |
| SKU | AI0075 |
| Weight | 0.020001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SEN51 PWM DC 6V 12V 24V 28V 3A DC Motor Speed Regulator is a versatile brushed / brushless dc motor driver used across a wide range of applications including robot motor control, DC motor speed regulation, H-bridge circuits, electric vehicle drives, and conveyor belt control.
Common use cases:
- Bidirectional motor control for a robot
- PWM speed control of a DC motor
- Building a motorized platform
This product is ideal for robotics engineers and motor control enthusiasts.
Technical Tip: L298N is a classic dual H-bridge driver. For higher efficiency, consider MOSFET-based drivers like BTS7960.
