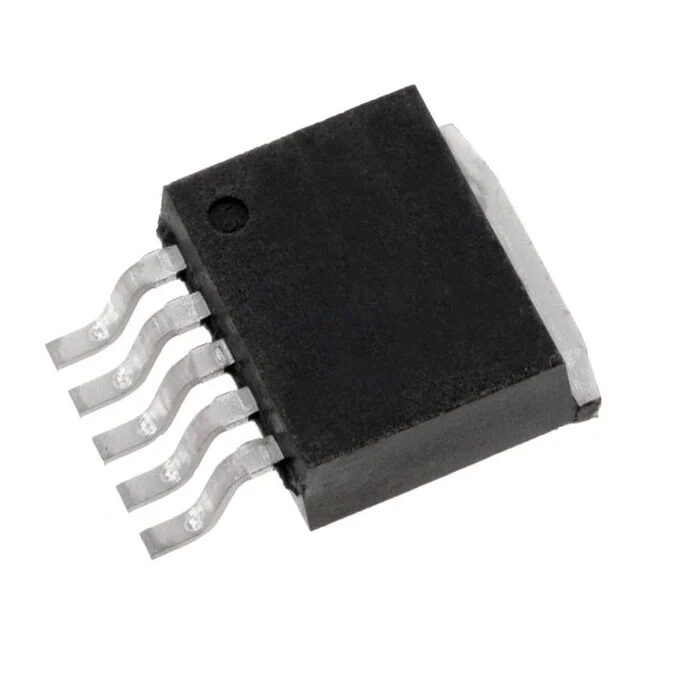

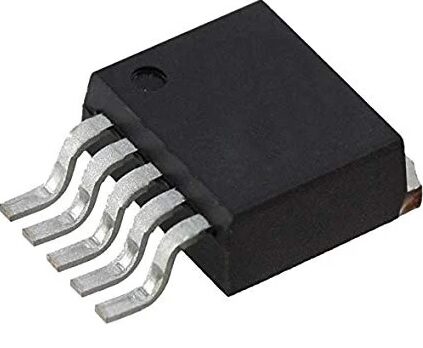

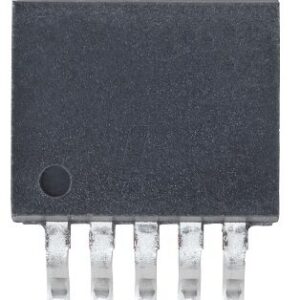

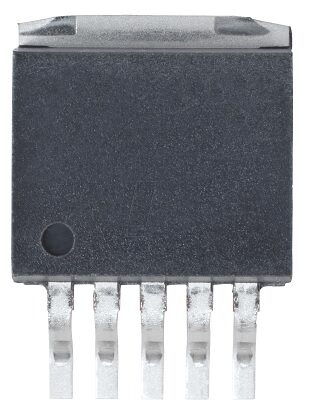

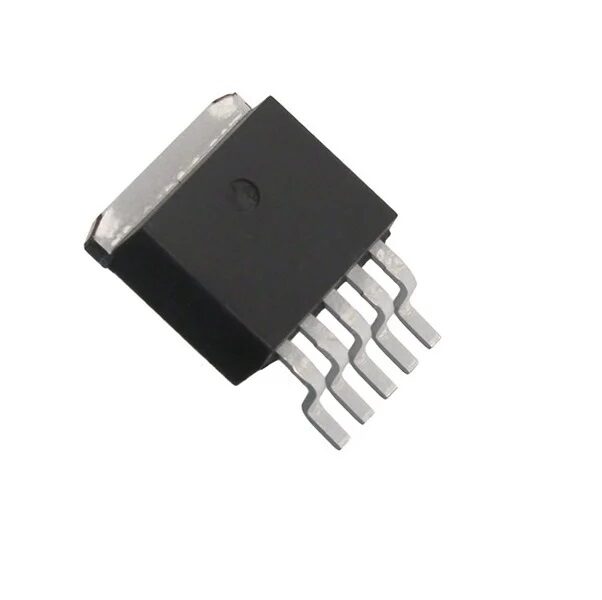

LM2576HVS-12 (TO-263-5) Buck (Step Down) Switching Voltage Regulator
Features:
- Requires only 4 external components
- 52kHz Fixed frequency internal oscillator
- TTL shutdown capability, low power standby mode
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection
- P+ Product enhancement tested
- Applications: Power Management
Specifications:
| Case / Package: | TO-263-5 |
|---|---|
| Mounting Type: | SMD/SMT |
| Product Series | LM2576 |
| No. of Output | 1 |
| Output Type | Fixed |
| Polarity | Positive |
| Switching Frequency (KHz) | 58 |
| Input voltage | 4 V to 60 V |
| Output Voltage(V) | 12 |
| Max. Output Current (A) | 3 |
| Operating Temperature (°C) | -40 to 125 |
| Dimensions (LxWxH) mm | 9.89 x 10.28 x 4.22 |
Package Includes:
1 x LM2576HVS-12 (TO-263-5) Buck (Step Down) Switching Voltage Regulator
LM2576HVS-12 (TO-263-5) Buck (Step Down) Switching Voltage Overview
The LM2576HVS-12 in TO-263-5 package is a fixed 12V buck (step-down) switching regulator capable of delivering up to 3A of continuous load current. Designed for simplicity, it integrates a 52kHz fixed-frequency oscillator, internal frequency compensation and requires only four external components.
Key Features of LM2576HVS-12 (TO-263-5) Buck (Step Down) Switching Voltage
- Fixed 12V output with up to 3A load capability
- 52kHz internal oscillator and built-in frequency compensation
- TTL shutdown pin for low-power standby mode
- Thermal shutdown and current limit protection ensure safe operation
- Requires only four external components using standard inductors
- High efficiency replacement for linear regulators
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- On-board power supply for microcontroller and DSP systems
- Automotive electronics requiring stable 12V rails from higher battery voltages
- Industrial control modules and PLC power sections
- LED lighting drivers and display bias supplies
- Battery-powered equipment and portable instruments
- Solar or renewable energy regulation circuits
How to Use LM2576HVS-12 (TO-263-5) Buck (Step Down) Switching Voltage
To implement the LM2576HVS-12, connect the input voltage (up to its maximum rating) to the VIN pin with an input capacitor, add the required inductor and Schottky diode between switch output and VOUT, and place an output capacitor at VOUT. Tie the SHDN pin low or high using TTL logic to enable or disable the regulator, and ensure all grounds are common for proper regulation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What output voltage does the LM2576HVS-12 provide?
The LM2576HVS-12 is a fixed-output regulator that delivers a precise 12V output, optimized for up to 3A continuous load.
How many external components are required for proper operation?
This regulator requires only four external components: an input capacitor, a standard inductor, a Schottky diode and an output capacitor, simplifying PCB design.
How do I use the TTL shutdown feature?
Drive the SHDN pin with a TTL-compatible signal: pull it low (or to ground) for normal operation and high for low-power standby. This lets you enable or disable the output as needed.
Technical Specifications
| Model | LM2576HVS-12 |
|---|---|
| SKU | AI1174 |
| Weight | 0.003 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LM2576HVS-12 (TO-263-5) Buck (Step Down) Switching Voltage Regulator is a versatile voltage regulator ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
